Ultra-Low Temperature freezers (-80°C)

We can't find products matching the selection.

Freezer Features and Benefits

Print Copy Copied

More Information

i.Series Freezers feature the i.C3 User Interface with a 7" full-color touchscreen monitor that provides constant temperature monitoring and control. This user interface also has multiple information logs with historical data that users can download and save as well as security features to keep your information safe.

System status console offers a snapshot of current storage conditions: temperature, alarm conditions, alerts, unacknowledged alarms, historical temperature data and backup system status
Guardian Plus Protection limits user access on every ultra-low freezer, ensures sample protection and integrity. The access control log tracks door openings by user, recording the date, time, duration and method of access.
Temperature, event, and access data are exported via the USB port of the i.C3 Information Center and can be opened in a spreadsheet program.
Device Status Console delivers diagnostic support by displaying the current and historic status of the refrigeration system on the Device Status and History screen.
7" (177mm) full-color, door-mounted touchscreen
Automatic high/low alarm testing (Peltier based)

USB ports (2) for download/upload/upgrade
Optional RS-232 data port
Dry contact alarm connection
Password protected settings
Digital display of upper and lower chamber temperatures
Event log displays date, time, and temperature
Compressor log displays compressor temperature performance
Interactive temperature graph
Digital calibration
Rechargeable battery backup
RJ45 hub*
Alarms: Dual alarm probes, Door ajar alarm, Power failure alarm, Condenser temperature alarm, Four alarm tones, High and low temperature alarms, Adjustable alarm volume, Alarm mute with adjustable ring-back interval

Model	iUF116	iUF118	iUF124	iUF126
Storage Volume	16 cu. ft. (453L)	18 cu. ft. (510L)	24 cu. ft. (680L)	26 cu. ft. (736L)
2" (51mm) Vial Box Capacity	320	352	480	528
Internal Dims(WxDxH)	23.1 x 23.3 x 49.5 in. (587 x 592 x 1257 mm)	23.1 x 23.3 x 54.1 in. (587 x 592 x 1374 mm)	34.4 x 23.3 x 49.5 in. (874 x 592 x 1257 mm)	34.4 x 23.3 x 54.1 in. (874 x 592 x 1374 mm)
External Dims(WxDxH)	33.8 x 34.8 78.2 in. 859 x 884 x 1986 mm)	28.9 x 34.8 x 78.2 in. (734 x 884 x 1986 mm)	45.1 x 34.8 x 78.2 in. (1146 x 884 x 1986 mm)	40.2 x 34.8 x 78.2 in. (1021 x 884 x 1986 mm)
Overall Dims(WxDxH)	37.1 x 37.5x 78.2 in. (942 x 953x 1986 mm)	32.5 x 37.5x 78.2 in. (826 x 953 x 1986 mm)	48.4 x 37.5 x 78.2 in. (1229 x 953x 1986 mm)	43.8 x 37.5 x 78.2 in. (1113 x 953x 1986 mm)
Insulation	5” foam wall	Premium Vacuum Insulated Panels	5” foam wall	Premium Vacuum Insulated Panels
Compartments and Inner Door	4	5	4	5
Stainless Steel Shelves	3 adjustable (60 lb/73 kg) max load)	4 adjustable (60 lb/73 kg) max load)	3 adjustable (60 lb/73 kg) max load)	4 adjustable (60 lb/73 kg) max load)
Temp. Range	-50ºC to -86ºC @ 32ºC (90ºF) Ambient
Temp. Uniformity	+/-5°C at -80°C Setpoint
Controller Type	Microprocessor with touchscreen input and display. Includes USB hub for data retrieval.
Security	Lockable door, PIN access control, password setpoints, padlock hasp
Battery Backup	20 hour display and alarm battery backup for i.C³® touchscreen (12V, lead acid battery)
Communication Ports	(1) RS232 Port (rear) and (1) USB Port (side of door-mounted user interface)
Display	i.C3®, eye-level, color touchscreen
Shelf Load	160 lbs. (73 kg) max. cap
Certifications	Certified to applicable UL and CSA standards by a NRTL
Electrical	208/230V 60Hz, 1 Phase
Additional Features	Adjustable hinges prevent door sag Washable filter keeps dirt and other particles out for increased refrigeration performance USB port for downloading temperature, event, and access data or to upload software updates Guardian Plus™ Access Control Ergonomic one-hand operation
Warranty	5 years compressor, 2 years parts and labor

Learn More

Compact and Stackable

Energy-efficient 3.5 cu. ft. -86°C ULT Undercounter Freezer by Haier Biomedical with a 70 mm insulation layer, a two-door design and audible alarms fits under a work bench or stacked to double storage ideal in small lab spaces

Learn More

LN2 Alternative

Economical -150ºC Cryogenic Chest Freezer by Haier Biomedical with a stainless steel interior is an excellent alternative to LN2 systems for long-term storage of viruses, electronic products and other special test materials

Learn More

Security Features

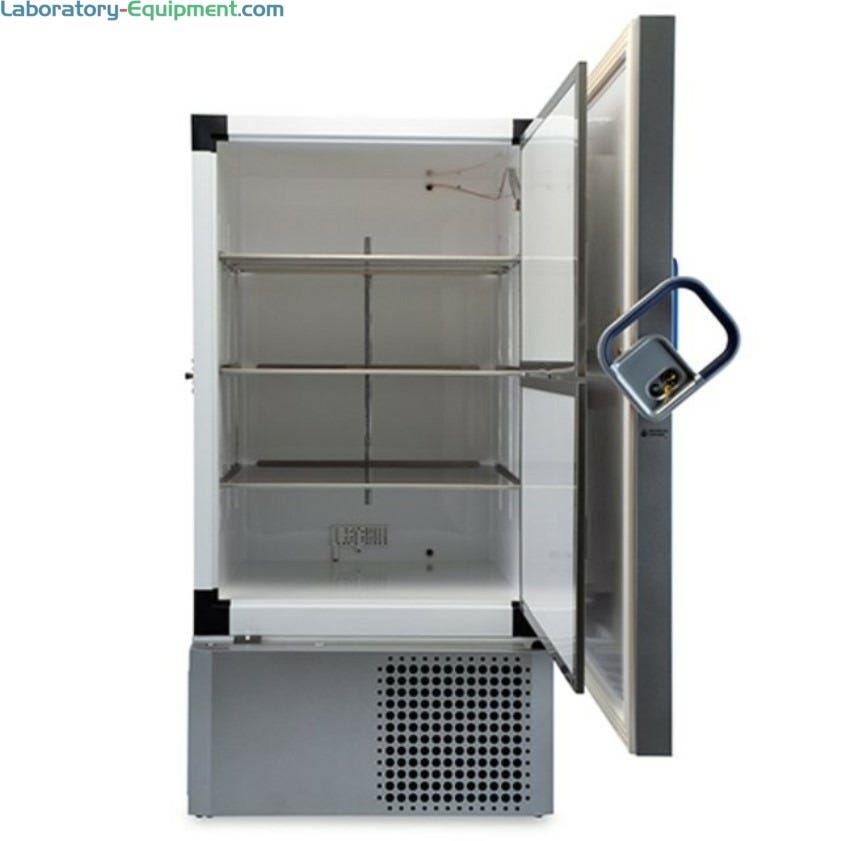

TSX ULT Freezers by Thermo Fisher Scientific with V-Drive technology with a temperature recovery of less than 30 minutes, alarm settings, padlock-compatible doors and an optional access card entry for product protection

Learn More

Inner Doors

TDE ULT Freezers by Thermo Fisher Scientific, listed as an FDA Class II Medical Device for Storage of Blood, Plasma, Tissue, Skin, and Bone feature four inner compartment doors that minimize ambient temperature during door openings

Learn More

Climate Neutral Refrigerants

Energy-efficient UF V Ultra-Low Temperature Freezers by Binder with an -86°C setpoint features R-290 and R-170 refrigerants and an energy-efficient large vacuum-based thermal insulation for long-term storage of sensitive samples

Freezer Images

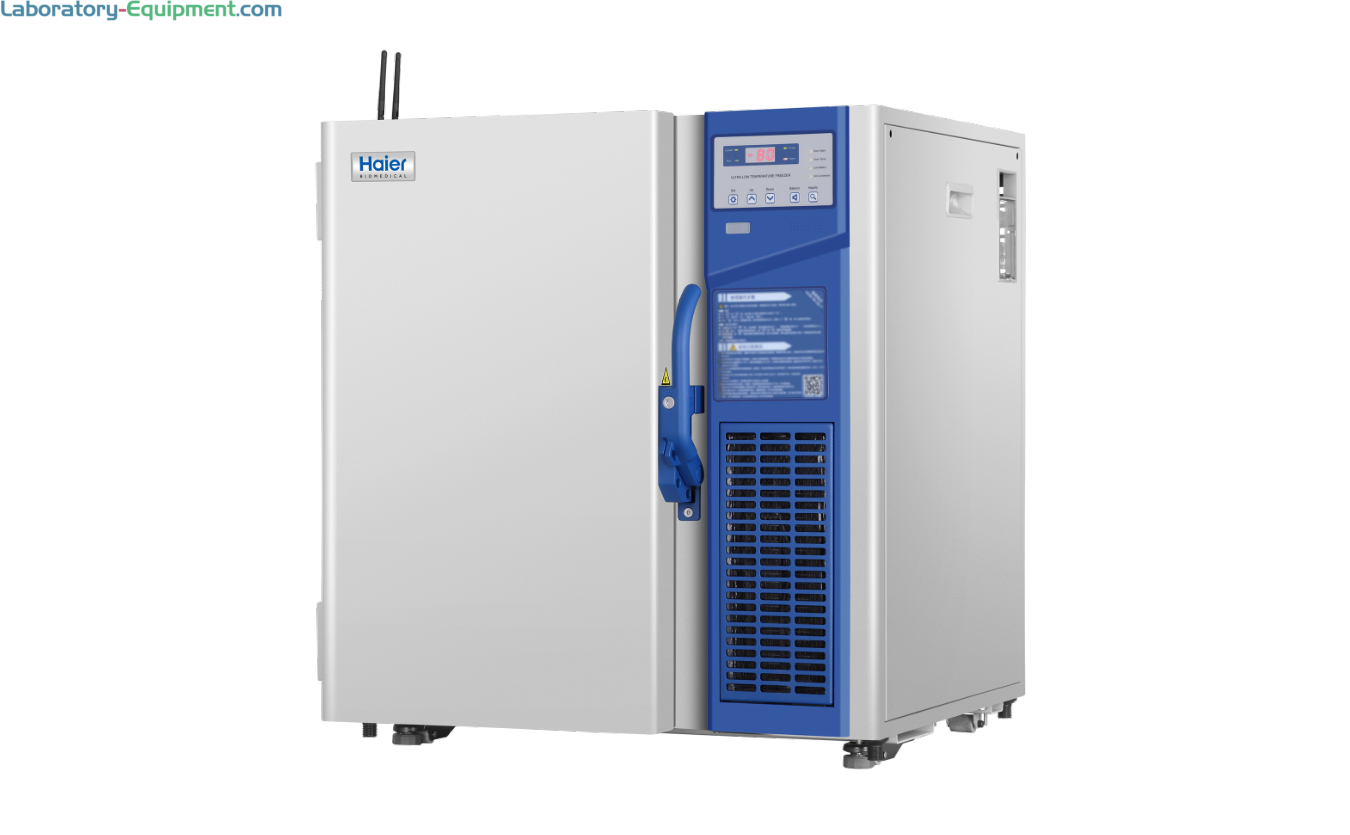

3.5 cu. ft. Undercounter -86ºC Ultra-Low Temperature Freezer by Haier Biomedical
-150ºC Cryo Freezer by Haier Biomedical
TLE Series Ultra-Low Freezers

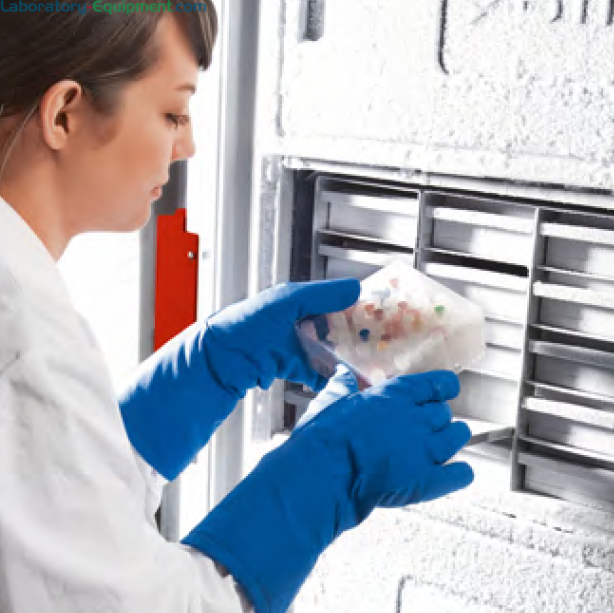

UFV Ultra-Low Temperature Freezers by BINDER
ENERGY STAR Certified TSX Universal Series ULT Freezers by Thermo Fisher Scientific
Comparison Chart for TSX Universal Series Ultra-Low Temperature Freezers by Thermo Fisher Scientific

Energy-efficient and stackable -86ºC ULT Undercounter Freezer with an ergonomic design, manual defrost and double SS inner door for superior thermal insulation | 1720-90 displayed 3.5 cu. ft. Undercounter -86ºC Ultra-Low Temperature Freezer by Haier Biomedical Energy-efficient and stackable -86ºC ULT Undercounter Freezer with an ergonomic design, manual defrost and double SS inner door for superior thermal insulation

Economical and safer alternative to LN2 refrigeration systems, -150ºC Cryogenic Chest Freezer stores biological samples and electronic products for testing | 1720-91 displayed -150ºC Cryo Freezer by Haier Biomedical

TLE Series Ultra-Low Freezers TLE Series Ultra-Low Freezers

-86 °C temperature setpoint UFV ULT Freezers by BINDER in 16.8 and 24.7 cu.ft. capacities are ideal for use in vaccine storage | 6707-PP-13 displayed UFV Ultra-Low Temperature Freezers by BINDER

Energy-efficient TSX Universal Series ULT Freezers by Thermo Scientific with an increased setpoint of –70°C setpoint and an enhanced variable speed compressor | 6707-PP-18 displayed ENERGY STAR Certified TSX Universal Series ULT Freezers by Thermo Fisher Scientific

Compare TSX Universal Series Ultra-Low Temperature Freezers by Thermo Fisher Scientific featuring Enhanced V-Drive for better performance and energy-efficiency Comparison Chart for TSX Universal Series Ultra-Low Temperature Freezers by Thermo Fisher Scientific
