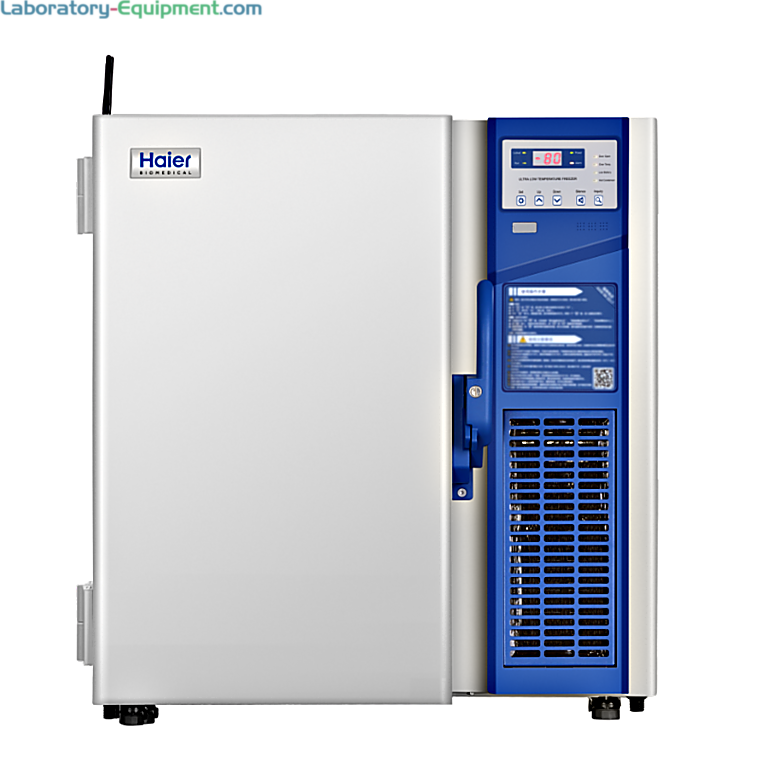

Energy-efficient and stackable 3.5 cu. ft. -86°C ULT freezer with a 70 mm insulation layer
31.88" (810 mm) height fits under work bench
Ergonomic door handle is easy to open while sitting or standing; audible and flashing light alarm
Optimized for energy efficiency with a power consumption of 5.5kW/24 hours
• Includes: stainless steel shelf, caster, foot, porthole, USB interface, 5V port and RS 485 Port
Interior dimension (inches): 13" W x 19"D x 25" H
Applications: clinical, medical and scientific research; storage of biological samples, red and white blood cells, viruses, bacteria, bone and vaccines in ultra-low tempElectrical Specifications: 120 V, 6.5 A, 680 W, 60 Hzerature
Thermal insulation performance: 70 mm thick insulation layer, 25 mm VIP, four layers of silicone seal
Optimized single compressor with auto-cascade technology performance: -86°C
Stores up to 10 years of historical data for compliance
Features: upright design, direct cooling, manual defrost, HC refrigerant, microprocessor controller and LED display, USB port cable, user-settable parameters, real-time temperature display
Adjustable precision: 1° C
Stores electronic devices used for cryogenic tests
Battery backup alarm functions 24 hours in event of power outage
Alarm features: remote,, high/low temperature, hot condenser, power failure, high/low voltage, sensor error, low battery, high ambient temperature, door ajar
Container load (20'/40'/40'H): 44/88/88 lbs.
5V power supply for test equipment
Featured door lock prevents unauthorized access
Optional loT module monitors running state of refrigerator
Video Demonstration for -86ºC ULT Undercounter Freezer by Haier Biomedical
Shows product benefits, design and features of -86ºC ULT Undercounter Freezer by Haier BiomedicalVideo Demonstration for -86ºC ULT Undercounter Freezer by Haier BiomedicalHighlights how the 3.5 cu. ft. model #DW-86L100J maximizes storage, reduces operational noise and stores up to 6,000 biological samples
