Affordable and configurable Microlab NIMBUS automated liquid handling robots available in three sizes with an open, enclosed or extended enclosed platform | 7906-PP-05 displayed
Liquid Handlers & Robotics

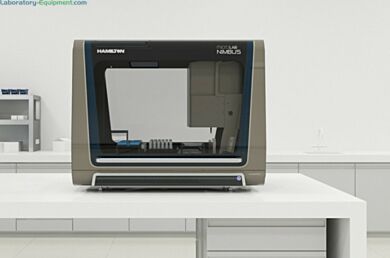

Microlab NIMBUS96 Automated Liquid Handler by Hamilton Robotics

  • Compact and affordable NIMBUS96 Automated Liquid Handler with high-speed CO-RE 96 multi-probe head for fast and accurate pipetting to 96-384-well plates
  • Dynamic pipetting range from 1 μL to 1000 μL
  • Flexible pipetting for tubes and plates; cLLD and pLLD for polar and non-polar (organic) liquids
  • Air displacement technology provides liquid handling performance comparable with higher-end models
  • Choose base platform configuration: Open, Extended Enclosed (12”), or Large Extended Enclosed (24”)

• Type: Automated Liquid Handling

• Model: NIMBUS96

• Manufactured by: Hamilton Robotics

• Configuration: Multi Channel

• Pipetting Range: 1 ul - 1,000 ul

• Unit of Measure: EA

Read more
Manufacturer SKU: NIMBUS96
Manufactured By: Hamilton
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
7906-58
Terra Part # 7906-58
Request Quote

Want it faster ? Read about FasTrak

Terra Part # 7906-58
80290
Request Quote

Want it faster ? Read about FasTrak

Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Compact and affordable NIMBUS96 Automated Liquid Handler with high-speed CO-RE 96 multi-probe head for fast and accurate pipetting to 96-384-well plates
  • Dynamic pipetting range from 1 μL to 1000 μL
  • Flexible pipetting for tubes and plates; cLLD and pLLD for polar and non-polar (organic) liquids
  • Air displacement technology provides liquid handling performance comparable with higher-end models
  • Choose base platform configuration: Open, Extended Enclosed (12”), or Large Extended Enclosed (24”)
  • Features:
  • Available locking cover set on enclosed models minimizes environmental contamination
  • Extension plate on left or right side of extended models provides four additional locations for Hamilton stackers, pedestals, Hamilton Heater Shaker and small third-party devices
  • Door locks automatically on enclosed models when system is running, pause/park button, attachable waste station for used tips and NTRs, communications and control panel
  • Movement and status indicators provides visual cues to the operational status
  • CO-RE Paddles enable transport of plates or tips across deck without a dedicated labware gripper
  • Compressed O-Ring Expansion (CO-RE) with robust lock-and-key attaches disposable tips, needles or transportation tools to pipetting channels without the vertical force eliminates stress and improves overall system reliability, speed, positional accuracy and dexterity
  • Air Displacement Pipetting: analogous to hand pipetting and the benefits of liquid-free pipetting, reduces the risk of contamination, provides accuracy and precision from sub-microliter to large volumes (>1 mL), pipetting range from 0.5 μL to 1000 μL
  • Liquid Level Detection (LLD): capacitatiive (cLLD) and pressure-based (pLLD)
  • Monitor Air Displacement (MAD) provides real-time detection of clots or empty wells during aspiration
  • INSTINCT and VENUS Software:
  • Instinct Software for basic programming:
  • User-friendly with graphical user interface, labware library, quick selection of most used labware, liquid class tuner, 3D viewing
  • Automated deck layouts and automated tip tracking
  • Auto-transports labware to destination or waste locations
  • Dedicated Wizard designed for basic tasks and used pipetting routines such as: serial dilutions, reagent additions, plate replications, tube to plate, PCR setup, SPE
  • VENUS Software for advanced programming:
  • Enables creation or modification of complex methods from scratch with a range of utilities for: worklist importing/exporting, error handling and recovery, LMS adaptation, database/server controls, scheduling, integrated third-party device control
  • 21 CFT Part II compliant
  • Audit trails, user group defined security functionality and checksum system for file fidelity
  • Automated Applications:
  • ADMET assays, CE analysis setup, Cell assays and feeding, Cloning assays, DNA/RNA extraction and purification, ELISA preparation and processing, Liquid-liquid extraction, MALDI target spotting, Microarray sample preparation, PCR setup and purification, Post-PCR cleanup, Protein purification and digestion, Sample normalization, Sample pooling, Sequencing assays, Solid phase extraction, Solubility assays
  • Integrated Options (specify when ordering):
  • Versatile Deck Options satisfies different assays:
  •        3 x 4 with 12 positions used for all standard SLAS ANSI labware
  •        9 + 2 for 11 SLAS ANSI positions, 9 positions for standard SLAS ANSI labware, 2 positions for tip stacking, plate stacking, small third-party integrations and for labware taller than 118 mm, and plate barcode reading
  • Barcode Scanner reads 1D barcodes microplates presented by the optional Labware Gripper
  • Labware gripper arm with 270° rotation allows seamless handoffs to integrated devices of single or stacked microplates, lids, and Hamilton’s Nested Tip Racks (NTR)
  • CO-RE Paddles cost-effective on-deck transport of labware (available for 1000 μL and 5 mL channels)
  • MPE: compact device automates positive pressure solid phase extraction (SPE) and evaporation, applies up to 100 psi of pressure with dual circuit even-flow manifold
  • Clean Air Protection System (CAP): cost-effective solution for sterile airflow
  • CO-RE Lid Tool: picks up microplates and petri dish lids
  • Hamilton Heater Shaker: on-deck orbital shaking and heating up to 100°C and accommodates various SLAS ANSI plates, from microliter to deep-well plates, and tube
  • Plate Tilt Module, Fill Module, and NIMBUS Vacuum Station (NVS)
  • Accessories: labware pedestals, labware adapters (speak to our product specialist for details)
  • Consumables: Sterile and non-sterile CO-RE tips from 10μL to 5,000 μL, nested tip racks
  • Specifications:
  • Power Supply: UL/CSA/CE approved universal power supply with IEC connection
  • NIMBUS CSA Certification: Installation Category – II; Pollution degree – 2
  • Operating Temperature: 15° to 35 °C (59° to 95 °F)
  • Relative Humidity: 30% to 85% R.H. non-condensing
  • Altitude: 0 – 2000 m above sea level
  • Storage Temperature: -20 °C (-4.0 °F) @ 10% humidity to 70 °C (158 °F) @ 90% humidity non-condensing
Show more

• Type: Automated Liquid Handling

• Model: NIMBUS96

• Manufactured by: Hamilton Robotics

• Configuration: Multi Channel

• Pipetting Range: 1 ul - 1,000 ul

• Unit of Measure: EA

• Electrical Specifications: 100/240 V, 5 A, 600 W, 50/60 Hz

Show more
Manuals & Resources
Other products you may find relevant
  1. FTIR 4600/4700 Spectrometers with a 45º Michelson interferometer and Peltier DLATGS detector; ATR Measurement and CFR software models available (call for info)
    Group of 5 products
    FT/IR 4000 and FT/IR 6000 Series Spectrometers by Jasco From
    As low as $19,344
    Some ship in 15 - 19 days
  2. Single monochromator, dual gratings, a PbS detector, 190-2700 nm UV-Vis range and optional 3200nm NIR wavelength kit; CFR software and Remote Module available
    Group of 2 products
    V-700 Series UV-Vis/NIR Spectrophotometers by Jasco From
    As low as $27,428
    Some ship in 15 - 19 days
  3. 1.6L Megafuge ST1 Plus Centrifuge Packages with TX-400 Swinging Bucket Rotor for cell culture or blood tubes include buckets, adapters and biocontainment lids
    Group of 6 products
    Megafuge ST1 and ST1R Plus Centrifuge Packages by Thermo Fisher Scientific From
    As low as $8,646
    Some ship in 10 - 14 days
  4. The qTower 3 Auto provides homogeneous excitation, detection and a two year device warranty | 1016-67 displayed
    Group of 4 products
    qTOWER 3 Real-Time PCR Thermal Cyclers by Analytik Jena From
    As low as $19,116
    Some ship in 10 - 16 days
  5. UV/Vis spectrometer-based SPECTROstar Nano Plate Reader for microplates and cuvettes measures full spectrum absorbance (220-1000 nm) in less than 1 second/well | 8000-86 displayed
    Plate Reader; SPECTROstar Nano, Absorbance, ELISA, 1536 Well, BMG LabTech
    $10,868
    Usually Ships in 10 - 20 days

Liquid Handlers & Robotics

  • Microlab NIMBUS Personal Pipetting Workstation Video by Hamilton Robotics Microlab NIMBUS Personal Pipetting Workstation Video by Hamilton Robotics
Microlab NIMBUS Personal Pipetting Workstation Video by Hamilton Robotics
Video for Microlab NIMBUS Personal Pipetting Workstation Video by Hamilton Robotics shows product features and benefits Microlab NIMBUS Personal Pipetting Workstation Video by Hamilton Robotics Video highlights automated features and deck capacity of Microlab NIMBUS Personal Pipetting Workstation by Hamilton Robotics

Features and Benefits

Easy Loading

Microlab NIMBUS models with an open platform easily load carrier pedestals, plates, tubes, adapters and tip racks onto the high-density main deck

Open and Enclosed Platforms

NIMBUS4, NIMBUS96 and NIMBUS384 models are available in three configurations: open, enclosed and extended enclosed platforms

Fast and Accurate Pipetting

NIMBUS96 and NIMBUS384 models deliver fast and precise pipetting to 96- or 384-well plates

On- and Off-Deck Plate Handling

NIMBUS models with an optional labware gripper arm for seamless handoffs to integrated devices on- and off-deck

Wide Range of CO-RE Tips

CO-RE pipetting tips with a compressed O-ring expansion are compatible with all Hamilton Robotics liquid handling platforms
