FreeZone 4.5L -105C Freeze Dryers by Labconco for low eutectic samples including dilute methanol and ethanol;
Freeze Dryers

Freeze Dryer; Benchtop, 4.5L, -84°C, PTFE-Coated Collector, Labconco, FreeZone, 120 V

  • Removes a maximum of 2.5 liters of water in 24 hrs
  • Two 1/2 hp HCFC/CFC-free refrigeration systems
  • FreeZone lyophilizer with 5" full color Lyo-works touchscreen display
  • Stainless steel chamber and collector coil
  • Requires: vacuum pump displacement, drying accessory and freeze dry glassware

• Ice Holding Capacity: 4.5L

• Aqueous or Solid Samples?: Low Eutectic Point

• Material: PTFE

• Included Accessories: PTFE-Coated Collector

• Model: FreeZone

• Manufactured by: Labconco

• Collector Temperature: -84°C

• Configuration: Benchtop

• Options: 12-Port Drying Chamber/PTFE Collector

• Manufacturer SKU: 710402000

• Unit of Measure: EA

Read more
cULus Logo CE Mark Logo ETL-Listed C US Logo
Manufacturer SKU: 710402000+CRATESKL
Manufactured By: Labconco
Warranty: 1 Year
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6923-32A
Terra Part # 6923-32A
$13,549
Usually ships in 30-34 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6923-32A
73356
Freeze Dryer; Benchtop, 4.5L, -84°C, PTFE-Coated Collector, Labconco, FreeZone, 120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Removes a maximum of 2.5 liters of water in 24 hrs
  • Two 1/2 hp HCFC/CFC-free refrigeration systems
  • FreeZone lyophilizer with 5" full color Lyo-works touchscreen display
  • Stainless steel chamber and collector coil
  • Requires: vacuum pump displacement, drying accessory and freeze dry glassware
  • ¾" thick collector lid with neoprene gaskets
  • Program storage: 30 with up to 16 steps each
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • 3" diameter port connects drying accessories
  • On/standby switch, moisture sensor and USB port
  • Quick-disconnect drain hose fitting and lanyard with hose connector
  • Electrical receptacle
  • Lyo-Works 5" touch screen features:
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents program changes
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • Vacuum control valve and vacuum break valve
Show more

• Ice Holding Capacity: 4.5L

• Aqueous or Solid Samples?: Low Eutectic Point

• Material: PTFE

• Included Accessories: PTFE-Coated Collector

• Model: FreeZone

• Manufactured by: Labconco

• Collector Temperature: -84°C

• Configuration: Benchtop

• Options: 12-Port Drying Chamber/PTFE Collector

• Manufacturer SKU: 710402000

• Unit of Measure: EA

• Marks & Listings: UL, CSA

• Electrical Specifications: 120 V, 16 A, 60 Hz

• Weight, Product: 178 lb

• Dimensions, Product: 22.5" W x 26.5" D x 18.5" H

• Weight, Shipping: 197 lb

• Dimensions, Shipping: 32" W x 26" D x 28" H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds. | 3647-87 displayed
    Fast-Freeze Flask, 40ml, for FreeZone systems
    $95
    Usually Ships in 5 - 7 days
  2. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 80ml, for FreeZone systems
    $134
    Usually Ships in 5 - 7 days
  3. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems
    $183
    Usually Ships in 5 - 7 days
  4. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems
    $189
    Usually Ships in 5 - 7 days
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems
    $276
    Usually Ships in 5 - 7 days
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems
    $223
    Usually Ships in 5 - 7 days
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems
    $297
    Usually Ships in 5 - 7 days
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems
    $332
    Usually Ships in 5 - 7 days
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems
    $396
    Usually Ships in 5 - 7 days
Buy Accessories
  1. Provides a convenient means to attach samples to a freeze dry system | 3647-84 displayed
    Drying Chamber, 12-port, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $2,024
    Increase Down Increase Up

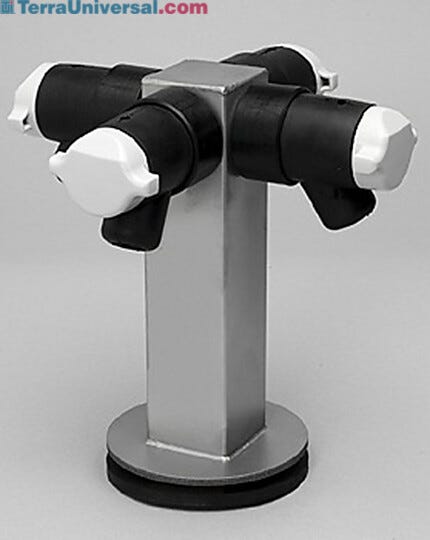

  2. Adapters for connection of flasks | 3647-86A displayed
    4-Port Manifold for FreeZone systems Ships Free Free shipping in contiguous USA
    $880
    Increase Down Increase Up
  3. Adapters for connection of flasks | 3648-50 displayed
    20-Port Manifold for FreeZone Ships Free Free shipping in contiguous USA
    $2,867
    Increase Down Increase Up
  4. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds. | 3647-87 displayed
    Fast-Freeze Flask, 40ml, for FreeZone systems In stock soon
    $95
    Increase Down Increase Up
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 80ml, for FreeZone systems In stock soon
    $134
    Increase Down Increase Up
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $183
    Increase Down Increase Up
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $189
    Increase Down Increase Up
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $223
    Increase Down Increase Up
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $276
    Increase Down Increase Up
  10. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $297
    Increase Down Increase Up
  11. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $332
    Increase Down Increase Up
  12. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems Ships Free Free shipping in contiguous USA In stock soon
    $396
    Increase Down Increase Up
  13. Adaptor, 0.5" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems In stock soon
    $13
    Increase Down Increase Up
  14. Adaptor, 0.5" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems In stock soon
    $23
    Increase Down Increase Up
  15. Adaptor, 0.75" flask to 0.75" valve, Borosilicate No Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.75" valve, Borosilicate No Angle, for FreeZone systems In stock soon
    $17
    Increase Down Increase Up
  16. Adaptor, 0.75" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.5" valve, Borosilicate, No Angle, for FreeZone systems In stock soon
    $23
    Increase Down Increase Up
  17. Borosilicate glass or stainless steel adapters are available either straight or in a 45 degree angle | 3647-99-45 displayed
    Adaptor, 0.75" flask to 0.5" valve, Borosilicate, 45 Angle, for FreeZone systems In stock soon
    $39
    Increase Down Increase Up
  18. Adaptor, 0.5" flask to 0.5" valve, SS, No Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, SS, No Angle, for FreeZone systems In stock soon
    $34
    Increase Down Increase Up
  19. Adaptor, 0.5" flask to 0.5" valve, SS, 45 Angle, for FreeZone systems
    Adaptor, 0.5" flask to 0.5" valve, SS, 45 Angle, for FreeZone systems In stock soon
    $44
    Increase Down Increase Up
  20. Adaptor, 0.75" flask to 0.75" valve, SS, No Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.75" valve, SS, No Angle, for FreeZone systems In stock soon
    $34
    Increase Down Increase Up
  21. Adaptor, 0.75" flask to 0.75" valve, SS, 45 Angle, for FreeZone systems
    Adaptor, 0.75" flask to 0.75" valve, SS, 45 Angle, for FreeZone systems In stock soon
    $44
    Increase Down Increase Up
  22. Provide easy transfer of equipment from countertop to cart. | 3647-79 displayed
    Portable Table, for FreeZone Benchtop In stock soon
    $620
    Increase Down Increase Up
  23. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Freeze Dryers

  • FreeZone 4.5L -50C Freeze Dryers by Labconco FreeZone 4.5L -50C Freeze Dryers by Labconco
  • FreeZone 4.5L -84C Freeze Dryers by Labconco FreeZone 4.5L -84C Freeze Dryers by Labconco
FreeZone 4.5L -50C Freeze Dryers by Labconco
FreeZone 4.5L -50C Freeze Dryers by Labconco with Lyo-Works real time touchscreen display | 6923-34A displayed FreeZone 4.5L -50C Freeze Dryers by Labconco FreeZone 4.5L -50C Freeze Dryers by Labconco with Lyo-Works real time touchscreen display; for lyophilizing aqueous samples.
FreeZone 4.5L -84C Freeze Dryers by Labconco
FreeZone 4.5L -84C Freeze Dryers with aPTFE collector coil by Labconco lyophilize samples with low eutectic points | 6923-32A displayed FreeZone 4.5L -84C Freeze Dryers by Labconco FreeZone 4.5L Freeze Dryers also available in -50C and -105C models with select models featuring a corrosion-resistant collector; lyophilizers require a vacuum pump, drying chambers and freeze dry glasswares

Features and Benefits

Learn More: FreeZone 4.5L
Print Copy Copied

Additional Features

  • 3" diameter port (for connecting drying accessories)
  • Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system in real time
  • Modes: Collector cool-down (start-up) and vacuum pull-down (automatic or manual)
  • Operating mode (standby or run)
  • Settings: multi-language, time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa)
  • Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters
  • Data logging storage and display: table or chart format exportable via USB or Ethernet
  • Programmable alerts can be sent via Ethernet connection to user-entered email addresses.
  • Display settings: brightness, touch sounds (on/off), and screen time out in minutes (on/off)
  • Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset
  • Level-specific security lock-out prevents changes to programs and other system parameters
  • Hot gas defrost with auto shut off at +65° C (+149° F)
  • On/standby switch
  • Moisture sensor prevents refrigeration or vacuum start-up when moisture is detected in the drain line
  • USB port (side-mounted) and Ethernet connection (rear-mounted)
  • Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector
  • Rear-mounted electrical receptacle for vacuum pump connection
  • Includes: 18", 1/4" ID silicone tubing and clamp, 3-wire electrical cord with plug
  • 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps
  • Vacuum control valve maintains vacuum level set point
  • Vacuum break valve bleeds air into the system in event of power outage
-50°C Collector Temperature
  • For aqueous samples
  • Single 1/3 hp HCFC/CFC-free refrigeration system
  • Removes over 2 liters of water in 24 hours
-84°C Collector Temperature
  • For samples with low eutectic points including acetonitrile
  • Two 1/3 hp HCFC/CFC-free refrigeration system
  • Removes 4 liters of water in 24 hours
-105°C Collector Temperature
  • For samples with very low eutectic points including acetonitrile and diluted methanol or ethanol
  • Two 1/2 hp HCFC/CFC-free refrigeration systems
  • Removes 2.5 liters of water in 24 hours

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Labconco FreeZone Vacuum Pump

    Labconco Rotary Vane Vacuum Pump for FreeZone

    Compatible with Labconco FreeZone Freeze Dryers, CentriVap Concentrators, and Precise or Protector glove boxes requiring vacuum service.

  • Drying Chamber, 12-port, for FreeZone systems

  • FreeZone Freeze Dry Glasswares by Labconco

    FreeZone Freeze Dry Glasswares by Labconco

    Clear Fast-Freeze Flasks by Labconco, compatible with FreeZone Freeze Dryers, are available in a variety of volume capacities; glass flasks withstand temperatures up to 490º C and include a rubber top, a glass bottom and filter paper.
Other products you may find relevant
  1. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds. | 3647-87 displayed
    Fast-Freeze Flask, 40ml, for FreeZone systems
    $95
    Usually Ships in 5 - 7 days
  2. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 80ml, for FreeZone systems
    $134
    Usually Ships in 5 - 7 days
  3. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 120ml, for FreeZone systems
    $183
    Usually Ships in 5 - 7 days
  4. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 150ml, for FreeZone systems
    $189
    Usually Ships in 5 - 7 days
  5. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 600ml, for FreeZone systems
    $276
    Usually Ships in 5 - 7 days
  6. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 300ml, for FreeZone systems
    $223
    Usually Ships in 5 - 7 days
  7. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 900ml, for FreeZone systems
    $297
    Usually Ships in 5 - 7 days
  8. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 1200ml, for FreeZone systems
    $332
    Usually Ships in 5 - 7 days
  9. Attach with adapters to valve ports on Labconco Drying Chambers and Manifolds | 3647-88 displayed
    Fast-Freeze Flask, 2000ml, for FreeZone systems
    $396
    Usually Ships in 5 - 7 days

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
