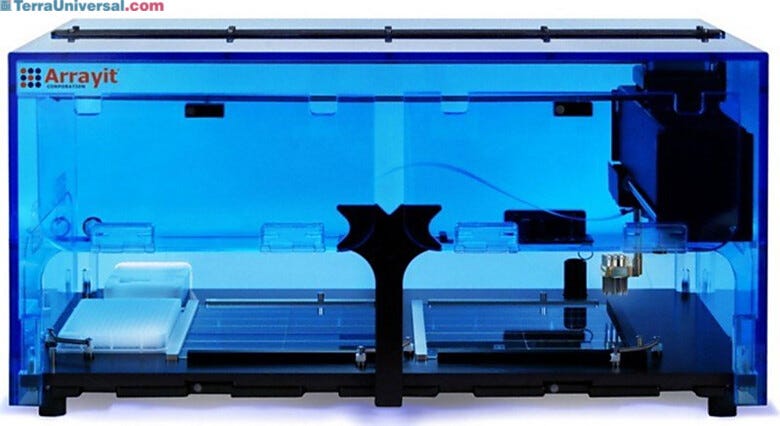

Ideally suited for core research facilities and manufacturing applications. | 3031-00 displayed...

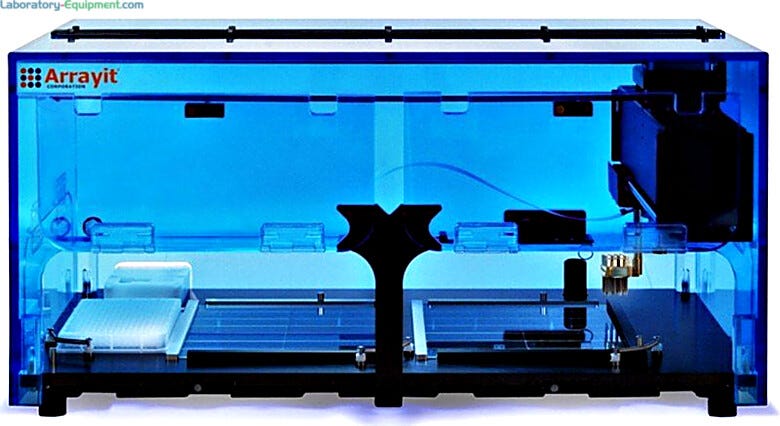

Ideally suited for core research facilities and manufacturing applications. | 3031-00 displayed
Microarray Products

SpotBot Extreme Microarray Spotter

• Equipment Type: Printer

• Slide Capacity: 14 Slides

• Number of Printing Pins: 16 Pins

• Assay Type: Protein

• Complete Hybridization Station: No

• Chiller Bath: No

• Manufacturer SKU: SBX

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: SBX
Manufactured By: Arrayit
Print
Call a Terra Microarray Products specialist direct:

714-459-0768

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3031-00
Terra Part # 3031-00
$40,501*
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 25-31 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3031-00
61020
SpotBot Extreme Microarray Spotter
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Includes: 16 microarray printing pins (946MP4), 1 test pin, 4 anti-vibration instrument pads, professional series 16-position printhead, 2 L-bracket substrate slide locators, Micro Spotting Solution Plus (MSP) print buffer, SuperEpoxy 3 Microarray Substrate Slides, humidity control, peristaltic pump, air compressor, wash buffer reservoir, wash waste reservoir, Arrayit BioBlue Mini Computer, LED flat panel display, keyboard, mouse, mouse pad, and Ethernet cable
  • 2 printing zones of 14 substrate slides each; with a deck capacity of 28 standard glass substrates (25 mm x 76 mm)
  • Prints 10,000 samples on 28 glass substrates in 12 hours
  • Print up to 50,000 samples onto each 25 mm x 76 mm substrate slide
  • Printhead holds 16 microarray pins (4 x 4 grid) at 4.5 mm spacing
  • Printing routines allow up to 5 technical replicates per sample
  • Deck capacity of 2 standard microplates (96-well or 384-well); 2 standard microplates (96- or 384 well)
  • Electrical Power Requirements: 110V or 220V, 50-60Hz
  • Robot Dimensions: 21"W x 12"D x 10"H (540 x 300 x 720 mm)
  • Instrument Capacity:one 384-well source microplate, 16 microarray printing pins and 28 glass substrate slides (25 x 76 mm),
  • Printhead Configuration: 16 microarray printing pins in a 4 x 4 pattern
  • Printhead Pin Spacing: 4.5 mm
  • Axis Resolution: +/- 10 µm
  • Humidity Control: 10-80% RH
  • Humidity Control Speed: 5% RH per minute and +/- 1% at steady state
  • SPXPRO Cooling Deck Capacity: Ambient to 4°C
  • Cleanroom Compatibility: Class 1 (ISO 3)
  • Robot Weight: 24 lbs (11.4 kg)
  • Unsurpassed printhead precision, micro-machines to ± 1.3 µm
  • Liquid-cooling deck and protein-cooling tubes enables antigen, antibody, peptide, lysate and reverse-phase protein microarrays
  • Offers excellent throughput at an affordable price
  • Use for a variety of applications, including genomics, life sciences, and materials science
  • Equipped with megasonic pin cleaning, wash and dry station, magnetic door sensors, high-performance professional series printhead, intuitive graphical user interface, a heavy duty gantry, and advanced robotics
Show more

• Equipment Type: Printer

• Slide Capacity: 14 Slides

• Number of Printing Pins: 16 Pins

• Assay Type: Protein

• Complete Hybridization Station: No

• Chiller Bath: No

• Manufacturer SKU: SBX

• Unit of Measure: EA

• Marks & Listings: CE, CSA

• Weight, Product: 24 Lbs

• Dimensions, Product: 21"W x 12"D x 10"H

• Weight, Shipping: 35 Lbs

• Dimensions, Shipping: 25"W x 15"D x 15"H

• Package Type: Vendor

Show more
