Select Product
Voltage

Type

Controls

Capacity

Temperature Range

Model

RS-232

Manufacturer SKU

Terra Part #PriceShips in
120 V Box Multi Program 0.07 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51848A-1 1722-12 56923 $3,326150-180 Days2
Ships Free Free shipping in contiguous USA
120 V Box Multi Program 0.19 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51866A-1 1722-16 56927 $3,619100-120 Days3
Ships Free Free shipping in contiguous USA
120 V Box Setpoint 0.07 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51748A-1 1722-10 56890 $2,739150-180 Days4
Ships Free Free shipping in contiguous USA
120 V Box Setpoint 0.19 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51766A-1 1722-14 56925 $3,128150-180 Days5
Ships Free Free shipping in contiguous USA
240 V Box Multi Program 0.07 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51848C-1 1722-13 56924 $3,326150-180 Days6
Ships Free Free shipping in contiguous USA
240 V Box Multi Program 0.19 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51866C-1 1722-17 56928 $3,627100-120 Days7
Ships Free Free shipping in contiguous USA
240 V Box Multi Program 0.65 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51894C-1 1722-19 56931 $4,13945-54 Days8
Ships Free Free shipping in contiguous USA
240 V Box Multi Program 1.5 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51828C-1 1722-21 56934 $5,30345-54 Days9
240 V Box Setpoint 0.07 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51748C-1 1722-11 56922 $2,83545-54 Days10
Ships Free Free shipping in contiguous USA
240 V Box Setpoint 0.19 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51766C-1 1722-15 56926 $3,128150-180 Days11
Ships Free Free shipping in contiguous USA
240 V Box Setpoint 0.65 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51794C-1 1722-18 56929 $3,66320-25 Days12
Ships Free Free shipping in contiguous USA
240 V Box Setpoint 1.5 cu. ft. 100° - 1,100°C Lindberg/Blue M Yes No BF51728C-1 1722-20 56933 $4,608100-120 Days13
Voltage
Type
Controls
Capacity
Temperature Range
Model
Over-Temperature Protection
RS-232
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Two types of temperature controller available: digital single program with adjustable high-limit over-temperature protection (OTP) and multi-step programmable (one program with multiple ramp and dwell segments)
  • Moldatherm™ insulation with embedded heating elements for uniform heat distribution and spill protection (removable for easy replacement)
  • Double-wall design maintains a safe exterior surface temperature for personnel safety
  • Controlled ramping rate limits thermal shock to materials
  • PID control microprocessor prevents overshooting the set-point
  • Side-hinge door for easy access
  • Door switch shuts off heating elements when door opens
  • LED display simultaneously shows set point and measured furnace temperature (°C or °F)
  • Four chamber capacity sizes
  • Temperature range from 100° to 1100°C
  • Type K thermocouple for long-life
  • Adjustable high-limit over-temperature protection (OTP)
  • 1"-diameter top vent and 0.375" rear air inlet
  • Note: Door is not gas-tight
  • Optional RS-485 port
  • Includes 10 ft. power cord (except 1.5 cu. ft. models)

Furnaces

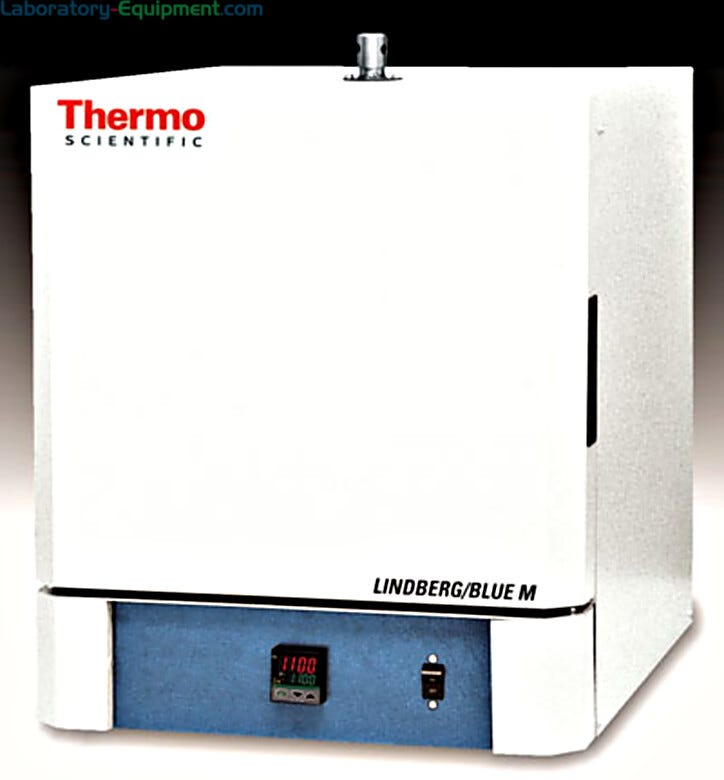

  • Lindberg/Blue M Moldatherm Box Furnaces by Thermo Fisher Scientific Lindberg/Blue M Moldatherm Box Furnace by Thermo Fisher Scientific
Lindberg/Blue M Moldatherm Box Furnaces by Thermo Fisher Scientific
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
