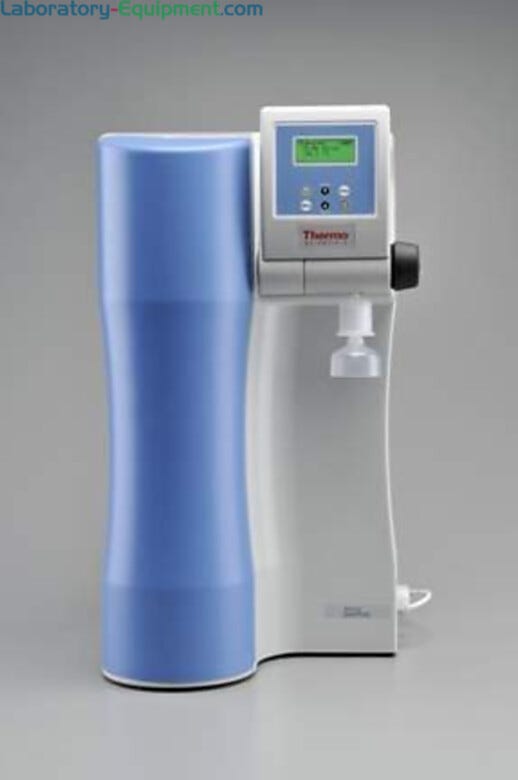

Water Purification System; Barnstead GenPure, UV/UF-TOC, Thermo Fisher Scientific, 120/240 V

• Aquastop quick connect allows cartridge replacement within seconds between uses and in mid-operation; one part number ordering
• Suitable for applications requiring Type 1 ultrapure water: life sciences and analytical chemistry
• Includes (one part number): feed water pressure switch, UV lamp, wall bracket, ultrapure cartridge, sterile filter and /or ultrafilter where applicable
• Helps prevent unauthorized changes to system settings with real-time clock and code-protected operating system; Online Total Organic Carbon(TOC) models monitor for real-time continual measurement of organic substances present in the water
• Digital microprocessor control: automatically monitors and stores faults from last four weeks
• On/Off USP-compliant conductivity measurement with temperature compensation
• Safe data transfer to PC or log printer with adjustable send RS-232 interface
• Controller tilts for easy key pressing and readability; illuminated four-line alpha-numeric display

GenPure Water Purification Applications by Model:

• Ultrafilter (UF) model removes <0.001 of Endotoxins, EU/mL
  Application: Molecular biology, microbiology, PCR, IVF, and monoclonal antibodies
• UV/UF model removes nucleases and DNA; produces water with low TOC and pyrogen levels; produces reagent grade water with resistivity up to 18.2 MΩ.cm, TOC of 1-6 ppb, pyrogens <0,001 EU/mL and no detectable RNase, DNase or DNA
  Application: Molecular biology, PCR, DNA, monoclonal antibodies, cell culture media)
• UV Intensity Monitoring model prevents bacterial contamination; models prevent risk of false TOC value as a result of diminished UV intensity; alert goes off when UV intensity deficiency is detected; ideal for applications requiring extremely low levels of organics; photo-oxidation of 185/254 nm reliably reduces content of microorganisms and their metabolites and it oxidizes organic compounds that allows for the reduction of total oxidizable carbon levels of less than 5 ppb
  Application: Inorganic and organic trace analysis, HPLC, ICP-MS, IC, TOC analysis
• UV-TOC model prevents bacterial contamination and TOC Monitoring continuously measures in real-time organic substances present in the water
  Application: Chemical analysis, trace analysis, HPLC, ICP-MS, IC, TOC analysis
• UV/UF-TOC
  Application: Biosciences (cell and tissue culture media, PCR, DNA, monoclonal antibodies)

W.A.T.E.R. Purity Analysis Program

• Free water analysis program
• Eliminate the variables and make the best choice for a water system
• Determine operating cost of the proposed system
• Call 1-714-578-6000 and request a free water test kit. Specify Catalog #3613-00 (Barnstead-Thermolyne part # W.A.T.E.R.), the free W.A.T.E.R. test.

Here’s How the W.A.T.E.R. Analysis Program Works:

• Contact Terra Universal for a free W.A.T.E.R. test kit
• Fill the sample bottle with water from your anticipated feed water
• Fill out the short questionnaire pertaining to your water requirements, applications and budget
• Place the completed application and water sample bottle in the return box. Add postage and mail to the Water Lab at Thermo Scientific
• Our team of water experts will perform different tests on your sample, including TOC, conductivity, resistivity and total ionized particles
• Upon evaluation, your water test results will be matched with your laboratory requirements listed on the questionnaire
• A water system will be recommended based on our water evaluation and the responses on your questionnaire
• We will determine annual operating costs for the system based on your usage and feed water test results
• The test results, equipment recommendation, operating cost and quotation will be mailed directly to you
• At no obligation to you, we will have a representative call you to discuss your customized report and help you finalize any details with regard to your system
