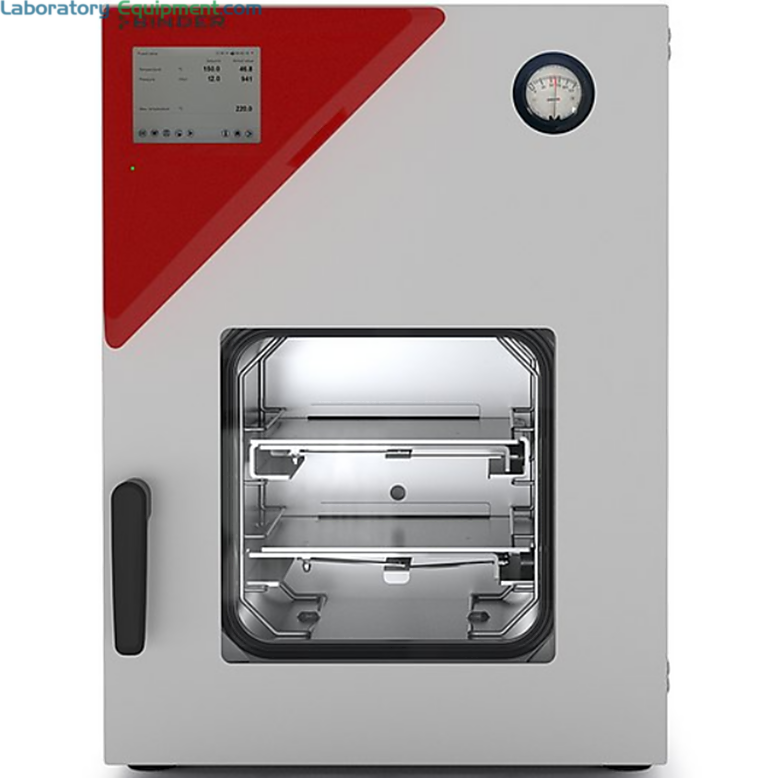

Explosion-proof 0.8 cu. ft. VDL-23 Vacuum Drying Chamber with ATEX-compliant safety feature ideal for drying flammable solvents; includes 2 expansion racks
Ovens

Vacuum Drying Chamber; VDL23, 0.8 cu. ft., TFT Control, Binder, 100/120 V

  • Explosion-proof, ATEX-compliant model for fast, gentle drying of flammable solvents without residue
  • Large thermal conducting plates deliver optimum heat transfer
  • Internal dimensions: 11.23W x 11.62D x 11.23H in.
  • Viewing window: 12.02W x 12.02H in.
  • Includes two repositionable aluminum expansion rack (44 lb. load per rack)

• Type: Vacuum

• Maximum Temperature: +110 °C

• Capacity: 0.8 cu. ft.

• Controls: Digital

• Model: VDL

• Manufacturer SKU: 9630-0013

• Capacity Range: <4 cubic feet

• Unit of Measure: EA

Read more
cULus Logo
Manufacturer SKU: 9630-0013
Manufactured By: Binder
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
2828-34
Terra Part # 2828-34
$13,216
Usually ships in 15-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2828-34
77228
Vacuum Drying Chamber; VDL23, 0.8 cu. ft., TFT Control, Binder, 100/120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Explosion-proof, ATEX-compliant model for fast, gentle drying of flammable solvents without residue
  • Large thermal conducting plates deliver optimum heat transfer
  • Internal dimensions: 11.23W x 11.62D x 11.23H in.
  • Viewing window: 12.02W x 12.02H in.
  • Includes two repositionable aluminum expansion rack (44 lb. load per rack)
  • ATEX-compliant unit: category EX II 2/3/- G IIB T3 Gb/Gc/- X
  • Explosion-proof protected interior
  • TFT intuitive touchscreen controller with graphical pressure and temperature display
  • Temperature variation at 100 °C [± K] 1
  • Door: one
  • Permitted load: 110 lbs.
  • Accommodates up to four shelves/racks
  • Optional vacuum pump and pump chamber create a complete system
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Shatterproof, spring-mounted safety glass panel, internal data logger, measured values can be read out in open format via USB, Ethernet interface, Inert gas connection
  • Pressure control device for heating activated from < 100 mbar
  • Universal connection for ventilation with ambient air or inert gas
  • DN 16 universal access port with small flange and blind flange
  • Options and accessories: touchscreen controller, expansion racks, universal ventilation, analogue output for temperature and pressure, DN 40 universal access port, vacuum pumps, pump module with vacuum pumps, APT.cm software (GLP-compliant available), qualification documents 2 relay outputs, 24 V DC (max. 0.4 A)
  • Sound-pressure level [dB(A)]: 40
Show more

• Type: Vacuum

• Maximum Temperature: +110 °C

• Capacity: 0.8 cu. ft.

• Controls: Digital

• Model: VDL

• Manufacturer SKU: 9630-0013

• Capacity Range: <4 cubic feet

• Unit of Measure: EA

• Marks & Listings: UL

• Electrical Specifications: 100/120 V, 10 A, 50/60 Hz

• Weight, Product: 159 lb

• Dimensions, Product: 20.61" W x 16.27" D x 27.5" H

Show more
Other products you may find relevant
  1. Acrylic vacuum chambers provide a safe, convenient way to transport moisture-and particle sensitive materials | 5235-00B displayed
    Group of 9 products
    Acrylic Vacuum Chambers with Removable Top Lids From
    As low as $1,191
    Some ship in 1 - 3 days
  2. Vacuum Space-Saver desiccator drying chambers from Bel-Art feature white, chemical-resistant polyurethane base | 1539-55 displayed
    Group of 6 products
    Vacuum Desiccators by Bel-Art From
    As low as $83
    Some ship in 17 - 23 days
  3. Bel-Art Techni Dome protects moisture-sensitive parts in this large capacity desiccator | 3308-11 displayed
    Group of 1 product
    Techni-Dome 360 Vacuum Desiccators by Bel-Art From
    As low as $430
    Some ship in 15 - 25 days
  4. Undercounter Flammable safety cabinets by Justrite includes dual vents with flame arresters located in the back | 1619-95 displayed
    Group of 8 products
    Sure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite From
    As low as $1,090
    Some ship in 8 - 12 days
Buy Accessories
  1. Small 12"H powder-coated steel desiccator stand; optional casters simplify positioning and cleaning
    Adjustable Stand; Powder-Coated Steel, 16" - 26.5"W x 16" - 26.5"D x 12" - 20"H In stock
    $584
    Increase Down Increase Up
  2. Small 12"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    Adjustable Stand; 304 Stainless Steel, 16" - 26.5"W x 16" - 26.5"D x 12" - 20"H In stock
    $913
    Increase Down Increase Up

Features and Benefits

VDL Explosion-Proof Interior

ATEX-compliant unit features a pressure control device for heating activation at a vacuum of under100 mbar

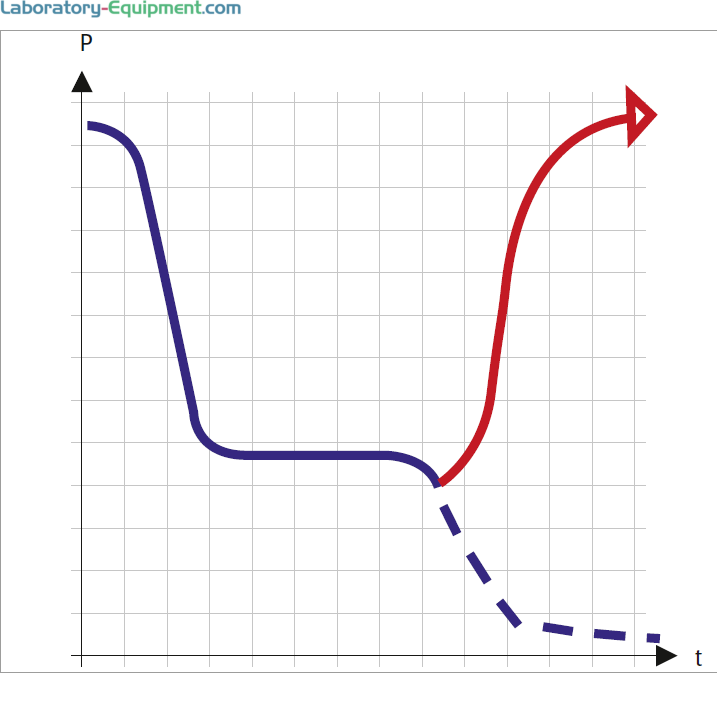

Automatic Drying Detection

Program control feature detects the second pressure drop that occurs at the end of drying and automatically ventilates the interior

Jacket Heating

Delivers optimum heat transfer and precise temperature control with patented expansion racks that allow flexible placement

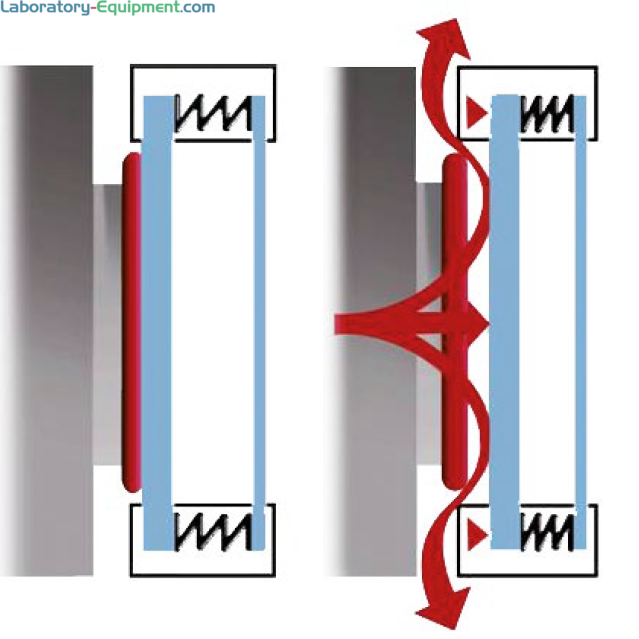

Safety Feature

Units provide a shatterproof, spring-mounted safety glass panel, electronic components decoupled from the interior and an inert gas connection for interior flushing

Available Options

Choose various vacuum pumps and compatible chamber for a modular complete system

Cleanroom Compatible

BINDER vacuum drying chambers are ideal for use in cleanrooms when drying components that must be delivered in an absolutely clean state
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
Products similar to this one

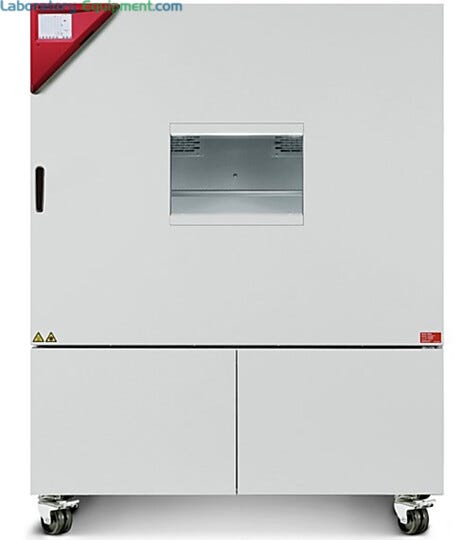

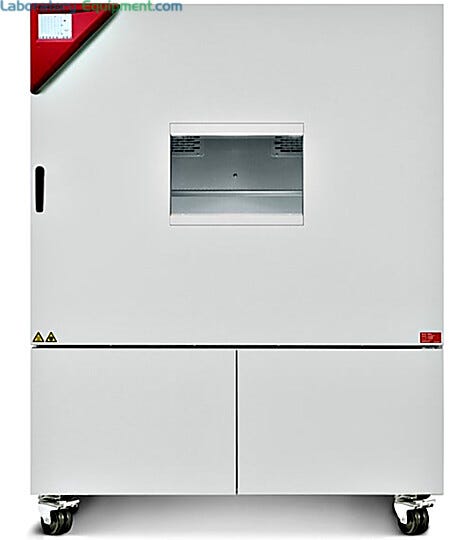

  1. MK 720 Dynamic Climate Chamber by BINDER Worldwide with two 80 mm access ports and silicone plugs, 25.9. cu. ft. model for cyclical temperature tests | 1410-21 displayed
    Group of 4 products
    MK Series Dynamic Climate Chambers by BINDER Worldwide From
    As low as $17,906
    Some ship in 15 - 21 days

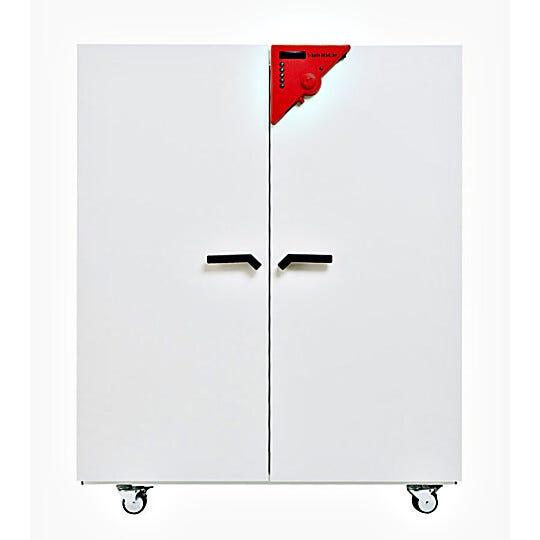

  2. The BINDER Class.Line Heating and Drying Chamber provides uniform drying conditions and a maximum temperature of 300 °C | 1410-03 displayed
    Group of 3 products
    ED Heating and Drying Chambers Classic.Line by BINDER Worldwide From
    As low as $1,860
    Some ship in 20 - 26 days

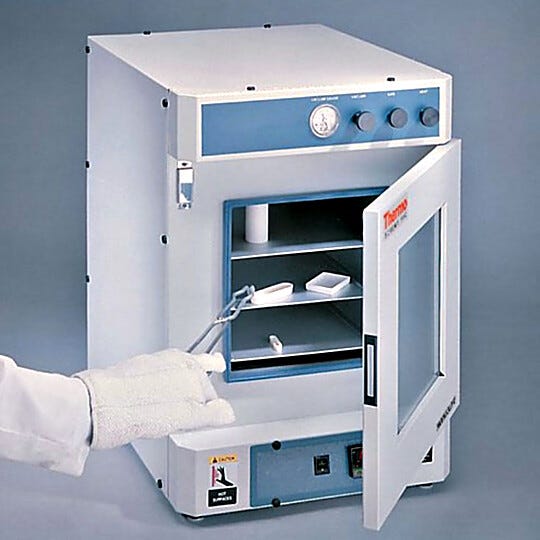

  3. The Lindberg Blue vacuum oven provides an inert atmosphere for use in heating, drying, curing and outgassing sensitive or reactive samples | 3703-49 displayed
    Group of 3 products
    Lindberg/Blue M™ Vacuum Ovens by Thermo Fisher Scientific From
    As low as $4,469
    Some ship in 10 - 20 days
  4. Shellab Large Capacity Model Oven comes with optional SS exterior for cleanroom applications | 3900-80 displayed
    Group of 6 products
    Vacuum Ovens by Shel Lab From
    As low as $2,114
    Some ship in 18 - 24 days

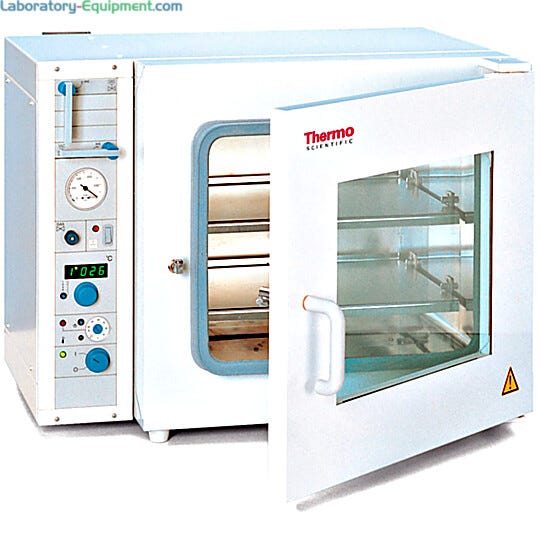

  5. Vacutherm™ vacuum heating and drying oven reduces drying time for temperature sensitive materials; provides inert heating environment | 1709-11 displayed
