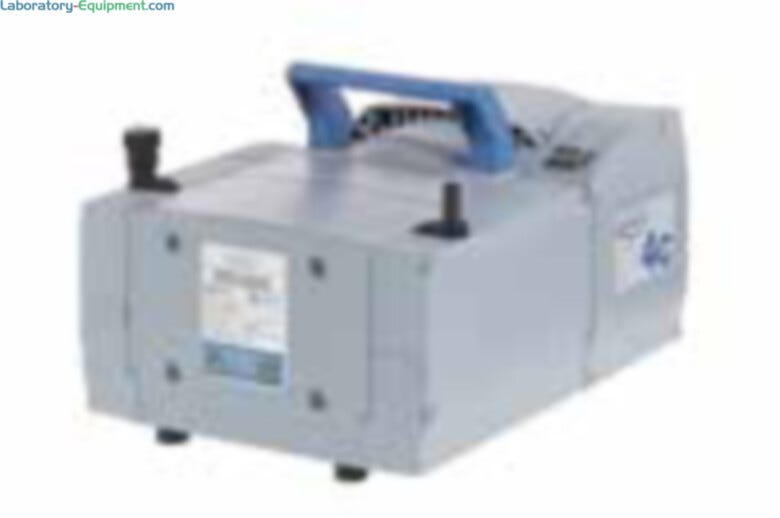

Ideal for preparation of samples in drug discovery, agrichemistry, mycology testing, etc | 6922-89 displayed
Laboratory Evaporators & Concentrators

Vacuum Pump; Vacuubrand, Diaphragm, Labconco, 240 V

  • @ 50Hz
  • Wetted parts are PTFE-coated for corrosion resistance
  • Vacuum Outlet: 1/2" OD

• Manufactured by: Labconco

• Unit of Measure: EA

Read more
Manufacturer SKU: 7393001
Manufactured By: Labconco
Warranty: 1 Year
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6922-89-220
Terra Part # 6922-89-220
$5,625
Usually ships in 18-22 business days

Want it faster ? Read about FasTrak

Terra Part # 6922-89-220
59848
$5,625
Usually ships in 18-22 business days

Want it faster ? Read about FasTrak

Save For Later
Details & Specs
Related Products
Product Details
  • @ 50Hz
  • Wetted parts are PTFE-coated for corrosion resistance
  • Vacuum Outlet: 1/2" OD
  • Explosion-Proof: no
Show more

• Manufactured by: Labconco

• Unit of Measure: EA

• Electrical Specifications: 240 V, 3 A, 50 Hz

• Dimensions, Product: 9.1" W x 15" D x 6.7" H

• Weight, Shipping: 40 lb

• Dimensions, Shipping: 13" W x 19" D x 12" H

• Package Type: Crate

Show more
Other products you may find relevant
  1. Shellab Large Capacity Model Oven comes with optional SS exterior for cleanroom applications | 3900-80 displayed
    Group of 6 products
    Vacuum Ovens by Shel Lab From
    As low as $2,114
    Some ship in 18 - 24 days

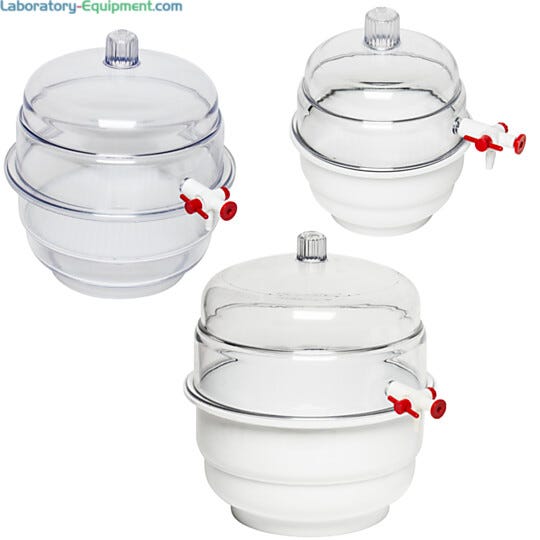

  2. Vacuum Space-Saver desiccator drying chambers from Bel-Art feature white, chemical-resistant polyurethane base | 1539-55 displayed
    Group of 6 products
    Vacuum Desiccators by Bel-Art From
    As low as $83
    Some ship in 17 - 23 days
  3. Bel-Art Techni Dome protects moisture-sensitive parts in this large capacity desiccator | 3308-11 displayed
    Group of 1 product
    Techni-Dome 360 Vacuum Desiccators by Bel-Art From
    As low as $430
    Some ship in 15 - 25 days
  4. Designed for applications requiring extremely precise and uniform temperature control, these ovens from Thermo Fisher are energy efficient
    Group of 5 products
    Vacuum Ovens by Thermo Fisher Scientific From
    As low as $4,592
    Some ship in 20 - 22 days
  5. Acrylic vacuum chambers provide a safe, convenient way to transport moisture-and particle sensitive materials | 5235-00B displayed
    Group of 9 products
    Acrylic Vacuum Chambers with Removable Top Lids From
    As low as $1,191
    Some ship in 1 - 3 days
  6. CentriVap Benchtop Complete Vacuum Concentrators with Glass Lid by Labconco in acid-resistant and standard models with heat boost in select models | 3648-PP-01 displayed
    Group of 8 products
    CentriVap Complete Vacuum Concentrators by Labconco From
    As low as $19,943
    Some ship in 20 - 22 days

Laboratory Evaporators & Concentrators

  • RV 10 Rotary Evaporators by IKA RV 10 Rotary Evaporators by IKA
  • Labconco RapidVap N2 and N2/48 Dry Evaporation Systems Labconco RapidVap N2 and N2/48 Dry Evaporation Systems
  • Labconco CentriVap micro IR Vacuum Concentrators, 115V and 230V Labconco CentriVap micro IR Vacuum Concentrators
  • IKA RV-8 Evaporator with Dry Ice Condenser available with shatterproof coated glassware RV 8 Evaporator with Dry Ice Condenser
RV 10 Rotary Evaporators by IKA
IKA RV 10 Basic V Rotary Evaporator with vertical glassware for general lab distillation processes | 6924-05 displayed RV 10 Rotary Evaporators by IKA Basic, Digital, Control and Control Auto Rotary Evaporators with an integrated heating bath and a motorized lift; select models include glassware, programming and shatterproof flasks
Labconco RapidVap N2 and N2/48 Dry Evaporation Systems
RapidVap N2 and N2/48 Dry Evaporation Systems by Labconco combine vortex action, heat, and nitrogen blow-down to speed evaporation | 6923-01 displayed Labconco RapidVap N2 and N2/48 Dry Evaporation Systems Labconco RapidVap N2 and N2/48 Dry Evaporation Systems significantly reduces evaporation rate; PTFE-coated aluminum blocks and accessories available
Labconco CentriVap micro IR Vacuum Concentrators, 115V and 230V
Compact and portable CentriVap micro IR Vacuum Concentrators by Labconco with a 24 tube capacity aluminum chamber | 3648-25 displayed Labconco CentriVap micro IR Vacuum Concentrators CentriVap micro IR Vacuum Concentrators for small throughput labs feature a microprocessor, a built-in diaphragm pump and glass trap
IKA RV-8 Evaporator with Dry Ice Condenser available with shatterproof coated glassware
IKA RV 8 Evaporator with dry ice condenser for applications using solvents with a distilling low-boiling point; shatterproof coated glassware model available | 6924-21 displayed RV 8 Evaporator with Dry Ice Condenser Manual rotovaps with a one-handed lifting mechanism with or without distillation glassware; select models include shatterproof glassware and dry ice condenser

Features and Benefits

Learn More: Oil-Free (Dry) Pumps
Print Copy Copied

More Information

High-Flow Diaphragm Oil-Free (Dry) Vacuum Pump (Ilmvac MP Series)
  • Two-stage pumps for quicker and more efficient vacuum pump-down
  • ON/OFF Switch and internal protective thermal switch for the motor
  • Vibration isolating feet
  • High-flow units operate at 125 LPM and 222 LPM; draw to 8mbar pressure (29.85" Hg vacuum)
  • Suitable for applications using dry, moist or ethanol vapors: Vacuum Ovens, Glove Boxes and Vacuum Chambers
Standard Duty Dry Vacuum Pump
  • Continuous oil-free pumping
  • Non-Corrosive
  • Vacuum to 9Torr (29.6” Hg)
  • As the piston wobbles, Teflon seal expands to increase efficiency and lesson wobble motion
Chemical Duty Dry Vacuum Pump
  • Features Advanced Vapor Management (AVM) for adjustable vacuum control
  • Model 2034B-01 has a flow rate of 25 LPM and an ultimate pressure of 9 torr (12 mbar or 29.6" Hg vacuum)
  • Ideal for rapid drying and evaporation in small vacuum ovens, benchtop rotovaps and chemical duty filtration
Mini Vacuum Pump for Laboratories
  • Used for filtration, drying and degassing
  • Standard and chemically resistant models
  • Low vibration and noise with twin head design
  • Plug and play wide-range power adaptor
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
Compact Diaphragm Pump
  • Ultimate vacuum is <45 mbar
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
  • Great for aspirating liquids
  • 115/230V wide-range motor
Diaphragm Pumps
  • Available in standard and chemically resistant versions
  • Compact, practical solution for vacuum range 1000 to 1 mbar
Model MP901Z MP1801Z
Numbers of heads/stages 4/2 8/2
Free Air Displacement CFM (l/min.) @ 60H z4.42 (125) 7.84 (222)
Free Air Displacementm3/h (l/min.) @ 50Hz 6.8 (113) 12 (201)
Ultimate Pressure, Torr (mbar) 8 (6) 8(6)
Maximum Vacuum, in.Hg 29.7 29.7
Motor Power, watts (HP) 370 (0.5) 370/440 (0.5/0.6)
Model 2562B-01
Free Air Displacement CFM (l/min.) @ 60Hz 2.3 (65)
Free Air Displacement m3/h (l/min.) @ 50Hz 3.4 (57)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Motor Horsepower, watts 1/3 (250)
Intake/Exhaust thread NPT 1/4
Model 2034B-01
Free Air Displacement CFM (l/min.) @ 60Hz 0.9(25)
Free Air Displacement m3/h (l/min.) @ 50Hz 1.25(21)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Adjustable Vac./Gas Ballast Yes
Motor Power, watts (HP) 1/5 (150)
Intake/Exhaust thread NPT 1/4
Model MP 060 E MPR 060 E MP 104E MPC 104E
Final Vacuum, mbar <60 <60 <45 <45
Flow Rate, l/min 10 10 15-16 15-16
Head Material Aluminum PPS Aluminum PTFE Compound
Diaphragm Material PTFE PTFE PTFE PTFE
Valve Material PEEK PEEK PEEK PEEK
Connections 6-8 mm 6-8 mm 8mm 8mm
Noise Level, dBA <42 <42 <45 <45
Model MP101Z MP301Zp MP201T MP601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
Model MPC101Z MPC301Zp MPC201T MPC601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
