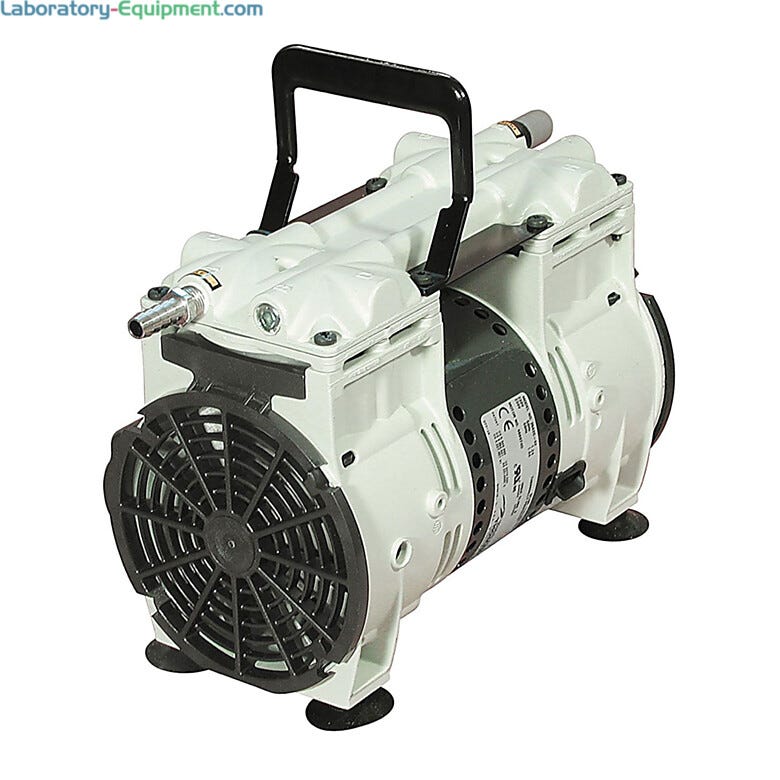

Welch's oil-free standard duty vacuum pump are lightweight, compact and quiet pumps that provide continuous oil-free pumping without corrosion | 7906-50 displayed

Vacuum Pump; Standard Duty Wobl Piston, Welch, 230 V

  • Available Certified ISO Grade Designs: ISO 8
  • Maximum Vacuum, in.Hg: 29.6
  • Maximum Pumping Speed: 57 L/min @ 50Hz
  • Ultimate Pressure: 12 mbar

• Pump Type: Diaphragm

• Oil-less: Yes

• Maximum Pumping Speed: 57 L/min

• Manufactured by: Welch

• Ultimate Pressure: 12 mbar

• Unit of Measure: EA

Read more
Stocked ISO 8 Icon<br/> Ships Free
Manufacturer SKU: 2562C-02
Manufactured By: Welch Vacuum
Warranty: 1 Year
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
7906-50-220
Terra Part # 7906-50-220
$1,362
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Terra Part # 7906-50-220
73524
$1,362
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Save For Later
Details & Specs
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 8
  • Maximum Vacuum, in.Hg: 29.6
  • Maximum Pumping Speed: 57 L/min @ 50Hz
  • Ultimate Pressure: 12 mbar
  • Free Air Displacement:
Show more

• Pump Type: Diaphragm

• Oil-less: Yes

• Maximum Pumping Speed: 57 L/min

• Manufactured by: Welch

• Ultimate Pressure: 12 mbar

• Unit of Measure: EA

• Electrical Specifications: 230 V, 250 W, 1 Ph, 50 Hz

• Weight, Product: 16.5 lb

• Dimensions, Product: 11.7" W x 7.2" D x 9.5" H

• Weight, Shipping: 18 lb

• Dimensions, Shipping: 13" W x 9" D x 12" H

Show more
Other products you may find relevant
  1. Shellab Large Capacity Model Oven comes with optional SS exterior for cleanroom applications | 3900-80 displayed
    Group of 6 products
    Vacuum Ovens by Shel Lab From
    As low as $2,114
    Some ship in 18 - 24 days
  2. Vacuum Space-Saver desiccator drying chambers from Bel-Art feature white, chemical-resistant polyurethane base | 1539-55 displayed
    Group of 6 products
    Vacuum Desiccators by Bel-Art From
    As low as $83
    Some ship in 17 - 23 days
  3. Bel-Art Techni Dome protects moisture-sensitive parts in this large capacity desiccator | 3308-11 displayed
    Group of 1 product
    Techni-Dome 360 Vacuum Desiccators by Bel-Art From
    As low as $430
    Some ship in 15 - 25 days
  4. Designed for applications requiring extremely precise and uniform temperature control, these ovens from Thermo Fisher are energy efficient
    Group of 5 products
    Vacuum Ovens by Thermo Fisher Scientific From
    As low as $4,454
    Some ship in 20 - 22 days
  5. Acrylic vacuum chambers provide a safe, convenient way to transport moisture-and particle sensitive materials | 5235-00B displayed
    Group of 9 products
    Acrylic Vacuum Chambers with Removable Top Lids From
    As low as $1,191
    Some ship in 1 - 3 days
  6. CentriVap Benchtop Complete Vacuum Concentrators with Glass Lid by Labconco in acid-resistant and standard models with heat boost in select models | 3648-PP-01 displayed
    Group of 8 products
    CentriVap Complete Vacuum Concentrators by Labconco From
    As low as $17,350
    Some ship in 20 - 22 days

Features and Benefits

Learn More: Oil-Free (Dry) Pumps
Print Copy Copied

More Information

High-Flow Diaphragm Oil-Free (Dry) Vacuum Pump (Ilmvac MP Series)
  • Two-stage pumps for quicker and more efficient vacuum pump-down
  • ON/OFF Switch and internal protective thermal switch for the motor
  • Vibration isolating feet
  • High-flow units operate at 125 LPM and 222 LPM; draw to 8mbar pressure (29.85" Hg vacuum)
  • Suitable for applications using dry, moist or ethanol vapors: Vacuum Ovens, Glove Boxes and Vacuum Chambers
Standard Duty Dry Vacuum Pump
  • Continuous oil-free pumping
  • Non-Corrosive
  • Vacuum to 9Torr (29.6” Hg)
  • As the piston wobbles, Teflon seal expands to increase efficiency and lesson wobble motion
Chemical Duty Dry Vacuum Pump
  • Features Advanced Vapor Management (AVM) for adjustable vacuum control
  • Model 2034B-01 has a flow rate of 25 LPM and an ultimate pressure of 9 torr (12 mbar or 29.6" Hg vacuum)
  • Ideal for rapid drying and evaporation in small vacuum ovens, benchtop rotovaps and chemical duty filtration
Mini Vacuum Pump for Laboratories
  • Used for filtration, drying and degassing
  • Standard and chemically resistant models
  • Low vibration and noise with twin head design
  • Plug and play wide-range power adaptor
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
Compact Diaphragm Pump
  • Ultimate vacuum is <45 mbar
  • Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
  • Great for aspirating liquids
  • 115/230V wide-range motor
Diaphragm Pumps
  • Available in standard and chemically resistant versions
  • Compact, practical solution for vacuum range 1000 to 1 mbar
Model MP901Z MP1801Z
Numbers of heads/stages 4/2 8/2
Free Air Displacement CFM (l/min.) @ 60H z4.42 (125) 7.84 (222)
Free Air Displacementm3/h (l/min.) @ 50Hz 6.8 (113) 12 (201)
Ultimate Pressure, Torr (mbar) 8 (6) 8(6)
Maximum Vacuum, in.Hg 29.7 29.7
Motor Power, watts (HP) 370 (0.5) 370/440 (0.5/0.6)
Model 2562B-01
Free Air Displacement CFM (l/min.) @ 60Hz 2.3 (65)
Free Air Displacement m3/h (l/min.) @ 50Hz 3.4 (57)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Motor Horsepower, watts 1/3 (250)
Intake/Exhaust thread NPT 1/4
Model 2034B-01
Free Air Displacement CFM (l/min.) @ 60Hz 0.9(25)
Free Air Displacement m3/h (l/min.) @ 50Hz 1.25(21)
Ultimate Pressure, Torr (mbar) 9 (12)
Maximum Vacuum, in.Hg 29.6
Adjustable Vac./Gas Ballast Yes
Motor Power, watts (HP) 1/5 (150)
Intake/Exhaust thread NPT 1/4
Model MP 060 E MPR 060 E MP 104E MPC 104E
Final Vacuum, mbar <60 <60 <45 <45
Flow Rate, l/min 10 10 15-16 15-16
Head Material Aluminum PPS Aluminum PTFE Compound
Diaphragm Material PTFE PTFE PTFE PTFE
Valve Material PEEK PEEK PEEK PEEK
Connections 6-8 mm 6-8 mm 8mm 8mm
Noise Level, dBA <42 <42 <45 <45
Model MP101Z MP301Zp MP201T MP601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
Model MPC101Z MPC301Zp MPC201T MPC601Tp
Ultimate Pressure, mbar <8 <8 <2 <2
Pumping Speed 50/60 Hz 16.7/18.3 L/min 38.3/41.7 L/min 33.4/36.7 L/min 75.0/81.7 L/min
Motor Power 60W 180W 90W 370W
