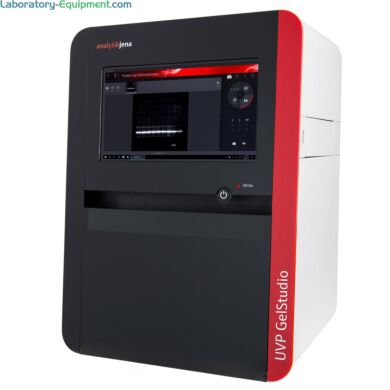

UVP GelStudio Touch includes a 13.3” multi-touch computer, a Transilluminator, software, a UV shield and overhead LEDs; 16.8 x 21 cm illuminated area
Gel Doc Systems

DNA Gel Imager; Touch, 12 MP, UVP GelStudio, Analytik Jena, 230 V

  • Stand-alone 230V GelStudio Touch with an integrated 13.3” multi-touch computer, keyboard and mouse, and a 12MP camera
  • For genomic and proteomic application
  • Excitation range: 400 to 800 nm
  • VisionWorks software with template, preset capture setting and analysis features enables user-created custom icons and workflows
  • Includes: Thin-line Transilluminator (302 nm), software, UV protection shield and overhead white and RGB LEDs

• Wavelength: 400 to 800 nm

• Configuration: Touch

• Manufacturer SKU: 849-97-0942-02

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: 849-97-0942-02
Manufactured By: Analytik Jena
Warranty: Three-Year Manufacturer Warranty for Parts & Labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
2808-56
Terra Part # 2808-56
$18,045
Usually ships in 6-10 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 2808-56
78848
DNA Gel Imager; Touch, 12 MP, UVP GelStudio, Analytik Jena, 230 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Stand-alone 230V GelStudio Touch with an integrated 13.3” multi-touch computer, keyboard and mouse, and a 12MP camera
  • For genomic and proteomic application
  • Excitation range: 400 to 800 nm
  • VisionWorks software with template, preset capture setting and analysis features enables user-created custom icons and workflows
  • Includes: Thin-line Transilluminator (302 nm), software, UV protection shield and overhead white and RGB LEDs
  • Gel Documentation Applications: DNA and protein gels, multiplex fluorescence, RGB, fluorescent dyes, colorimetric imaging, colony counting
  • Included accessories: Overhead LEDs (white, red, green and blue), Transilluminator (302 nm), Ethidium bromide filter, VisionWorks software, VisionWorks flash drive(license free), UVP fluorescent focus target, UV gel tray, UV protection shield, empty flash drive
  • Features:
  • Thin-Line Transilluminator (302 nm): long-life UV tubes eliminate service requirement, instant-on functionality; Visi-Blue LED
  • Illuminated area: 16.8 x 21 cm
  • Sensitive 12 MP camera captures high resolution, publication quality images
  • Wide aperture, f/1.2 lens captures maximum light
  • Reduced exposure times for quicker image capture
  • Provides high-resolution and sensitive imaging of DNA and protein gels and a range of excitable stains and dyes
  • Fold-down door design ideal for benchtop
  • Modular design with optional upgrades (for field use) and modules for multiplexing
  • Versatile design for DNA and protein gels, blue/white excitable dyes, colorimetry, colony plates, TLC plates and a range fluorescent dyes
  • Safety feature: UV protection shield in a pull-out tray maximizes user protection from UV radiation
  • Data management: features for image enhancement and data analysis, calculates accurate concentration results including the calibration standard
  • Wireless network capability and UBS port
  • UV On indicator light
  • Access port for optional UVP eLITE Light Source enables production of brilliant multispectral excitation for a variety of fluorescent dyes
Show more

• Wavelength: 400 to 800 nm

• Configuration: Touch

• Manufacturer SKU: 849-97-0942-02

• Unit of Measure: EA

• Electrical Specifications: 230 V

• Dimensions, Product: 18" W x 16" D x 24" H

Show more
