Product Details

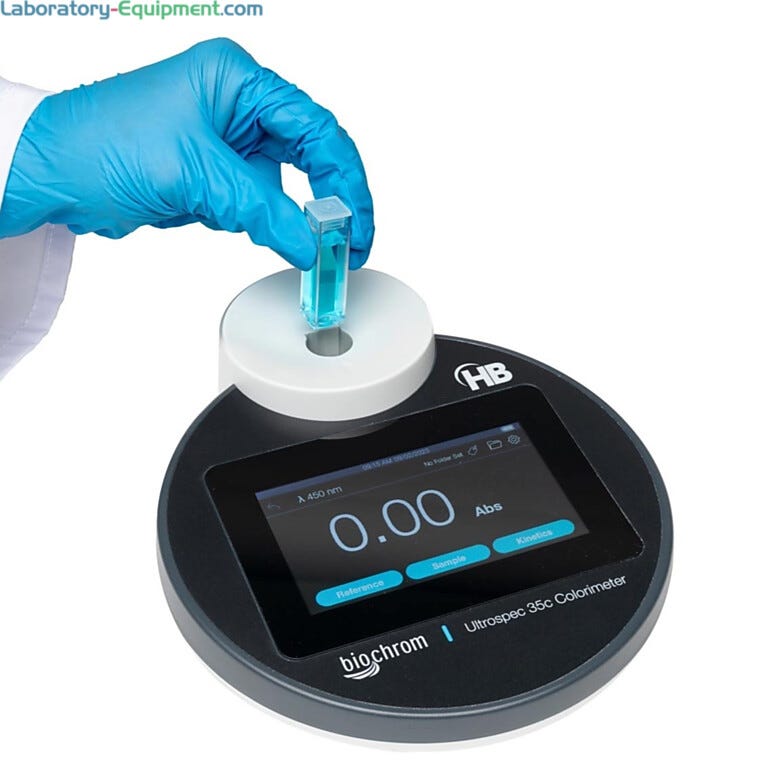

  • Compact and portable Ultrospec 35c Colorimeter measures absorbance/transmission of liquid samples
  • Features: flexible analysis, robust LED light source, touchscreen display, data output
  • Wavelength range: 450 to 640 nm
  • Operation Modes: Absorbance, Transmission, Kinetics
  • •  Includes: Instrument, power supply, USB cable, 1 pack of x8 cuvettes, Quick Start Guide and QR code with link to User Manual
  • Determines molecular concentration by measuring absorbance/transmission in a cuvette or test tube (at fixed wavelengths)
  • Used for various measurements and analysis in life science, chemistry, and physics labs
  • Small footprint and portable ideal for use in field analysis, environmental studies, or remote location
  • Benchtop or handheld analytical equipment
  • Battery powered colorimeter connects to mains power
  • For simple colorimetric testing
  • 4.3’’ color touchscreen: 480 x 272-pixel resolution backlit LCD color display
  • USB flash drive as comma-separated values (.csv)
  • Minimal maintenance and easy to clean
  • Sample Holder Accepts:
  • 10mm x 10mm cuvettes
  • 16mm test tubes
  • 10-12mm tubes with optional adapter (#80-3000-57An sold separately)
  • Specifications:
  • LED light source: user-selectable wavelengths: 450, 500, 520, 540, 600 and 640 nm
  • Photo diode detector
  • Spectral Bandwidth: 40nm
  • Storage Conditions: -10 ̊ C to 70 ̊ C (14 ̊ F to 158 ̊ F)
  • Photometric Range Absorbance 0.3 to 2.0A
  • Photometric Accuracy: < ± 0.05A 1A using neutral density filter
  • Photometric Repeatability: ± 0.02A at 1A
  • Data Connector: USB-A Interface for memory device
  • Power Connector: USB-C Input power at 5V, 2 Amp max
  • Power (via external charger): USB charger specifications (included): 100-240V, 50/60Hz, 10W
  • Battery Internal rechargeable Li-Ion battery
  • Compliance: CE & UKCA marked, US/CAN safety (ETL or equivalent)
  • Accessories (sold separately):
  • User Replaceable Battery #80-3007-99
  • USB-C Cable #80-3008-08
  • Power Supply #80-3008-09
  • Pack of 100 disposable cells, 1ml min. volume #80-2004-53
  • Adapter set for 10 and 12 mm tubes #80-3000-57An

Type: Colorimeter

Manufacturer SKU: 80-3008-00

Manufactured by: Biochrom

Unit of Measure: EA

Electrical Specifications: 100-240 V, 10 W, 50/60 Hz

Weight, Product: 1.3 lb

Dimensions, Product: 6.7" W x 4.72" D x 2.4" H
