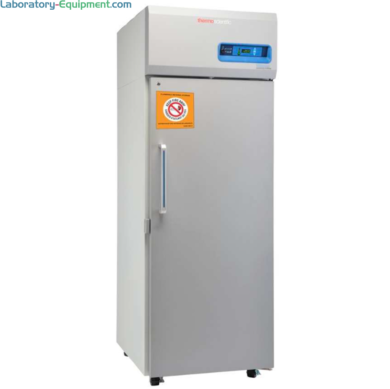

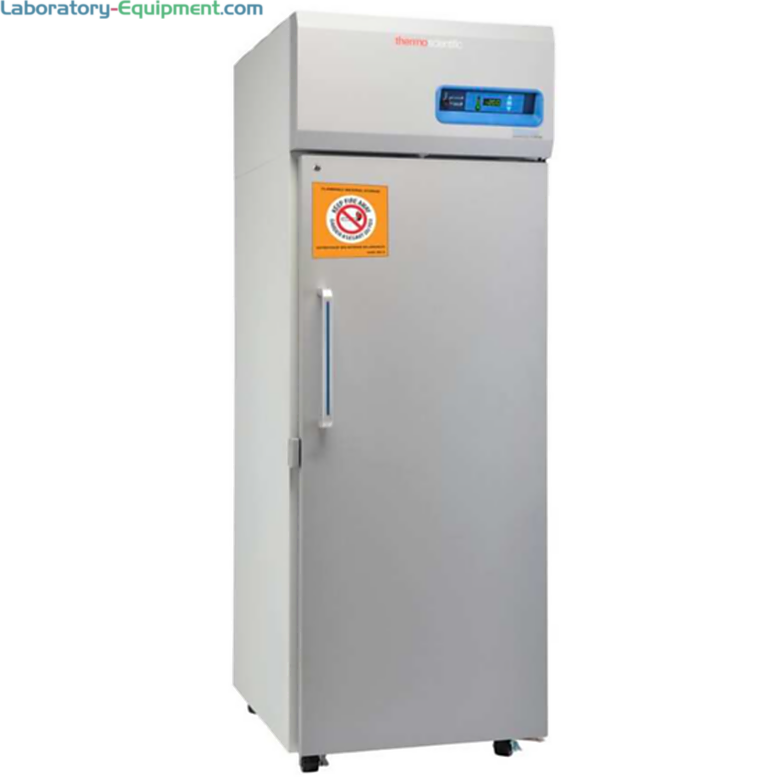

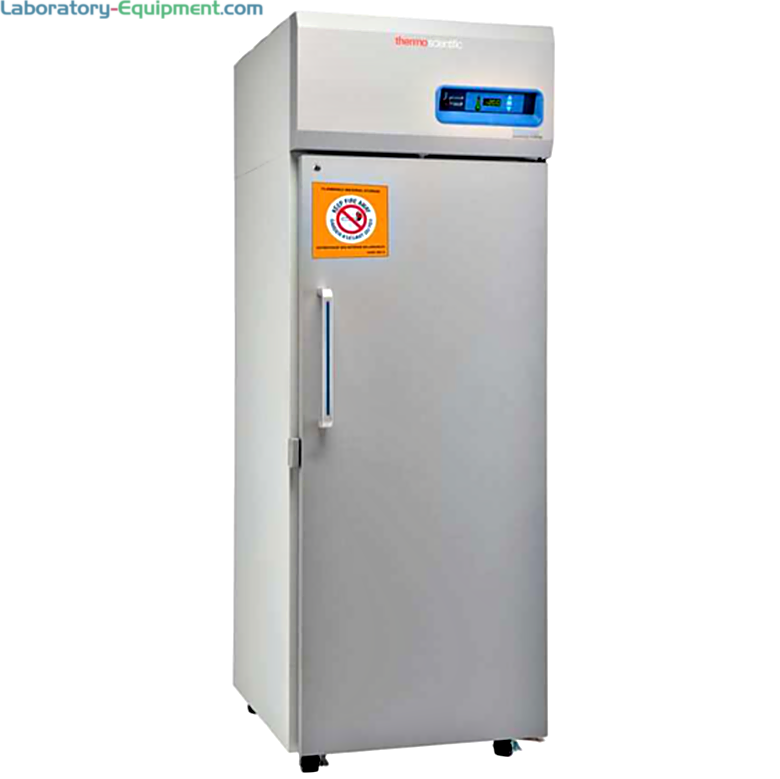

TSX2320HA High-Performance Flammable Material Freezer by Thermo Fisher Scientific with V-Drive technology, a -25° to -15°C range and 4 shelves | 1621-46 displayed
Refrigerators (4°C),General Purpose Freezers (-20°C)

TSX2320HA High-Performance Flammable Material Freezer by Thermo Fisher Scientific, 23.3 cu. ft., 115V

  • TSX2320HA 23.3 cu. ft. (659 L) High-Performance Single-Door Flammable Material Freezer with V-drive technology for temperature uniformity
  • Energy-efficient model designed for sample protection and sustainability objectives
  • Meets US Pharmacopeia, UL, NFPA 45 and 70 standards and requirements
  • Interior dimensions: 24.0"W x 28.5"D x 58.0"H
  • Includes: four epoxy-coated shelves and four casters (2 locking)

• Freezer Temperature Range: -25°C to -15°C

• Model: TSX2320HA

• Capacity: 23 cu. ft.

• Plug Type: NEMA 5-15P

• Type: Freezer

• Unit of Measure: EA

Read more
ULus Logo Energy Star Ships Free
Manufacturer SKU: TSX2320HA
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty; 96-Months for Compressor Parts
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1621-46
Terra Part # 1621-46
$10,241
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Terra Part # 1621-46
81881
$10,241
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • TSX2320HA 23.3 cu. ft. (659 L) High-Performance Single-Door Flammable Material Freezer with V-drive technology for temperature uniformity
  • Energy-efficient model designed for sample protection and sustainability objectives
  • Meets US Pharmacopeia, UL, NFPA 45 and 70 standards and requirements
  • Interior dimensions: 24.0"W x 28.5"D x 58.0"H
  • •  Includes: four epoxy-coated shelves and four casters (2 locking)
  • Tested to GMP Clean Room Class A / ISO 5 & 6 (ISO EN 14644-1); USP <797> and <800> hazardous drug compounding and other clean room environments
  • Tested and certified to conform with the design and safety standards of UL 471, 61010, and CE Directive 2011/65/EU and 2015/863
  • Easy-to-clean surfaces
  • V-Drive Technology features: detects usage patterns and adjusts compressor speed without compromising protection
  • Refrigerant: natural, R290 and water-blown foam
  • Material: cold rolled steel cabinet material and interior, painted steel exterior, CFC-free insulation
  • Features: door locks, cold wall convection cooling for temperature stability and uniformity, intuitive microprocessor (interior light, setpoint security, and alarms), self-closing door with 90º stop, automatic pressure equalization port for fast re-entry
  • Sustainability:
  • US EPA ENERGY STAR Certified (up to 50% less energy usage)
  • ACT Environmental Impact Factor Label Certified
  • Compliant with EU F-GAS regulations, U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), and other Global Environmental Regulations
  • Manufactured in a zero-waste facility
  • Specifications:
  • Temperature Range: -25° to -15°C
  • Ambient Operating Temperature: 15° C - 32° C (60° F - 90° F) Vapor compression refrigeration system
  • Hermetic Variable Capacity Compressor / 1 / 398W
  • Condenser Type/Number: Forced-Air Cooled / 1
  • Evaporator Type / Defrost Method: Cold Wall With Enhanced Heat Transfer Treatment / Manual Defrost
  • Noise level: 53 dBA
  • Door: 1 Gray
  • Static Holding Time: 156
  • Plug Type: NEMA 5-15 P
  • Refrigerant Charge / Flammability: R290,145gms,GWP:3 ODP:0 / Flammable
  • Alarms: keyed Off-On, adjustable warm/cold, power failure
  • Compressor safeguard: current protection
  • Connectivity / Remote Outputs: Remote Alarm Contacts, RS485 Output and 4-20 mA Output (optional)
  • Options for Freestanding TSX2320A Flammable Material Storage Freezer:
  • Smart Vue Pro
  • Electronic chart recorder
  • Device Link Connect
  • Door swing configuration and door types
  • Wire baskets, shelves, and drawers
  • Free-standing or factory-installed chart recorders
  • E-Lock Adapter kits
  • 4-20 milliamp transmitters and other remote alarm modules
  • Specialty, regional, and country specific plugs
  • Certificate of Calibration
  • Validation Testing Programs
  • Factory Acceptance Test results
  • Speak to our Product Specialist for details
Show more

• Freezer Temperature Range: -25°C to -15°C

• Model: TSX2320HA

• Capacity: 23 cu. ft.

• Plug Type: NEMA 5-15P

• Type: Freezer

• Unit of Measure: EA

• Electrical Specifications: 115 V, 5.56 A, 1 Ph, 60 Hz

• Dimensions, Product: 28" W x 38.9" D x 78.5" H

• Weight, Shipping: 459 lb

Show more
Other products you may find relevant
  1. Explosion-proof 0.8 cu. ft. VDL-23 Vacuum Drying Chamber with ATEX-compliant safety feature ideal for drying flammable solvents; includes 2 expansion racks
    Vacuum Drying Chamber; VDL23, 0.8 cu. ft., TFT Control, Binder, 100/120 V
    $13,216
    Usually Ships in 15 - 20 days
  2. RapidVap Vacuum Dry Evaporators by Labconco with a 1000-watt dry block heating system; select models include a Lid Heater to eliminate sample condensation | 6922-PP-01 displayed
    Group of 8 products
    RapidVap Vacuum Dry Evaporation Systems by Labconco From
    As low as $12,367
    Some ship in 25 - 29 days
  3. SemiChill Recirculating Coolers (from Julabo) are compact, powerful liquid chillers featuring PID temperature control | 2540-32 displayed
    Group of 5 products
    SemiChill Recirculating Coolers from JULABO From
    As low as $21,937
    Some ship in 12 - 18 days

  • Compare Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific Compare Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific
Compare Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific
Comparison chart for Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific Compare Flammable Materials Cold Storage Solutions by Thermo Fisher Scientific

Features and Benefits

No Internal Electrical Components

Flammable material cold storage models are engineered without internal electrical components to ensure a spark-free inner chamber.
