11.5 cu. ft. -30°C auto defrost plasma freezer meets AABB and FDA requirements, includes stainless steel drawers and holds 273 boxes; optional chart recorder | 1621-32 displayed
Low Temperature Freezers

Freezer; 11.5 cu. ft., Auto Defrost Plasma Storage, TSX High-Performance, Thermo Fisher, 115 V, TSX1230LA

  • 11.5 cu. ft. auto defrost -30C plasma freezer meets AABB requirement for whole blood and plasma storage
  • FDA listing: Class I Medical Device, 510K exempt
  • Convenient, fully extendable and adjustable stainless steel drawers
  • Plasma box (250mL) capacity: 273 boxes
  • Includes: seven drawers and four casters (two lockable)

• Internal Dimensions: 20" W x 21.8" D x 52.4" H

• Capacity Range: 6 to 12 cubic feet

• Manufacturer SKU: TSX1230LA

• Capacity: 11.5 cu. ft.

• Configuration: Upright

• Brand: TSX High-Performance

• Door Style: Single Solid

• Plug Type: US Plug

• Specialty: Plasma Storage

• Type: Freezer

• Set Point Temperature: -30°C

• Freezer Temperature Range: -25°C to -15°C

• Unit of Measure: EA

Read more
cULus Logo ULus Logo Energy Star SNAP Compliant <span style=AABB Standards Compliant
"/>
Manufacturer SKU: TSX1230LA
Manufactured By: Thermo Fisher
Warranty: 2-Years for parts and labor; 8-Years for V-Drive Compressor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1621-32
Terra Part # 1621-32
$10,193
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Terra Part # 1621-32
78703
$10,193
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • 11.5 cu. ft. auto defrost -30C plasma freezer meets AABB requirement for whole blood and plasma storage
  • FDA listing: Class I Medical Device, 510K exempt
  • Convenient, fully extendable and adjustable stainless steel drawers
  • •  Plasma box (250mL) capacity: 273 boxes
  • •  Includes: seven drawers and four casters (two lockable)
  • Features: intuitive microprocessor control with setpoint security and alarms, adjustable drawers, ergonomic door handle, door lock, bright LED interior lighting, self-closing door with 90° stop and manufactured in an award-winning zero-waste to landfill facility
  • Options: chart recorder, remote alarm and recorder monitoring, Smart-Vue
  • High-performance plasma freezer designed for sample protection and sustainability objectives for plasma storage
  • Forced-air circulation provide temperature uniformity and quick temperature recovery
  • V-Drive technology saves energy and provides maximum protection by detecting door opening and other usage patterns requiring variance of compressor speed for temperature stability
  • Certifications/Compliance: UL, cUL SNAP and EnergyStar
  • SNAP Compliant Refrigerants: Natural, R290 refrigerant and water-blown foam
  • GMP Clean Room Class A / ISO 6 (ISO EN 14644-1) compatible with appropriate pre-install preparation
  • Whisper quiet operation: 52 dBA
  • Energy-efficient models use up to 50% less energy usage compared to other models
  • Lower HVAC costs due to less heat emission into the environment*
Show more

• Internal Dimensions: 20" W x 21.8" D x 52.4" H

• Capacity Range: 6 to 12 cubic feet

• Manufacturer SKU: TSX1230LA

• Capacity: 11.5 cu. ft.

• Configuration: Upright

• Brand: TSX High-Performance

• Door Style: Single Solid

• Plug Type: US Plug

• Specialty: Plasma Storage

• Type: Freezer

• Set Point Temperature: -30°C

• Freezer Temperature Range: -25°C to -15°C

• Unit of Measure: EA

• Marks & Listings: UL, ULC, ENERGYSTAR, SNAP

• Electrical Specifications: 115 V, 15 A, 60 Hz

• Weight, Product: 358 lb

• Dimensions, Product: 24" W x 31.1" D x 73" H

Show more
Other products you may find relevant
  1. 3-gene (E, N & RdRp) COVID-19 test includes: 1,050 µl reaction mixture, 550 µl of probe mixture, 50 µl of positive control and 50 µl of negative contr | 1018-00 displayed
    GeneFinder COVID-19 Plus RealAmp Kit by Osang Healthcare
    $2,455
    Usually Ships in 2 - 4 days

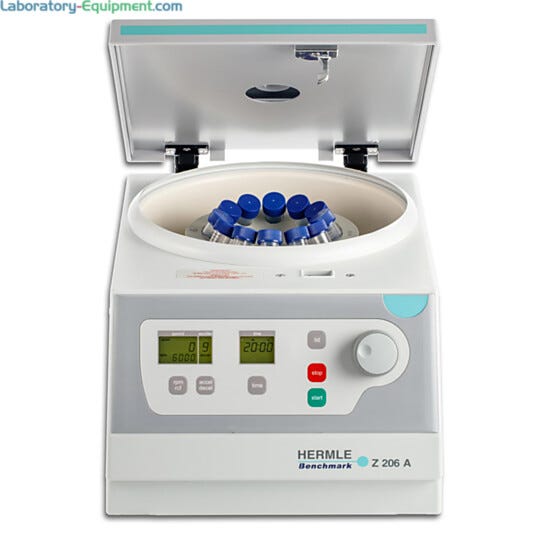

  2. Hermle’s Z206 compact centrifuge, with maximum speed of 6,000 rpm, holds tubes in swing-out or angle rotors | 2823-51 displayed
    Centrifuge; Z206-A, Standard, Benchtop, Hermle, 120 V
    $2,261
    Usually Ships in 6 - 8 days
  3. #845-IPS-2016016 compatible with innuPURE C16 Automated Extraction System | 1015-20 displayed
    Group of 27 products
    innuPREP Nucleic Acid Isolation Kits, 16 Reactions, by Analytik Jena From
    As low as $54
    Some ship in 5 - 7 days

Low Temperature Freezers

  • Compare TSX High Performance -30°C Plasma Freezers by Thermo Fisher Scientific Comparison chart for TSX High Performance -30°C Plasma Freezers by Thermo Fisher Scientific
Compare TSX High Performance -30°C Plasma Freezers by Thermo Fisher Scientific
Compare capacity, plasma box storage, drawers and included chart recorder for TSX High Performance -30°C Plasma Freezers by Thermo Fisher Scientific | 1621-PP-03 displayed Comparison chart for TSX High Performance -30°C Plasma Freezers by Thermo Fisher Scientific

Features and Benefits

Learn More: Revco Plasma Freezers
Print Copy Copied

Industry and Applications for -30°C Revco High-Performance Plasma Freezers

Lockable doors option available on all Revco Plasma Freezers

Ideal for use in hospitals, physician's offices, blood banks and clinical labs, Revco Plasma Storage Freezers provide reliable short-term and long-term storage of plasma bags and samples. These units are an ideal storage solution for blood banks performing blood separation. The positive airflow system enables optimum temperature stability and models recover factory-preset temperature quickly after door openings.

Safety features such as audio/visual alarms and lockable doors give labs an added layer of safety and security.

Model UFP430A UFP1230A UFP2330A UFP3030A UFP5030A
Type Undercounter Space-Saver Upright Upright Upright
Capacity 4.9 cu. ft./139L 11.5 cu. ft./326L 23.3 cu. ft./659L 29.2 cu. ft./826L 51.1 cu. ft./1447L
Cabinet Type Undercounter Space Saver Upright Upright Upright
Plasma Box
Capacity (250ml)		 78 273 532 665 1064
Drawer Dividers 2 Included 7 Included 7 Included 7 Included 14 Included
Doors/Type Single/Solid Single/Solid Single/Solid Single/Solid Double/Solid
Internal
Dimensions*		 20"W x 20.5"D x 20"H
(508 x 521 x 508 mm)		 20"W x 21"D x 52.4"H
(508 x 533 x 1331 mm)		 24"W x 29"D x 58"H
(610 x 229 x 1473 mm)		 30"W x 29"D x 58"H
(762 x 737 x 1473 mm)		 52.5"W x 29"D x 58"H
(1336 x 737 x 1473 mm)
External
Dimensions		 24"W x 29"D x 34"H
(610 x 734 x 864 mm)		 24"W x 29.3"D x 73.6"H
(610 x 744 x 1869 mm)		 28"W x 37.2"D x 79.2"H
(711 x 945 x 2012 mm)		 36.4"W x 37.2"D x 79.2"H
(925 x 945 x 2012 mm)		 56.5"W x 37.2"D x 79.2"H
(1435 x 945 x 2012 mm)
Plug 5-15P 5-15P 5-20P 5-20P 5-20P
Access Port 1" Access Port - - - -
Inkless
Chart  Recorder		 - Yes Yes Yes Yes
Operating Temp. -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F) -30°C (-22 °F)
Compressor Heavy-duty, industrial-grade, hermetically sealed
Cabinet/Chamber
Material		 High impact powder paint coating
Defrost Automatic
Insulation CFC-Free
Temp. Control Microprocessor
Refrigerant CFC Free
Compliance Meet UL requirements; TUV criteria; AABB, ANRC, and FDA guidelines
Electrical 115 volts, 60 Hz
Warranty 2-year warranty on parts and labor with an additional 2-years on compressor only
*Height dimensions without caster installation

V-Drive Technology

Quick temperature recovery and energy efficient cold storage for pharmaceutical, vaccines and medical samples

Ergonomic Usage

Ergonomic door handle designed with a soft touch grip

Meets AABB and FDA Requirements

Automatic defrost feature of TSX plasma freezers designed to meet strict standards of plasma storage
