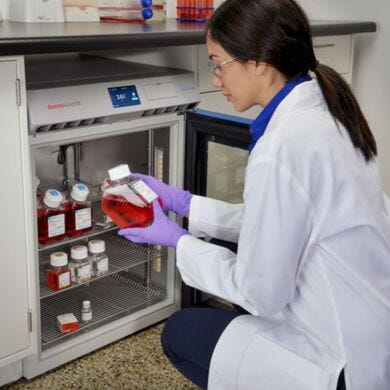

Undercounter laboratory refrigerator model, bottles and extra shelves not included | 1620-43A displayed
Refrigerators (4°C),Vaccine Cold Storage Equipment
Product Group:
1620-PP-03
1620-PP-03 73606

TSX Series High-Performance Undercounter Lab Refrigerators by Thermo Fisher Scientific

  • Energy-efficient 5.5 cu. ft. TSX High-Performance Lab-Grade Undercounter Refrigerators with redundant cooling, low noise, high storage capacity and universal voltage
  • Glass door and solid door models certified to NSF/ANSI 456 vaccine storage standard
  • Powered by V-Drive featuring STeM Technology, features CFC and HFC free insulation, and uses up to 77% less energy
  • Temperature range: 3°C to 7°C / 0.1°C
  • Includes three adjustable wire shelves and leveling feet
Read more
cULus Logo CE Mark Logo Ships Free
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty for Parts and Labor; Seven-Years on PHP Part
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Refrigerator Temperature Range

Sort Order:

 Terra Part #PriceShips in
3° to 7°C 1620-43A 73390 $5,98910-16 Days2
Ships Free Free shipping in contiguous USA
3° to 7°C 1620-44A 73592 $5,65111-17 Days3
Ships Free Free shipping in contiguous USA
Refrigerator Temperature Range
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

*
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Energy-efficient 5.5 cu. ft. TSX High-Performance Lab-Grade Undercounter Refrigerators with redundant cooling, low noise, high storage capacity and universal voltage
  • Glass door and solid door models certified to NSF/ANSI 456 vaccine storage standard
  • Powered by V-Drive featuring STeM Technology, features CFC and HFC free insulation, and uses up to 77% less energy
  • Temperature range: 3°C to 7°C / 0.1°C
  • •  Includes three adjustable wire shelves and leveling feet
  • Industry applications: vaccines, pharmacies, biological, diagnostics and reagents, molecular biology, clinical, industrial testing
  • Vaccine storage capacity: 45 Boxes per Level (9 x 5 Pattern), 225 Boxes per Shelf (5 Levels per Shelf, 2 Shelves per Unit), +45 Boxes (1 Additional Level Above Top Shelf)
  • Certifications/compliance: NSF/ANSI 456, SNAP, CE, REACH, RoHS, UL, EU F-GAS regulations, US EPA ENERGY STAR
  • 4.3” color touchscreen LCD display with LED backlighting
  • Tested to GMP Clean Room Class A / ISO 7  (ISO EN 14644-1)
  • Easy-to-clean surfaces support USP 797 and USP 800  hazardous drug compounding and other clean room environments
  • Factory setpoint: 5°C
  • Sound level: 35 dBA
  • Universal voltage (100-240v, 50/60hz)
  • Variable speed control with thermoelectric devices deliver ideal conditions for vaccine storage and other demanding applications
  • Compressor-free V-Drive Technology with Synchronized Temperature Management (STeM):
  •        Dual refrigeration system features cold wall and fan-assisted recovery
  •        Detects usage patterns
  •        Monitors cabinet temperature
  •        Constantly monitors and adjusts temperature during door openings keeps temperature stable
  •        Tight internal air circulation eliminates freezing, ideal for vaccine storage
  •        Keeps temperature consistent at all shelf levels
  • Refrigerant Configuration:
  •        Cooling System: 125W Thermoelectric Heat Pump Devices
  •        Evaporator Type: Hybrid cold wall / forced air with R-744 (CO2) as refrigerant
  •        Condenser Type: Forced Air Heat-pipe Fin Tube With Water As Refrigerant
  •        Defrost Method: Pre-programmed Automatic, Option for Manual Initiation Available
  •        Refrigerant: R-744 for cold side; R-718 for hot side
  • Features: air and glycol temperature display, electronic lock, interior led lighting, ADA handles, reversible doors, built-in data logger, 1” rear access port, and alarms (system, door ajar, probe failure, temperature, low battery, and love memory)
  • Plug Type: NEMA 5-15P, 1.828 Meters (6 Feet)
  • Ambient Operating Temperature: 15° C - 32° C (60° F - 90° F)
  • Compatible with wireless monitoring systems (Smart-Vue) and remote alarm contacts
  • Energy consumption: 0.99 kWh/day 1
  • Compact and streamlined designed devoid of internal protrusions increase storage capacity
Show more

Show more

  • Box to Bench & Setup: Thermo Scientific TSX Series High-Performance Undercounter Lab Refrigerators Box to Bench & Setup Video: Thermo Scientific TSX Series High-Performance Undercounter Lab Refrigerators
  • Comparison Chart for TSX Undercounter Lab Refrigerators by Thermo Fisher Scientific Comparison Chart for TSX Undercounter Lab Refrigerators by Thermo Fisher Scientific

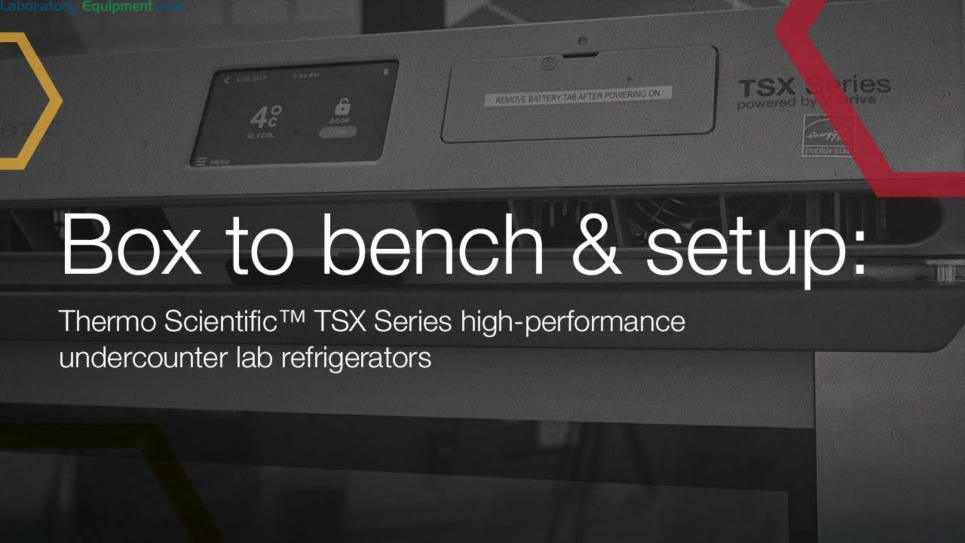

Box to Bench & Setup: Thermo Scientific TSX Series High-Performance Undercounter Lab Refrigerators
Video shows unboxing and operation of TSX Series High-Performance Undercounter Lab Refrigerators Box to Bench & Setup Video: Thermo Scientific TSX Series High-Performance Undercounter Lab Refrigerators Video presentation for TSX Series High-Performance Undercounter Lab Refrigerators includes unboxing, operation and navigation of touchscreen display
Comparison Chart for TSX Undercounter Lab Refrigerators by Thermo Fisher Scientific
Compare TSX High-Performance Undercounter Lab Refrigerators by Thermo Fisher Scientific ideal for vaccine storage in pharma and clinical environments | 1620-PP-03 displayed Comparison Chart for TSX Undercounter Lab Refrigerators by Thermo Fisher Scientific
Features & Benefits

Features & Benefits

Green Benefits

ENERGY STAR certified models use 61% less energy providing quality, performance and savings in daily lab usage

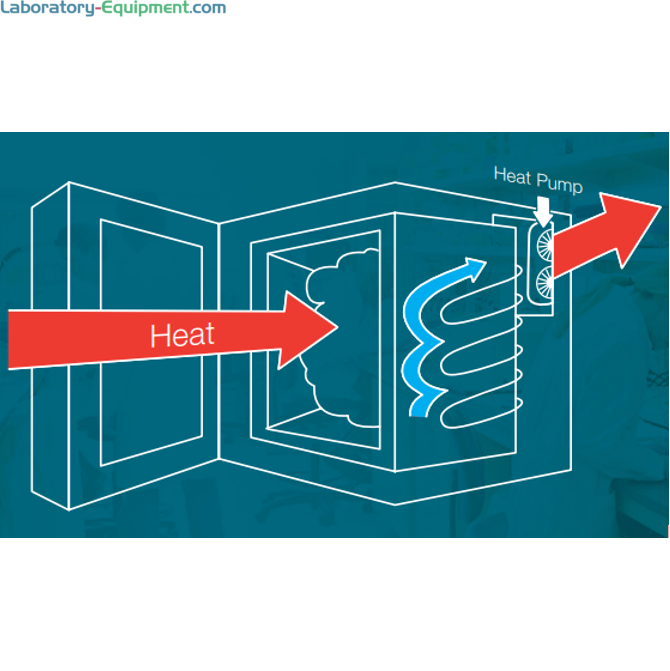

Refrigerant Loop

Absorbs and transfers heat energy from the outside into a heat pump in the back of the refrigerator where heat rejection coils transfer heat energy from the heat pump back into the ambient environment

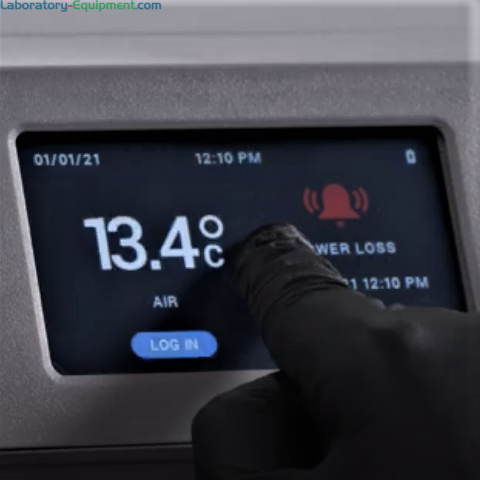

Touchscreen Display

Full color 4.3" TFT-LCD touchscreen controller with password protection enables easy set-up of parameters and only allows access to authorized users
