Select Product
Frequency Output

Freezer Temperature Range

Refrigerator Temperature Range

Model

Terra Part # Price Ships in
50Hz -12° to- 20° 1°C to 12° C TSV20FPSA 6708-72 82236 $3,150 6-10 Days 2
50Hz -12° to- 20° 1°C to 12° C TSV20RPSA 6708-73 82243 $3,150 6-10 Days 3
Frequency Output
Freezer Temperature Range
Refrigerator Temperature Range
Model
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Economical and SNAP compliant TSV Series Convertible Refrigerator/Freezer with an adjustable temperature control
  • Easily converts from refrigerator to freezer or from freezer to refrigerator with the push of a button
  • Temperature Range: 1°C to 12°C (refrigerator) or -12°C to -24°C (freezer)
  • Interior Dimensions (H x W x D) 69" x 26.5" x 22.5"

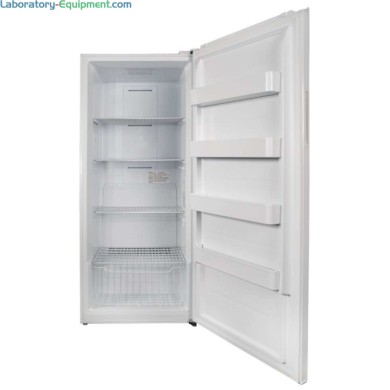

  • Includes: three adjustable shelves, four fixed inner door shelves, and two adjustable leveling feet
  • Applications: general lab sample storage
  • Factory tested prior to shipment and NRTL listed
  • Electronic controller
  • Compressor Safe Guard: High Temp Cutout Switch / Overload Protector
  • Cyclopentane insulation
  • Refrigeration and configuration:
  • Refrigeration System:  Vapor Compression System
  • Compressor:  Hermetic
  • Condenser Type: Foamed In Condenser
  • Expansion Device: Capillary Tube
  • Evaporator Type: Finned Tube Heat Exchange
  • Defrost Method: Automatic
  • Refrigerant Charge/Flammability: R600a/Flammable
  • Additional Features:
  • Easy-to-clean, durable finish
  • Building Supply Rating: 115v± 10%Volt
  • Power Plug: Three prong NEMA 5-15P
  • Agency Listings: cETLus
  • Sound Pressure Level: 40.2 dBA
  • Indoor/Outdoor Usage: Indoor Use Only
  • Application Environment Non-Corrosive, Non-Flammable, Non-Explosive, Good Air Ventilation
  • Ambient Operating Temperature: 15° C - 32° C (60° F - 90° F)

  • Comparison Chart for TSV Convertible Refrigerators/Freezers by Thermo Fisher Scientific Comparison Chart for TSV Convertible Refrigerators/Freezers by Thermo Fisher Scientific
Features & Benefits

Features and Benefits

Easy to Convert

TSV20RPSA and TSV20FPSA models easily convert from a refrigerator to a freezer or from a freezer to a refrigerator with the push of a button

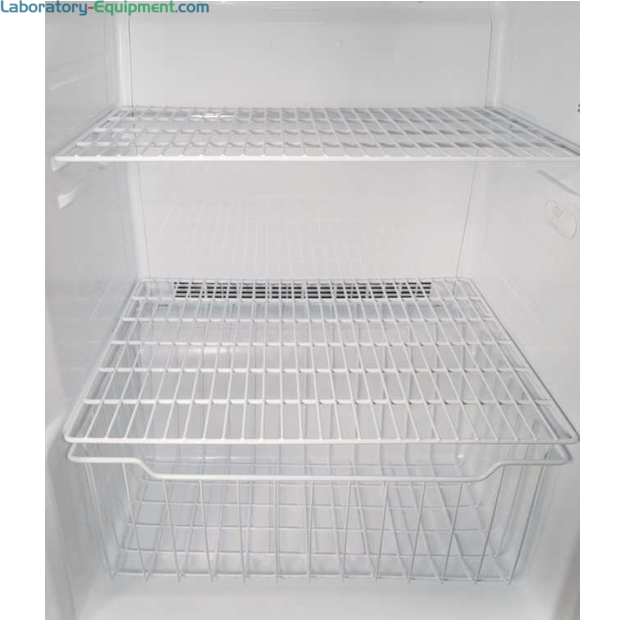

Adjustable Shelves

Models include three adjustable shelves with a maximum load of 55.11 lbs. provide increased storage capacity

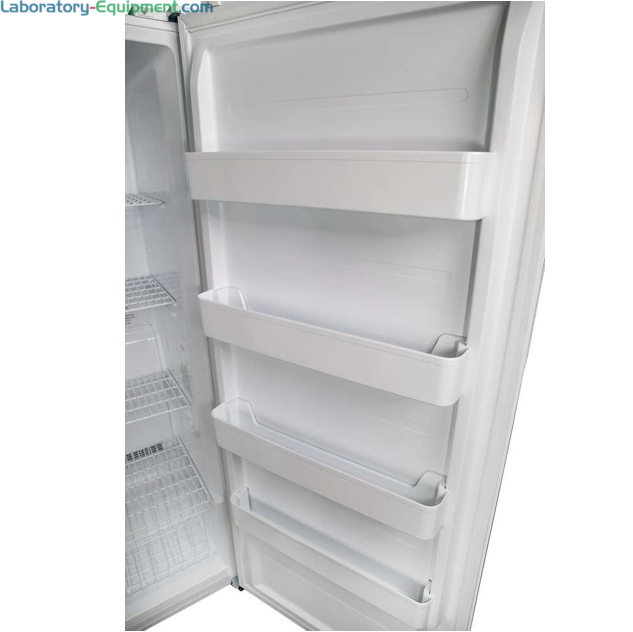

Inner Door Shelves

TSV Convertible models feature a right hinged door with four fixed shelves for additional storage capacity
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
