6707-47
Terra Part # 6707-47
$4,540
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Terra Part # 6707-47
81832
$4,540
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Product Details

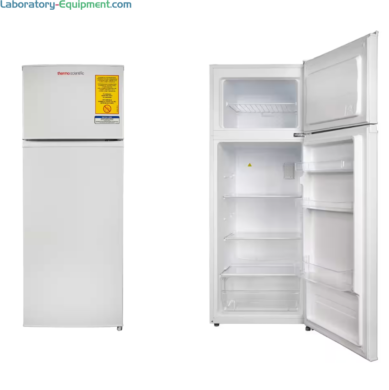

  • Explosion Proof Combination Refrigerator/Freezer for use in Class I, Division I, Group C and D hazaRDOâ„¢us environments
  • Hardwired electrical components and vapor-proof enclosure isolates thermostat and compressor components
  • Meets OSHA and NFPA requirements
  • Interior Dimensions: 17.5"W x 17"D x 36.5"H Refrigerator; 15.5"W x 16"D x 10.38"H Freezer
  • •  Includes: Refrigerator: 3 adjustable shelves, 1 drawer and 3 door shelves; Freezer 1 shelf; 2 adjustable leveling front feet
  • Capacity: 7.1 cu. ft. (201 L)
  • Temperature rating: 1°C to 12°C Refrigerator;  -20°C to -12°C Freezer
  • Material: enameled steel exterior, ABS plastic interior
  • Application Environment: Class I, Division I Group C and D, Class I Zone 1 Group II B Environments
  • Sound Pressure Level 35.3dBA
  • Ambient Operating Temperature: 15° C - 32° C (60° F - 90° F)
  • Instrument Rated Current:  1A
  • Door: 1 hinged refrigerator; 1 hinged freezer
  • Cyclopentane insulation
  • CFC-free insulation and refrigerant
  • Positive door seal with magnetic vinyl gaskets
  • Refrigeration and Configuration for TSH07CESA Cold Storage:
  • Green, natural HC refrigerants
  • Vapor compression system
  • Hermetic compressor
  • Foamed in condenser
  • Capillary tube expansion device
  • Foamed in evaporator
  • Defrost method: automatic (refrigerator), manual (freezer)
  • Mechanical Dial Thermostat
  • Compressor safe guard: High Temp Cutout Switch / Overload Protector
  • Control sensor: capillary tube
  • Unit must be hardwired to building for safety

• Freezer Temperature Range: -20°C to -12°C

• Manufacturer SKU: TSH07CESA

• Capacity: 7.1 cu. ft.

• Type: Refrigerator/Freezer

• Refrigerator Temperature Range: 1°C to 12°C

• Unit of Measure: EA

• Electrical Specifications: 120 V, 60 Hz

• Dimensions, Product: 21.5" W x 27.5" D x 56.63" H

• Weight, Shipping: 120 lb

• Dimensions, Shipping: 33.63" W x 39" D x 43.5" H

Manuals & Resources

  • Comparison Chart for Explosion Proof Cold Storage Solutions by Thermo Fisher Scientific Comparison Chart for Explosion Proof Cold Storage Solutions by Thermo Fisher Scientific

Features and Benefits

TSH07CESA Shelves and Drawer

7.1 cu. ft. Explosion Proof Combo Unit includes 3 adjustable shelves, 1 refrigerator drawer and 1 freezer shelf

Hardwired Electrical Connections

TSH07CESA Explosion Proof Combination model designed with hardwired electrical connections prevents sparking and accidental disconnection
