Product Details

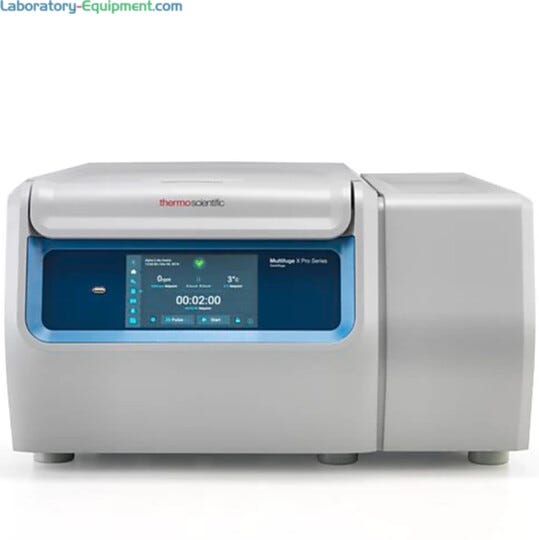

- FDA-listed IVD Multifuge X4R Pro Refrigerated Benchtop Centrifuge with 100-program memory
- Temperature range: -10°C to +40°C
- Easy rotor change without tools and optional Certified ClickSeal™ biocontainment lids for operator safety
- Processes up to 196 blood tubes and 96 15mL conical tubes
- Swinging and fixed-angle rotors sold separately
- Refrigerated model features: CFC-free refrigeration, <64 dB(A) Rotor F15-8x50c; 14500 RPM
- Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches
- Full color touch screen LCD display provides easy access to menus and programs
- Double temperature management shows air and sample temperature during run
- Applications: clinical, chemistry, pathology, clinical and molecular microbiology, clinical immunology, pediatrics
- Push-button operation ideal for routine applications
- Capacity with TX-1000 rotor: 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 6 Microplates, 4 x 1000 mL BioBottles
- Swinging bucket rotors specifications:
- Maximum capacity: 4 x 1000 mL with TX-1000 rotor
- Maximum speed: 6000 rpm with BIOShield 1000A rotor
- Maximum RCF: 7164 x g with BIOShield 720 rotor
- Fixed-angle rotors specifications:
- Maximum capacity: 6 x 250 mL with F14-6x250LE rotor
- Maximum Speed 15200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
- Maximum RCF: 25830 x g with Microliter 30x2
- Multifuge X4R Pro benchtop centrifuge features: ergonomic design, microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 100 programs, up to 9 hr. 59 minutes run time, continuous and customizable pulse, count-down timer, G-force increments in 1 x g, 1rpm increments, time setting (hour/min and continuous mode), bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open and secure access mode
- Motorized lid latch for one-finger downward motion (closing and locking of lid)
- Noise level: <64 dB(A) Rotor F15-8x50c; 14500 RPM
- Easy-to-clean and access rotor chamber
- System certified by CAMR™ in Porton Down, UK.
- 40% energy savings on standard protocols: blood separation or conical tubes processing
- SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option
- ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation
- Certifications/Compliance: EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15
- Standards: ISO 14971, ISO 13485, ISO 9001
- Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet
- Stainless steel centrifuge bowl
- Includes printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity
- List of optional rotors for Multifuge X4 Series:
- TX-1000 Swinging Bucket Rotor #75003017
- TX-750 Swinging Bucket Rotor #75003180
- BIOShield 1000A Swinging Bucket Rotor #75003182
- TX-400 Swinging Bucket Rotor #75003181
- BIOShield 720 Swinging Bucket Rotor #75003183
- TX-200 Swinging Bucket Rotor #75003658
- HIGHPlate 6000 Swinging Bucket Rotor #75003606
- Fiberlite H3-LV Swinging Bucket Rotor #75003665
- M-20 Swinging Bucket Rotor #75003624
- H-Flex 1 Swinging Bucket Rotor #75003300
- H-Flex HS4 Swinging Bucket Rotor #75003330
- Fiberlite F15-6x100y Fixed Angle Rotor #75003698
- Fiberlite F10-6x100 LEX Fixed Angle Rotor #75003340
- CLINIConic Fixed Angle Rotor #75003623
- 8 x 50 Individually Sealed Fixed Angle Rotor #75003694
- HIGHConic II Aluminum Fixed Angle Rotor #75003620
- MicroClick 18x5 Aluminum Fixed Angle Rotor #75005765
- Fiberlite F21-48x2 Fixed Angle Rotor #75003664
- Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
- MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
- Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
- MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
- Microliter 30 x 2 Aluminum Fixed Angle Rotor #75003652
Specs
• Temperature Control: Refrigerated
• Maximum Speed: 15200 rpm
• Manufactured by: Thermo Fisher
• Model: Multifuge X4R Pro-MD
• Configuration: Benchtop
• Manufacturer SKU: 75009516
• Type: Centrifuge
• Capacity: Multi tube
• Unit of Measure: EA
• Marks & Listings: UL, EN,IEC,IVD
• Electrical Specifications: 120 V, 50/60 Hz
• Weight, Product: 265 lb
• Dimensions, Product: 29.4" W x 27.2" D x 14.3" H
