Part # 5050-60B

Transaction Window; 22"W x 37"H, Tempered Glass Window with BioSafe® Drawer, Wall Mount, 304 Stainless Steel Frame

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Suitable as service windows for banks, gas stations, ticket windows or night transactions; customer must specify window material and thickness for bullet-proof applications
  • Service employees maintain full visibility of the opposing room
  • Frames made of stainless steel for durability
  • Windows are 1/2-inch tempered glass for security
Stocked CE Mark Logo ISO 7 Icon Quick Ship +
Terra Part #: 5050-60B
Manufactured By: Terra Universal
$5,447
Part #: 5050-60B
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available In stock

Product Details

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Suitable as service windows for banks, gas stations, ticket windows or night transactions; customer must specify window material and thickness for bullet-proof applications
  • Service employees maintain full visibility of the opposing room
  • Frames made of stainless steel for durability
  • Windows are 1/2-inch tempered glass for security
  • Nominal Wall Cut-out Dimensions: 17.125"W x 11"H (drawer) (435 x 280mm)
  • Black Acrylic frame and stainless steel door
  • Drawer assembly includes support bracket mounted beneath drawer for added support

Specs

• Door Style: Transaction

• Frame Material: 304 Stainless Steel

• Height: 37"

• Mounting Position: Wall

• Transfer Method: BioSafe® Drawer

• Width: 22"

• Electropolished: Optional

• Window Material: Tempered Glass

• Wall Thickness: 4.875"

• Unit of Measure: EA

• Marks & Listings: CE

• Weight, Product: 36 lb

• Dimensions, Product: 27" W x 24" D x 38" H

• Weight, Shipping: 100 lb

• Dimensions, Shipping: 37" W x 29" D x 46" H

• Package Type: Box

  • Convenience Window Transfer Drawer Transfer Drawer (Receiving Side)
  • Video of Sliding Transaction Drawer Operation Transaction Window with Drawer
  • Transaction Drawers with Window and Talk-Through Module ValuLine™ Transaction Drawer with Window
  • Corian® Transaction Drawer with Tempered-Glass Window and Talk-Through BioSafe® Transaction Drawer with Window
Convenience Window Transfer Drawer
Transfer drawer with 20”W x 24”D x 14”H service area (shown from receiving side) Transfer Drawer (Receiving Side) Transfer drawer with 20”W x 24”D x 14”H contents area, shown from receiving (customer) side; operation controlled by pull lever on opposing side. Ideal for paperwork, rolled coins, small packages.

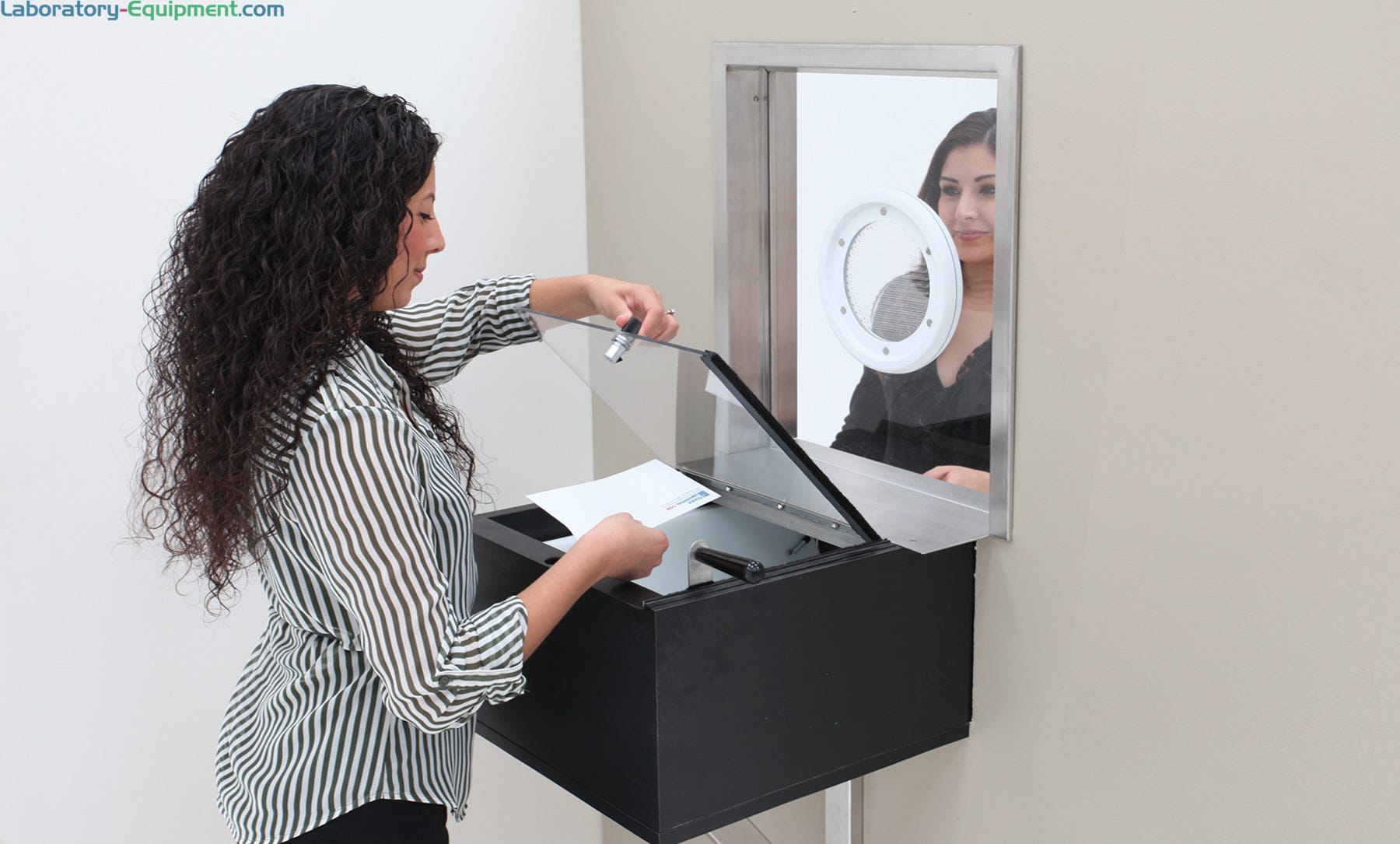

Video of Sliding Transaction Drawer Operation
This short video demonstrates the operation of Terra's Transaction Drawer (shown with optional window) Transaction Window with Drawer Terra's sliding Transaction Drawer features cleanroom-compatible materials, controlled at all times by the operator on the service side (shown with optional window and talk-through).
Transaction Drawers with Window and Talk-Through Module
Transaction drawer with window allows transfer of documents, small packages (shown with optional Talk-Through) ValuLine™ Transaction Drawer with Window ValuLine™ black acrylic transaction drawer with window allows service personnel to transfer documents and small packages with a sliding lever to customers on the receiving side (shown with optional Talk-Through).

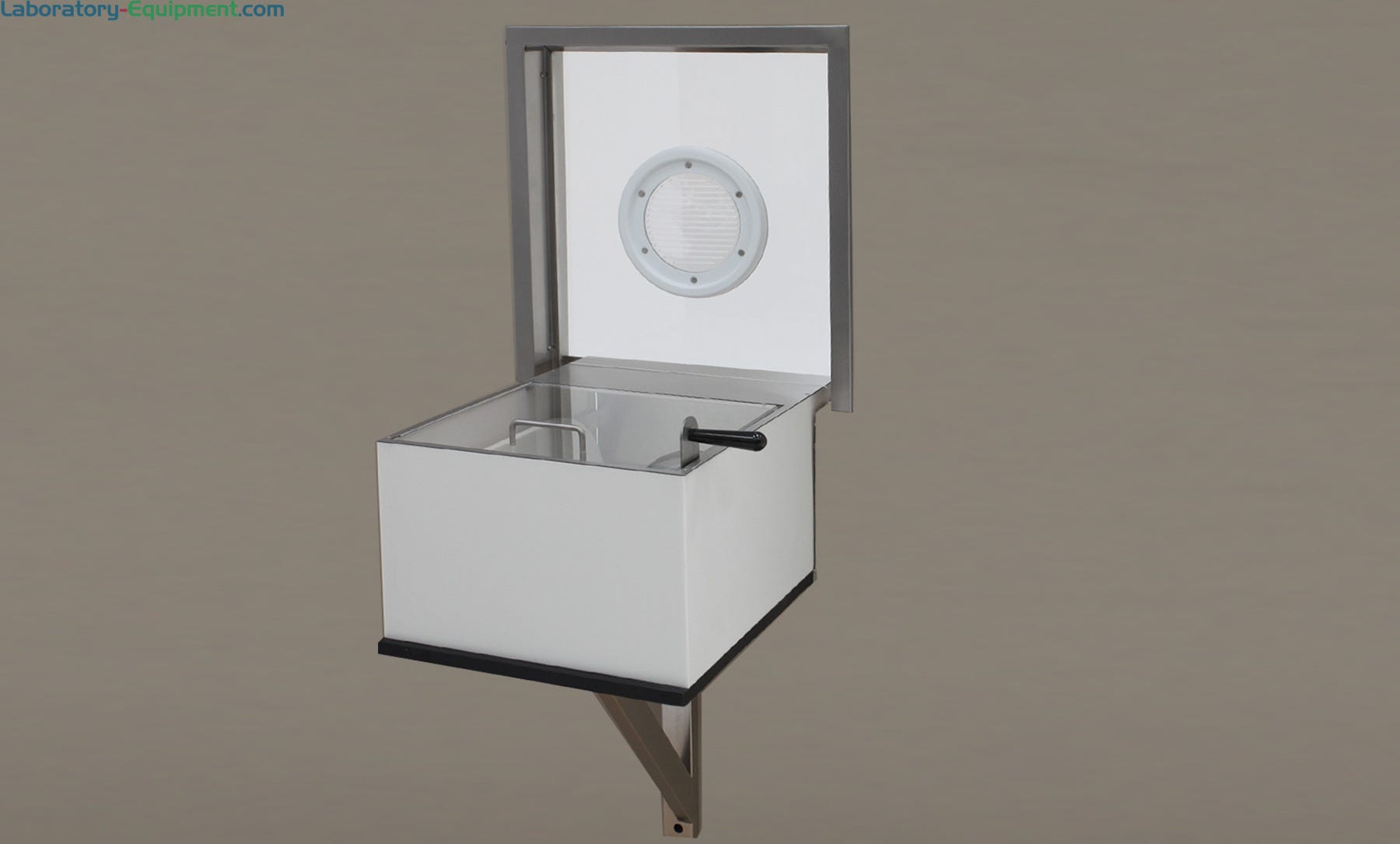

Corian® Transaction Drawer with Tempered-Glass Window and Talk-Through
BioSafe® Transaction Drawer allows service personnel to transfer documents and packages (shown with optional Talk Through. BioSafe® Transaction Drawer with Window BioSafe® Transaction Drawer, made of clean, durable Corian® with tempered-glass window, allows service personnel to transfer large items with a sliding level to customers on the receiving side (shown with optional Talk-Through).
