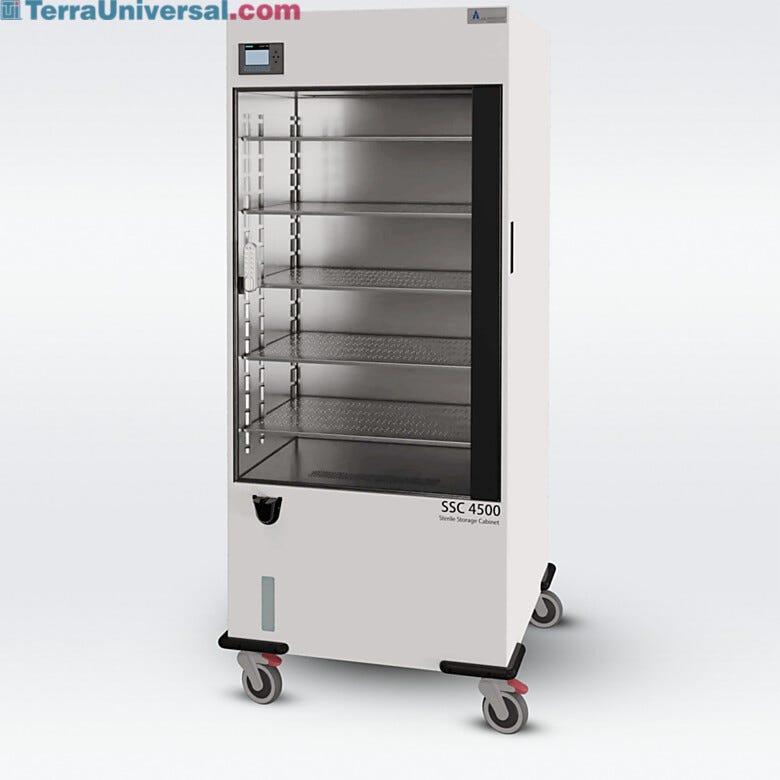

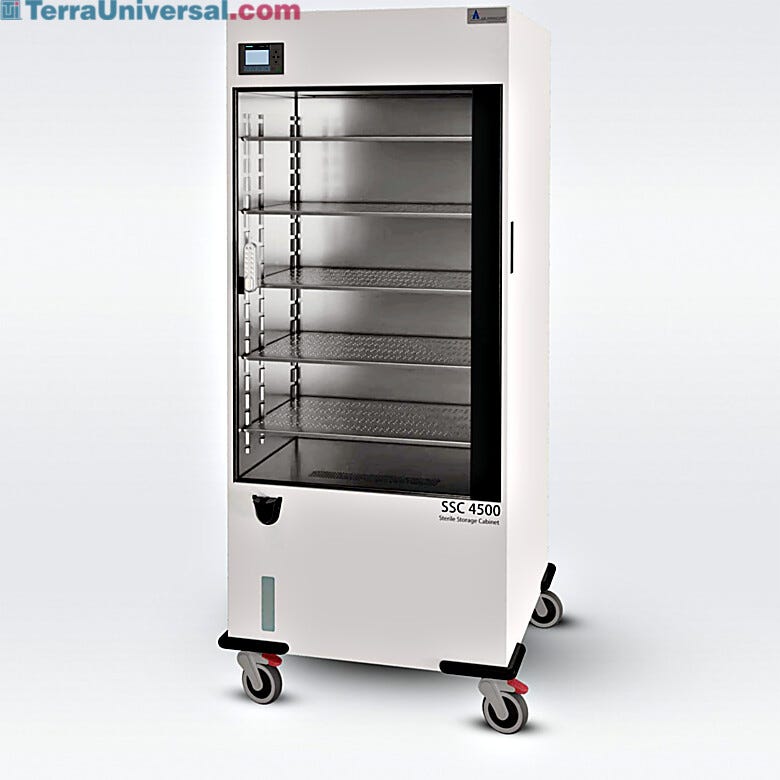

Large sterile storage cabinet with five shelves included for storing sterile medical equipment in a clean air, controlled environment | 3947-00 displayed
Environmental Test Chambers

Sterile Storage Cabinet; ISO 4, HEPA-Filtered with Temp and RH Control, 30.5" W x 32" D x 77.5" H, 120 V

  • Ideal for operations that require sterile storage of materials with HEPA filtration, temperature and RH control
  • Helps prevent infection and decay by maintaining a sterile controlled environment for stored equipment and supplies
  • Humidity Control: 20% to 60% RH
  • Temperature Control: 66°F to 72°F
  • Turnkey system requires no electrical hardwiring or plumbing to install

• Configuration: HEPA-Filtered

• Type: HEPA-Filtered

• Design: Free Standing Cabinet

• Chamber Dimensions: 28" W x 19" D x 42" H

• Blower/Filter: HEPA Blower

• Storage Type: Shelves

• ISO Rated™ Air Cleanliness: ISO 4

• Unit of Measure: EA

Read more
Warranty: 1 year manufacturer warranty parts and labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3947-00
Terra Part # 3947-00
$30,608
Usually ships in 40-60 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3947-00
85278
Sterile Storage Cabinet; ISO 4, HEPA-Filtered with Temp and RH Control, 30.5" W x 32" D x 77.5" H, 120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Qty Unit Price %
1 $30,608 -
2 $29,996 2%
Details & Specs
Related Products
Buy Accessories
Product Details
  • Ideal for operations that require sterile storage of materials with HEPA filtration, temperature and RH control
  • Helps prevent infection and decay by maintaining a sterile controlled environment for stored equipment and supplies
  • Humidity Control: 20% to 60% RH
  • Temperature Control: 66°F to 72°F
  • Turnkey system requires no electrical hardwiring or plumbing to install
  • The Sterile Storage Cabinet not only creates a barrier between materials and contaminants like dust, dirt, viruses, and bacteria. It regulates the temperature and humidity to prevent decay and increase the shelf life of stored goods.
  • Ideal for medical, semiconductor, aerospace, industrial facilities for sterile storage of PPE such as scrubs and head covers, as well as other sensitive materials, such as surgical instruments, surgical implants, surgical setups, medication, raw materials.
  • On-demand mini cleanroom storage for restrictive spaces. no construction or complicated permitting.
  • Three-Tier Protection:
  • HEPA filtration for ISO 4 air cleanliness: 230 air changes per hour with positive pressure of +.03" WC.
  • Humidity control: 20% to 60% RH with condensate controls and alarms.
  • Temperature control: 66°F to 72°F prevents overheating.
  • Streamline operations:
  • Portable design brings sterile materials closer to points of use.
  • Interface with environmental monitoring systems, including FreshLoc or TempTrak systems.
  • Low power consumption for emergency operation: may be plugged directly to hospital emergency red plate outlets to remain operable during power outages.
  • Features Cont'd:
  • Steam humidification uses standard demineralized water with integrated 3/4 gal. reservoir with front spout access.
  • Quiet operation. 55-59 dBA at 3 feet (1 meter).
  • Door lock with keypad for added security and restricted access.
  • Onboard control and display enables easy operation and quick readings of temperature, humidity, pressure, alarm.
  • Adjustable shelves for fast batch processing of different types and sizes of materials.
  • Medical grade design and construction: Easy to sterilize 304 stainless steel interior with white powder-coated aluminum exterior.
  • Meets or exceeds the following standards: IEC 60601-1, requirements of VA Directive 1116(2) including: CSA Z314.15-10; ANSI/AAMI ST79-2006; ANSI/ASHRAE/ASHE standard 170-2017.
  • Optional Accessories:
  • UV-C light kit installed above HEPA filter to sterilize airborne pathogens.
  • Exhaust duct with ceiling adapter to vent exhaust and heat out of room.
  • Remote monitor to display temperature, humidity, pressure of the cabinet from another room (monitor only, not control).
  • Includes:
  • 5 adjustable stainless steel shelves.
  • Lockable casters.
  • 10ft heavy-duty hospital-grade 120V power cord.
  • REQUIREMENTS (see data sheet for details):
  • Building environmental conditions: 60°F to 82°F, 60°F Dew Point
  • Room size: minimum recommended 10' x 10' (optional heat exhaust recommended for rooms smaller than 10'x10')
  • Power: 120-1-60 power supply, 15 AMP (10RLA) grounded room receptacle
  • Demineralized water
Show more

• Configuration: HEPA-Filtered

• Type: HEPA-Filtered

• Design: Free Standing Cabinet

• Chamber Dimensions: 28" W x 19" D x 42" H

• Blower/Filter: HEPA Blower

• Storage Type: Shelves

• ISO Rated™ Air Cleanliness: ISO 4

• Unit of Measure: EA

• Electrical Specifications: 120 V, 15 A, 1 Ph, 60 Hz

• Weight, Product: 450 lb

• Dimensions, Product: 30.5" W x 32" D x 77.5" H

Show more
Other products you may find relevant
  1. Thermo Fisher Scientific Large Capacity Ovens in 400L and 750L capacity sizes in gravity and mechanical convection models | 3614-81 displayed
    Group of 6 products
    Heratherm Large Capacity Ovens by Thermo Fisher Scientific From
    As low as $7,745
    Some ship in 10 - 20 days

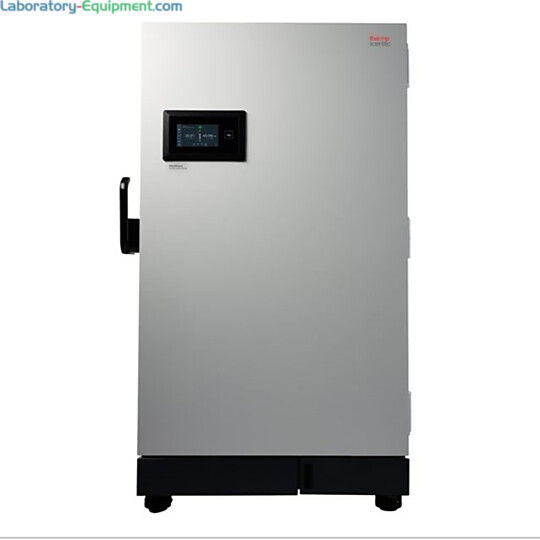

  2. 750L Heratherm Solid Door Environmental Chambers by Thermo Fisher Scientific with inner glass door for light sensitive applications | 1410-PP-12 displayed
    Group of 8 products
    Heratherm Environmental Chambers by Thermo Fisher Scientific From
    As low as $16,053
    Some ship in 0 - 10 days

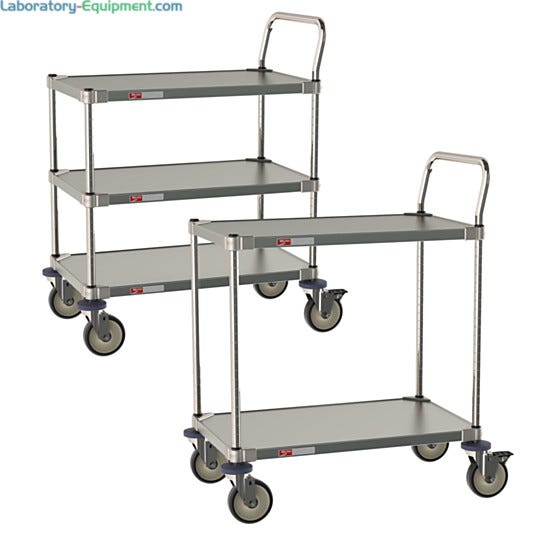

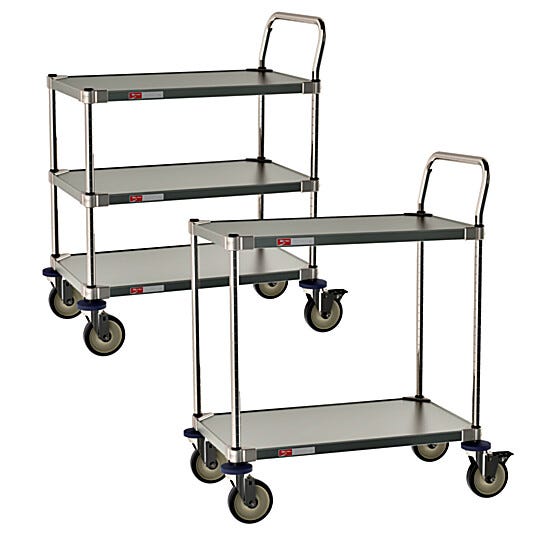

  3. All stainless steel Grade A pharma cleanroom and lab carts withstand regular cleaning and sterilization; two sizes with 2- or 3-shelf configurations | 1403-PP-06 displayed
    Group of 4 products
    All Stainless Steel Grade A Pharma Carts for Labs and Cleanrooms by InterMetro From
    As low as $854
    Some ship in 45 - 49 days
  4. BINDER KBF LQC 240 Humidity Test Chamber with patented light photometry and UV/Vis light-dose control 8.7 cu. ft. includes 2 cassettes and 2 SS shelves
    Group of 2 products
    KBF LQC Humidity Test Chambers by BINDER Worldwide From
    As low as $26,833
    Some ship in 15 - 21 days
  5. Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific in volume capacities of 13.3 and 27.3 cu. ft. | 5324-PP-01 displayed
    Group of 6 products
    Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific From
    As low as $5,805
    Some ship in 10 - 20 days

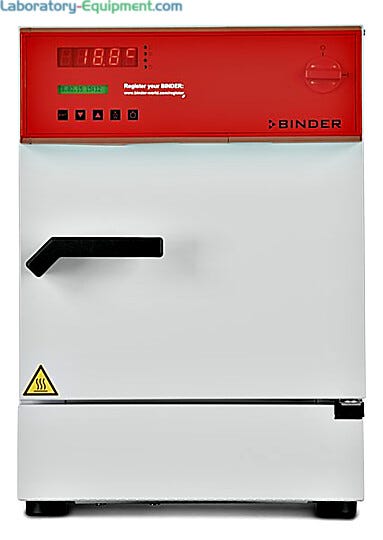

  6. Stackable KB 23 Refrigerated Incubator with a compressor cooling unit, APT.line chamber technology and 0 °C to 100 °C temperature range for microorganism storag | 2828-37 displayed
    Group of 6 products
    KB Series Refrigerated Incubators by Binder From
    As low as $4,938
    Some ship in 15 - 20 days
Buy Accessories
  1. Kit for venting the exhaust from the sterile storage cabinet to a standard drop ceiling grid | 3947-01 displayed
    Exhaust Duct with 2'x2' Ceiling Adapter, for SSC4500 Sterile Storage Cabinet by Air Innovations
    $484
    Increase Down Increase Up
  2. UV-C lights are installed above the filter inside the cabinet to provide sterilization | 3947-02 displayed
    UV-C Light Kit, for SSC4500 Sterile Storage Cabinet by Air Innovations
    $1,785
    Increase Down Increase Up
  3. An optional LCD display to monitor environmental conditions of the sterile storage cabinet remotely thorugh a 0-10 VDC signal | 3947-03 displayed
    Remote Monitor (Temp, RH, Pressure), 0-10VDC, for SSC4500 Sterile Storage Cabinet by Air Innovations
    $1,326
    Increase Down Increase Up

  • Series of SSC 4500 sterile storage cabinets in a row Sterile Storage Cabinets for Medical Semiconductor, Aerospace
  • A diagram displaying several featuers of a hospital sterile storage cabinet Sterile Storage Cabinet Features
  • Two large aluminum-body portable sterile storage cabinets side by side in hospital storeroom Sterile Storage Cabinet by Air Innovations
  • A large aluminum-body sterile storage cabinet in use in a hospital setting Sterile Storage Cabinet by Air Innovations

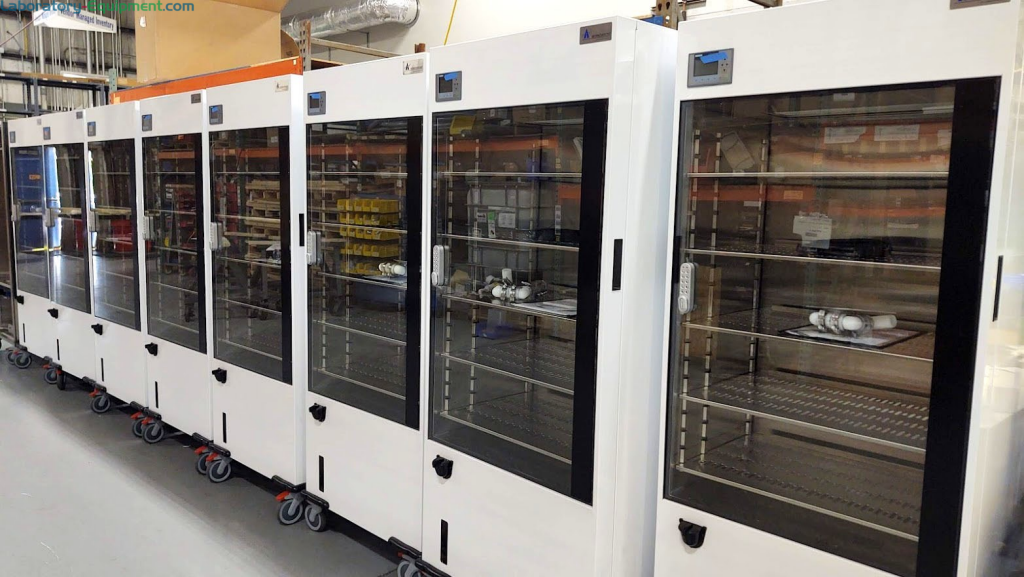

Series of SSC 4500 sterile storage cabinets in a row
Tall, portable storage cabinets designed with hospital-grade materials to control temperature, humidity, pressure, and air cleanliness | 3947-00 displayed Sterile Storage Cabinets for Medical Semiconductor, Aerospace Tall, portable storage cabinets designed with hospital-grade materials to control temperature, humidity, pressure, and air cleanliness

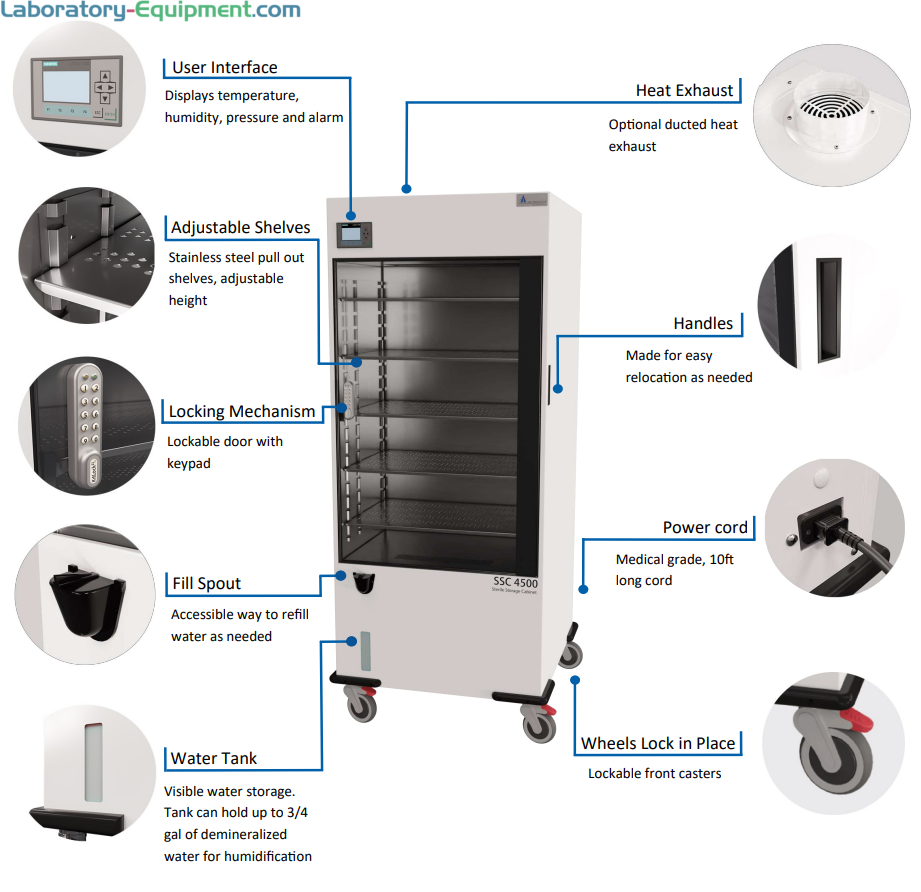

A diagram displaying several featuers of a hospital sterile storage cabinet
Standard features included in the sterile storage cabinet by Air Innovations | 3947-00 displayed Sterile Storage Cabinet Features The sterile storage cabinet by Air Innovations features an LCD user interface, adjustable shelves, an electronic lock, heat exhaust port, stability handles, power cord, fill spout and water tank, and locking casters
Two large aluminum-body portable sterile storage cabinets side by side in hospital storeroom
The sterile storage cabinet has locking casters and handles for safe portability, needing only a single 120 volt outlet | 3947-00 displayed Sterile Storage Cabinet by Air Innovations The portable plug-and-play sterile storage cabinet by Air Innovations provides cleanroom-quality storage space for sensitive hospital supplies and equipment, when and where you need it.

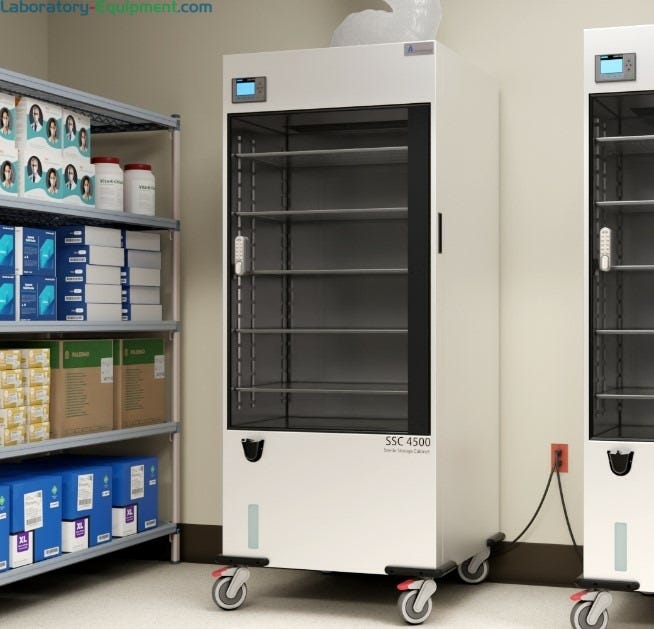

A large aluminum-body sterile storage cabinet in use in a hospital setting
Sterile storage cabinet with ISO4-rated cleanliness for use in hospitals includes HEPA filtration unit providing 230 air changes per hour | 3647-00 displayed Sterile Storage Cabinet by Air Innovations This portable sterile storage cabinet by Air Innovations controls temperature, humidity, and pressure, providing cleanroom-quality storage space for sensitive hospital supplies and equipment.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

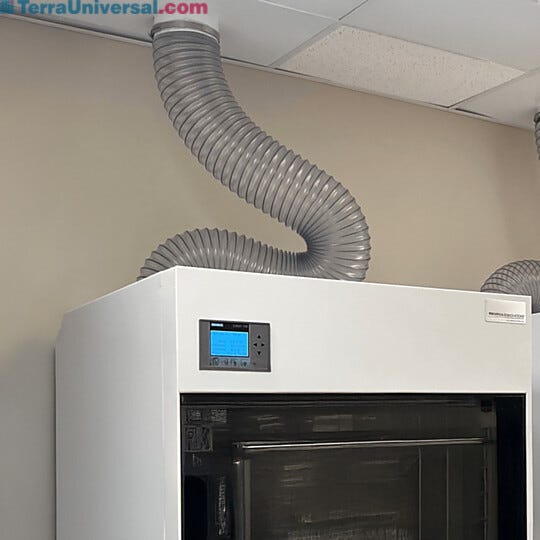

  • Venting leading from a sterile storage cabinet up into the ceiling grid.

    Exhaust Duct with 2'x2' Ceiling Adapter

    Vent exhaust and heat into the space above drop ceiling panels to enable comfortable use in small spaces like closets or storerooms.

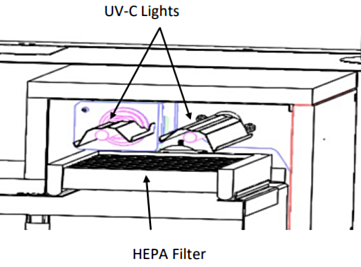

  • Illustration describing the placement of optional UV-C lights above a filter in the cabinet.

    UV-C Light Kit

    The addition of UV-C lights flood the cabinet's HEPA filter to sterilize the medium of any airborne viruses and bacteria that get caught by filtration

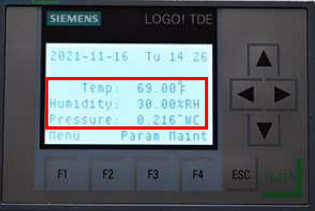

  • an LCD screen to control the sterile storage cabinet remotely

    Remote Monitor (Temp, RH, Pressure)

    This LCD control panel sends and receives signal from the cabinet directly to allow remote monitoring of temperature, humidity, and pressure
