Ideally suited for core research facilities and manufacturing applications. | 3031-00 displayed
Microarray Products

SpotBot Extreme Protein Microarray Spotter, Includes Chiller Bath

• Equipment Type: Printer

• Slide Capacity: 14 Slides

• Number of Printing Pins: 16 Pins

• Assay Type: Protein

• Complete Hybridization Station: No

• Chiller Bath: Yes

• Manufacturer SKU: SBXPRO

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: SBXPRO
Manufactured By: Arrayit
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3031-01
Terra Part # 3031-01
$50,773
Usually ships in 25-31 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3031-01
61021
SpotBot Extreme Protein Microarray Spotter, Includes Chiller Bath
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Includes: 16 microarray printing pins (946MP4), 1 test pin, chiller bath, 3 liters of liquid coolant, 4 anti-vibration instrument pads, professional series 16-position printhead, 2 L-bracket substrate slide locators, Protein Printing Buffer, SuperEpoxy 3 substrate slides, humidity control, peristaltic pump, air compressor, wash buffer reservoir, wash waste reservoir, Arrayit BioBlue Mini Computer, LED flat panel display, keyboard, mouse, mouse pad, and Ethernet cable
  • 2 printing zones of 14 substrate slides each; with a deck capacity of 28 standard glass substrates (25 mm x 76 mm)
  • Prints 10,000 samples on 28 glass substrates in 12 hours
  • Print up to 50,000 samples onto each 25 mm x 76 mm substrate slide
  • Printhead holds 16 microarray pins (4 x 4 grid) at 4.5 mm spacing
  • Printing routines allow up to 5 technical replicates per sample
  • Deck capacity of 2 standard microplates (96-well or 384-well); 2 standard microplates (96- or 384 well)
  • Electrical Power Requirements: 110V or 220V, 50-60Hz
  • Robot Dimensions: 21"W x 12"D x 10"H (540 x 300 x 720 mm)
  • Instrument Capacity:one 384-well source microplate, 16 microarray printing pins and 28 glass substrate slides (25 x 76 mm),
  • Printhead Configuration: 16 microarray printing pins in a 4 x 4 pattern
  • Printhead Pin Spacing: 4.5 mm
  • Axis Resolution: +/- 10 µm
  • Humidity Control: 10-80% RH
  • Humidity Control Speed: 5% RH per minute and +/- 1% at steady state
  • Cleanroom Compatibility: Class 1 (ISO 3)
  • Robot Weight: 24 lbs (11.4 kg)
  • SBXPRO equipped with chiller bath that has platen cooling to 4°C for maximum cooling uniformity, speed and efficiency; enables antigen, antibody, peptide, lysate and reverse phase protein microarrays
  • Unsurpassed printhead precision, micro-machines to ± 1.3 µm
  • Liquid-cooling deck and protein-cooling tubes enables antigen, antibody, peptide, lysate and reverse-phase protein microarrays
  • Offers excellent throughput at an affordable price
  • Use for a variety of applications, including genomics, life sciences, and materials science
  • DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])
Show more

• Equipment Type: Printer

• Slide Capacity: 14 Slides

• Number of Printing Pins: 16 Pins

• Assay Type: Protein

• Complete Hybridization Station: No

• Chiller Bath: Yes

• Manufacturer SKU: SBXPRO

• Unit of Measure: EA

• Marks & Listings: CE, CSA

• Weight, Product: 24 Lbs

• Dimensions, Product: 21"W x 12"D x 10"H

• Weight, Shipping: 35 Lbs

• Dimensions, Shipping: 25"W x 15"D x 15"H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Granite vibration isolators are ideal for precision electronic weighing scales, and microscopes | 1580-20 displayed
    Group of 4 products
    Granite Isolators From
    As low as $863
    Some ship in 5 - 7 days
Buy Accessories
  1. SpotBot Extreme Microarray Spotter Accessories
    SpotBot Extreme Microarray Spotter Accessories Ships Free Free shipping in contiguous USA
    $1,845
    Increase Down Increase Up
  2. Megasonic Wash Station for SBX and SBXPRO
    Megasonic Wash Station for SBX and SBXPRO Ships Free Free shipping in contiguous USA
    $3,824
    Increase Down Increase Up
  3. Wash Buffer for SpotBot® Extreme and SpotBot® Extreme Protein
    Wash Buffer for SpotBot® Extreme and SpotBot® Extreme Protein Ships Free Free shipping in contiguous USA
    $426
    Increase Down Increase Up
  4. Product Training/In-Service
    Product Training/In-Service
    Request Quote
    Increase Down Increase Up
  5. Planned Maintenance Service
    Planned Maintenance Service
    Request Quote
    Increase Down Increase Up
  6. Warranty; 1 year, for SpotBot Extreme Protein Microarray Spotter
    Warranty; 1 year, for SpotBot Extreme Protein Microarray Spotter
    $6,693
    Increase Down Increase Up
  7. Warranty; 2 year, for SpotBot Extreme Protein Microarray Spotter
    Warranty; 2 year, for SpotBot Extreme Protein Microarray Spotter
    $11,152
    Increase Down Increase Up
  8. Warranty; 3 year, for SpotBot Extreme Protein Microarray Spotter
    Warranty; 3 year, for SpotBot Extreme Protein Microarray Spotter In stock
    $14,029
    Increase Down Increase Up

Features and Benefits

Learn More: SpotBot Spotters
Print Copy Copied

More Information

  • Recommended for all ex situ microarray manufacturing applications, including oligonucleotides, cDNA, carbohydrate, antigen, antibody, peptide, and reverse-phase microarrays
  • Compatible with human, rat, Drosophila, Arabidopsis, C. elegans, yeast, bacteria, and viruses
  • Supports VIP genotyping and other diagnostic applications
  • Improved precision, speed and durability with heavy duty overhead gantry
  • Printing routines allow up to 5 technical replicates per sample
  • Low buffer consumption of less than 1 liter per hour
  • Printed microarrays are compatible with Arrayit microarray scanners, labeling-and-purification kits, hybridization, and wash-and-blocking buffers
  • Printhead compatible with entire line of Stealth, 946, Green, and professional microarray pins
  • All systems arrive pre-calibrated and ready-to-use
  • 1-hour customer installation time; comprehensive technical support
  • Superior axis resolution and repeatability provide uniform spot-spacing for easy quantification
  • Forced air stream pin drying for improved pin cleaning and sample loading
  • Advanced robotics for performance and reliability; Micro-robotics for low thermal emission, energy savings and quiet operation
  • On-board humidity control module tightly controls system humidity within 1% relative humidity at steady-state and minimizes sample evaporation
  • Sample evaporation also minimized due to low air turbulence
  • Private label and OEM agreement available for volume purchases
  • Instrument and accessory vibration dampeners allows printing in any lab setting
  • Utilizes Windows 7 operating system

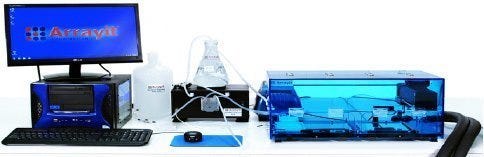

Blue Bio Mini shown with the SBXPRO SpotBot Extreme Protein Edition

ADA compliant and undercounter models feature a microprocessor based controller and an LED digital display interface.

Robot Dimensions (H x L x W) 21" x 12" x 10" (540 x 300 x 270 mm)
Electrical Requirements 110V or 220V, 50-60Hz
Deck Capacity 2 microwell plates (96-well or 384-well)
Substrate Deck Capacity 2 decks of fourteen 25 mm x 76 mm glasssubstrates
Printhead Configuration 16 microarray printing pins in a 4 x 4 pattern
Printhead Pin Spacing 4.5 mm
Axis Resolution ± 10 µm
Humidity Control 10 – 80% RH
Humidity Control Speed 5% RH per minute and ± 1% at steady-state
SBXPRO Cooling Deck Capacity Ambient to 4°C
Cleanroom Compatibility ISO 3
Robot Weight 24 lbs. (11.4 kg)
