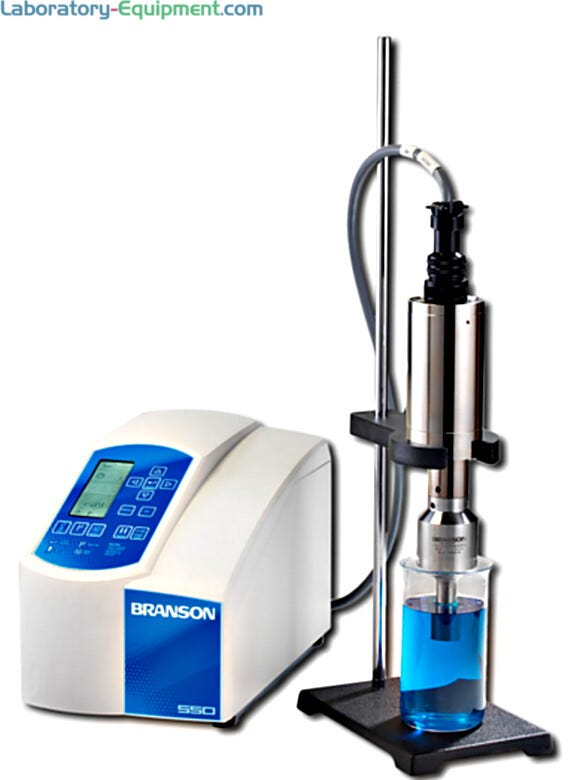

#101-063-969R with 550W of power at 20 kHz | 2602-19 displayed
Homogenizers & Sonicators

Sonicator; Cell Disruptor, 1/2" Disruptor Horn, SFX550, Branson, 120 V

  • For disruption of cellular materials at volumes from 0.2 to 1000 ml
  • True Temperature control with user-specified temperature range
  • Stand-mountable for longer duration sample processing
  • Includes 550 watt power supply, converter, and 1/2-inch disruptor horn
  • Two-year manufacturer warranty

• Type: Sonicator

• Wattage Output: 550 W

• Frequency Output: 20 kHz

• Controls: Digital

• Design: Benchtop

• Pulse Mode Operation: Yes

• Model: SFX250

• Manufactured by: Branson

• Probe Type: Horn

• Probe Diameter: 0.5"

• Cooling Method: Glass-Cooling Cell

• Manufacturer SKU: 101-063-969R

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: 101-063-969R
Manufactured By: Branson
Warranty: Two Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
2602-19
Terra Part # 2602-19
$4,655
Usually ships in 8-12 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 2602-19
66068
Sonicator; Cell Disruptor, 1/2" Disruptor Horn, SFX550, Branson, 120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • For disruption of cellular materials at volumes from 0.2 to 1000 ml
  • True Temperature control with user-specified temperature range
  • Stand-mountable for longer duration sample processing
  • Includes 550 watt power supply, converter, and 1/2-inch disruptor horn
  • Two-year manufacturer warranty
  • Advanced energy control mode for precise energy input in continuous or pulse modes
  • True Temperature control manages sample temperature within user-specified limits
  • (requires separate temperature probe)
  • Control modes:  time, temperature, and energy
  • Continuous or pulsed ultrasonics
  • High efficiency, stand-mountable converter requires no internal cooling
  • Scrollable, multi-function screen with push buttons,
  • Microtip mode  extends tool life by limiting amplitude to 70%
  • Amplitude control range from 10 to 100%.
  • Powerful 20 kHz ultrasonics
  • Stores up to 20 programs
  • In-process feedback provides users with experimental progress, temperature, energy usage, power level and elapsed time
  • Features industry exclusive adaptive temperature control to protect samples
  • Programmable parameters include: continuous or pulsed ultrasonics; time, energy, or temperature control modes; pulse on-time/energy, off-time and total on-time/energy; or amplitude as a percentage.
Show more

• Type: Sonicator

• Wattage Output: 550 W

• Frequency Output: 20 kHz

• Controls: Digital

• Design: Benchtop

• Pulse Mode Operation: Yes

• Model: SFX250

• Manufactured by: Branson

• Probe Type: Horn

• Probe Diameter: 0.5"

• Cooling Method: Glass-Cooling Cell

• Manufacturer SKU: 101-063-969R

• Unit of Measure: EA

• Electrical Specifications: 120 V, 550 W, 50/60 Hz

• Weight, Product: 14 Lbs

• Dimensions, Product: 7.5"W x 12.5"D x 9.25"H

• Weight, Shipping: 20 Lbs

• Dimensions, Shipping: 8" W x 13" D x 10" H

Show more
Other products you may find relevant
  1. innuSPEED DNA Isolation Kits by Analytik Jena provide high yields and enable lysis in the same tube: tissue, plant, soil, stool and bacteria/fungi | 1014-PP-04 displayed
    Group of 15 products
    innuSPEED DNA Isolation Kits by Analytik Jena From
    As low as $84
    Some ship in 5 - 7 days
  2. innuSPEED RNA Isolation Kits by Analytik Jena for tissue, plant and bacteria/fungi produce high yield and high RIN values; compatible with SpeedMill PLUS< | 1014-PP-03 displayed
    Group of 9 products
    innuSPEED RNA Isolation Kits by Analytik Jena From
    As low as $107
    Some ship in 5 - 7 days
  3. #845-IPS-2016016 compatible with innuPURE C16 Automated Extraction System | 1015-20 displayed
    Group of 27 products
    innuPREP Nucleic Acid Isolation Kits, 16 Reactions, by Analytik Jena From
    As low as $54
    Some ship in 5 - 7 days

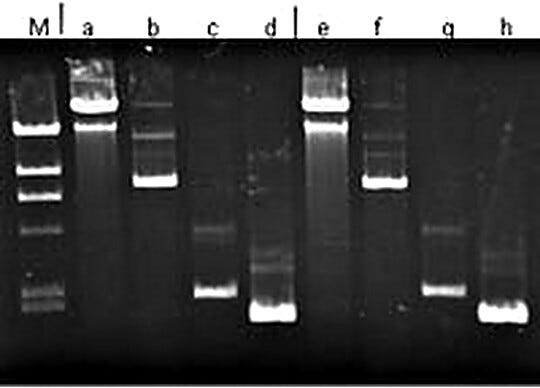

  4. Affordable kit provides 20% higher plasmid yield and purity; used in various microarray applications using high-end PCR and DNA sequencing and cloning | 3032-43 displayed
    Group of 2 products
    Plasmid DNA Purification Kit by Arrayit From
    As low as $194
    Some ship in 5 - 7 days
  5. #845-IPS-2016016 compatible with innuPURE C16 Automated Extraction System | 1015-20 displayed
    Group of 27 products
    innuPREP Nucleic Acid Isolation Kits, 96 Reactions, by Analytik Jena From
    As low as $242
    Some ship in 5 - 7 days
  6. #845-IPS-2016016 compatible with innuPURE C16 Automated Extraction System | 1015-20 displayed
    Group of 13 products
    innuPREP Nucleic Acid Isolation Kits, 480 Reactions, by Analytik Jena From
    As low as $482
    Some ship in 5 - 7 days
  7. T 10 basic ULTRA-TURRAX is a small scale dispersing system ideal for use in analytical research | 6924-71 displayed
    Disperser; T 10, Basic, ULTRA-TURRAX, IKA, 115 V
    $2,323
    Usually Ships in 5 - 7 days
  8. T18 digital Ultra-Turrax disperser features a digital speed display and rotating knob for speed adjustment | 6924-79 displayed
    Disperser; T 18, Digital, ULTRA-TURRAX, IKA, 120 V
    $2,010
    Usually Ships in 5 - 7 days
  9. Designed for circulation and inline processing of samples | 6924-89 displayed
    Disperser; UTL 25, Digital, ULTRA-TURRAX, IKA, 115 V
    $14,699
    Usually Ships in 5 - 7 days
  10. Digital Ultra-Turrax dispersers displays show error codes and a wide range of speed control | 6925-30 displayed
    Group of 1 product
    T 65 Basic and T 65 Digital ULTRA-TURRAX® Dispersers by IKA From
    As low as $15,284
    Some ship in 5 - 7 days
  11. Designed to emulsify, homogenize and suspend a range of miscible materials | 6925-00 displayed
    Disperser; T 25, Digital, ULTRA-TURRAX, IKA, 120 V
    $3,117
    Usually Ships in 5 - 7 days
  12. T50 digital Ultra-Turrax Disperser enables users to work at high circumferential speeds even with small rotor diameters | 6925-15 displayed
    Disperser; T 50, Digital, ULTRA-TURRAX, IKA, 120 V
    $5,363
    Usually Ships in 5 - 7 days
Buy Accessories

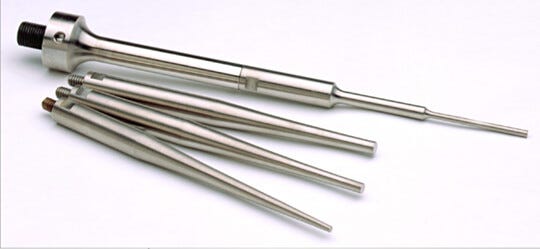

  1. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D | 2601-33 displayed
    Microtip; Double Step, 1/8" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $493
    Increase Down Increase Up
  2. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D | 2601-33 displayed
    Microtip; Tapered, 1/8" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $328
    Increase Down Increase Up
  3. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D | 2601-33 displayed
    Microtip; Tapered, 3/16" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $323
    Increase Down Increase Up
  4. Double stepped microtip shown with tapered microtips: 1/8''D, 3/16''D, and 1/4''D | 2601-33 displayed
    Microtip; Tapered, 1/4" Dia, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $318
    Increase Down Increase Up

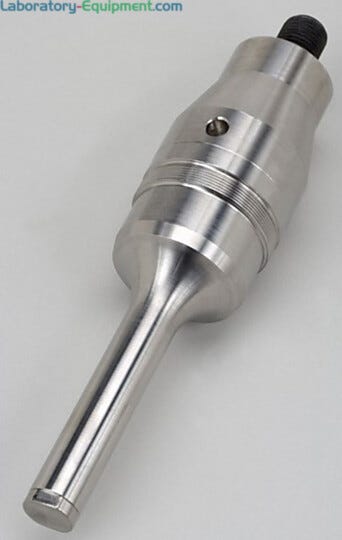

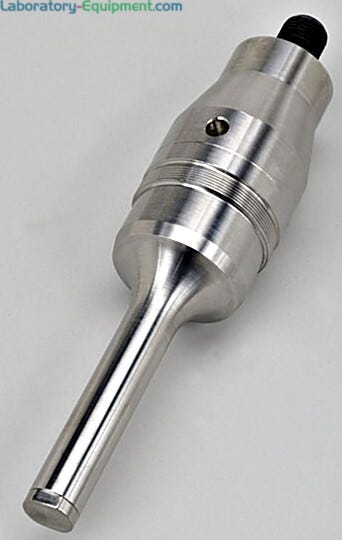

  5. Horns transmit ultrasonic energy into a solution | 2601-49 displayed
    Horn; Disruptor, 3/8" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $493
    Increase Down Increase Up

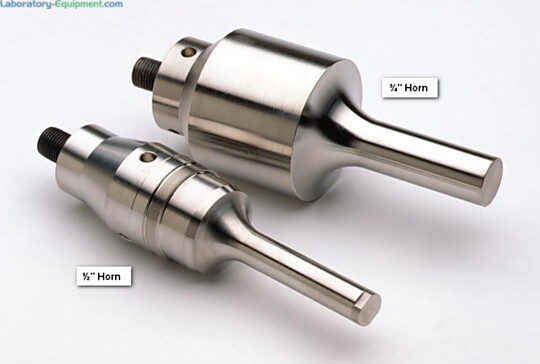

  6. Horns transmit ultrasonic energy into a solution | 2601-19 displayed
    Horn; Disruptor, 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $514
    Increase Down Increase Up
  7. Horns transmit ultrasonic energy into a solution | 2601-49 displayed
    Horn; Disruptor, 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $714
    Increase Down Increase Up
  8. Horns transmit ultrasonic energy into a solution | 2601-49 displayed
    Horn; Disruptor, 3/4" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $493
    Increase Down Increase Up
  9. Horns transmit ultrasonic energy into a solution | 2601-19 displayed
    Horn; High Gain, 3/4" Diameter, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $378
    Increase Down Increase Up

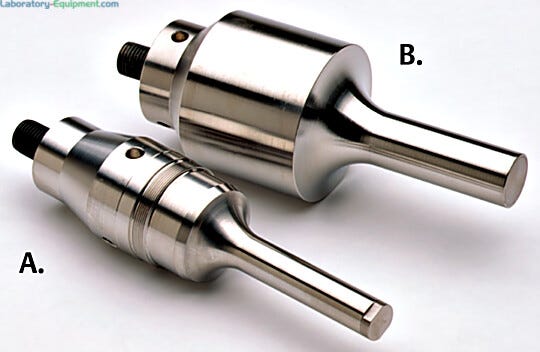

  10. #101-147-044 with solid tip configuration and low intensity | 2601-54 displayed
    Horn; High Grain Disruptor, 1" Diameter, for Sonifier Cell Disruptor SFX250 and 550 Ships Free Free shipping in contiguous USA In stock
    $1,045
    Increase Down Increase Up

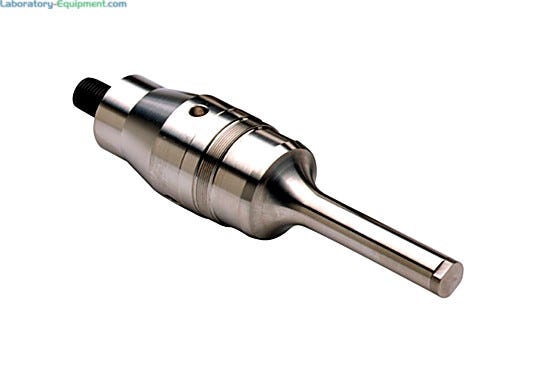

  11. Horns transmit ultrasonic energy into a solution | 2601-52 displayed
    Horn; Exponential 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $425
    Increase Down Increase Up
  12. Horns transmit ultrasonic energy into a solution | 2601-52 displayed
    Horn; Exponential 1/2" Diameter, for Sonifier Cell Disruptor 250 and 450 Ships Free Free shipping in contiguous USA In stock
    $544
    Increase Down Increase Up
  13. Enables sonification of a sample without the horn coming in contact with the solution | 2601-23 displayed
    Horn; Cup, 2" Diameter, for 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $1,865
    Increase Down Increase Up
  14. Enables sonification of a sample without the horn coming in contact with the solution | 2601-23 displayed
    Horn; Cup, 3" Diameter, for 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $1,988
    Increase Down Increase Up

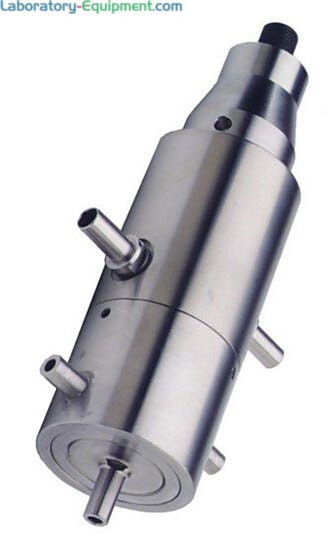

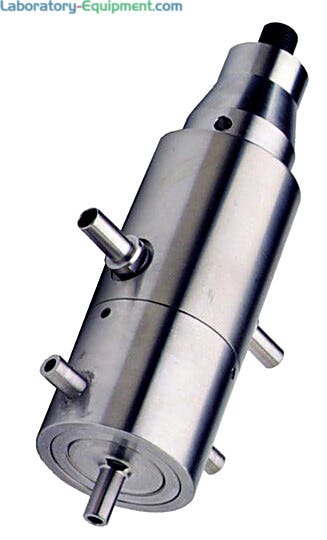

  15. Permits continuous processing of low viscosity materials | 2601-26 displayed
    Attachment; Continuous Flow, SS, for 250 & 450 Sonifier Cell Disruptor Ships Free Free shipping in contiguous USA In stock
    $1,602
    Increase Down Increase Up

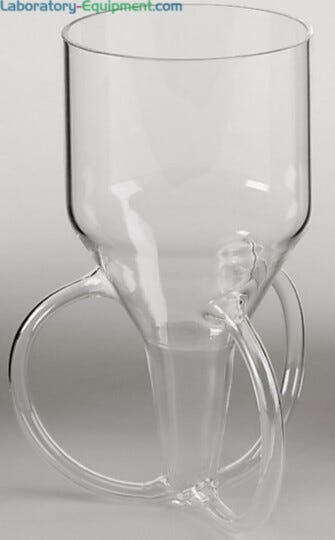

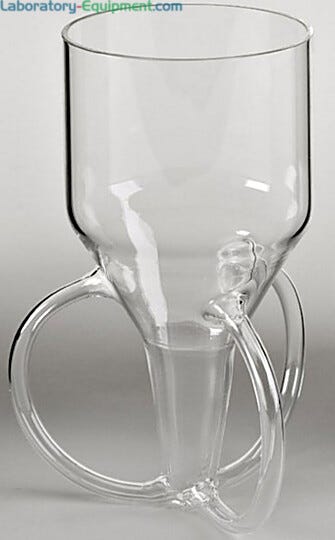

  16. Provides a unique flow pattern of substances for exposure to ultrasonic energy | 2601-40 displayed
