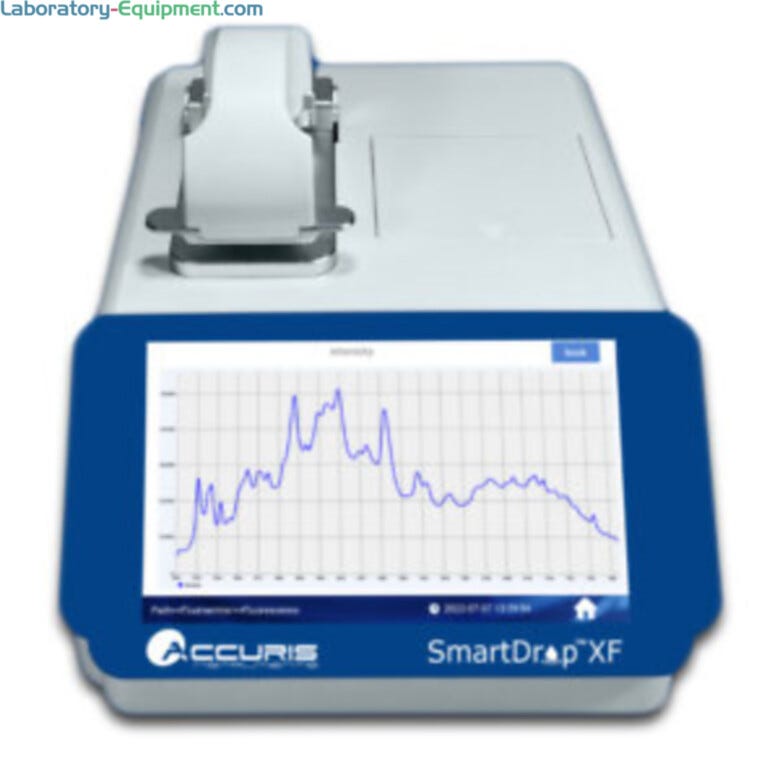

SmartDrop Nano XF UV-Vis Spectrophotometer with Fluorometer for sensitive quantitation of low concentration nucleic acids features a Xenon lamp and CCD detector | 1017-52 displayed
Spectrophotometers

SmartDrop XF Nano Spectrophotometers by Accuris Instruments

  • SmartDrop XF Nano Spectrophotometer with fluorometer for sensitive quantification of low concentration nucleic acids
  • Full-spectrum absorbance Quick of 260/280 and 260/230 ratios
  • Detects up to 15,000ng/μl of dsDNA without dilution
  • Path lengths: 0.05mm, 0.2mm and 1.0mm
  • Includes: Xenon flash lamp, CCD detector, 7" color touchscreen, built-in printer and cuvette port

• Manufacturer SKU: NS1020

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: NS1020
Manufactured By: Benchmark
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1017-52
Terra Part # 1017-52
$12,890
Usually ships in 0-10 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 1017-52
81011
SmartDrop XF Nano Spectrophotometers by Accuris Instruments
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • SmartDrop XF Nano Spectrophotometer with fluorometer for sensitive quantification of low concentration nucleic acids
  • Full-spectrum absorbance Quick of 260/280 and 260/230 ratios
  • Detects up to 15,000ng/μl of dsDNA without dilution
  • Path lengths: 0.05mm, 0.2mm and 1.0mm
  • Includes: Xenon flash lamp, CCD detector, 7" color touchscreen, built-in printer and cuvette port
  • Displays DNA and RNA protein concentrations and purity in seconds
  • 7" full color touchscreen display with menu-drive icons for easy navigation
  • Cuvette port with two optical glass cuvettes for OD600 readings
  • Integrated printer for convenient printing of resulting data
  • SmartDrop onboard memory saves data for exporting via USB drive as an Excel file
  • Convenient design requires no external computer
  • Quartz pedestal for placement of small sample droplets
  • Arm of liquid column drops to stretch sample droplets
  • USB Port for data export
  • Fluorescence detection:
  • Excitation/Emission: 460 ± 20nm / 525-570nm
  • Sensitivity: dsDNA: 0.5pg/μl
  • Linearity: R² ≥ 0.995
  • Repeatibility and Stability: ≤ 1.5%
  • Specifications:
  • Sample size: 0.5μl - 2.0μl
  • Light source: Xenon Flash Lamp
  • Wavelength: 200 - 800nm (1nm steps)
  • Detection time: < 6 seconds
  • Detector: 2048 Element Linear Silicon CCD Array
  • Absorbance range: 0.04 – 300 A (10mm equivalent)
  • Absorbance precision: 0.003 A
  • Lower limit of detection: dsDNA: 2ng/μl; BSA: 0.1mg/ml
  • Upper limit of detection: dsDNA: 15,000ng/µl; BSA: 360mg/ml
  • Cuvette OD600 detection
  • Absorbance range: 0.0 - 4.0 A
  • Absorbance stability: [0,3) ≤ 0.5%, [3,4) ≤ 2%
  • Absorbance repeatibility: [0,3) ≤ 0.5%, [3,4) ≤ 2%
  • Absorbance repeatibility: [0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
  • Optional Accessories:
  • NS1020-HS-100: High Sensitivity DNA Quantitation Kit, 100 assays
  • NS1020-BR-100: Broad Range dsDNA Quantitation Kit, 100 assays
  • NS1000-C: Additional Standard-Size Cuvettes, pack of 2
  • NS1020-T: 0.5mL Fluorescence Detection Tubes, pack of 250
  • NS1000-PA: Extra Paper Roll for SmartDrop internal printer, pack of 3
Show more

• Manufacturer SKU: NS1020

• Unit of Measure: EA

• Electrical Specifications: 24 V, 2 A

• Weight, Product: 7.9 lb

• Dimensions, Product: 8.2"W x 11.0"D x 7.3"H

• Weight, Shipping: 26 lb

• Dimensions, Shipping: 25"W x 25"D x 15"H

Show more
Other products you may find relevant

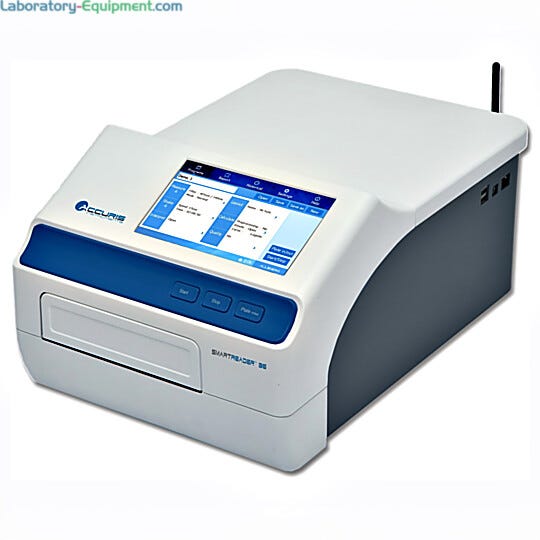

  1. SmartReader 96 with a 7” touchscreen interface displays plate layout, measurement results and graphical layouts: easy-to-use and ideal for COVID-19 research | 2824-16-220 displayed
    Group of 2 products
    SmartReader 96 Microplate Absorbance Readers by Accuris From
    As low as $5,721
    Some ship in 5 - 7 days
Buy Accessories
  1. High Sensitivity DNA Quantification Kit, 100 assays
    High Sensitivity DNA Quantification Kit, 100 assays Ships Free Free shipping in contiguous USA
    $120
    Increase Down Increase Up
  2. Broad Range dsDNA Quantification Kit, 100 assays
    Broad Range dsDNA Quantification Kit, 100 assays Ships Free Free shipping in contiguous USA
    $120
    Increase Down Increase Up
  3. Each bag of fluorescence detection tubes contains 250 tubes
    0.5mL Fluorescence Detection Tubes, pack of 250 Ships Free Free shipping in contiguous USA
    $53
    Increase Down Increase Up

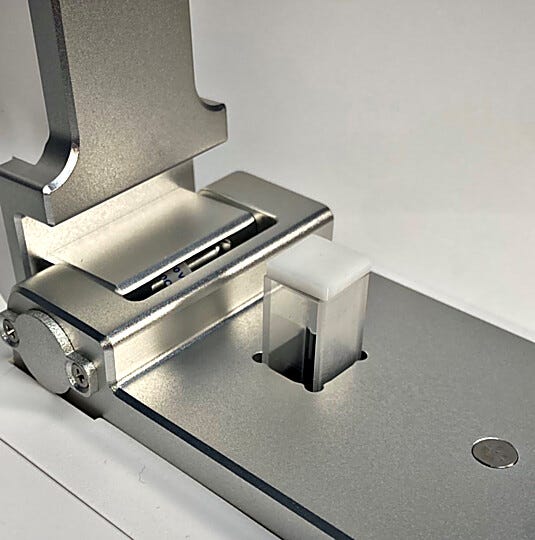

  4. The additional standard-size cuvettes come as a pack of 2
    Additional Standard-Size Cuvettes, pack of 2 Ships Free Free shipping in contiguous USA
    $48
    Increase Down Increase Up

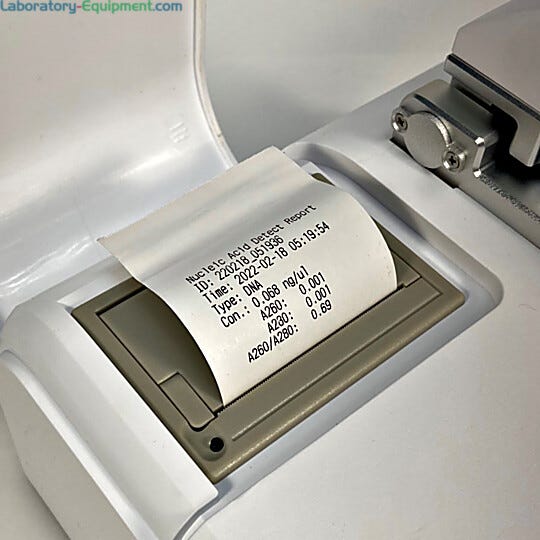

  5. The extra paper roll for the SmartDrop internal printer includes a pack of 3 rolls
    Extra Paper Roll for SmartDrop Internal Printer, Pk 3 Ships Free Free shipping in contiguous USA
    $39
    Increase Down Increase Up

Features and Benefits

Integrated Printer

SmartDrop Nano Spectrophotometers feature a built-in printer for convenient and quick results documentation

Cuvette Port for OD600 Readings

All SmartDrop models feature a cuvette port and two optical glass cuvettes for OD600 readings

Small Sample Requirements

SmartDrop models utilize small sample volumes of DNA, RNA, and protein concentrations that eliminate the need for dilutions for more accurate results

Liquid Column Sample

Featured quartz pedestal stretches the microvolume sample, when the arm is lowered, to the specified length needed for spectral analysis displaying results in seconds

SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA and Protein by Accuris

Products similar to this one
  1. Single monochromator, dual gratings, a PbS detector, 190-2700 nm UV-Vis range and optional 3200nm NIR wavelength kit; CFR software and Remote Module available
    Group of 2 products
    V-700 Series UV-Vis/NIR Spectrophotometers by Jasco From
    As low as $27,428
    Some ship in 15 - 19 days

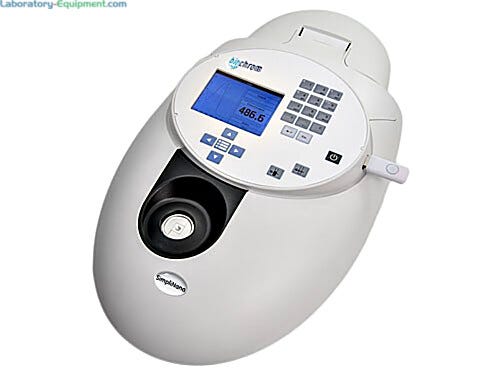

  2. SimpliNano Spectrophotometers with a built-in sample port and a fixed pathlength for micro volume measurements of nucleic acid and protein samples from with 1 t | 5103-PP-08 displayed
    Group of 2 products
    SimpliNano™ Spectrophotometers by Biochrom From
    As low as $7,474
    Some ship in 10 - 15 days
  3. MSV-5200 UV-Vis/NIR Micro Spectrophotometer features a built-in microscope, a wavelength range of 200-2700 nm, software and a Peltier-cooled PbS detector | 5300-26 displayed
    Group of 2 products
    MSV 5200/5300 UV-Vis/NIR Micro Spectrophotometers by Jasco From
    As low as $28,463
    Some ship in 15 - 19 days

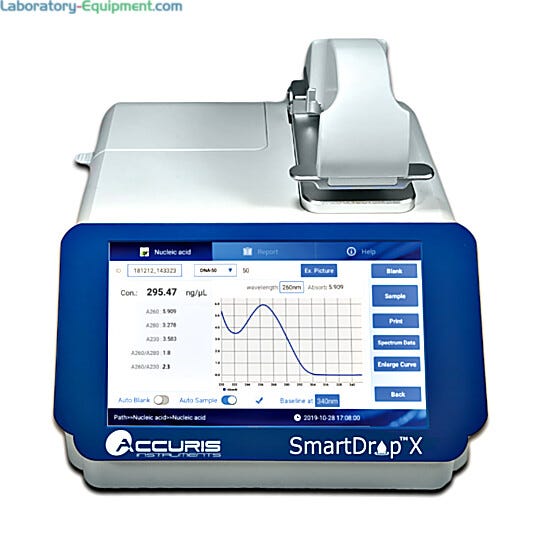

  4. SmartDrop Nano X Spectrophotometer for 0.5 to 2.0 µl samples features a CCD detector, 2 path lengths and Xenon Lamp; detects up to 4,500 ng/µl of dsDNA without | 1017-51 displayed
