Select Product
Capacity

Wavelength

Specific Light Source

Model

Manufacturer SKU

Terra Part # Price Ships in
0.5 - 2 ul 200 - 800 nm (1 nm increments) Xenon Flash Lamp SmartDrop X NS1010 1017-51 81010 $10,905 0-10 Days 2
Ships Free Free shipping in contiguous USA
0.5 - 2 ul 200 - 800 nm (1 nm increments) Xenon Flash Lamp SmartDrop XF NS1020 1017-52 81011 $12,890 0-10 Days 3
Ships Free Free shipping in contiguous USA
1 - 2 ul 260/280/600 nm UV LED SmartDrop L NS1000 1017-50 81009 $5,755 0-10 Days 4
Capacity
Wavelength
Specific Light Source
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • SmartDrop Nano Spectrophotometers provide quick and accurate quantification of small samples by eliminating the need for dilutions

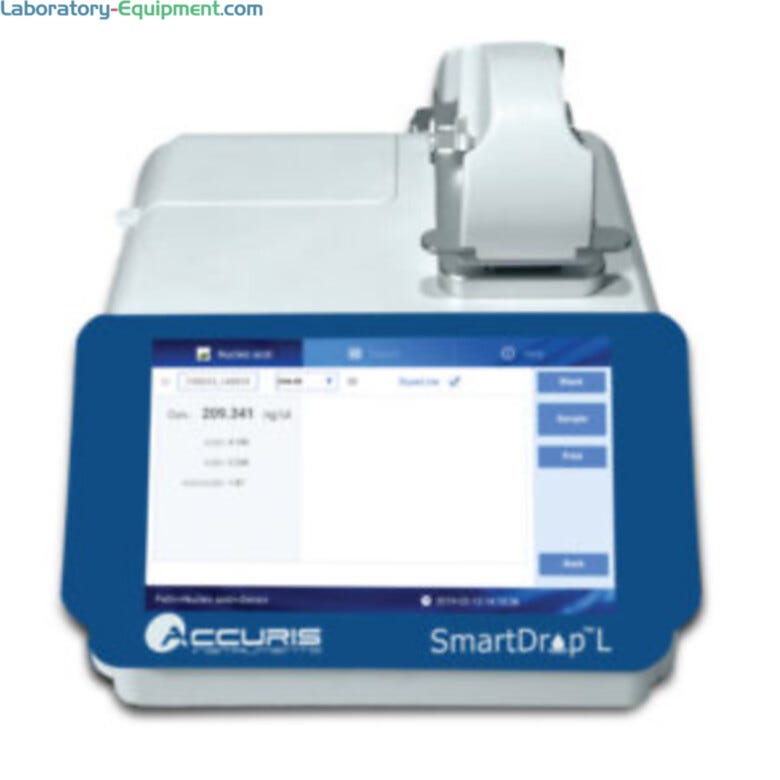

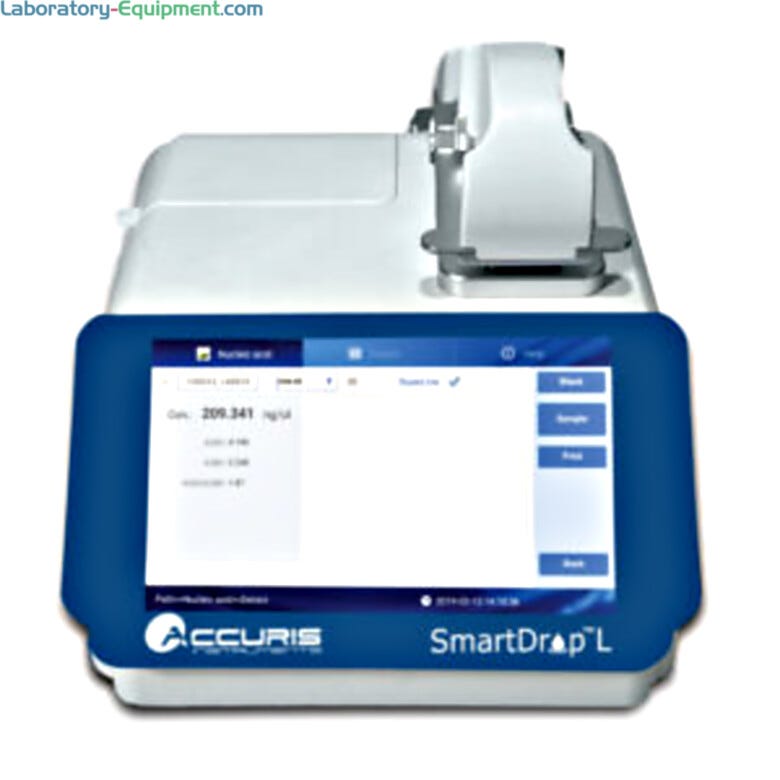

  • •  L model: Ideal for basic DNA/RNA/protein quantification and purity with UV LED lamp, fixed path length and UV Silicon Photocell detector
  • •  X model: Full spectrum absorbance from 200 to 800nm, 260/280 and 260/230 ratios, 0.2mm and 1.0mm path lengths, Xenon flash lamp and CCD detector
  • •  XF model: Features of SmartDrop X model plus a fluorometer for sensitive quantitation of low concentration nucleic acids
  • All models include: 7” color touchscreen, built-in printer and cuvette port
  • Displays DNA and RNA protein concentrations and purity in seconds
  • 7” full color touchscreen display with menu-drive icons for easy navigation
  • Cuvette port with two optical glass cuvettes for OD600 readings
  • Integrated printer for convenient printing of resulting data
  • SmartDrop onboard memory saves data for exporting via USB drive as an Excel file
  • Convenient design requires no external computer
  • Quartz pedestal for placement of small sample droplets
  • Arm of liquid column drops to stretch sample droplets
  • USB port for data export
  • SmartDrop Nano Spectrophotometers specifications:
  • Minimum sample size: from 0.5μl to 2.0μl
  • Path length (depending on model): 0.05mm, 0.2mm, 1.0mm
  • Light source: UV Led (L models), Xenon Flash Lamp (X and XF models)
  • Wavelength: 260, 280, & 600nm (SmartDrop L), 200 - 800nm (1nm steps) (SmartDrop X and SmartDrop XF)
  • Detection time: 5 to 6 seconds (depending on model)
  • Optional Accessories:
  • NS1020-HS-100: High Sensitivity DNA Quantitation Kit, 100 assays
  • NS1020-BR-100: Broad Range dsDNA Quantitation Kit, 100 assays
  • NS1000-C: Additional Standard-Size Cuvettes, pack of 2
  • NS1020-T: 0.5mL Fluorescence Detection Tubes, pack of 250
  • NS1000-PA: Extra Paper Roll for SmartDrop internal printer, pack of 3
Features & Benefits

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Integrated Printer

SmartDrop Nano Spectrophotometers feature a built-in printer for convenient and quick results documentation

Cuvette Port for OD600 Readings

All SmartDrop models feature a cuvette port and two optical glass cuvettes for OD600 readings

Small Sample Requirements

SmartDrop models utilize small sample volumes of DNA, RNA, and protein concentrations that eliminate the need for dilutions for more accurate results

Liquid Column Sample

Featured quartz pedestal stretches the microvolume sample, when the arm is lowered, to the specified length needed for spectral analysis displaying results in seconds

SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA and Protein by Accuris
