Gel Transilluminators
2808-PP-04
2808-PP-04 71808
SmartDoc 2.0 Gel Imaging Systems by Accuris
Read more
Manufactured By: Benchmark
Print
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
Features & Benefits
Features and Benefits

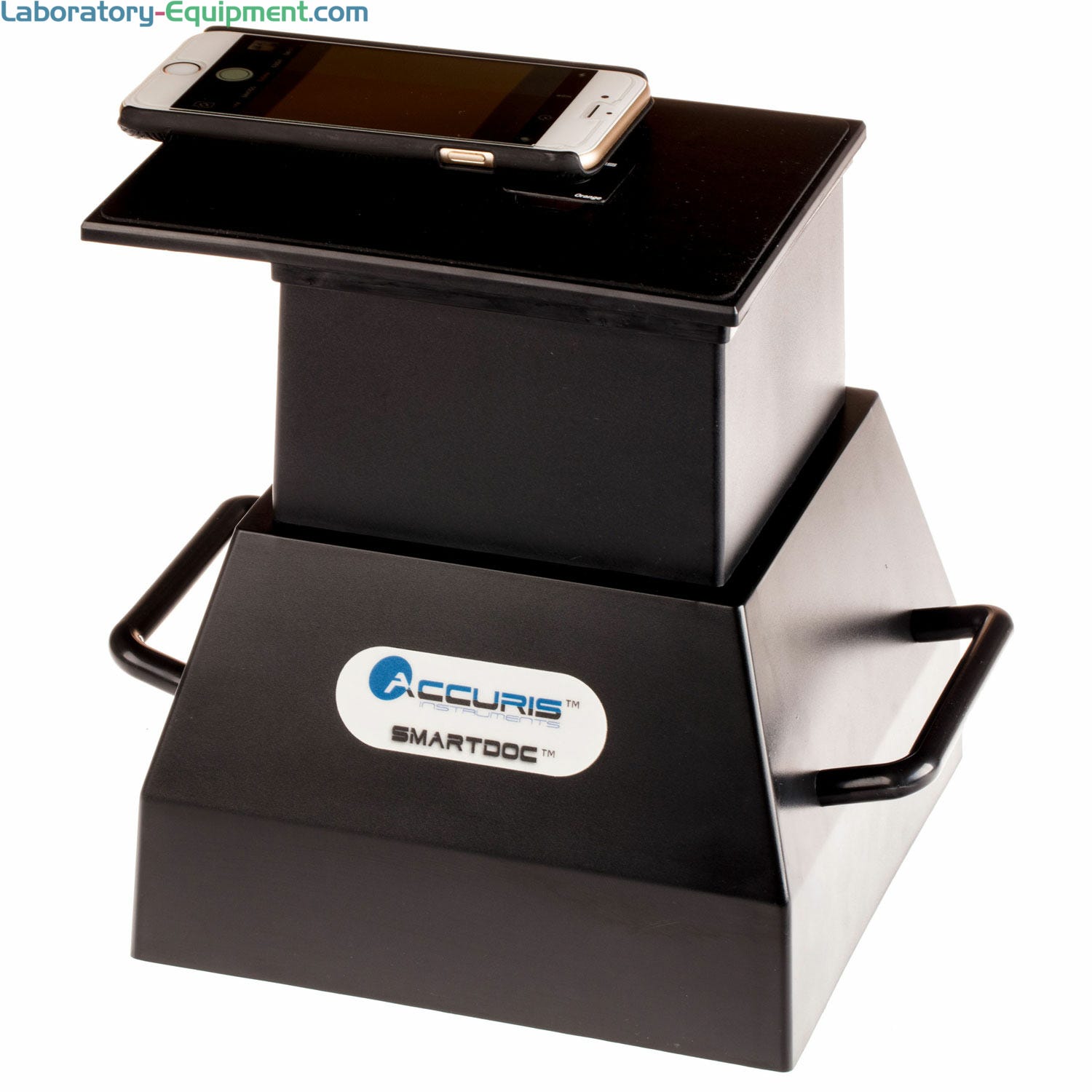

SmartDoc Compatible with Smartphones
Place smartphone on top of the SmartDoc 2.0 Gel Imaging System platform for instant high quality images

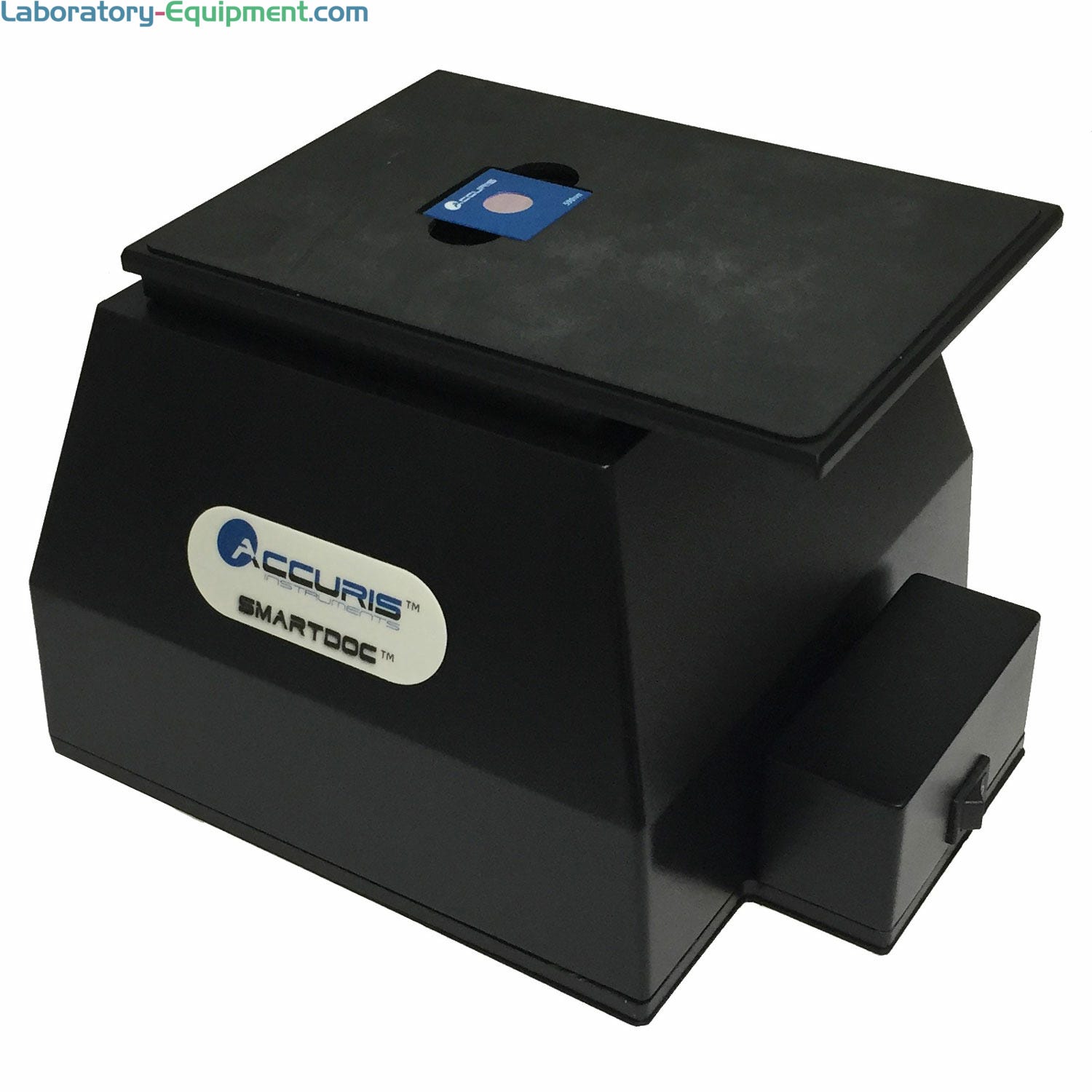

Removable Extender
Remove the extender to lower the platform for closer imaging

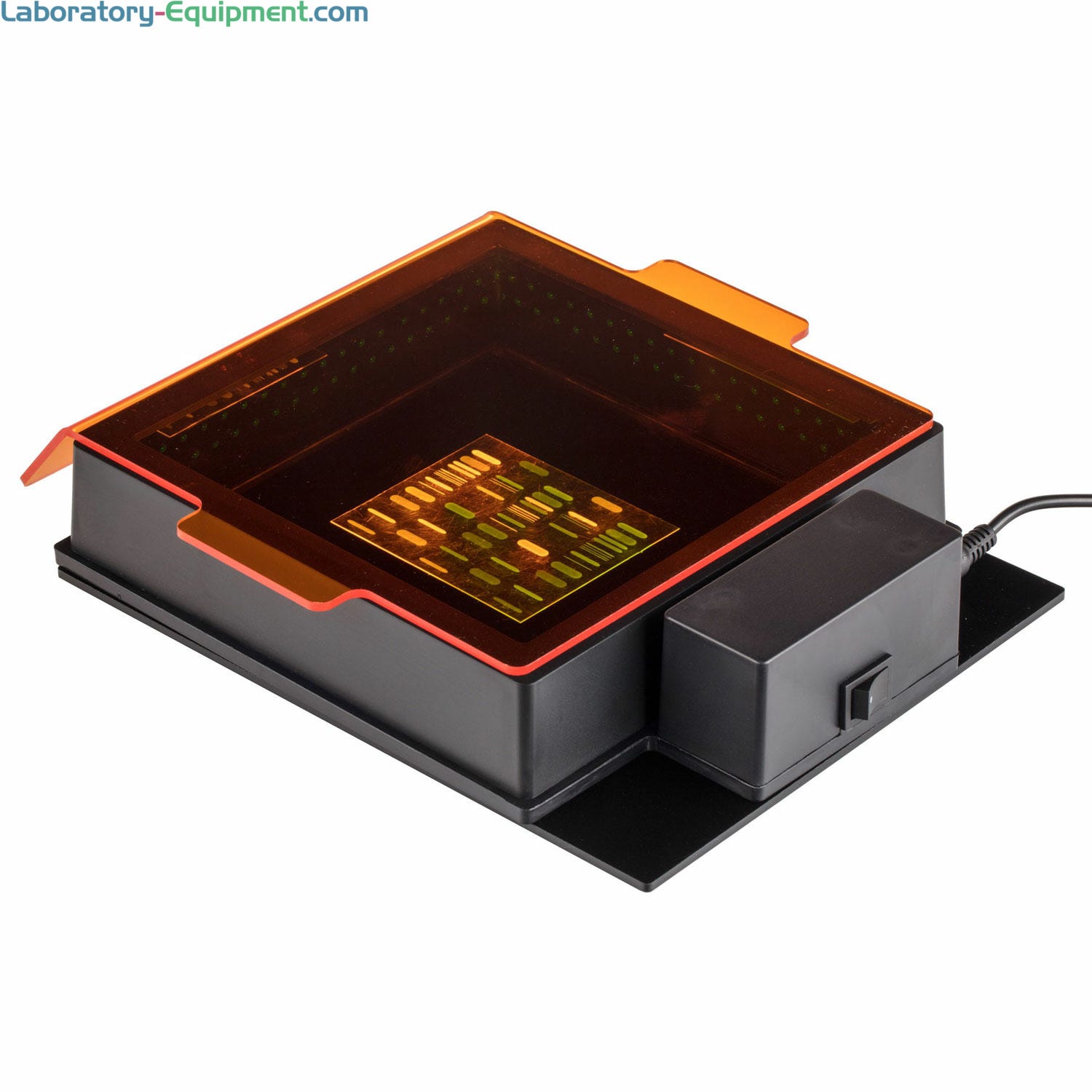

SmartDoc Illumination Base
Orange cover is optimized for smartphone imaging and blocks blue light for visualization of fluorescent samples and band cutting.

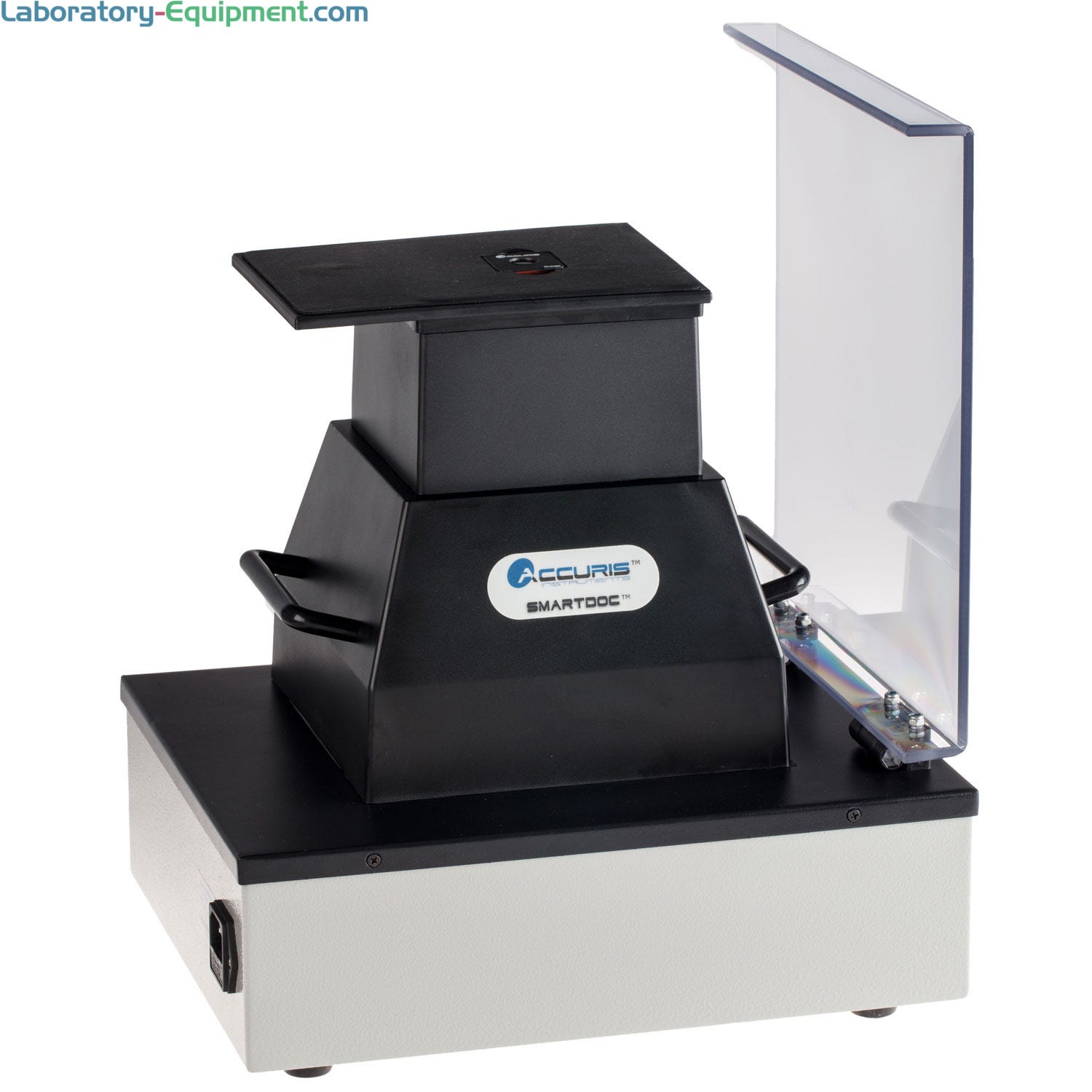

UV Transilluminator by Accuris
The SmartDoc 2.0 can be placed onto an Accuris UV Transilluminator (sold separately)

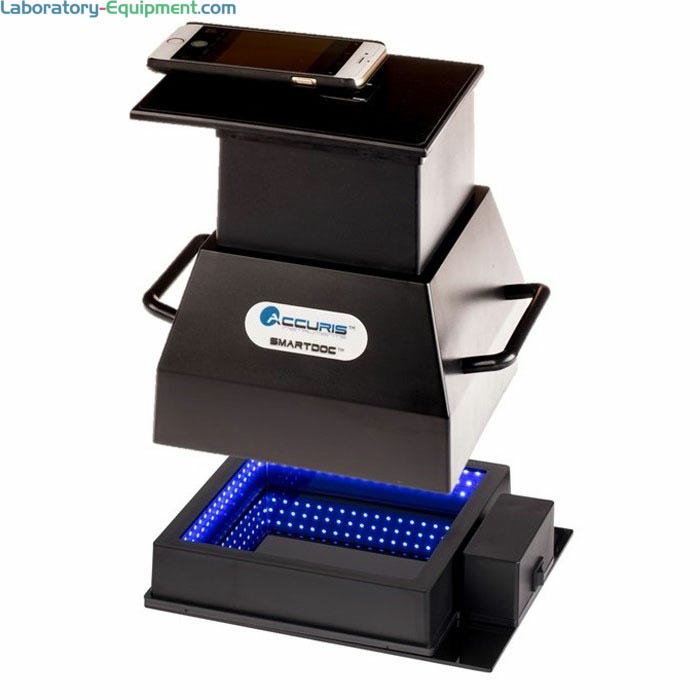

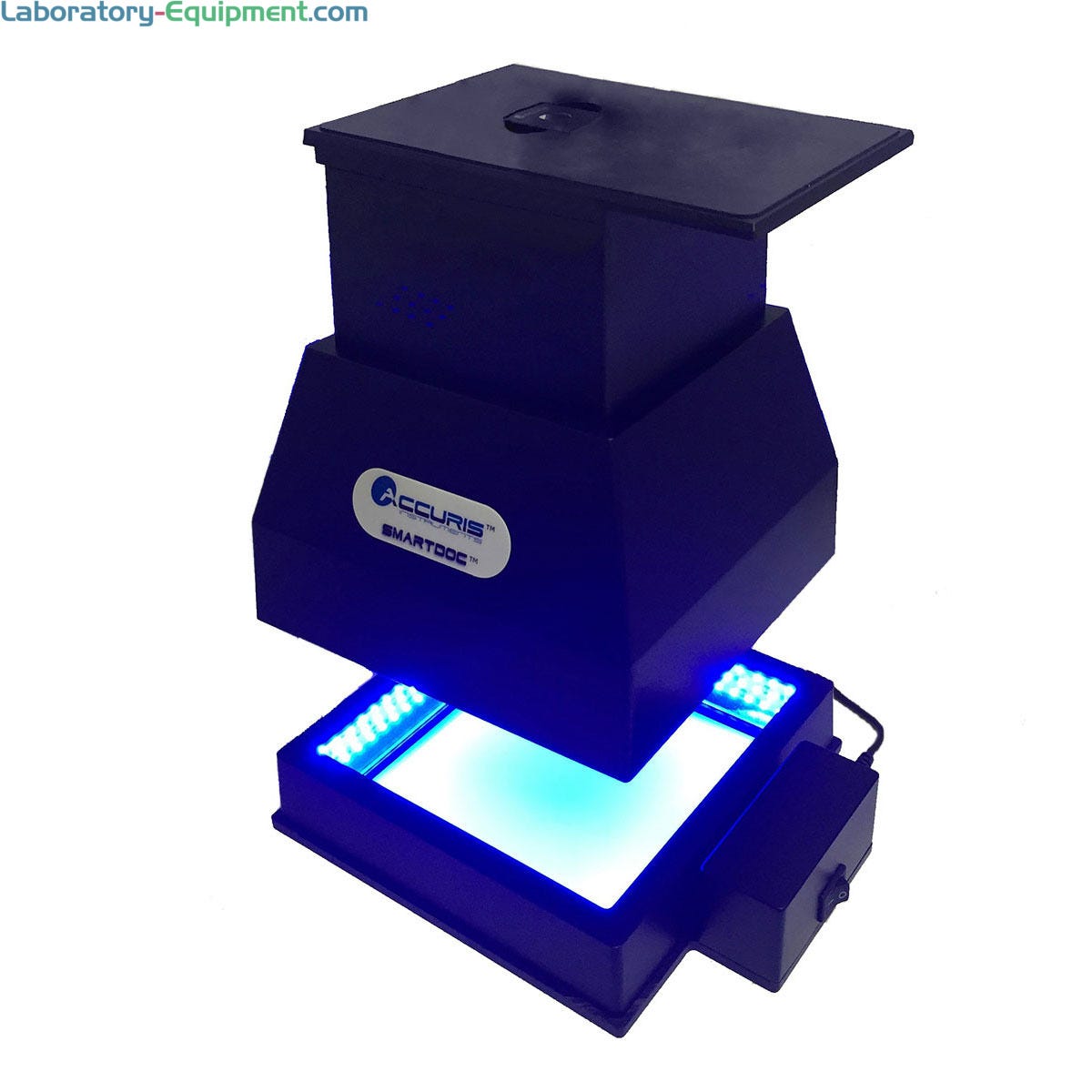

Included Blue Light Enclosure Base
Standard blue light illuminator protects operator and DNA samples by eliminating use of EtBr or UV light
Compact Gel Imaging System
Instantly capture gel images using an iPhone®, iPad®, or Android® device.
Special Benchmark Pricing & Promotions
Terra offers special pricing and promotions on Benchmark products. Ask your sales specialist for more information.
Other products you may find relevant
-
Some ship in 5 - 7 days - Usually Ships in 5 - 7 days
- Usually Ships in 5 - 7 days
- Some ship in 5 - 7 days
- Some ship in 5 - 7 days
- Usually Ships in 5 - 7 days
- Usually Ships in 5 - 7 days
Page 1 of 2
Buy Accessories
Manuals & Resources
SmartDoc 2.0 Helps Ensure Lab Safety with Blue Light and Non-Toxic Dyes
535 nm Narrow Band Pass Filter
- Peak emission: 535 nm
- 40 nm bandwidth
- Compatible DNA stain Type: SmartGlow™ SYBR® Green
- Excitation source: UV transilluminator
590 nm Narrow Band Pass Filter
- Peak emission: 590 nm
- 60 nm band width
- Compatible DNA stain Type: Ethidium Bromide
- Excitation source: Blue illumination base
Ethidium Bromide (EtBr) a known carcinogen and mutagen has traditionally been used by laboratories in conjunction with UV light for staining DNA agarose gels. Exposure to UV light has been demonstrated to cause DNA lesions, which are associated with an increased incidence of cancer.
The SmartDoc 2.0 Gel Imaging System with blue light illumination (E5001-SDB) protects lab personnel by eliminating the need for EtBr and UV light. The E5001-SDB uses safe blue light and non-toxic green dyes for gel imaging purposes.
10 kb DNA ladder, stained with a green dye and imaged with 535nm filter
SmartDoc Gel 2.0 compatible with a UV or a blue light transilluminator
Diagram shows placement of peak transmission and band width of 535 nm and 590 nm band pass filters
