- Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Smart® gas-purge glove box automates low-humidity control down to 0% RH
- Ideal for moisture-sensitive materials: microelectronics, medical devices, pharmaceutical powders
- Gas control system auto-adjusts nitrogen purge to maintain sub-ambient humidity set point
- Fast-acting and economical; maintains below 10% RH with 78% less nitrogen than manual flow meter
- Fully integrated turnkey system takes only a few minutes to install and program
3305-PP-01
3305-PP-01 72050
Smart® Controlled Atmosphere Glove Box Isolators
Read more
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request
View Glovebox Dimensions
Print
Copy Copied
More Information
| A in. (mm) | D in. (mm) | F in. (mm) | H in. (mm) | I in. (mm) | L in. (mm) | M in. (mm) | N in. (mm) |
|---|---|---|---|---|---|---|---|
| 12 (305) | 20 (508) | 26 (660) | 18 (457) | 11.1 (282) | 10.5 (267) | 10 (267) | 11 (279) |
Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.
Positive Pressure Isolation vs. Biohazard Containment
Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.
Product Details
Product Details
Smart® Inert Glove Box
Standard Features
-
A Humidity set point controlsTwo-button interface lets user establish a low-humidity set point
-
B %RH displayReal-time LED display of chamber humidity; press button to view set-point value
-
C Range of MaterialsChoice of six materials, including 304/316L SS and dissipative PVC
-
D Automatic RB ValveReleases gas to prevent excessive internal pressure while blocking influx of ambient air
-
E IlluminatorStainless steel model comes with fluorescent illuminator
-
F Glove Ports9" (229 mm)-diameter glove ports (order desired gloves separately)
Optional Features
-
1 AirlockOptional air lock provides minimizes disruption of internal environment during parts transfer.
Not Shown: Nitrogen Generator provides an uninterrupted supply of nitrogen up to 99% pure to eliminate reliance on bulky gas canisters
SImple push-button interface lets you program a low-humidity set point in seconds!
-
Smart Glove Box Set-up
-
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
-
Stainless Steel Smart Glovebox with Air lock
-
Stainless Steel Smart Glovebox
| 3305-30A displayed
Smart Glove Box Set-up
Terra's Smart Glovebox™ automatically maintains a low-humidity environment to protect moisture-sensitive parts. Its quick-response feedback system continuously monitors the chamber's relative humidity level and indicates the measured value on a bright LED display.
Stainless steel Smart® Glove Box mounted on BioSafe® automatic height adjusting table (28”-43”H), with Nitrogen Generator | 3305-34A displayed
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.

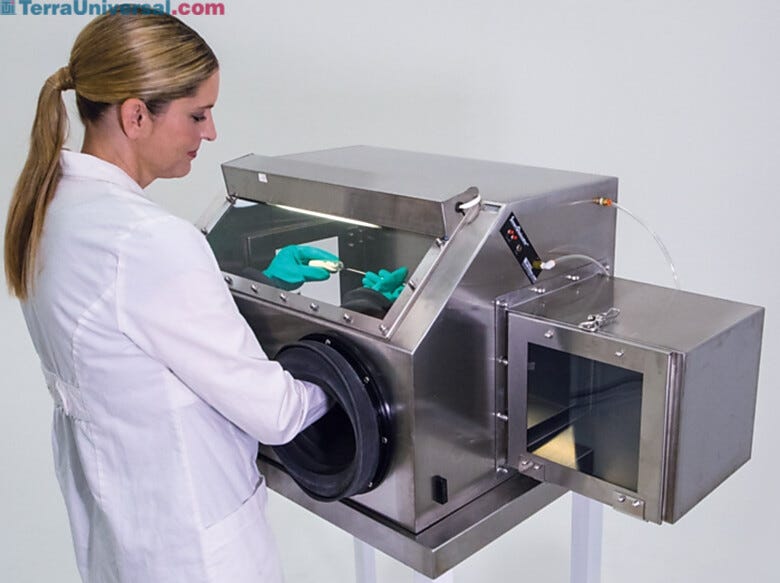

Stainless Steel Smart Glovebox maintains a low-humidity environment to protect moisture-sensitive parts (shown with optional gloves and air lock) | 3305-34A displayed
Stainless Steel Smart Glovebox with Air lock
Terra’s Smart Glovebox includes a nitrogen control module that maintains a low-humidity set point to protect moisture-sensitive parts; takes only seconds to program (stainless steel model shown with optional gloves and air lock).
Stainless Steel Smart Glovebox maintains a low-humidity environment to protect moisture-sensitive parts (shown with optional air lock and gloves | 3305-34A displayed
Stainless Steel Smart Glovebox
Terra’s Smart Glovebox includes a nitrogen control module that maintains a low-humidity set point to protect moisture-sensitive parts; takes only seconds to program (stainless steel model shown with optional gloves and air lock).
Features & Benefits
Features and Benefits
Learn More: Smart Glovebox
Print
Copy Copied
Smart™ Glovebox
- Humidity set point controls
- %RH display
- Choice of six materials, including 304/316L SS and dissipative PVC
- Automatic RB Valve
- 9" (229 mm)-diameter glove ports (order desired gloves separately)
- Airlock (optional)
- Stainless steel model comes with fluorescent illuminator
- Nitrogen Generator (not shown)
- Automates low-humidity processing to prevent degradation of moisture-sensitive parts
- Gas control system auto-adjusts nitrogen purge to maintain humidity set point
- Ideal for work with semiconductor components, medical devices and pharmaceutical powders
- Fully integrated turnkey system takes seconds to install and program
Positive Pressure Isolation vs. Biohazard Containment
Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.
Terra Universal's Smart™ Glovebox automatically maintains a low-humidity environment to protect moisture-sensitive parts.
Its quick-response feedback system continuously monitors the chamber’s relative humidity level and indicates the measured value on a bright LED display.
The minute the %RH climbs above a set point value, the Smart™ Glovebox activates a flow of dry nitrogen for as long as needed to restore the desired humidity level.
This fast-acting control system economizes on nitrogen use. Comparison testing reveals that the Smart™ Glovebox maintaining a 10% RH level uses only 22% of the nitrogen required by a flowmeter-based system of identical size. More importantly, this automated operation maintains the integrity of sensitive parts, such as semiconductor chips, medical devices or pharmaceutical powders, without operator monitoring.
For optimal performance, select a pass-through air lock, which functions as a transfer buffer zone.
The Smart™ Glovebox includes a control system, Automatic RB valve, and inlet/outlet fittings for 0.25" (6 mm)-diameter gas line. A removable back wall allows introduction of large process equipment. Select air lock, work surface and gloves separately.
ISO 6 Nitrogen-Purged Stainless Steel Glove Box for Inert Environment
Terra’s Smart® glove box includes a nitrogen control module that maintains a low-humidity set point to protect oxygen- and moisture-sensitive parts; takes only seconds to program. An optional inert gas airlock minimizes nitrogen loss and contamination inflow from materials transferred through the glovebox.
Stainless Steel Inert Glove Box for Medical Devices
Smart® stainless steel glovebox is suitable for heavy-duty, sterile, and ESD-safe applications. CleanSeam™ design features fully-welded single piece enclosure with smooth and seamless interiors to eliminate hard-to-clean cracks and crevices that can harbor contaminants.
Acrylic Inert Glove Box for Moisture-Sensitive Materials
Smart® plastic glove box isolator with low cost Plexiglass acrylic offers durability (17x impact resistance of glass), superior clarity, and UV resistance (won't yellow from exposure to sun).
Polypropylene Inert Glove Box for Corrosive Chemicals
Smart® automatic inert glove box isolator with opaque white polypropylene offers the best resistance to a wide range of corrosive acids, solvents, and disinfectants. The solid frame and walls feature continuous-seam welds for easy cleaning and maximum protection against chemical splashes and spills.
ISO 7 ESD-Safe Inert Glove Box for Microelectronics
Static-dissipative PVC (SD-PVC) construction dissipates electro-static charges and eliminates static-cling of dust particles to help maintain clean surfaces. Bonded dissipative layers resist abrasion and retains surface resistivity of 106 - 108 ohms/square longer than spray-on coatings that can wear off after a few years. Easy to clean with increased chemical resistance to isopropyl alcohol and other cleaning agents.
Polycarbonate Inert Glove Box for Pharmaceutical Packaging
Smart® inert glove box isolator with Lexan polycarbonate offers visual clarity plus several benefits over acrylic. Superior durability cracks less easily with 250x the impact resistance of glass, 15x the impact resistance of acrylic. Chemical resistant formula withstands many cleaning agents such as isopropyl alcohol. Increased thermal resistance (115–130 °C / 239–266 °F) helps withstand repeated steam sterilization.
UL-Listed Smart® Module for Long-Term Reliability
The Smart® module is UL-listed and built to the highest standards required by defense and semiconductor industries for long-term reliability. The compact controller includes an LED display and sensor to eliminate the need for external control boxes. Installation is simple, requiring only one gas and one low voltage power connection.
External LED Illuminator
Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Manufacturer, Distributor and Service Provider
Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply. -
Sleeve and Glove Assemblies
Sleeve/glove combinations, available in many materials, allow fast, inexpensive glove replacement without removing sleeves from the glove box port (shown: Hypalon with glove/sleeve connectors). -
Laboratory Nitrogen Generator
Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes. -
Air Locks Minimize Cross-Contamination
Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown). -
Stainless Steel Work Surface Improves Safety and Service Life
Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items. -
Ionizing Module for Glove Boxes
Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
