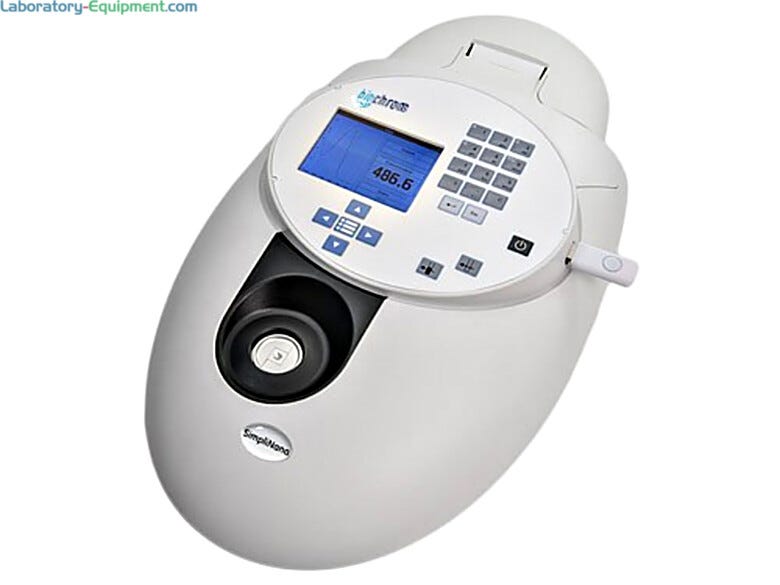

SimpliNano Spectrophotometers with a built-in sample port and a fixed pathlength for micro volume measurements of nucleic acid and protein samples from with 1 t | 5103-PP-08 displayed
Spectrophotometers

Spectrophotometers; SimpliNano with Printer, Biochrom

  • Easy-to-use SimpliNano Spectrophotometer with a built-in sample port and an integrated printer
  • Fixed pathlength eliminates the need for calibration and enables straightforward concentration and purity measurements of nucleic acids and proteins
  • Designed with no moving parts for excellent reproducibility
  • Low sample volume capacity of 1 to 5 μl reduces sample loss and eliminates the need for dilution
  • Built-in preprogrammed life science methods, and convenient data output via integrated printer

• Wavelength Range: 190-1100 nm

• Design: Printer Included

• Manufacturer SKU: 29061712

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: 29061712
Manufactured By: BioChrom
Warranty: 2 years
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
5103-43
Terra Part # 5103-43
$7,941
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Terra Part # 5103-43
80032
$7,941
Usually ships in 10-15 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Easy-to-use SimpliNano Spectrophotometer with a built-in sample port and an integrated printer
  • Fixed pathlength eliminates the need for calibration and enables straightforward concentration and purity measurements of nucleic acids and proteins
  • Designed with no moving parts for excellent reproducibility
  • Low sample volume capacity of 1 to 5 μl reduces sample loss and eliminates the need for dilution
  • Built-in preprogrammed life science methods, and convenient data output via integrated printer
  • Simplifies measurements of nucleic acid and protein samples
  • Built-in sample port features: eliminates need for cuvettes and other sampling tools, enables direct application of volumes 1 μl to 5μl, eliminates the need for pathlength calibration, accepts a wide variety of common lab chemicals
  • Nucleic acid measurements in units: µg/µl, ng/µl, and µg/ µl
  • Displays absorbance values and absorbance ratios: 260/280 and 260/230
  • UV spectrum examination from 220 to 320 nm for hybridization, PCR, and sequencing studies or for quantitation of minipreps
  • Excellent linearity with double-stranded DNA (dsDNA) from 4 to 2500 µg/µl
  • Determines sample concentration of protein samples in the near UV spectrum at 280 nm
  • Built-in extinction coefficients for BSA, IgG, and lysozyme, allowing you to select the most appropriate values for your protein sample
  • Option of background correction at 320 nm with pre-stored method
  • Options: Datrys software for PC operation
  • SimpliNano Specifications:
  • Wavelength range: 190 to 1100 nm
  • Pathlength: 0.5 mm
  • Minimum sample size: 1 µl to 5 nm
  • Absorbance range: -0.3 to 2.5 Abs. units (10 mm equivalent to 50 Abs. units)
  • Spectral bandwidth: 5 nm
  • Xenon Light source
  • Detector type: CCD array
  • Data output to PC Via USB cable (standard); USB memory stick (standard); integrated printer
Show more

• Wavelength Range: 190-1100 nm

• Design: Printer Included

• Manufacturer SKU: 29061712

• Unit of Measure: EA

• Electrical Specifications: 90/250 V, 50/60 Hz

• Weight, Product: 6.61 lb

• Dimensions, Product: 10.23" W x 15.35" D x 5.12" H

Show more
Other products you may find relevant

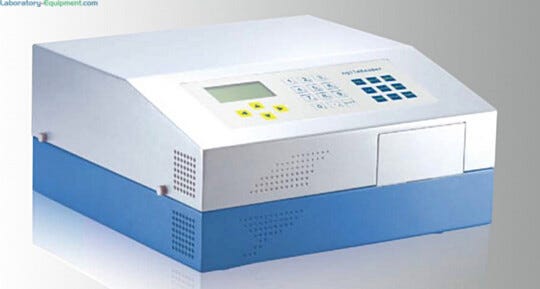

  1. AgileReader ELISA Plate Reader for 96-well types with a built-incubator and shaker | 8000-54 displayed
    Microplate Reader; AgileReaderâ„¢, Absorbance, ACTGene, 120/240 V
    $10,260
    Usually Ships in 10 - 14 days
  2. V903001 fixed temperature heat sealer for PCR and microplates | 8000-66 displayed
    Microplate Heat Sealer; MicroTS, ITL Virginia, 120/240 V
    $1,952
    Usually Ships in 0 - 2 days

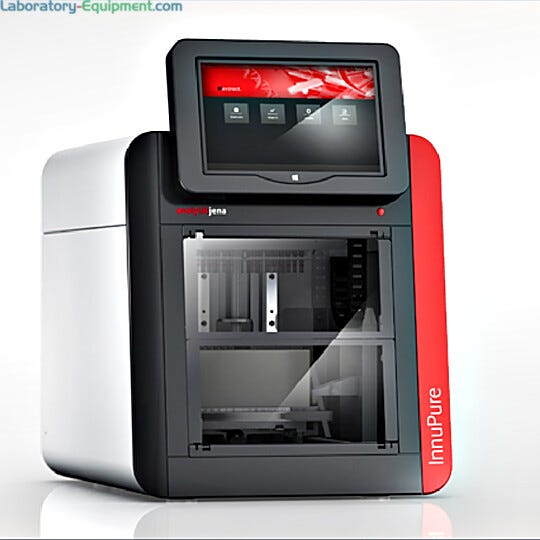

  3. #845-00002-2 sample capacity of up to 16 samples in parallel | 1011-94A displayed
    Automated DNA Extractor; InnuPure C16 touch, Analytik Jena, 110/230 V
    $37,407
    Usually Ships in 20 - 24 days
  4. Designed to increase productivity and provide the highest resolution of the smallest samples | 5102-91 displayed
    Spotlight 400 FTIR Microscopy System
    Request Quote
    Usually Ships in 10 - 20 days

Features and Benefits

Integrated Printer

On-board printer with model #29061712 allows immediate data output of displayed absorbance values, absorbance ratios and concentration values

Built-In Sample Port

Sample port with a fixed pathlength simplifies the process by eliminating calibration, the need for cuvettes, and allows direct application of 1 to 5 µl volumes of samples
