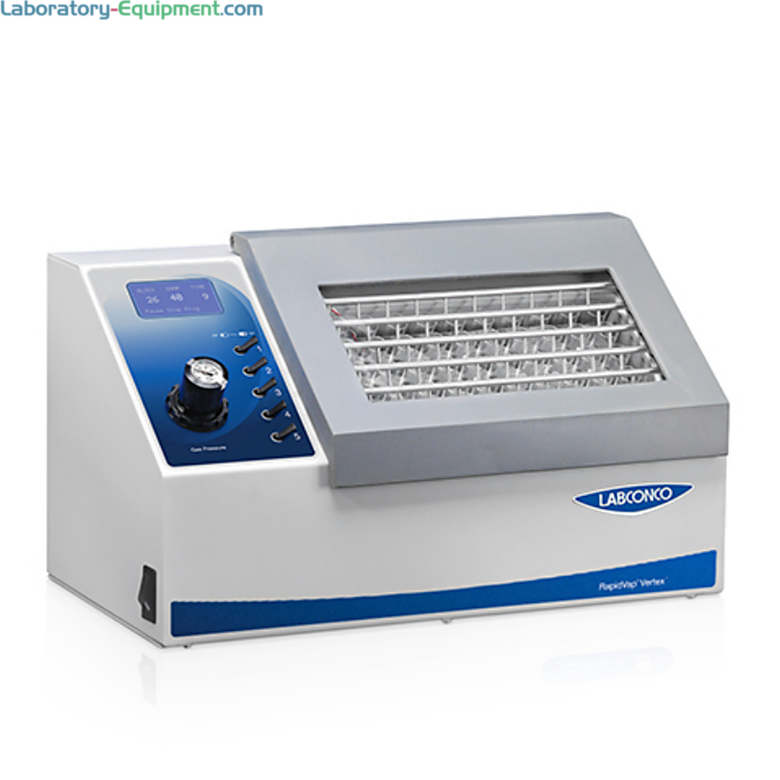

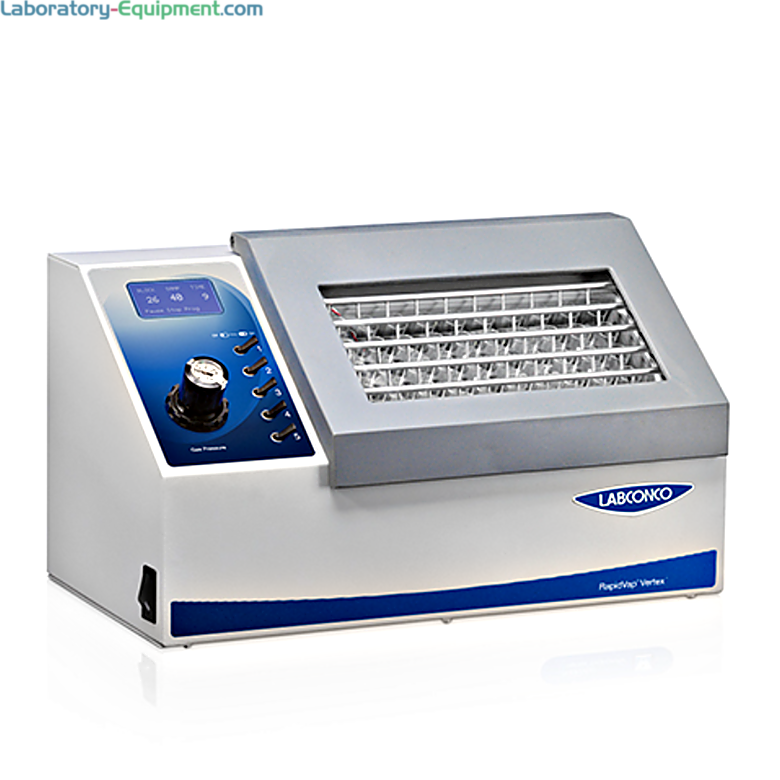

- Compact and portable RapidVap Vertex Dry Evaporators ideal for small sample volumes; in 115V and 230V models
- Provides fast evaporation of up to 50 samples simultaneously using dry heat and nitrogen blow down
- LCD with touchscreen display and microprocessor store up to 10 programs for protocol consistency
- Requires aluminum dry blocks: available in various sizes accommodate a variety of tube sizes
- Compliance: ETL; U.S. and Canada regions
Laboratory Evaporators & Concentrators
6922-PP-02
6922-PP-02 72287
RapidVap Vertex Dry Evaporation Systems by Labconco
Read more
Manufactured By: Labconco
Warranty: One-Year Manufacturer Warranty
Print
Want a quote quickly ?
Submit a QuickQuote request
Product Details
Product Details
Laboratory Evaporators & Concentrators
-
Video of RapidVap Vertex Dry Evaporators by Labconco
Labconco RapidVap Vertex Dry Evaporators video shows product benefits and features
Video of RapidVap Vertex Dry Evaporators by Labconco
Video shows usage of dry heat and compatible blocks for RapidVap Vertex Dry Evaporators by Labconco
Features & Benefits
Features & Benefits
Learn More: Benefits of Dry Heat Evaporation
All RapidVap Vertex Dry
Print
Copy Copied
More Information
Benefits of Using Dry Heat in Dry Evaporation
Using dry heat helps speed evaporation and nitrogen blow-down to reduce the partial pressure directly over the liquid. RapidVap Vertex Dry Evaporators remove solvents and process up to 50 samples at the same time. Unlike water bath heaters, the dry block heater requires no distilled water or additives and adds no potential source of contamination.
Required Aluminum Blocks for RapidVap Vertex Evaporators
All RapidVap Vertex Dry Evaporators require aluminum blocks (not included). Blocks of solid aluminum feature stainless steel handles to lift the block in and out of the evaporator. A 0.21" (0.5 cm) diameter port in the upper left-hand corner of the block is provided for insertion of the temperature probe to monitor upper block temperature. Nine aluminum blocks are available with samples sizes from 1 to 30 mL and ASE sample tubes with samples sizes from 40 to 60 mL. Custom blocks to fit special glassware are available upon request.
From 5ml to 60 ml sample volume
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
LCD Display
LCD display with touchscreen programming features nitrogen control and pressure regulator
Products similar to this one
-
Group of 8 productsRapidVap® N2 and N2/48 Dry Evaporation Systems by Labconco FromAs low as $13,879Some ship in 25 - 29 days
-
Some ship in 25 - 29 days
-
Some ship in 20 - 22 days
Other products you may find relevant
-
Some ship in 5 - 7 days
-
Some ship in 0 - 2 days
Buy Accessories
Manuals & Resources
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
- FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
- FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
- FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
More Information
Benefits of Using Dry Heat in Dry Evaporation
Using dry heat helps speed evaporation and nitrogen blow-down to reduce the partial pressure directly over the liquid. RapidVap Vertex Dry Evaporators remove solvents and process up to 50 samples at the same time. Unlike water bath heaters, the dry block heater requires no distilled water or additives and adds no potential source of contamination.
Required Aluminum Blocks for RapidVap Vertex Evaporators
Evaporators require aluminum blocks (not included). Blocks of solid aluminum feature stainless steel handles to lift the block in and out of the evaporator. A 0.21" (0.5 cm) diameter port in the upper left-hand corner of the block is provided for insertion of the temperature probe to monitor upper block temperature. Nine aluminum blocks are available with samples sizes from 1 to 30 mL and ASE sample tubes with samples sizes from 40 to 60 mL. Custom blocks to fit special glassware are available upon request.
From 5ml to 60 ml sample volume
