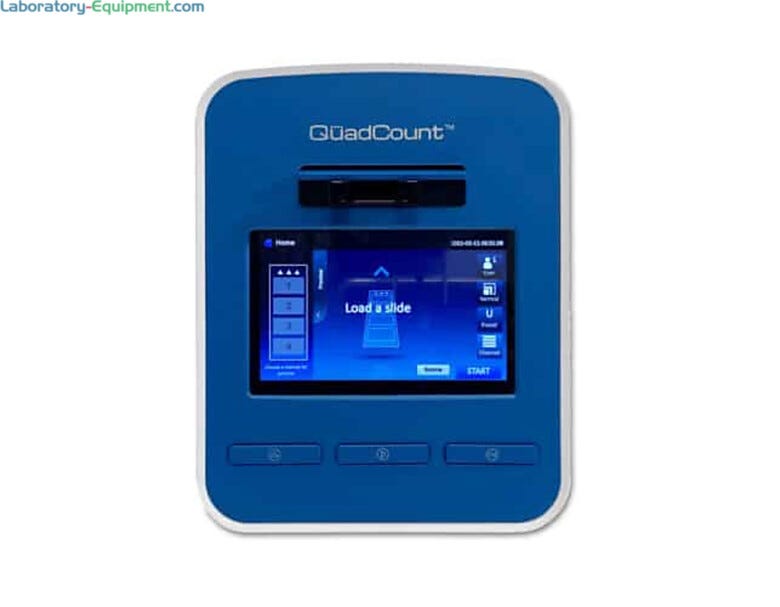

QuadCount Automated Cell Counter with 3 count modes and a 5 mega pixel CMOS sensor
Analytical Instruments
Product Group:
5300-PP-09
5300-PP-09 79182

QuadCount™ Automated Cell Counters by Accuris Instruments

  • Automated cell counter with count speeds as fast as 20 seconds per sample
  • Advanced software with touch-screen interface reduces counting errors and saves time
  • High quality optics include: LED light source, 4X objective lens, and 5MP CMOS detector
  • Utilizes cost-effective 4-Chambered disposable QuadSlides™ for twice the capacity
  • Analyze different sample volumes up to 3.6 ul with 3 count modes
Read more
Ships Free
Manufactured By: Benchmark
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Power

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part #PriceShips in
115 V AC Adapter E7500 5300-37 79183 $3,8485-7 Days2
Ships Free Free shipping in contiguous USA
230 V AC Adapter E7500-E 5300-38 79186 $3,8485-7 Days3
Ships Free Free shipping in contiguous USA
Voltage
Power
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

*
*
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Automated cell counter with count speeds as fast as 20 seconds per sample
  • Advanced software with touch-screen interface reduces counting errors and saves time
  • High quality optics include: LED light source, 4X objective lens, and 5MP CMOS detector
  • Utilizes cost-effective 4-Chambered disposable QuadSlides™ for twice the capacity
  • Analyze different sample volumes up to 3.6 ul with 3 count modes
  • QuadCount™ advantages over the time consuming manual Hemocytometry method include:
  • 3 Count Modes increases accuracy by analyzing larger sample volumes/multiple image frames (up to 24)
  • Quick Mode: 0.15uL / 20 seconds (1 image frame)
  • Normal Mode: 0.9 uL / 30 seconds (6 image frames)
  • Precise Mode: 3.6 uL/ 100 seconds (24 image frames)
  • High quality optics and Imaging Technology such as 4X objective lens and 5MP CMOS detector for consistent results and reliable performance
  • Autofocus system along with image analysis software work in conjunction with motorized stage to analyze and capture images in the proper focal plane
  • Advanced Algorithms easily detect and manage irregularly shaped and aggregated cells that are often misinterpreted by visual counting; thus providing accurate counts of the cells and eliminates user to user variation
  • Intuitive User Interface facilitates the adjustment of the cell count parameters
  • 1. Gating size range
  • 2. Aggregation level
  • 3. Live/dead definition
  • Choose to view the histogram data for individual or multiple chambers in each QuadSlide™
  • Optics: High quality 4x objective lens
  • Pixel Resolution: 2592 x 1944
  • Image Detection: 5 mega pixel CMOS sensor
  • Illumination: Green LED (50,000 hour life)
  • Sample Volume: 20ul (4 samples per QuadSlide)
  • Max. Counting Volume: 3.6ul (24 image captures)
  • Consumable Slide: QuadSlide, 4-chamber
  • Dynamic Range: 1 x 104 to 1 x 107 cells per ml
  • Cell Size Range: 5 to 60 um
  • Data Output: USB drive for PDF report
Show more

Show more

Analytical Instruments

  • 4-chambered disposable slides and QuadCount Automated Cell Counter QuadCount Automated Cell Counter with 4-chambered disposable QuadSlide
  • Product overview and user instructions of QuadCount Automated Cell Counter by Accuris Instruments Overview of QuadCount Automated Cell Counter by Accuris Instruments
4-chambered disposable slides and QuadCount Automated Cell Counter
QuadCount Automated Cell Counter with a unique 4-chambered disposable QuadSlide for optimal counting performance QuadCount Automated Cell Counter with 4-chambered disposable QuadSlide
Product overview and user instructions of QuadCount Automated Cell Counter by Accuris Instruments
Product overview and user instructions of QuadCount Automated Cell Counter by Accuris Instruments Overview of QuadCount Automated Cell Counter by Accuris Instruments Video shows features of QuadCount Automated Cell Counter by Accuris Instruments and steps on how to use it
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • 4-chambered disposable QuadSlides for QuadCount Automated Cell Counters

    QuadSlides Pack of 50 for QuadCount Automated Cell Counters

    4-chambered disposable QuadSlides for QuadCount Automated Cell Counters
