Terra Part # Price Ships in
120 V Laminar Flow Cleanroom SDPVC Stainless Steel Perforated ISO 5 2 Doors 3 1529-68 41595 $17,409 1-3 Days 2
Only 3 left in stock
120 V Laminar Flow Cleanroom SDPVC Stainless Steel Perforated ISO 5 6 Doors 3 1529-64A 42465 $17,245 20-24 Days 3
240 V Laminar Flow Cleanroom SDPVC Stainless Steel Perforated ISO 5 2 Doors 3 1529-68-220 41596 $16,270 20-24 Days 4
Voltage
Type
Application
Window Material
Material
Shelf Type
ISO Ratedâ„¢ Air Cleanliness
Number of Doors
Shelves
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available Certified ISO Gradeâ„¢ Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Provides a safe, contamination-free way to transfer materials
  • Stainless steel ensures durability and cleanliness
  • 2-door, 6-door and 10-door configurations
  • Heavy-duty, nonshedding, cushioned casters ensure smooth rolling over any industrial floor type
  • Required power supply permits 30 minutes of operation for cart relocation
  • Audible alarms notify personnel when battery needs to be recharged
  • Perforated stainless steel shelves allow for airflow throughout cabinet
  • Ergonomic handles assist with maneuvering down hallways and through doorways
  • Optional rechargeable power cell ensures uninterrupted fan/filter unit operation for up to 4 hours, ensuring ISO-4 cleanliness
  • 120 volt and 220 volt models available
  • HEPA Fan/filter unit protects sensitive materials during transit with downward airflow that exits through the bottom of the cabinet; removes 99.99% of particles 0.3 microns and larger
  • Cabinets available with multiple door configurations, each with adjustable-height shelves

• Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8

• Certified ISO Grade™ Design: ISO 5

  • Watch Terra's Video on a HEPA Filtered Laminar Flow Cabinet Smoke Test
  • electropolish stainless steel Electropolish Finish
  • Portable stainless steel cleanroom storage cabinet with laminar air flow Portable Cleanroom Storage Cabinet with Laminar Air flow
  • Smart® Humidity Module upgrade tutorial Installing Terra's ValuLineâ„¢ Desiccator Smart® Controller
  • PureFlow Laminar Flow Storage Cart PureFlowâ„¢ Laminar Flow Transport Cart, Double Door
  • laminar flow cart with pegboards Custom Polypropylene Pegboard Divider for PureFlow Cart
Smart® Humidity Module upgrade tutorial
Features & Benefits

Features and Benefits

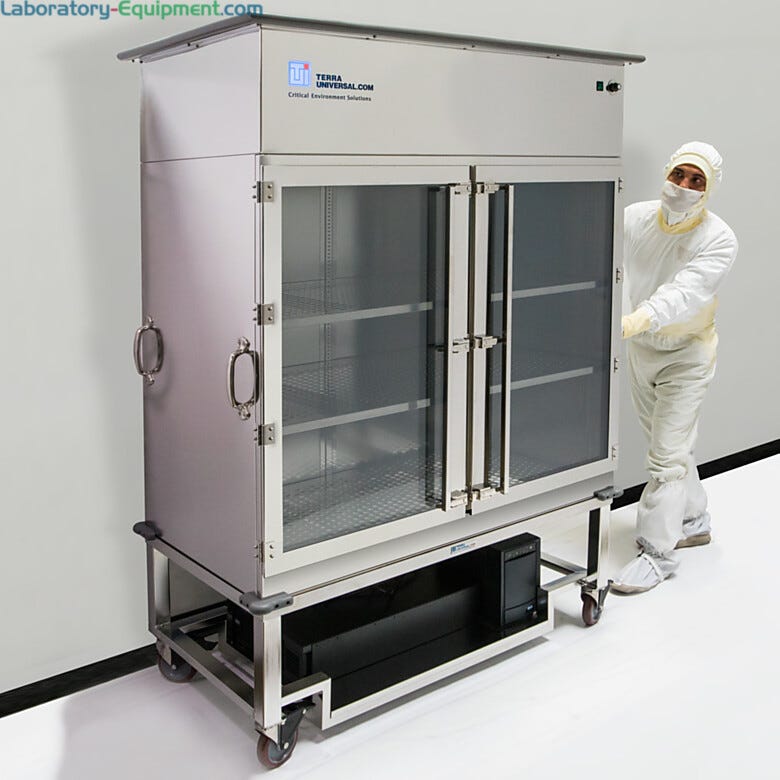

PureFlowâ„¢ Laminar Flow Transport Cart, Double Door

PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area during parts transfer.

WhisperFlow® Cleanroom Fan Filter Units

Design features internal baffling and an aluminum diffuser to provide quiet operation along with uniform air speed for ISO-compliant laminar flow.

PureFlow Power Supply

Provides power to the PureFlow filter/fan unit and switches to battery power when AC power is disconnected.

Add-On Power Cell for Extended Uninterrupted Operation

Rackmount external battery pack offers extended battery runtime when used in conjunction with expandable rackmount Uninterruptible Power Supply (UPS) system. Includes heavy gauge cabling with high current DC connectors for simple installation. Runtime varies with load, battery condition and other factors.

Portable Cleanroom Storage Cabinet with Laminar Air flow

Terra’s portable cleanroom storage cabinets are equipped with UL-rated air filtration systems for safe operation. The built-in fan filter unit (FFU) supplies clean ISO 5 or ISO 4 (class 100 or class 10) storage conditions for critical components. An optional power cell allows for mobile operation of the built-in FFU during transportation.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Ionizing Bar

    For use on 24" x 48" ( 610 x 1219 mm) filter/fan units only (Order FFUs separately).
  • Fan Filter Unit with External UPS Battery

    Uninterruptible Power Supply (UPS) system provides backup battery power to keep critical equipment running without interruption when utility power is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
  • Electropolish Finish

    Electropolishing increases corrosion resistance and improves ease of cleaning with a smooth, reflective, mirror-like finish.
