Physical Dimensions: 25 ± 0.2 mm x 76 ± 0.3 mm x 0.940 mm ± 0.025 mm
Material: silicon dioxide proprietary glass
Barcode: Yes; each slide contains a unique barcode
Atomic smoothness: ±20 Å
Precision corner chamfer (1.4 mm)
Optical QC procedure: 5-tier inspection and laser scanning
Minimum microarray feature size: 5 µm
Maximum microarray feature number (22 x 72 mm area): 15,840,000
Monolayer Density: 1.1 x 10^12 per mm^2
Quantity: 25
Contains uniform monolayer of recombinant protein A/G
Binds to human immunoglobulin proteins IgG1, IgG2, IgG3, IgG4 and all types of total IgG
Protein A/G covalently bound to surface will not flake, crack or peel
Homogenous SiO2 groups provide superior silane reactivity photolithography and contact printing
Superior surface for chemical treatments (e.g. Silane reagents)
Ideal for high density DNA microarray manufacturing such as micro-mirror, photolithography and contact printing
Ideal for gel and membrane coatings (e.g. Polyacrylamide and nitrocellulose)
Excellent refractive index, transmission and hardness specifications
Widely-used for ex situ and in situ synthesis
Manufactured in Class 1 cleanrooms
Custom sizes, laser and chrome fiducials available (contact us for details)
Compatible with scanners and microarrayers from Arrayit and other brands
Shelf life: Store at 4°C; use within 6 months of manufacture date

• Manufacturer SKU: AGMSBC

• Unit of Measure: EA

• Weight, Product: 2 lb

• Weight, Shipping: 4 lb

• Package Type: Box

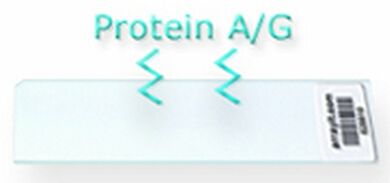

Protein A/G Microarray Substrates Barcoded (Box of 25)
