Aerodynamic design minimizes the exhaust rate necessary for containment for greater energy efficiency
Meets and exceeds SEFA 1 standard for high-performance fume hoods
Upper Dilution Air Supply provides passive airflow behind the sash to remove fumes that accumulate in the upper portion of the hood
Tapered slot pattern on the Opti-Zone™ Baffle provides increased airflow at work surface level and center of the hood, where most fumes are generated
Secondary Baffle Plate, hidden behind the Opti-Zone slotted baffle, guides airflow downward for smooth transition into the rear exhaust plenum
Clean-Sweep™ Sash Handle has small cut-outs that channel additional inward airflow along the edge of the sash, pushing fumes away from the operator’s breathing zone
Eco-Foil™ Air Foils are curved for operator comfort and improved aerodynamics, lowering energy usage
Vapor-proof LED light fixture is sealed behind ¼”-thick safety glass to eliminate spark potential
Open-bottom design allows for placement on any work surface or on a Labconco base stand
Fiberglass-composite interior for chemical-resistance and low flame spread (less than 25 per ASTM E84)
Sash stop allows 18”-high max clearance
Controls for lights and blower are ADA-compliant
Front and side panels are removable; utilities plumbing accessible from the front
Protector XStream accessories can be retrofitted using Labconco kits for service fixtures, duplex outlets, Guardian Airflow Monitors, and Sash Stops
Requires connection to an existing exhaust system with external blower (separately available)

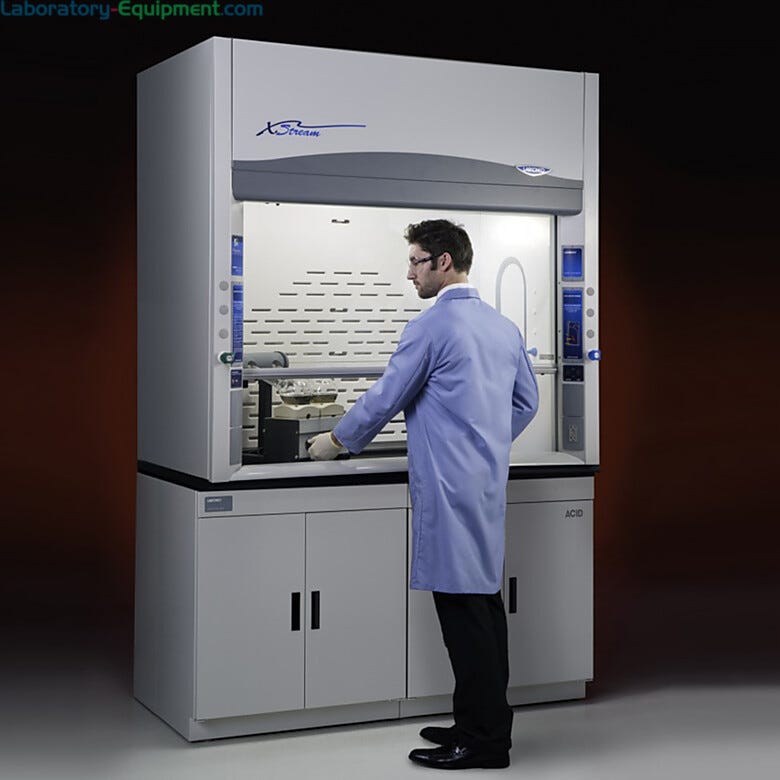

Shown: 6' XStream High-Performance Laboratory Fume Hood with optional service fixtures and base cabinetsXStream Laboratory Fume Hood
Shown: 5'Protector XStream Fume Hood from Labconco with optional base cabinets and epoxy work surface | 1538-30 displayedProtector Xtream Laboratory Hood5'Protector Xstream Lab Hood from Labconco shown with model, test equipment, base cabinets and worksurface (not included)
Shown: 6' XStream High-Performance Laboratory Fume Hood with optional service fixtures and base cabinetsXStream Laboratory Fume Hood
Shown: 5'Protector XStream Fume Hood from Labconco with optional base cabinets and epoxy work surface | 1538-30 displayedProtector Xtream Laboratory Hood5'Protector Xstream Lab Hood from Labconco shown with model, test equipment, base cabinets and worksurface (not included)
The external blower pulls outside air into the fume hood through the sash opening. The aerodynamic foils around the sash maintain horizontal airflow until the air enters the rear baffle, where the air flows downward and then back up to the exhaust vent.
Long-Standing Industry Expertise
For 50 years, Terra has served the life science, academic research, pharmaceutical, biotechnology, medical device, semiconductor and aerospace markets. We intimately understand the cGMP, GLP, ISO, ASTM , IEST and OSHA requirements.
Global Customer Base
At Terra, we are committed to providing top-tier equipment to customers throughout the world. Over the past 5 years, clients in over 100 countries have purchased equipment from Terra.
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
Labconco Spillstopper Work Surfaces
These dished work surfaces are made of corrosion-resistant epoxy resins for durability and a smooth finish. Pass-through holes for venting and plumbing are predrilled into the rear portion of the surface (cut-outs for cup-sinks are optional).
Labconco Standard Base Storage Cabinet
Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
Labconco Acid Storage Cabinet
Acid storage cabinets are constructed of epoxy-coated steel with a corrosion-resistant, polyethylene interior coating. Each cabinet can support up to 800 lbs. and includes a vacuum-formed PVC tray to contain spillage inside the cabinet.
Labconco Fiberglass Blower
Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
Remote Blower
Labconco offers energy-efficient remote blowers with an ECM motor that handle airflow from 250 CFM to 3200 CFM satisfying various exhaust requirements
