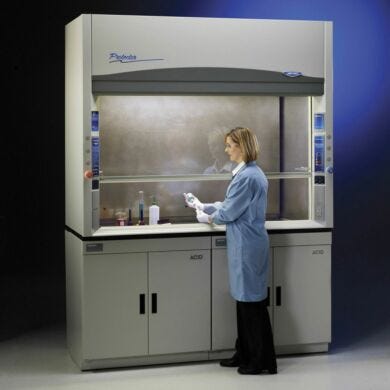

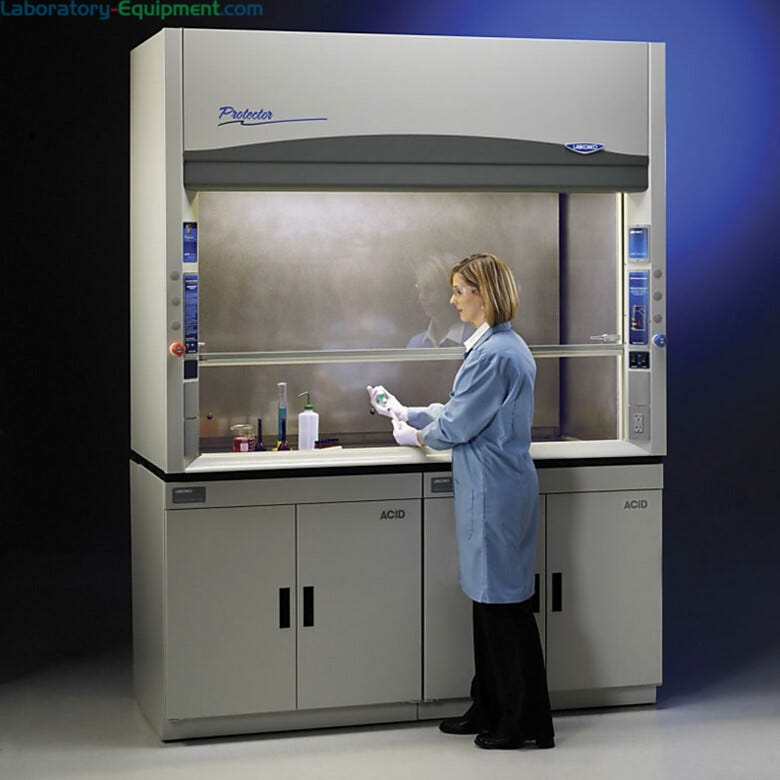

Labconco manufactures fume hoods designed for handling radioisotopes and providing effective containment | 3648-11 displayed
Product Group:
3648-PP-02
3648-PP-02 71378

Protector Stainless Steel Radioisotope Laboratory Fume Hoods

Read more
ETL-Listed C US Logo
Manufactured By: Labconco
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Frame Material

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:
Side Panels

Sort Order:

 Terra Part # Price Ships in
115 V Powder-Coated Steel Protector Radioisotope 120400001 Tempered Glass 3648-02 61036 $16,252 40-44 Days 2
115 V Powder-Coated Steel Protector Radioisotope 120400002 Tempered Glass 3648-01 61035 $16,444 40-44 Days 3
115 V Powder-Coated Steel Protector Radioisotope 120410001 Tempered Glass 3648-04 61038 $16,848 40-44 Days 4
115 V Powder-Coated Steel Protector Radioisotope 120410002 Tempered Glass 3648-03 61037 $17,042 40-44 Days 5
115 V Powder-Coated Steel Protector Radioisotope 120500001 Tempered Glass 3648-06 61040 $18,180 40-44 Days 6
115 V Powder-Coated Steel Protector Radioisotope 120500002 Tempered Glass 3648-05 61039 $18,373 40-44 Days 7
115 V Powder-Coated Steel Protector Radioisotope 120510001 Tempered Glass 3648-08 61042 $18,910 40-44 Days 8
115 V Powder-Coated Steel Protector Radioisotope 120510002 Tempered Glass 3648-07 61041 $19,113 40-44 Days 9
115 V Powder-Coated Steel Protector Radioisotope 120600001 Tempered Glass 3648-10 61044 $20,992 40-44 Days 10
115 V Powder-Coated Steel Protector Radioisotope 120600002 Tempered Glass 3648-09 61043 $21,201 40-44 Days 11
115 V Powder-Coated Steel Protector Radioisotope 120610001 Tempered Glass 3648-12 61046 $21,837 40-44 Days 12
115 V Powder-Coated Steel Protector Radioisotope 120610002 Tempered Glass 3648-11 61045 $22,049 40-44 Days 13
115 V Powder-Coated Steel Protector Radioisotope 120800001 Tempered Glass 3648-14 61048 $29,863 40-44 Days 14
115 V Powder-Coated Steel Protector Radioisotope 120800002 Tempered Glass 3648-13 61047 $30,398 40-44 Days 15
115 V Powder-Coated Steel Protector Radioisotope 120810001 Tempered Glass 3648-16 61050 $30,744 40-44 Days 16
115 V Powder-Coated Steel Protector Radioisotope 120810002 Tempered Glass 3648-15 61049 $31,272 40-44 Days 17
Voltage
Frame Material
Model
Manufacturer SKU
Side Panels
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Constructed with a corrosion-resistant 304 stainless steel one-piece liner with coved corners, the Protector Stainless Steel Radioisotope Hood has no joints, crevices or cracks and effectively contains radiochemicals
  • Prevents build-up of residue and simplify decontamination procedures, making them ideal for use in radiochemistry, radiopharmaceutical, and nuclear pharmacy applications
  • It features a vertical rising, anti-racking tempered glass sash with cable pulley
  • Available in 4, 5, 6 and 8-foot widths, these benchtop fume hoods
  • By-pass air flow and by-pass block
  • Clean-Sweep™ sash handle and tracks, Eco-Foil™ air foil and Cord-Keeper™ slots
  • 37.5"" obstruction free sightline
  • Performance tested to ASHRAE 110-1995
  • Required Accessories: Remote Blowers, Base Cabinets, Ductwork
Show more

Show more

  • Labconco Protector ClassMate Labconco Protector ClassMate
  • Labconco Xpert Balance Enclosure – 8 ft Labconco Xpert Balance Enclosure – 8 ft
  • Labconco Xpert Nano Ductless Exhaust Hood Labconco Xpert Nano Ductless Exhaust Hood
  • Labconco Protector XVS Ventilation Stations Labconco Protector XVS Ventilation Stations
  • Labconco Protector® Echo – Floor Mounted Labconco Protector® Echo – Floor Mounted
  • Exploson-Proof Ductless Fume Hood in Use Powder-Coated Explosion-Proof Ductless Fume Hood
  • Hardwall Modular Cleanroom with Multiple Suites Multi-Suite ISO-Rated Hardwall Modular Cleanroom
  • Protector XStream Laboratory Fume Hoods by Labconco Protector XStream Laboratory Fume Hoods by Labconco
Labconco Protector ClassMate
Labconco’s Protector ClassMate Series of fume hoods has a glass rear panel and sides for total visibility of the work area, ideal for educational labs | 3645-10A displayed Labconco Protector ClassMate Labconco’s Protector ClassMate Series of fume hoods has a glass rear panel and sides for total visibility of the work area, ideal for educational labs.
Labconco Xpert Balance Enclosure – 8 ft
Labconco’s Xpert Balance Enclosures can be customized to provide additional workspace and conveniences, such as bulk API access and waste ports | 3644-55 displayed Labconco Xpert Balance Enclosure – 8 ft Labconco’s Xpert Balance Enclosures can be customized to provide additional workspace and conveniences, such as bulk API access and waste ports.
Labconco Xpert Nano Ductless Exhaust Hood
Labconco’s Xpert Nano Series of ductless exhaust hoods features an ULPA filtration system for the highest level of protection against nanoparticulates | 3644-57 displayed Labconco Xpert Nano Ductless Exhaust Hood Labconco’s Xpert Nano Series of ductless exhaust hoods features an ULPA filtration system for the highest level of protection against nanoparticulates.
Labconco Protector XVS Ventilation Stations
Labconco’s Protector XVS connects to an in-house exhaust system for rapid removal of fumes from the classroom or lab | 3646-23 displayed Labconco Protector XVS Ventilation Stations Labconco’s Protector XVS connects to an in-house exhaust system for rapid removal of fumes from the classroom or lab.
Labconco Protector® Echo – Floor Mounted
Labconco manufactures large, floor-mounted fume hoods that can accommodate entire carts full of fume-producing materials | 1535-28 displayed Labconco Protector® Echo – Floor Mounted Labconco manufactures large, floor-mounted fume hoods that can accommodate entire carts full of fume-producing materials.
Exploson-Proof Ductless Fume Hood in Use
Powder-coated explosion-proof ductless fume hoods shown with optional explosion-proof light (order filters separately) | 2400-18 displayed Powder-Coated Explosion-Proof Ductless Fume Hood NEC Class I, Division 1-compliant explosion-proof fan ventilates fumes through carbon filters for safe indoor release (for use with non-hazardous fumes; order work surface and vapor-sealed or explosion-proof light separately)
Hardwall Modular Cleanroom with Multiple Suites
Economical ISO-compliant, modular construction is ideal for multiple cleanroom suites | 6600-73A displayed Multi-Suite ISO-Rated Hardwall Modular Cleanroom Economical modular designs accommodate complex floorplans, ideal for multiple cleanroom suites with cascading pressures and ISO cleanliness levels.
Protector XStream Laboratory Fume Hoods by Labconco
High-performance, low-volume and energy efficient benchtop Protector XStream Laboratory Fume Hoods by Labconco High-performance, low-volume and energy efficient benchtop with Upper Dilution Air Supply, Clean-Sweep™ Sash Handle, Rear Downflow Dual Baffle System, Opti-Zone™, Eco-Foil™ Air Foil.
Features & Benefits

Features and Benefits

Learn More: Radioisotope Fume Hoods
Print Copy Copied

Protector Stainless Steel Radioisotope Laboratory Fume Hoods

  • Seamless 304 stainless steel baffle and liner
  • By-pass air flow and by-pass block
  • Clean-Sweep™ sash handle and tracks, Eco-Foil™ air foil and Cord-Keeper™ slots
  • 37.5" obstruction free sightline
  • Performance tested to ASHRAE 110-1995
  • Required Accessories: Remote Blowers, Base Cabinets, Ductwork (See Available Accessories Below)
  • One-Year Manufacturer Warranty for Parts and Labor from date of Installation or Two-Year Warranty from Date of Shipment
Material Corrosion-resistant 304 stainless steel interior; glacier white, dry powder epoxy-coated steel exterior; black enamel-coated hardboard surface; tempered safety glass vertical-rising sash with frame of epoxy-coated aluminum and PVC
Electrical 115 volts, 50/60 Hz, 10 amps
Conformance and Listings
  • Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (Cabinet Surface Finish), UL
  • Listings: ETL-listed certified to UL 61010-1, UL 1805 and CAN/CSA C22.2 No. 61010.1
  • ASHRAE 110-1995 Performance tested
Type Benchtop
Required Remote Blower Not included (sold separately)
Required Accessories Remote Blowers, Base Cabinets, Ductwork
Optional Accessories Airflow Monitors, Sash Stops, Rear Finish Panel Kits, Three-Sided Ceiling Enclosure Kits
Airflow
  • By-pass airflow for stable face velocities
  • By-pass block controls and reduces minimum air volume demanded by obstructing the by-pass opening above the sash
  • Eco-Foil air foil saves energy by 7-10% compared to flat air foil; curved air foil maximizes containment by sweeping work surface with air
  • Clean-Sweep sash handle and tracks bleeds air into hood chamber and away from breathing zone of operator; saves energy by 7-10% compared to flat air foils
Construction
  • Corrosion-resistant 304 stainless steel baffle and liner
  • Tempered safety glass sash
  • Seamless interior with coved corners
  • Removable front and side panels for easy lamp replacement and access to plumbing and electrical connections
  • 37.5" sightline provides unobstructed view from work surface to header panel; ideal for taller operators
  • Cord-Keeper slot on left and right side of air foil keeps electrical cords away from operator and allows for complete sash closure when cords are plugged into receptacles on corner posts
  • Access to plumbing from front of hood through service access panels
  • Pre-wired electrical components: factory wired fluorescent lights and switches at single point junction; each hood factory prepared for up to 4 electrical duplexes and an airflow monitor; models with one electrical duplex with right side receptacle; 8 ft. models with one duplex with receptacles mounted on each side
  • Hardboard surface supports integral work surface
  • 11" OD Type 304 stainless steel exhaust connection(s)
  • Remote control optional color-coded service fixtures for gas, air water, vacuum and other services; can be used regardless of sash position; select models have two pre-plumbed service fixtures; each corner post factory prepared for up to 4 service fixtures (8 fixtures per hood). Talk to a Terra product specialist about additional service fixtures
Lighting Two high-efficiency T8 fluorescent lights outside hood interior for easy replacement and corrosion protection

Labconco Radioisotope Laboratory Fume Hood

Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.

Labconco Corrosive Resistant Remote Blower

Labconco supplies coated steel blowers designed specifically for connection to Class I containment enclosures, including XPert, RXPert, Protector XVS, and Purifier HEPA Filtered Safety Enclosures. Explosion-proof versions also available

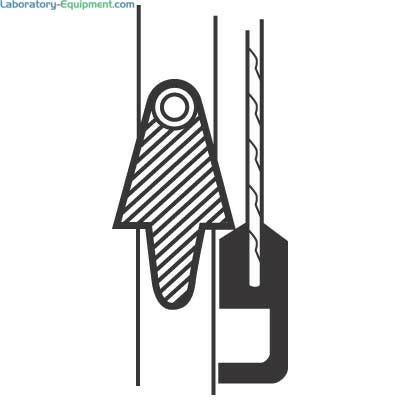

Sash Stop Kit for Labconco Fume Hoods

Restricts opening of vertical-rising sash; easily installed on fixture panel of Protector hood.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Guardian Digital Airflow Monitor

    Labconco Digital Airflow Monitor

    The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
  • Labconco Standard Base Storage Cabinet

    Labconco Standard Base Storage Cabinet

    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Acid Storage Cabinet

    Labconco Acid Storage Cabinet

    Acid storage cabinets are constructed of epoxy-coated steel with a corrosion-resistant, polyethylene interior coating. Each cabinet can support up to 800 lbs. and includes a vacuum-formed PVC tray to contain spillage inside the cabinet.
  • Labconco Solvent Storage Cabinet

    Labconco Solvent Storage Cabinet

    Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
  • Labconco Fiberglass Blower for Laboratory Fume Hood

    Labconco Fiberglass Blower

    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Coated Steel Blower for Laboratory Fume Hood

    Remote Blower

    Labconco offers energy-efficient remote blowers with an ECM motor that handle airflow from 250 CFM to 3200 CFM satisfying various exhaust requirements
