Grinding heads for the MF 10 Microfine Grinder Drive are easily interchangeable and are designed for crushing fibrous substances (MF 10.1) or brittle, hard materials with a Mohs hardness of 6 (MF 10.2).

To ensure maximum particle size filtering, materials being processed are passed through a sieve prior to being discharged. Materials can then be collected using an NS 29 standard ground vessel. Sieves (sold separately) are available in sizes from 0.25 mm to 4.0 mm.

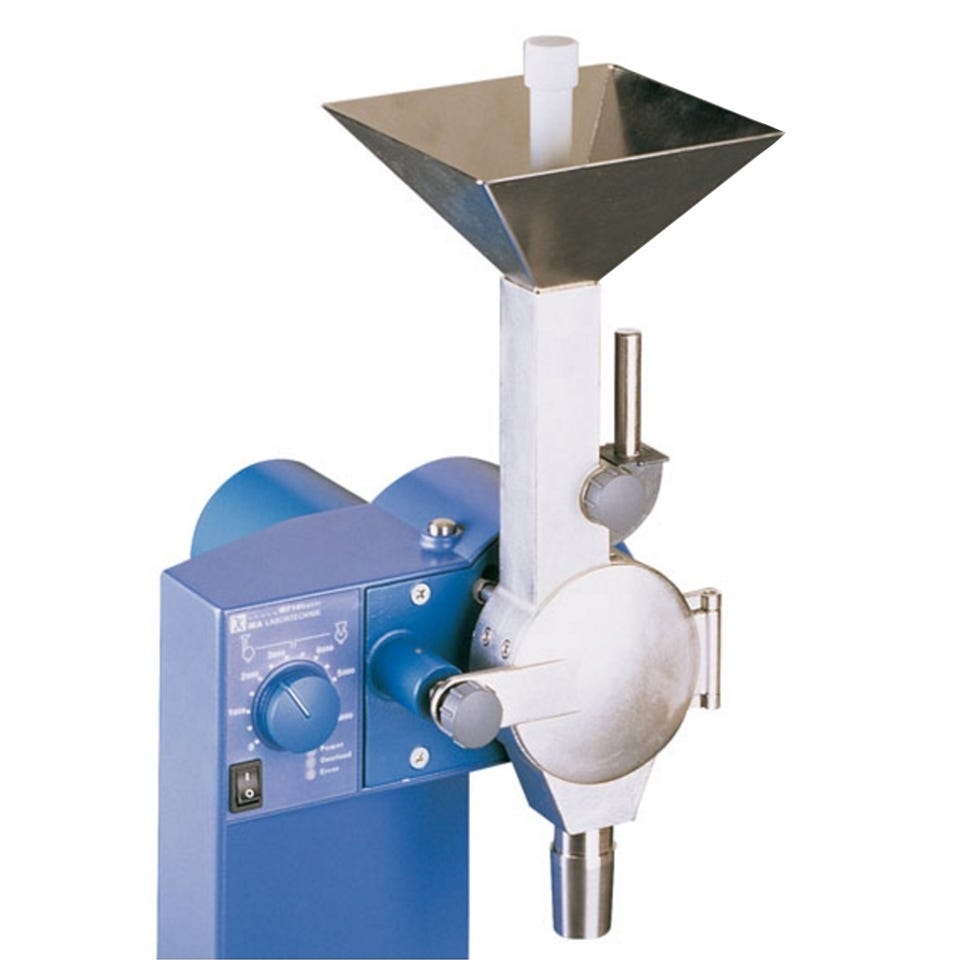

Model MF 10.1 Cutting-grinding head

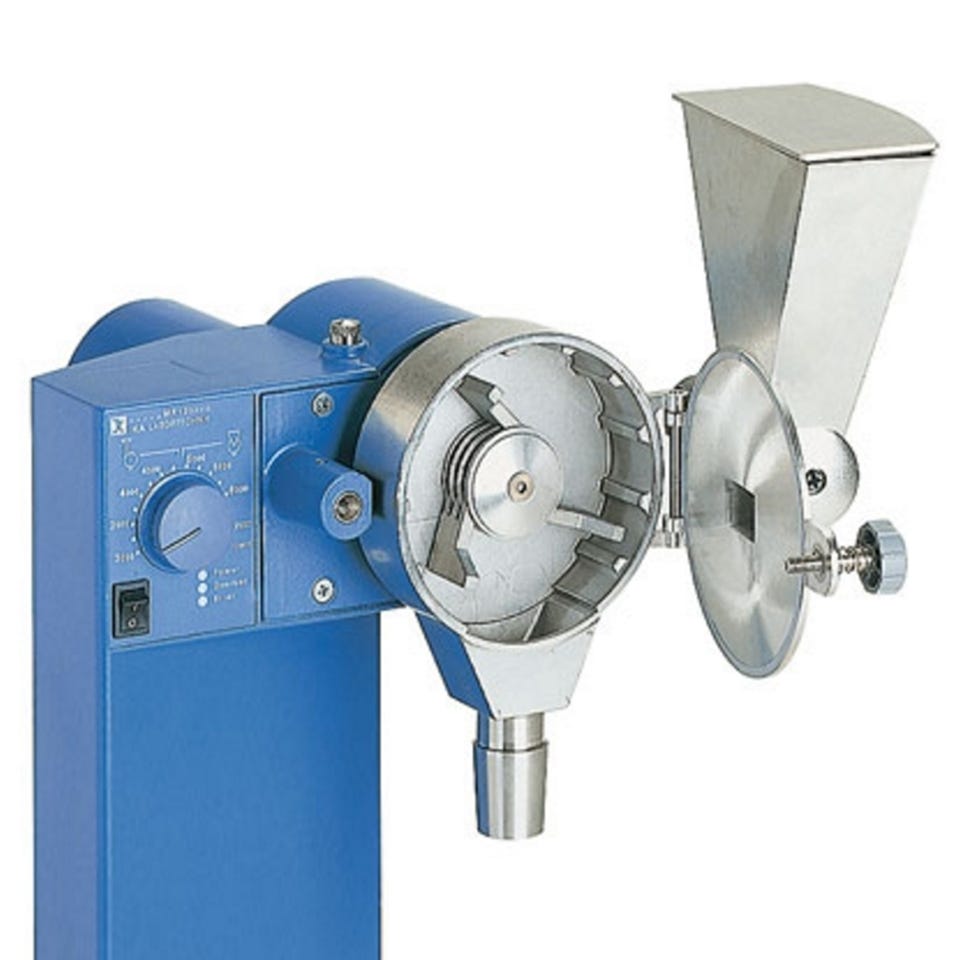

for fibrous materials		 MF 10.2 Impact grinding head
for brittle, hard materials
Circumferential speed max 24.5 rpm 34 rpm
Feed hardness max. [Mohs] 3 Mohs 6 Mohs
Feed grain size max. [mm] 15 mm 10 mm
Material Crushes fibrous substances (paper and vegetation), plastics and material with low volume weight Crushes brittle, hard materials (minerals and building materials), soil samples up to a hardness of 6 Mohs
Process Ground material passes through a sieve prior to discharge
Ground material can be collected using a NS 20 standard ground vessel		 Ground material passes through a sieve prior to discharge
Ground material can be collected using a NS 20 standard ground vessel
Includes
  • cutting grinding head with three built-in bed knives
  • built-on door
  • tabular slide valve and funnel
  • three screwed-in attaching pins
  • plunger
  • blade rotor with 3 mounted rotor blades
  • cheese head screw and disk
  • and the filter which you ordered
  • an impact grinding surface with built-on door
  • three screwed-in fastening pins
  • dosing sluice
  • hammer rotor
  • countersunk screw
  • disk
  • cover and the
  • filter which you ordered
Dimensions W x D x H in. (mm)
when attached to MF 10 		12.6 x 11.8 x 22.1 (320 x 300 x 560) 12.6 x 11.8 x 17.7 (320 x 300 x 450)
Material milling chamber stainless steel 1.4308
Process type Inline
Mill feed cooled in milling chamber with dry ice Yes
