Learn More: Bactron Anaerobic Chambers
Bactron Anaerobic Chambers
BactronEZ Anaerobic Chambers
- 13.7 cu. ft. work space with a 300 Petri-plate capacity incubator
- Choose from a wide range of accessories and sleeves to suit your work flow needs
- Meets EN61010, UL61010 and Can/CSA61010 standards
- Agency Approval: TUV-CUE
- Operates as a one gas (Anaerobic Mixed Gas [AMG]) or two gas (AMG and nitrogen) system
- Gloveless design with patented cuffs seal around operator’s arms for comfortable and efficient bare hand manipulation of plates and specimen inside working chamber
- Ergonomic arm port doors: allow users to rest arm on a flat surface for added comfort during prolonged periods of operation; simplify access and maintain a strict anaerobic environment
- To enter: open arm port doors and insert arms into chamber, then store arm port doors in holders; To exit: pick up and cover arm ports and seal them before removing arms from chamber
- Manual or automatic airlock with sliding shelves for easy loading of materials and samples
- User-friendly Control Panel Layout and microprocessor controls (pre-programmed sequence)
- Automatic pressure controls provide positive pressure at approx. 3" of water column and shows pressure level
- Three incubator compartments located inside top rear of chamber for maximum work space
- Includes sleeve assembly with medium cuff and interior electrical outlet
- Airtight construction of heavy duty stainless steel and rigid Plexiglas
- Sold Separately: Integral Vacuum Pump, Foot Pedals, Catalyst, AMG Regulator, LED Viewing Light, Petri Plate Racks
- Optional Training Workshop (USA Orders only). Call a Terra product expert for details
- One-Year Manufacturer Limited Warranty
Modular and economical BactronEZ anaerobic chambers can be configured to your specific application requirements. The patented cuffs enable glove-free handling and inspection of samples within a consistent, oxygen-free environment. These anaerobic chambers provide a faster sample turnaround compared to vacuum jars and bags. Units are ideal for research and clinical laboratories handling small volumes of anaerobic
- Exterior Dimensions W x D x H in. (mm): 48.75 x 31.3 x 26.5 in. (1238.25 x 795.02 x 673.1 mm)
- Interior Dimensions W x D x H in. (mm): 33 x 28.5 x 25.2 in. (838.2 x 724 x 640.1 mm)
- Incubator Interior Dimensions W x D x H in. (mm): 26.5 x 9.2 x 8.2 in. (673.1 x 23.68 x 208.28 mm)
- Pass Box: Pass Box: 9 x 9 in. (228.6 x 228.6 mm)
- Airlock Interior Dimensions W x D x H in. (mm): 9 x 10.7 x 9 in. (228.6 x 271.78 x 228.6 mm)
- Material: Heavy Duty Stainless Steel and Plexiglass
- Interior Outlet: 2 (120V), 1 (230V), one amp max
- Nominal Voltage: 50/60HZ (V) 110-120/220-240
- Capacity: 300 plates
- Weight: 480 lbs. (217.72 kg)
- Overtemperature Alarm: Yes
- Maximum Energy Consumption (W): 1100/1440
- Airlock Volume: 0.5 cu. ft. (14 L)
- Working Chamber Volume: 13.7 cu. ft. (388 L)
- Incubator Volume: 1.2 cu. ft. / 34 L
- Temperature Range: 5°C above ambient to 70°C
- Temperature Uniformity: ± 0.5°C
- Agency Approval TUV Approved (CE, UL, E)
- Note: All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within ±10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. Manufacturer may change specifications at any time

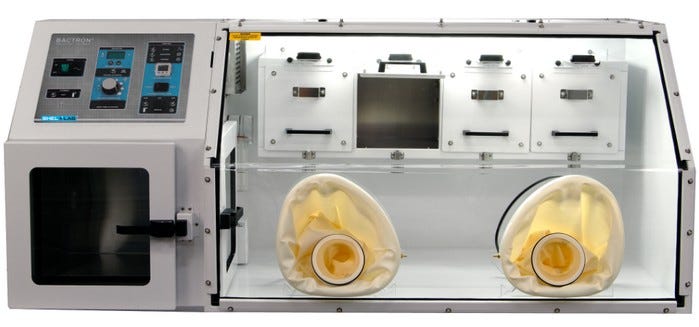

Bactron300 Anaerobic Chambers
- 17.6 cu. ft. work space with a 300 Petri-plate capacity incubator
- Meets EN61010, UL61010 and Can/CSA61010 standards
- Agency Approval: TUV-CUE
- Operates as a one gas (Anaerobic Mixed Gas [AMG]) or two gas (AMG and nitrogen) system
- Gloveless design and ergonomic arm port doors: bare hand manipulation of plates and specimen; allow users to rest arm on a flat surface for added comfort during prolonged periods of operation; patented cuffs seal around operator's arms; simplify access and maintain a strict anaerobic environment
- To enter: open arm port doors and insert arms into chamber, then store arm port doors in holders;To exit: pick up and cover arm ports and seal them before removing arms from chamber
- User-friendly Control Panel Layout with logically grouped buttons and microprocessor controls with pre-programmed sequence
- Automatic pressure controls provide positive pressure at approx. 3" of water column and shows pressure level
- Incubator compartments located inside, top rear of chamber for maximum work space
- Airtight construction of heavy duty stainless steel and rigid Plexiglas
- Choose from a wide range of accessories and sleeves to suit your work flow needs.
- Gas supply must be purchased separately
- Available Installation and Training Workshop (for USA orders only)
- Two-year manufacturer limited warranty
- Applications: Microbiology and cell biology sample processes, inoculation, incubation, inspection and recovery
- Includes: vacuum pump, AMG Regulator, interior electrical outlet, sleeve assembly with medium cuff and 8 Petri racks, installation and training workshop (for USA orders only).
With a larger workspace than the BactronEZ, the BACTRON300 continues to be one of our most popular anaerobic chamber models for its size and capacity. The BACTRON300 includes standard accessories for easy set-up and optimum productivity. The ample work area still sustains a compact footprint. Units purchased in the United States include installation and operator training workshops.
- Exterior Dimensions W x D x H in. (mm): 61.3 x 31.3 x 26.5 in. (1557.02 x 795.02 x 673.1 mm)
- Interior Dimensions W x D x H in. (mm): 42.5 x 28.5 x 25.2 in. (1079.5 x 724 x 640.08 mm)
- Incubator Interior Dimensions W x D x H in. (mm): 36 x 8.7 x 8 in. (914.4 x 223 x 203.2 mm)
- Pass Box W x D x H in. (mm): 12 x 13.5 x 12 in. (304.8 x 342.9 x 304.8 mm)
- Airlock Interior Dimensions W x D x H in. (mm): 12 x 13.5 x 12 in. (304.8 x 343 x 304.8 mm)
- Material: Heavy Duty Stainless Steel and Plexiglas
- Interior Outlet: 2 (120V), 1 (220V), one amp max
- Nominal Voltage: 50/60HZ (V) 110-120/220-240
- Capacity: 300 plates
- Weight: 610.00 lbs. (276.69 kg)
- Maximum Energy Consumption (W): 1100/1440
- Airlock Volume: 1.1 (31)
- Working Chamber Volume: 17.6 (498L)
- Incubator Volume: 1.4 (39.6)
- Temperature Range: 5°C above ambient to 70°C
- Temperature Uniformity: ± 0.5°C at 37°C
- Agency Approval: TUV Approved (CE, UL, E)
- Note: All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within ±10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. Manufacturer may change specifications at any time
BACTRON600 Anaerobic Chambers
- 17.6 cu. ft. work space with a 600 petri-plate capacity incubator
- Meets EN61010, UL61010 and Can/CSA61010 standards
- Agency Approval: TUV-CUE
- Features a space saving rotating shelf design and two rear mounted shelves to maintain an organized workspace
- Operates as a one gas (Anaerobic Mixed Gas [AMG]) or two gas (AMG and nitrogen) system
- Gloveless design allows user bare hand manipulation of specimen and plates
- Ergonomic arm port doors provides comfortable resting area for users' arm especially for extended periods of operation; simplify access and maintain a strict anaerobic environment
- To enter: open arm port doors and insert arms into chamber, then store arm port doors in holders; To exit: pick up and cover arm ports and seal them before removing arms from chamber
- User-friendly Control Panel Layout with logically grouped buttons and microprocessor controls
with pre-programmed sequence - Automatic pressure controls provide positive pressure at approx. 3" of water column and shows pressure level
- Incubator located inside, top rear of chamber for maximum work space
- Airtight construction of heavy duty stainless steel and rigid Plexiglas
- Choose from a wide range of accessories and sleeves to suit your work flow needs.
- Gas Supply must be purchased separately
- Available Installation and Training Workshop (for USA orders only)
- Two-Year Manufacturer Limited Warranty
- Applications: Microbiology and cell biology sample processes, inoculation, incubation, inspection and recovery
- Includes: vacuum pump, AMG Regulator, interior electrical outlet, sleeve assembly with medium cuff and 10 petri racks, installation and training workshop (for USA orders only)
Bigger is better with the BACTRON600, one of the largest and most complete anaerobic environmental chambers available. Designed for high-volume processing, these chambers occupy a modest footprint for its capacity making them ideal for space-conscious laboratories.
- Exterior Dimensions W x D x H in. (mm): 88.2 x 31.3 x 26.5 in. (2240.28 x 795.02 x 673.1 mm)
- Interior Dimensions W x D x H in. (mm): 42.5 x 28.5 x 25.2 in. (1079.5 x 723.9 x 640.08 mm)
- Incubator Interior Dimensions W x D x H in. (mm): 23.5 diam. x 18.5 in. (596.9 x 469.9 mm)
- Airlock Interior Dimensions W x D x H in. (mm): 12 x 13.5 x 12 in. (304.8 x 342.9 x 304.8 mm)
- Material: Heavy Duty Stainless Steel and Plexiglas
- Interior Outlet 2: (120V), 1 (220V), one amp max
- Nominal Voltage: 50/60HZ (V) 110-120/220-240
- Capacity: 600 plates
- Shipping Weight: 760.00 lbs. (344.73 kg)
- Maximum Energy Consumption (W): 1350/1920
- Airlock Volume: 1.1 (31)
- Working Chamber Volume: 17.6 cu. ft. (498L)
- Incubator Volume: 4.6 cu. ft. (130L)
- Temperature Range: 5°C above ambient to 70°C
- Temperature Uniformity: ±0.5°C at 37°C
- Agency Approval TUV Approved (CE, UL, E)
- Note: All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within ±10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. Manufacturer may change specifications at any time
Bactron900 Anaerobic Chambers
- 17.6 cu. ft. work space with a 900 Petri-plate capacity incubator
- Meets EN61010, UL61010 and Can/CSA61010 standards
- Agency Approval: TUV-CUE
- Features a space saving rotating shelf design and two rear mounted shelves to maintain an organized workspace
- Operates as a one gas (Anaerobic Mixed Gas [AMG]) or two gas (AMG and nitrogen) system
- Gloveless design with patented cuffs for efficient bare hand manipulation of samples
- Ergonomic arm port doors provide flat resting area for users' arm, provides comfort during extended periods of operation, simplify access and maintain a strict anaerobic environment
- To enter: open arm port doors and insert arms into chamber, then store arm port doors in holders; o exit: pick up and cover arm ports and seal them before removing arms from chamber
- User-friendly Control Panel Layout with logically grouped buttons and microprocessor controls with pre-programmed sequence
- Automatic pressure controls provide positive pressure at approx. 3" of water column and shows pressure level
- Added rear wall incubator with independent temperature control
- Airtight construction of heavy duty stainless steel and rigid Plexiglas
- Choose from a wide range of accessories and sleeves to suit your work flow needs
- Gas supply must be purchased separately
- Available Installation and Training Workshop (for USA orders only)
- Two-year manufacturer limited warranty
- Applications: Microbiology and cell biology sample processes, inoculation, incubation, inspection and recovery
- Includes: vacuum pump, AMG Regulator, interior electrical outlet, sleeve assembly with medium cuff and 10 Petri racks, installation and training workshop (for USA orders only)
Ideal for high volume sample processing, the BACTRON900 has the same specs as the BACTRON600 plus the addition of a rear wall incubator with an independent temperature control for operator set point flexibility. With its generous petri plate capacity, ergonomic design and spacious interior, the BACTRON900 is the ultimate anaerobic chamber for high throughput environments.
- Exterior Dimensions W x D x H in. (mm): 88.2 x 31.3 x 29.5 in. (2240.28 x 795.02 x 749.3 mm)
- Interior Dimensions W x D x H in. (mm): 42.5 x 28.5 x 25.2 in. (1079.5 x 723.9 x 640.08 mm)
- Incubator Interior Dimensions W x D x H in. (mm): 23.5 diam. x 18.5 in. (596.9 x 469.9 mm)/ Round Design/27.5 x 8 x 13.5 in. (698.5 x 203.2 x 342.9 mm)
- Airlock Interior Dimensions W x D x H in. (mm): 12 x 13.5 x 12 in. (304.8 x 342.9 x 304.8 mm)
- Material: Heavy Duty Stainless Steel and Plexiglas
- Interior Outlet: 2 (120V), 1 (220V), one amp max
- Nominal Voltage: 50/60HZ (V) 110-120/220-240
- Capacity: 900 plates
- Shipping Weight: 760.00 lbs. (344.73 kg)
- Maximum Energy Consumption (W) 1350/2400
- Airlock Volume: 1.1 (31)
- Working Chamber Volume: 17.6 cu. ft. (498L)
- Incubator Volume: 6.3 cu. ft. (178L)
- Temperature Range: 5°C above ambient to 70°C
- Temperature Uniformity: ± 0.5°C at 37°C
- Agency Approval TUV Approved (CE, UL, E)
- Note: All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within ±10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. Manufacturer may change specifications at any time
