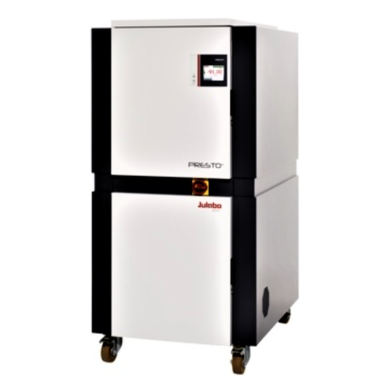

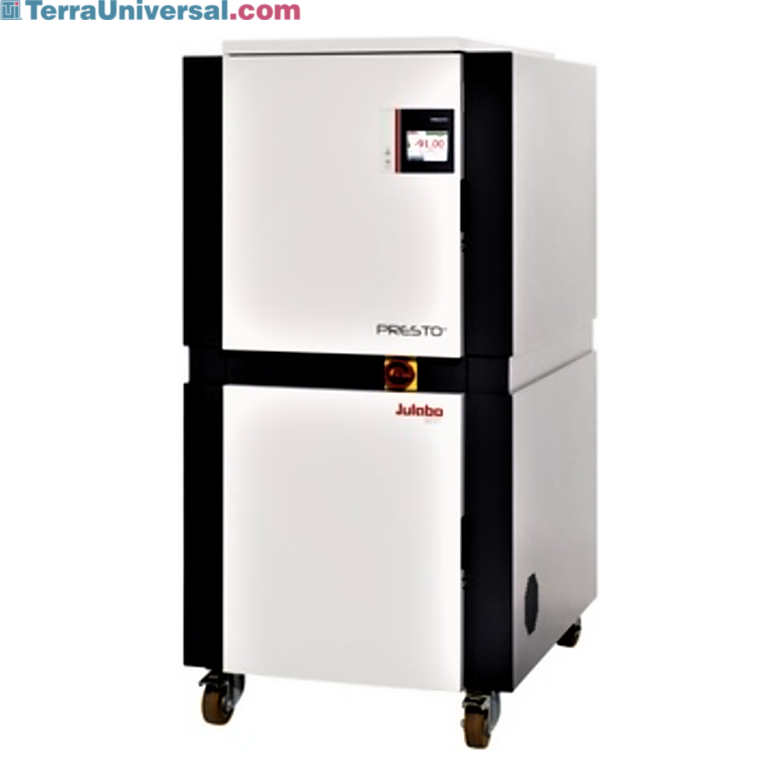

PRESTO W91, W91t, W91tt and W91x Temperature Control Process Systems with a temperature range of -91°C to 250°C provide heating, cooling and pumping performance | 2541-PP-06 displayed
Circulators
Product Group:
2541-PP-06
2541-PP-06 82626

PRESTO W91 Series Temperature Control Process Systems by Julabo

  • PRESTO W91 Series Process Systems deliver dynamic high-precision temperature control for a wide range of applications
  • Features an 11 kW cooling capacity for dynamic temperature changes down to -91 °C
  • Quickly compensates exothermic and endothermic reactions
  • Extraordinary heating, cooling and pumping performances
  • Integrated: external PT100 sensor connection, 5.7” TFT touchscreen interface, programmer (8 x 60 steps)
Read more
Manufactured By: Julabo
Warranty: One-Year Manufacturer Warranty (One-Year Additional Warranty with Product Registration)
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Model

Sort Order:
Manufacturer SKU

Sort Order:
PSI

Sort Order:
Pump Capacity Flowrate

Sort Order:

 Terra Part # Price Ships in
PRESTO W91ttx 9421913.17.TT 1.5 to 79.8 0-70 I/min 2541-57 82639 Request Quote 20-30 Days 2
PRESTO W91x 9421913.17 1.5 to 79.8 0-70 I/min 2541-56 82638 Request Quote 20-30 Days 3
PRESTO W91 9421912.17 1.5 to 43.5 0-80 I/min 2541-55 82637 Request Quote 20-30 Days 4
PRESTO W91tt 9421912.17.TT 1.5 to 43.5 0-80 I/min 2541-54 82627 Request Quote 20-30 Days 5
Model
Manufacturer SKU
PSI
Pump Capacity Flowrate
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • PRESTO W91 Series Process Systems deliver dynamic high-precision temperature control for a wide range of applications
  • Features an 11 kW cooling capacity for dynamic temperature changes down to -91 °C
  • Quickly compensates exothermic and endothermic reactions
  • Extraordinary heating, cooling and pumping performances
  • •  Integrated: external PT100 sensor connection, 5.7” TFT touchscreen interface, programmer (8 x 60 steps)
  • Applications: ready to embed into pilot plants; ideal for use in material and component testing
  • Long-life span with permanent internal monitoring and self-lubricating pumps
  • Interfaces enable various remote control across networks enabling integration into higher-level control systems
  • Integrated 5.7” industrial color touchscreen displays for simple control of essential settings
  • Heating capacity kW: 36 (PRESTO W91tt, PRESTO W91ttx), 18 (PRESTO W91, PRESTO W91x)
  • Pump capacity flow rate (L/min): 0-80 (PRESTO W91tt, PRESTO W91), 0-70 (PRESTO W91x, PRESTO W91ttx)
  • Pump capacity flow pressure (PSI): 1.5 to 43.5 (PRESTO W91tt, PRESTO W91), 1.5 to 79.8 (PRESTO W91x, PRESTO W91ttx)
  • Pump pressure: 3 bar (PRESTO W91tt, PRESTO W91), 5.5 bar (PRESTO W91x, PRESTO W9ttx)
  • Cooling:
  • 2-stage water cooling of compressor
  • Cooling water temperature max.: 35 °C
  • Cooling water pressure max. PSI: 87
  • Cooling water difference pressure PSI: 7.3
  • Cooling capacity: up to 11 kW
  • Cooling water consumption l/min: 16 to 43
  • Temperature
  • Temperature display resolution setting: 0.01 °C
  • Working temperature range: -91 ºC to +250 ºC
  • Temperature stability:  ±0.05 °C to ±0.2 °C
  • Ambient temperature range: +5 °C to +40 °C
  • Temperature display resolution: 0.01 °C
  • Absolute temperature calibration: 3-point calibration
  • Volumes
  • Internal usable expansion volume: 40
  • Minimal process volume: 28
  • Active heat exchanger volume: 16
  • Cooling Water Connection: G¾ in.
  • Additional features: alarm output, interface for SD memory card, M38x1.5 male (pump connection), 74 dBA sound, gear pump, one magnetically coupled pump
  • Classification III (FL), IP 21
  • Optional Accessories:
  • Analog connections, RS485, Profibus DP
  • Second external Pt100 sensor connection
