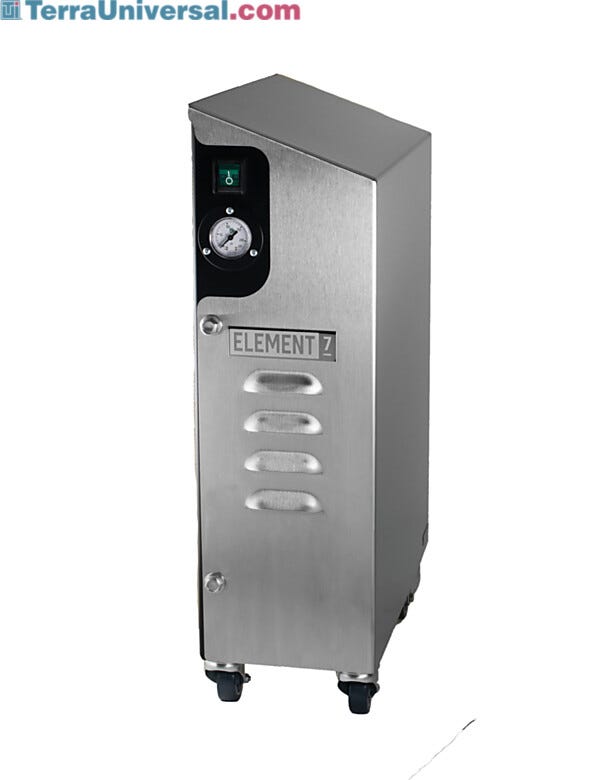

Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems | 2700-99 displayed

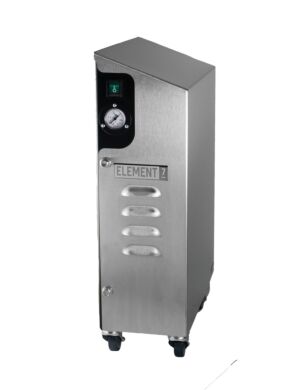

Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H

  • Available Certified ISO Grade Designs: ISO 8
  • N2 Purity: Up To 99.8%
  • Quiet: Noise level less than 60dB(A)
  • Economical: Typical R.O.I. of 1 to 2 years when compared to bottle systems
  • Flow Rate: 6 SCFH
  • Supports RH levels down to 20% in 8 hours on benchtop desiccators and glove boxes

• Flow Rate: 6 SCFH

• Unit of Measure: EA

Read more
Stocked ISO 8 Icon<br/> Quick Ship + Ships Free
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
2700-99
Terra Part # 2700-99
$4,335
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA Only 6 left in stock
Terra Part # 2700-99
75859
$4,335
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA Only 6 left in stock
Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 8
  • N2 Purity: Up To 99.8%
  • Quiet: Noise level less than 60dB(A)
  • Economical: Typical R.O.I. of 1 to 2 years when compared to bottle systems
  • Flow Rate: 6 SCFH
  • Supports RH levels down to 20% in 8 hours on benchtop desiccators and glove boxes
  • All-in-one nitrogen gas generator eliminates the need for external tanks or compressors.
  • Compact design can fit under counters and is ideal for tight locations.
  • Quiet Operation: Low sound enclosure and vibration isolation reduces noise levels.
  • Regulated pressure output, timing system, and pressure switch are utilized to maximize system efficiency and nitrogen purity.
  • System utilizes an oil-free rocking piston compressor rated for 10k+ hours
  • System includes N2 gas supply pressure gauge, system hour meter, and over-temperature indicator light.
  • Conforms to NSF 18 Requirements.
  • To achieve RH levels down to 1% on benchtop desiccators and glove boxes, specify N2 generator part number 2700-12B
  • N2 Output Pressure: Up to 125 psi
Show more

• Flow Rate: 6 SCFH

• Unit of Measure: EA

• Marks & Listings: UL, NSF

• Electrical Specifications: 120 V, 2.8 A, 1 Ph, 60 Hz

• Weight, Product: 65 lb

• Dimensions, Product: 7.18" W x 16.08" D x 23.98" H

• Weight, Shipping: 87 lb

• Dimensions, Shipping: 22" W x 11" D x 27" H

Show more
Other products you may find relevant
  1. Gas cylinders for nitrogen generator, 200,125 ,80 and 60 cubic feet internal volumes | 7200-01 displayed
    Group of 4 products
    High-Pressure Gas Cylinders for Nitrogen Generator From
    As low as $413
    Some ship in 1 - 3 days

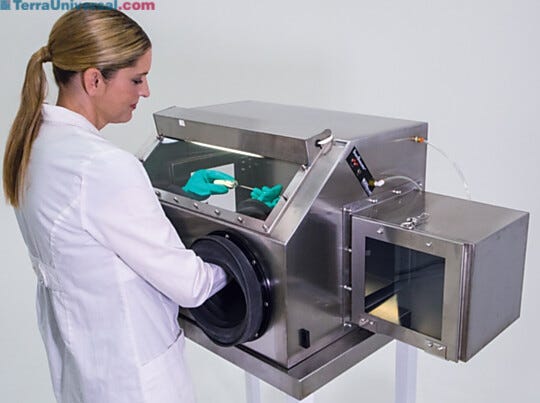

  2. Smart® stainless steel glove box with automatic RH control maintains an inert environment to protect oxygen- and moisture-sensitive parts; optional air lock | 3305-34A displayed
    Group of 19 products
    Smart® Controlled Atmosphere Glove Box Isolators From
    As low as $2,770
    Some ship in 1 - 3 days

Features and Benefits

Eliminate Nitrogen Tank Rental Costs

Nitrogen generators eliminate long term operating costs from Nitrogen tank rental services.

No Supply Constraints!

Terra's membrane Nitrogen generators supply a continuous flow of pure Nitrogen gas.

Low Maintenance

The Nitrogen membrane module is designed to operate maintenance-free as long as the pre filters are clean. Pre filter replacement will vary and can last approximately 2 years (20,000 hours)

Compact and Portable

With a small unchanging foot print, these Nitrogen generators are easy to move and take up less floor space than a set of pre-filled canisters.

Increased Safety

Nitrogen generators avoid special storage protocols required for compressed prefilled Nitrogen cylinders.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Nitrogen generator with gas cylinder and pressure booster module

    Nitrogen Generator with Gas Cylinder and Pressure Booster Module

    Configure your Nitrogen Generator with a Booster Regulator to store 2-4 times more compressed nitrogen in a gas cylinder. The compact booster is air-only operation and requires no electrical power. Cylinders can be used as an emergency reservoir, or distributed to multiple locations without moving your nitrogen generator.
