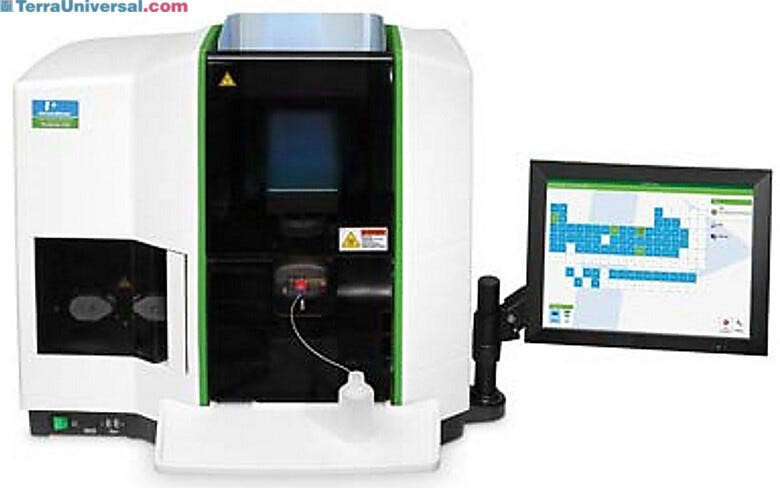

Analyzes lower sample concentrations with accuracy of higher-end AA platforms | 5102-99 displayed

Spectrometers

PinAAcle 500 Flame Atomic Absorption Spectrometer

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.

• Spectrometer Type: Atomic Absorption

• Peltier Detector: Standard

• Brand: PinAAcle 500

• 21 CFR Part 11: Yes

• Manufacturer SKU: PinAAcle500

• Unit of Measure: EA

Read more

Manufacturer SKU: PinAAcle500

Manufactured By: Perkin Elmer

Warranty: 90 Day Limited Warranty

Need Help?

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 5102-99

Request Quote

Usually ships in 15-25 business days

Want it faster ? Read about FasTrak

Terra Part #

Request Quote

Usually ships in 15-25 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Related Products

Details & Specs

Product Details

Robust and affordable Flame AA with solid-state detection system
Corrosion-resistant design with conformal-coated circuit boards extend instrument life
Excellent signal-to-noise ratio
Compact 26" wide x 25" high footprint
Compatible with 21 CFR Part 11

Syngistix Touch Software quickly saves and shares methods and results

Intuitive, color touchscreen can be mounted on right or left side of unit

• Spectrometer Type: Atomic Absorption

• Peltier Detector: Standard

• Brand: PinAAcle 500

• 21 CFR Part 11: Yes

• Manufacturer SKU: PinAAcle500

• Unit of Measure: EA

• Electrical Specifications: 120 V

• Weight, Product: 134 lb

• Dimensions, Product: 26" W x 25" D x 25" H

• Weight, Shipping: 175 lb

• Dimensions, Shipping: 31" W x 30" D x 30" H

• Package Type: Box

Manuals & Resources

Related Products

Other products you may find relevant

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Print Copy Copied

Accessories to Customize PinAAcle 500 Flame AA

Available accessories easily customize and optimize the performance of the PinAAcle 500 Flame AA Spectrometer. Call 714-578-6016 for pricing and to find out more about PerkinElmer's complete list of accessories and consumables.

Optional Softwares

Provides fast and easy interface across AA, ICP and ICP-MS instruments

Syngistix Touch

Ideal for limited sample types, the Syngistix Touch software has a highly efficient interface and operating system.

Fast easy set-up and analysis with touchscreen interface
Optional on-board PC saves methods and results
Multi-language
Built-in cookbook with recommended conditions for each element

Syngistix for AA Enhance Software

Designed for highly regulated labs (compliance with U.S. FDA's 21 CFR Part 11 regulations)

Easy creation and storage of new methods, simple sample ID and dilution factors
Monitors in real-time instrument status
Enhanced safety
Easily adapts to any application
Compatible with any printer

Sample Automation Platforms and Accessories

Fast Flame

Sample Automation Platform Systems perform single-element or sequential multi-element analyses by flame atomic absorption. Models are ideally suited for high-throughput laboratories with a desire to streamline single or multiple flame AA runs by eliminating user intervention. Models available with:

AAPrep2

Provides in-line dilution and auto-calibration using a single standard solution
Includes autosampler and 2 peristaltic pumps

FAST Flame 1

Vacuum rapidly fills sample loop eliminating the wait-time 560 samples per hour
Includes: high-speed autosampler, 1 precision peristaltic pump and a switching valve

FAST Flame 2

Vacuum rapidly fills sample loop eliminating the wait-time

In-line dilution for creating a single intermediate standard

560 samples per hour

Includes: high-speed autosampler, 2 precision peristaltic pumps and a switching valve

S10 Autosampler for Atomic Absorption #N2020005

Computer-controlled S10 Autosampler for AA, ICP-OES and ICP-MS features automatic rinsing and the flow through rinse station minimizes sample-to-sample contamination.

Automates introduction of standards and samples
Increases efficiency of instrument calibration and sample analysis
Capacity: 200 vessels
Easy to change sample racks
Reduces analysis set-up times

Industry and Applications

Nanomaterials Research
Semiconductor Industry - chemical purity testing
Agricultural - soil composition testing
Biomonitoring and Clinical Analysis - composition of biological fluids and toxicology testing
Mining and Geological Analysis - exploration of mine deposits
Pharmaceutical and Nutraceuticals - determination of impurities such as trace amounts of remaining catalyst from a synthesis reaction
Chemical Industry - quality control and product testing
Petrochemicals - analysis of petroleum refining process
Food Industry - analysis of sample composition for nutritional labeling and food safety
Environmental - measurements of air quality

Additional Features and Benefits of PinAAcle 500 Flame Atomic Absorption Spectrometer

Real-Time True Double-Beam Optics

Featuring an extremely high light throughput for enhanced detection, the PinAAcle 500 has real-time, true double-beam optics that automatically adjusts to changes in lamp intensity and provides a fast start-up. This real-time monitoring of light source intensity and drift occurs multiple times per second allowing for stable and dependable measurements. The fully contained fiber optic light system provides maintenance free operation and eliminates the need to dismantle and clean the light path or lenses.

Solid-State Detector

The solid-state detection system removes the need for photomultiplier tubes, reduces background noise and provides excellent signal-to-noise ratios. Labs can use the PinAAcle 500 to detect extremely difficult elements such as arsenic and barium to save on the cost of purchasing complex and expensive detection instruments.

Syngistix Touch Software (optional)

The Syngistix Touch Software quickly saves and shares methods and results. An intuitive, full-color touchscreen can be mounted on the right or left of the unit to save benchtop space.

Quick-Change Modular Sample Introduction

The corrosion-resistant polymer coated sample introduction simplifies the loading process and allows for quick removal and simple maintenance of the device.

Genuine PerkinElmer Lamps

Specifically designed for use in AA optical systems, the PinAAcle 500 light source lamps feature coded 2-inch Lumina™ cable-less hollow cathode lamps for superior intensity and performance, while also offering stability and extended lifetime.
