Gallery

SmartDoc 2.0 Gel Imaging System by Benchmark Scientific

Smart-phone compatible gel documentation system from Benchmark Scientific

Gel Imaging; SmartDoc

Imaging System; ChromaDoc-It

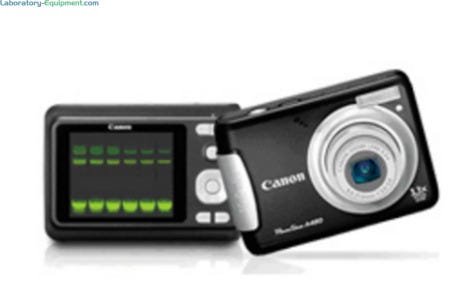

PhotoDoc-It UVP DigiCam70 Digital Camera

Standard accessory included with the PhotoDoc-It Imaging system is the DigiCam 70 color camera with 4GB SD memory card.

PhotoDoc-It UVP Color Printer

Color printer for PhotoDoc-It Imaging system generates instant 4" x 6" economical lab quality color prints with 300 x 300 resolution.

ColonyDoc-It UVP Imaging Station

The ColonyDoc-It Imaging Station streamlines counting protocols with multiple excitation sources for white light, fluorescent and GFP colonies. The single click software quickly delivers results from time lapse counting, zone sizing and spiral counting.

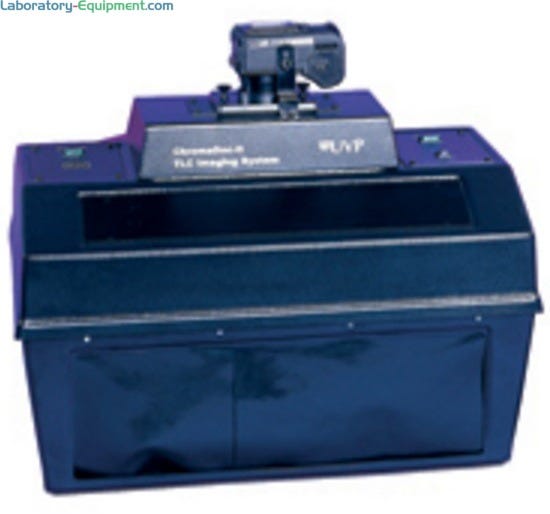

UVP ChromaDoc-it Imaging System

Designed for thin layer chromatography (TLC) images, fits on a bench top and features a 17.9 Megapixel camera for publication quality images. The exclusive capture software allows preview, editing and report generating with just a few mouse clicks.

PhotoDoc-It Imaging System by UVP

Select PhotoDoc-It Imaging Systems by UVP include camera, transilluminator and printer; unit generates 4" x 6" color prints

Imaging System; PhotoDoc-IT 70, Transilluminator M-20V, Analytik Jena, 115V

UVP iBox Scientia In Vivo Imaging Systems by Analytik Jena

UVP iBox Scientia Imaging System by Analytik Jena with BioCam 900 or OptiChemi 695 camera

UVP GelStudio Touch DNA Gel Imaging System by Analytik Jena

UVP ChemStudio Plus Touch Western Blot Imagers by Analytik Jena

UVP ChemStudio Plus Western Blot Imaging Systems by Analytik Jena

UVP ChemStudio Western Blot Imaging Systems by Analytik Jena

UV Protection Shield

Protects users from UV during operation of ChemStudio; Plus Touch models feature an integrated, slide down UV shield

UVP iBox Scientia In Vivo Imaging Systems Brochure by Analytik Jena

Product benefits, camera features and applications of UVP iBox Scientia In Vivo Imaging Systems by Analytik Jena

Thin-Line Transilluminator

Included high-intensity UV Transilluminator for Stain-Free gels produces a variable intensity 302nm UV light

Taking Root — Integrating Area Imagers into Plant Screening Pipelines

Features of UVP GelStudio with VisionWorks software enabled analyzation with drawing tools in area density analysis of root nodules

Safety is a Part of Science: Considerations for Safer DNA Gel Imaging

Using UVP GelStudio with built-in safety features when working with hazardous dyes in DNA gel electrophoresis helps protect researchers from UV exposure

High-throughput, Multi-Colony Counting and Classification

Shows how UVP GelStudio enabled high-throughput automated colony counting with a recommendation to use the Visi-white converter plate for imaging bacteria plates

Fluorescence Gel Imaging: Take a Walk on the Bright Side

UVP GelStudio bio-imaging systems enable researcher to perform any fluorescence-based gel applications

Technique Creep – When Colorimetric Blots Are Enough

Cost-efficient and high-resolution colorimetric western blot imaging using UVP GelStudio Imager by Analytik Jena
