Gallery

Gel Imaging; SmartDoc

Gel Imaging; SmartDoc 2.0, Blue Light Illumination, Accuris-Benchmark, 120V

SmartDoc 2.0 Gel Imaging System by Benchmark Scientific

Smart-phone compatible gel documentation system from Benchmark Scientific

Imaging System; PhotoDoc-IT 70, Transilluminator M-20V, Analytik Jena, 115V

Transilluminator; MULTI-DOC Imaging, M-20, UVP, 115V

GelMax Imager

Drawer; DIGIDOC-IT, Analytik Jena, 115V

Transilluminator; DIGIDOC-IT System, TFM-20, High Performance, Analytik Jena, 115V

BioDoc-It Imaging System

BioDoc-It2 Imaging Systems feature a higher resolution camera, larger touchscreen, and a new software interface that streamline the gel imaging process

DigiDoc-It UVP Imaging System and Transilluminator

Units provide high quality images of pre-stained gels and the high resolution provides print quality images. Featured lightweight hood fits directly over the Transilluminator and functions as a mobile darkroom that blocks ambient light from reducing the quality of images.

PhotoDoc-It Imaging System by UVP

Select PhotoDoc-It Imaging Systems by UVP include camera, transilluminator and printer; unit generates 4" x 6" color prints

MultiDoc-It Digital Imaging System

MultiDoc-It Imaging Systems are available with Benchtop UV or FirstLight UV Transilluminators to serve your specific application requirements. The compact darkroom apparatus design makes it easy to place and remove gels and the included high-resolution digital camera has 17.9 megapixels.

Accuris SmartDoc™ 2.0 Gel Imaging System

Compact and affordable SmartDoc 2.0 Gel Imaging Systems capture high quality images of electrophoresis gels with any smartphone camera.

Accuris SmartBlue Blue Light Transilluminator

SmartBlue Blue Light Transilluminator will not damage nucleic acid or DNA samples and protects the operator from UV light damage; compatible with SmartDoc Gel Imaging System

BioDoc-It Imaging System

Units deliver high-resolution and publication quality images of protein and nucleic acid gels without the need of an external computer.

GelMax Imager With Optional Visi-Blue Plate

GelMax Gel Imaging System for 11.5 x 16 cm precast and mini gels features 17.9 Megapixels resolution, built-in 302mn UV and a 5-position tray in a simple workflow-based software

Compact Gel Imaging System

Instantly capture gel images using an iPhone®, iPad®, or Android® device.

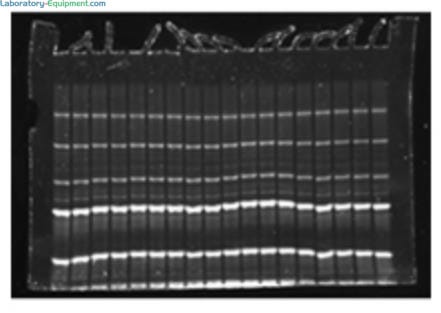

FirstLight UV Illuminator

Sample output of gel image; FirstLight illuminator demonstrates uniform sensitivity throughout illumination surface

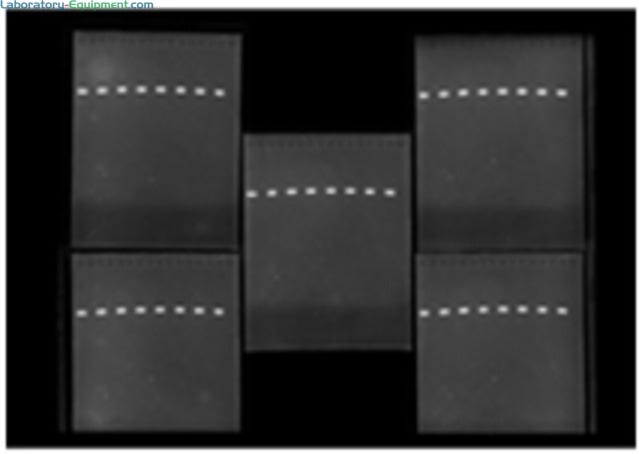

FirstLight UV Illuminator Gel Comparison

FirstLight UV illuminators provides repeatable results for accurate gel-to-gel comparisons

Included Blue Light Enclosure Base

Standard blue light illuminator protects operator and DNA samples by eliminating use of EtBr or UV light

UV Transilluminator by Accuris

The SmartDoc 2.0 can be placed onto an Accuris UV Transilluminator (sold separately)

Removable Extender

Remove the extender to lower the platform for closer imaging

SmartDoc Compatible with Smartphones

Place smartphone on top of the SmartDoc 2.0 Gel Imaging System platform for instant high quality images

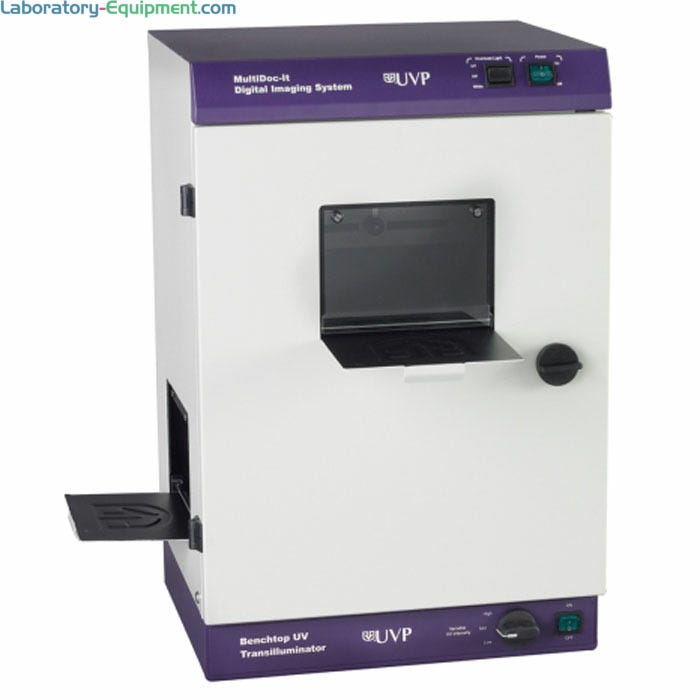

MultiDoc-It Side Access Doors

MultiDoc-It Imaging Systems by UVP includes three side access panels for easy manipulation and transfer of gels; units available transilluminator or UV lamp

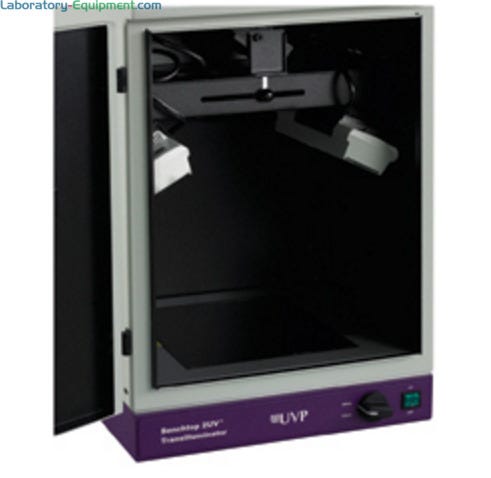

UVP Overhead UV lighting of MultiDoc-It

Modular MultiDoc-It Imaging Systems by UVP feature an overhead UV lighting for Thin Layer Chromatography applications

MultiDoc-It Gel Imaging System Access Door

Large main access door for easy placement and removal of gel samples
