Gallery

Gel Imaging; SmartDoc, Blue Light Illumination, 120V

BioDoc-It Imaging System

Units deliver high-resolution and publication quality images of protein and nucleic acid gels without the need of an external computer.

UVP GelMax Imager With Optional Visi-Blue Plate

Compact GelMax Imager by UVP includes: darkroom, 302 nm UV transillumination, epi white light, black sample plate EtBr filter and software

BioDoc-It Imaging System

BioDoc-It 2 Imaging Systems by UVP streamline gel documentation with integrated software that simplifies image capture and data management; accessories available

Accuris SmartDoc™ 2.0 Gel Imaging System

SmartDoc 2.0 Gel Imaging Systems by Accuris help ensure lab safety by replacing EtBr with blue light and non-toxic dyes; UV blocking mat and additional filters available

PhotoDoc-It UVP Imaging Systems

Select PhotoDoc-It Imaging Systems by UVP include a transilluminator, a 16-megapixel DigiCam 70 color camera and printer; converter plates and ink kits available

DigiDoc-It UVP Imaging System and Transilluminator

Lightweight benchtop gel imaging systems include Capture Software for automatic report generation; select models include High Performance UV Transilluminator

BioDoc-It Imaging System

BioDoc-It2 Imaging Systems feature a higher resolution camera, larger touchscreen, and a new software interface that streamline the gel imaging process

DigiDoc-It UVP Imaging System and Transilluminator

Units provide high quality images of pre-stained gels and the high resolution provides print quality images. Featured lightweight hood fits directly over the Transilluminator and functions as a mobile darkroom that blocks ambient light from reducing the quality of images.

PhotoDoc-It Imaging System by UVP

Select PhotoDoc-It Imaging Systems by UVP include camera, transilluminator and printer; unit generates 4" x 6" color prints

MultiDoc-It Digital Imaging System

MultiDoc-It Imaging Systems are available with Benchtop UV or FirstLight UV Transilluminators to serve your specific application requirements. The compact darkroom apparatus design makes it easy to place and remove gels and the included high-resolution digital camera has 17.9 megapixels.

Integrated Capture Software Touch Screen

Select UVP Imaging Systems include data management software programs with saved pre-set protocols

Wide Spectrum

Versatile imager supports VIS and near infrared (NIR) range from 400 nm to 900 nm and fluorescent imaging from 400 nm to 800 nm

One-Touch Automated Workflow

VisionWorks Software streamlines workflows with preset application-based templates and image enhancement and analysis tools

13.3” Touchscreen Computer

Provides easy visualization of fluorescent reporters and software automated controls conveniently automated at your fingertips

NIR Imaging

Select models with NIR lasers minimize skin autofluorescence (~650 nm) and allows deeper penetration of up to 3x to 8x

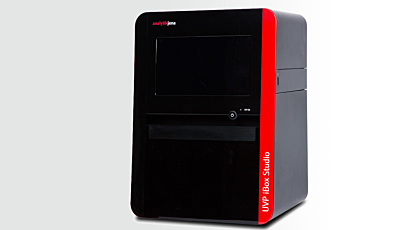

Affordable UVP iBox Studio In Vivo Fluorescence Imaging Systems by Analytik Jena

Compact UVP iBox Studio In Vivo Fluorescence Imaging Systems by Analytik Jena

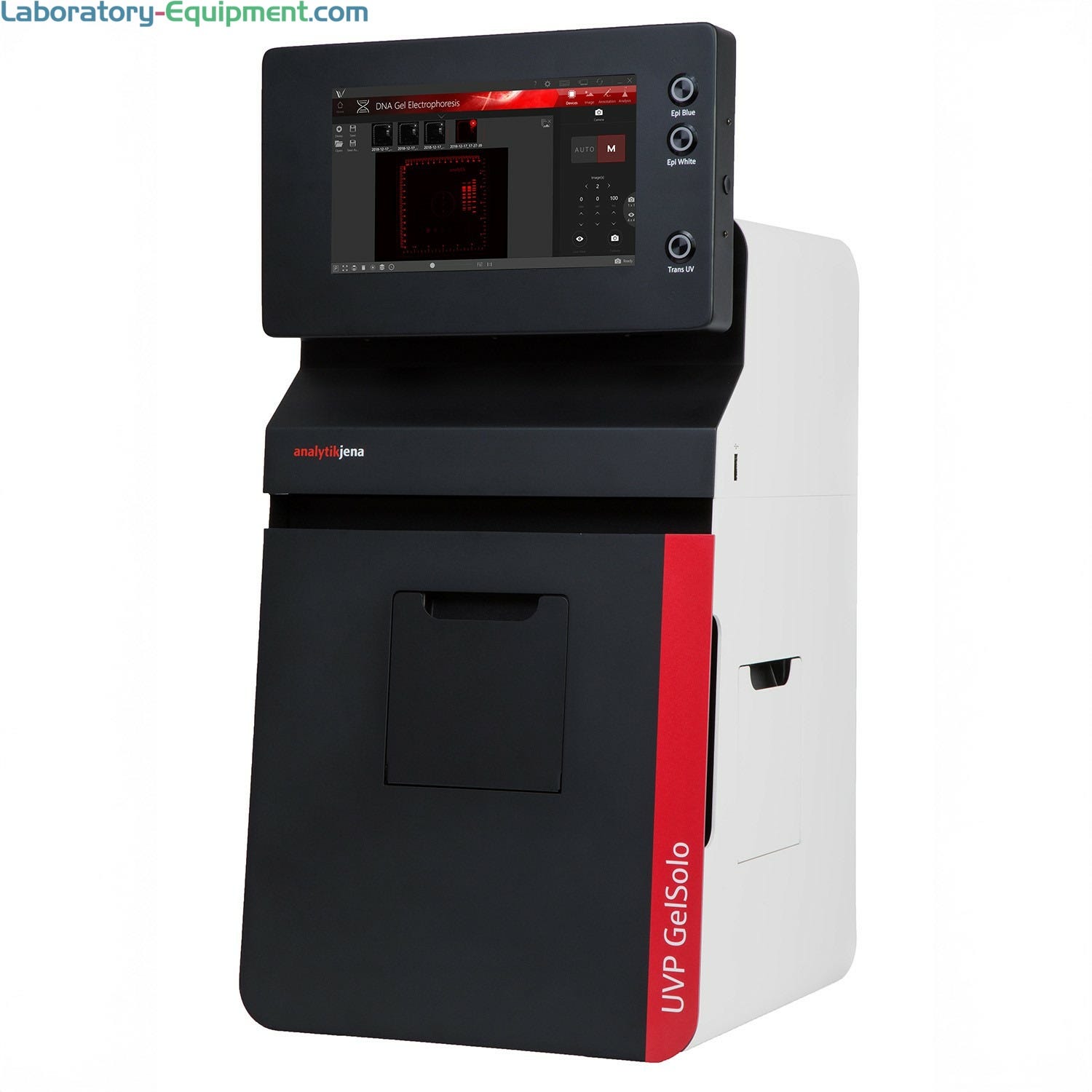

Stand-alone UVP GelSolo Gel Documentation 5MP by Analytik Jena

UVP GelSolo with a transilluminator and UV-safe gel viewing window streamlines gel imaging and analysis with VisionWorks software; 11.6” touch screen

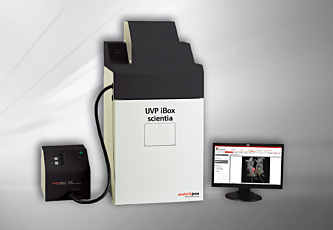

UVP iBox Scientia In Vivo Imaging Systems by Analytik Jena

UVP GelSolo UV Gel Imaging and Analysis by Analytik Jena

UVP iBox Explorer 2 In Vivo Fluorescence Imaging Microscope by Analytik Jena

UV Light Face Protection Shield by Analytik Jena

MultiDoc-It Digital Imaging System by UVP

Compact and modular MultiDoc-It Systems by UVP for colorimetric, fluorescence and Thin Layer Chromatography (TLC); optional converter plates and gel tools available

UVP iBox Studio In Vivo Imaging Systems Brochure by Analytik Jena

Features, benefits, specifications and ordering information for UVP iBox Studio In Vivo Imaging Systems by Analytik Jena

For use with GelSolo UV Gel Documentation Systems by Analytik Jena

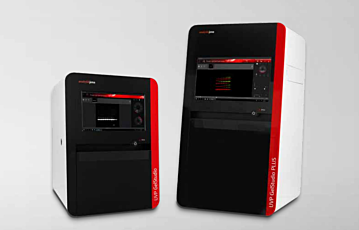

Compatible with GelStudio DNA Gel Documentation Systems by Analytik Jena

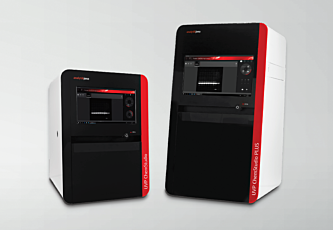

Compatible with UVP ChemStudio Series BioImaging Systems

UVP ChemStudio Series Imaging Systems by Analytik Jena

UVP ChemStudio Western Blot Imagers for Chemiluminescence, Fluorescence, IR and Vis Fluorescence applications
