6927-19
Terra Part # 6927-19
$5,321
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Accessories related to Terra Part # 6927-19
64006

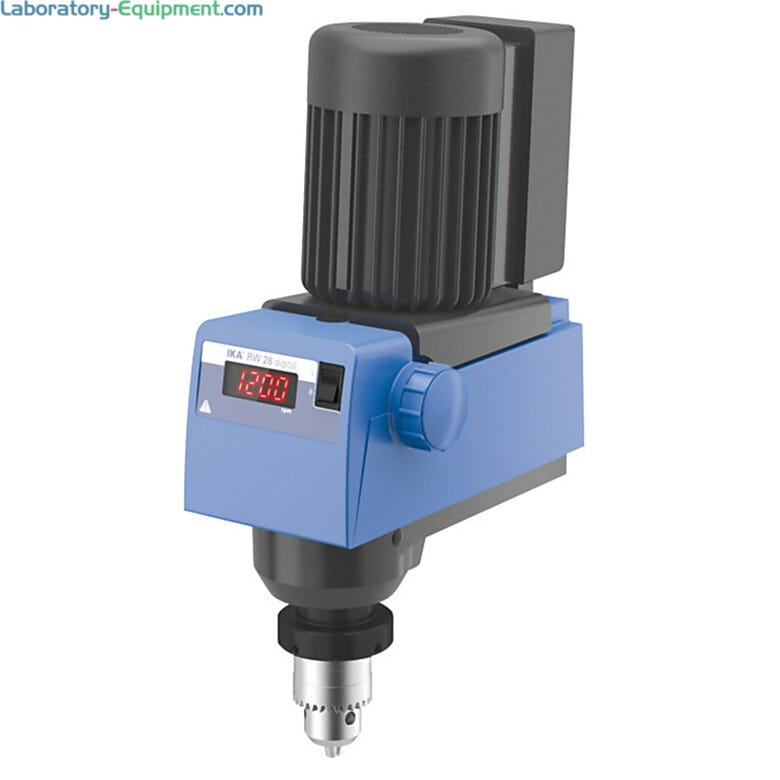

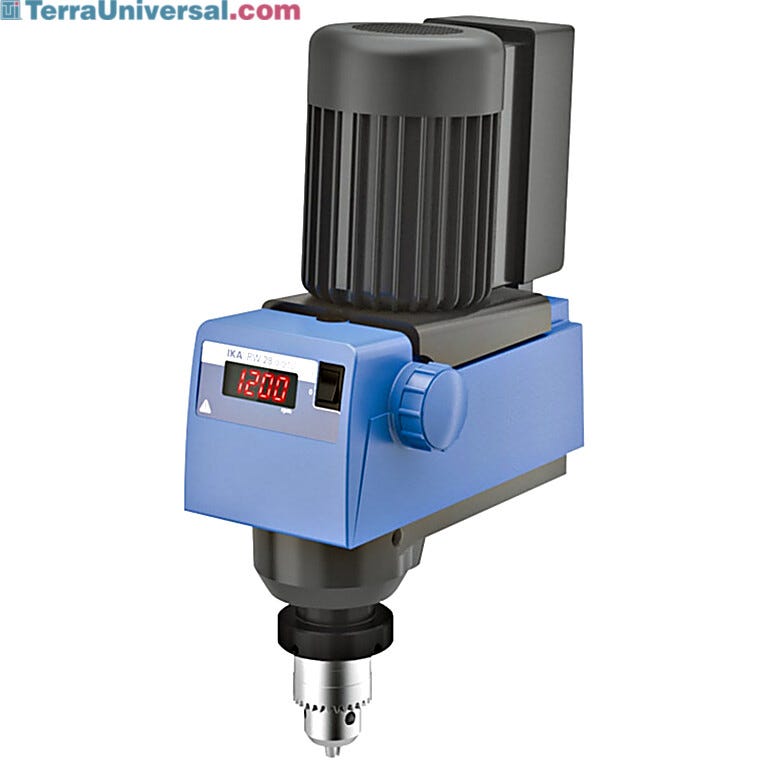

Overhead Stirrer; RW 28, Digital, 120 V
Product Details
  • Stirring quantity max.  (H2O): 80 l
  • Motor rating input: 220 W
  • Motor rating output: 94 W
  • Speed display: LED
  • Speed range: 60 - 1400 rpm
  • Viscosity max: 50000 mPas
  • Output max.  At stirring shaft: 90 W
  • Torque max.  At stirring shaft: 900 Ncm
  • Torque max.  At stirring shaft at 60 1/min (overload): 1144 Ncm
  • Torque max.  At stirring shaft at 100 1/min: 900 Ncm
  • Torque max.  At stirring shaft at 1.000 1/min: 86 Ncm
  • Torque I max.: 900 Ncm
  • Torque II max.: 300 Ncm
  • Speed range I (60 Hz): 72 - 480 rpm
  • Speed range II (60 Hz): 288 - 1680 rpm
  • Speed control: stepless
  • Setting accuracy speed: 1 ±rpm
  • Deviation of speed measurement: 10 ±rpm
  • Stirring element fastening: chuck
  • Torque display: no
  • Nominal torque: 9 Nm
  • Noise without element: 62.5 dB(A)
  • Not available with: RS 232 and USB interface, analog output
  • Digital speed display
  • Infinitely adjustable speed with two speed ranges
  • Push-through agitator shafts
  • Motor overload protection for increased safety
  • Self-locking temperature limiter
  • Error code display; robust and ergonomic design
  • Quiet operation
  • Constant power-drive

• Maximum Speed: 1400 rpm

• Maximum Viscosity: 5000 mPas

• Application: General Purpose

• Controls: Digital

• Model: RW 28

• Capacity: 80 L

• Reversible Stirring: No

• Wireless Controller: No

• Manufacturer SKU: 5040001

• Shaft Length: [xxx] mm

• Immersion Depth: [xxx] mm

• Unit of Measure: EA

• Electrical Specifications: 120 V, 200 W, 1 Ph, 60 Hz

• Weight, Product: 16.5 lb

• Dimensions, Product: 4.8" W x 9.9" D x 14.3" H

• Weight, Shipping: 24 lb

• Dimensions, Shipping: 8" W x 12" D x 16" H

Buy Accessories

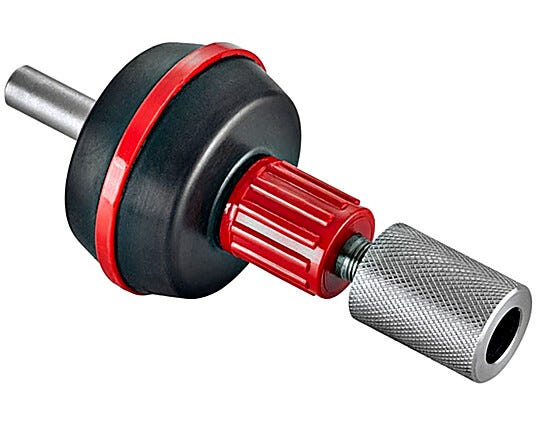

  1. IKA FK 1 Flexible coupling required for stirring applications using glass stirring rods; compatible with EUROSTAR and RW Series Overhead Stirrers   |  6926-21 displayed
    FK 1 Flexible coupling Ships Free Free shipping in contiguous USA In stock
    $672
    Increase Down Increase Up
  2. Prevents potential injuries when using rotating shafts and stirring elements  |  6926-23 displayed
    R 301 Stirring shaft protection Ships Free Free shipping in contiguous USA In stock
    $424
    Increase Down Increase Up

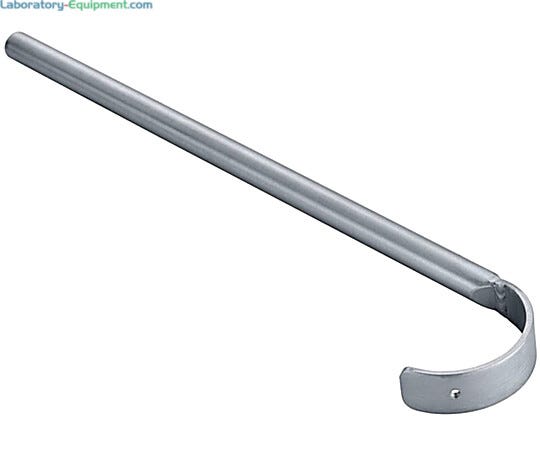

  3. Use when securing R 301 to EUROSTAR 20 digital Overhead Stirrer  |  6926-24 displayed
    R 301.1 Support holder Ships Free Free shipping in contiguous USA In stock
    $517
    Increase Down Increase Up
  4. H-shaped base prevents tipping and is ideal for larger, heavier units  |  6925-25 displayed
    H-Stand, R 2722 Ships Free Free shipping in contiguous USA In stock
    $835
    Increase Down Increase Up
  5. Adjustable arm height allows the unit to be used with a variety of sample containers  |  6925-26 displayed
    Telescopic stand, R 2723 Ships Free Free shipping in contiguous USA In stock
    $894
    Increase Down Increase Up
  6. Attaches disperser to base stand  |  6925-27 displayed
    Boss head clamp, R 271 Ships Free Free shipping in contiguous USA In stock
    $130
    Increase Down Increase Up
  7. Secures vessel during operation  |  6925-28 displayed
    Strap clamp, RH 5 Ships Free Free shipping in contiguous USA In stock
    $319
    Increase Down Increase Up
