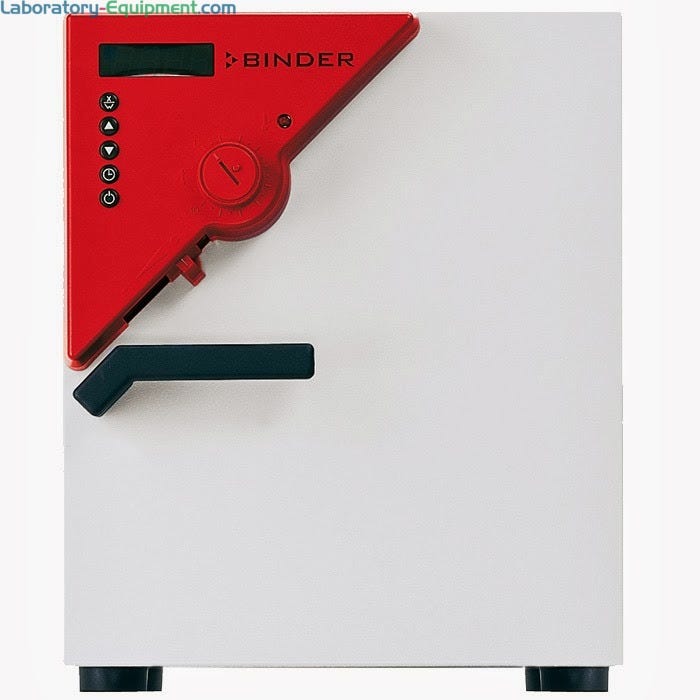

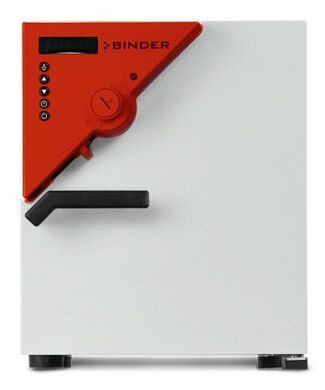

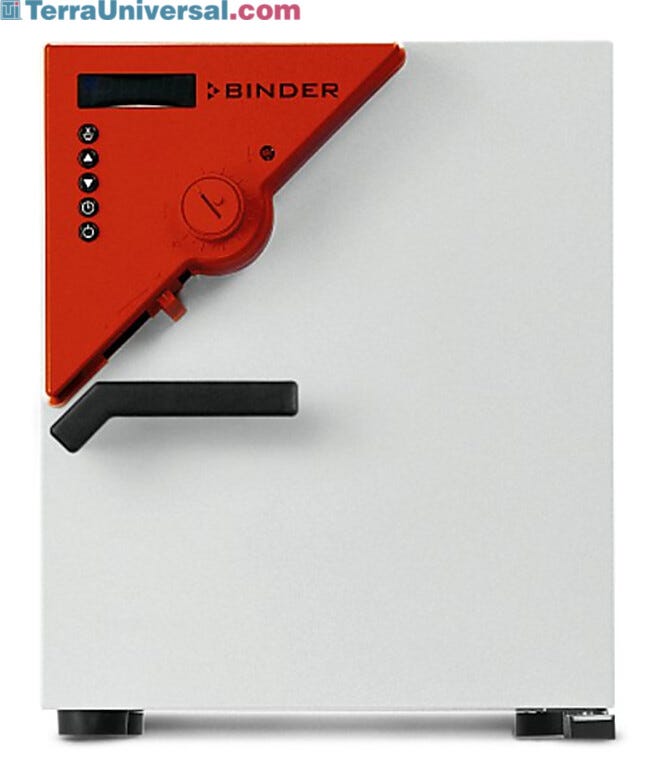

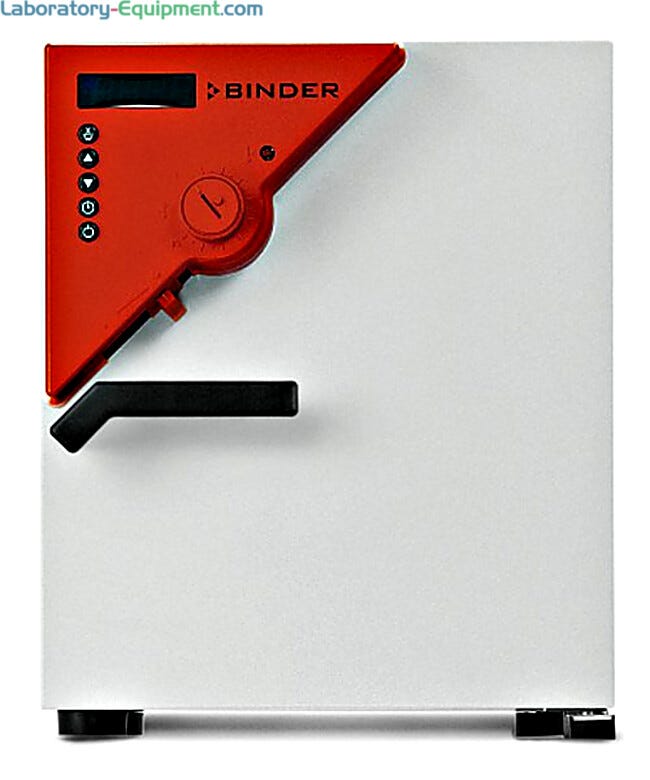

FD 23 Heating and Drying Chamber features a forced air convection heating system for rapid heating and ramp times | 1410-00 displayedFD 23 Series Heating and Drying ChamberThe Gravity Convection Economy Ovens saves energy while the double wall construction maintains uniform temperatures. Units deliver gentle heating and drying of lightweight samples such as powders, lightweight films and granular material.
Specifications for 0.7 cu. ft. Capacity FD 23 Series Heating and Drying Chamber
Model : FD 23
Electrical: 120V, 60Hz
Net weight of the unit (empty): 60 lbs. (27.2 kg)
Outer dimensions: 17.14 x 20.5 x 19.5 in. (435 x 521 x 495 mm)
Interior volume [cu.ft.]: 0.7 cu.ft. (19.82 L)
Internal Dimensions: 8.75 x 11.82 x 13 in. (222 x 300 x 330 mm)
Temperature range: 5 °C to 300 °C
Temperature variation at 150 °C [± K]: 2.5
Temperature fluctuation at 150 °C [± K]: 0.3
Heating-up time to 150 °C [min]: 25
Recovery time at 150 °C [min]: 6
Air change (approx.) at 150 °C [x/h]: 64
Wall clearance back [in]: 6.3 in. (160 mm)
Wall clearance sidewise [in]: 3.94 in. (100 mm)
Unit doors: 1
Permitted load: 55 lbs. (25 kg)
Load per rack: 26 lbs. (11.8 kg)
Energy consumption at 150 °C [Wh/h]: 300
Nominal power [kW]: 0.8
Unit fuse [A]: 12.5
Number of shelves (std./max.): 2/4
The FD Series drying and heating chambers feature a wide range of options (see below). Contact a sales engineer for a complete listing.
Access port with silicone plug
Switchable acoustic alarm for overheating
Analog output 4-20 mA
Calibration certificate, expanded
Class 3.1 independent temperature safety device
Data Logger Kit
Data Logger Software
Door gasket made of FKM, silicone-free
Door lock
Instrument tray
Measurement of air exchange rate
pH-neutral detergen
Pt 100 temperature sensor
Rack and rack accessories
Perforated shelf – stainless steel #6004-0052
Viewing window (180 x 180 mm) and 15W interior lighting #8012-1260

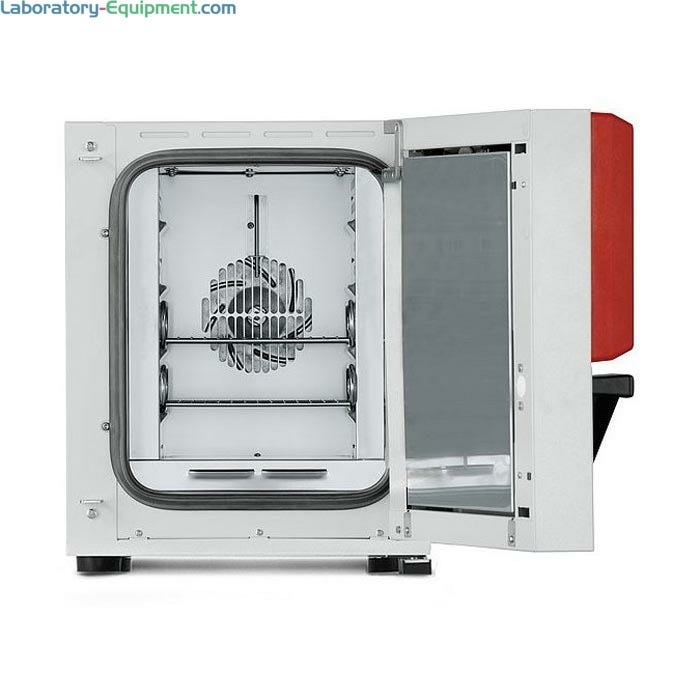

FD 23 Drying and Heating Chamber Open Door
The FD 23 Heating and Drying Chamber features a forced air convection heating system for rapid heating and ramp times.

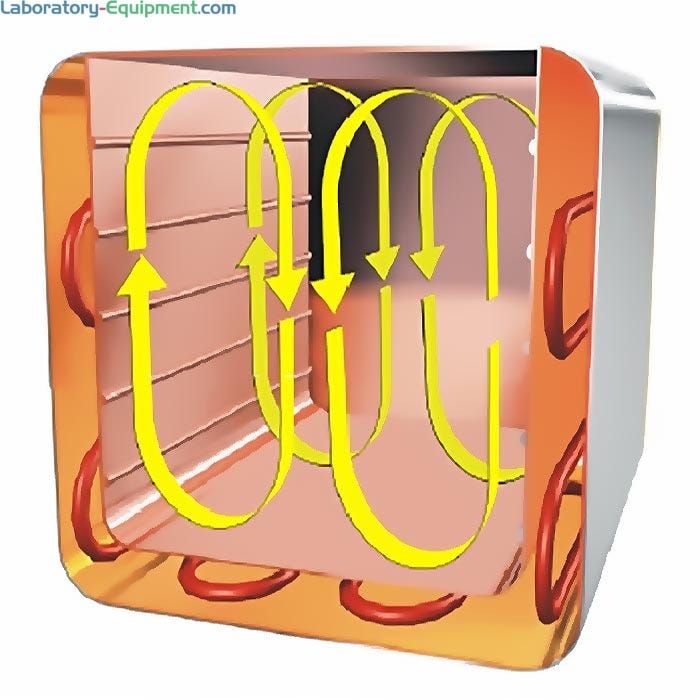

Uniform Heating and Temperature Distribution
Select BINDER Heating and Drying Chambers feature forced air convection for efficient drying and sterilization tasks
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

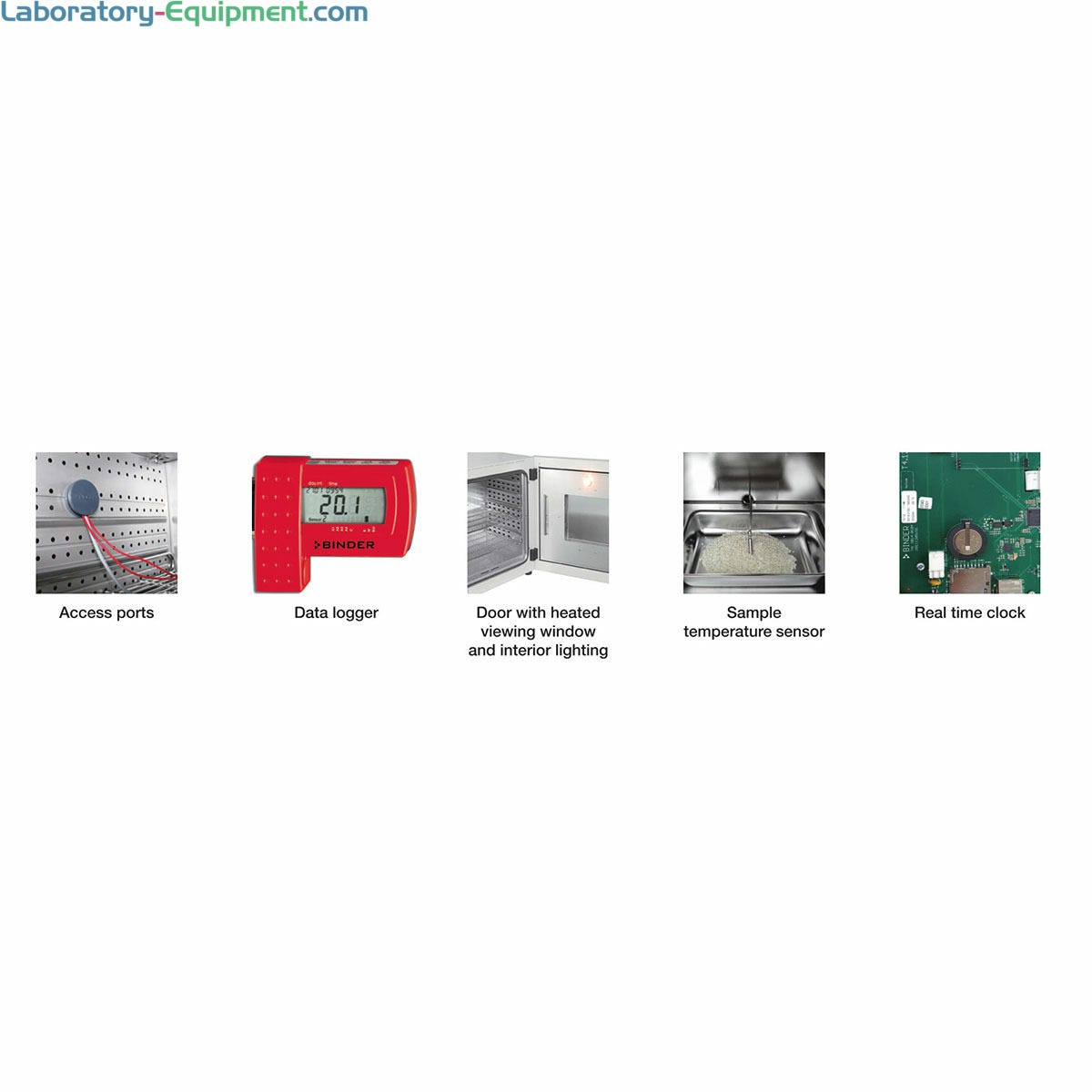

FD Series Options and Accessories
FD 23 Heating and Drying Chamber features a multitude of optional accessories for convenience, such as access ports, data loggers and temperature sensors.
