Extra-Large Cleanroom Oven for Medical Device Manufacturing
Forced Air Multi-Purpose Oven
Large Capacity Forced-Air-Multi-Purpose Oven
Forced Air Oven; 28 Cu. Ft., Digital Temperature Control

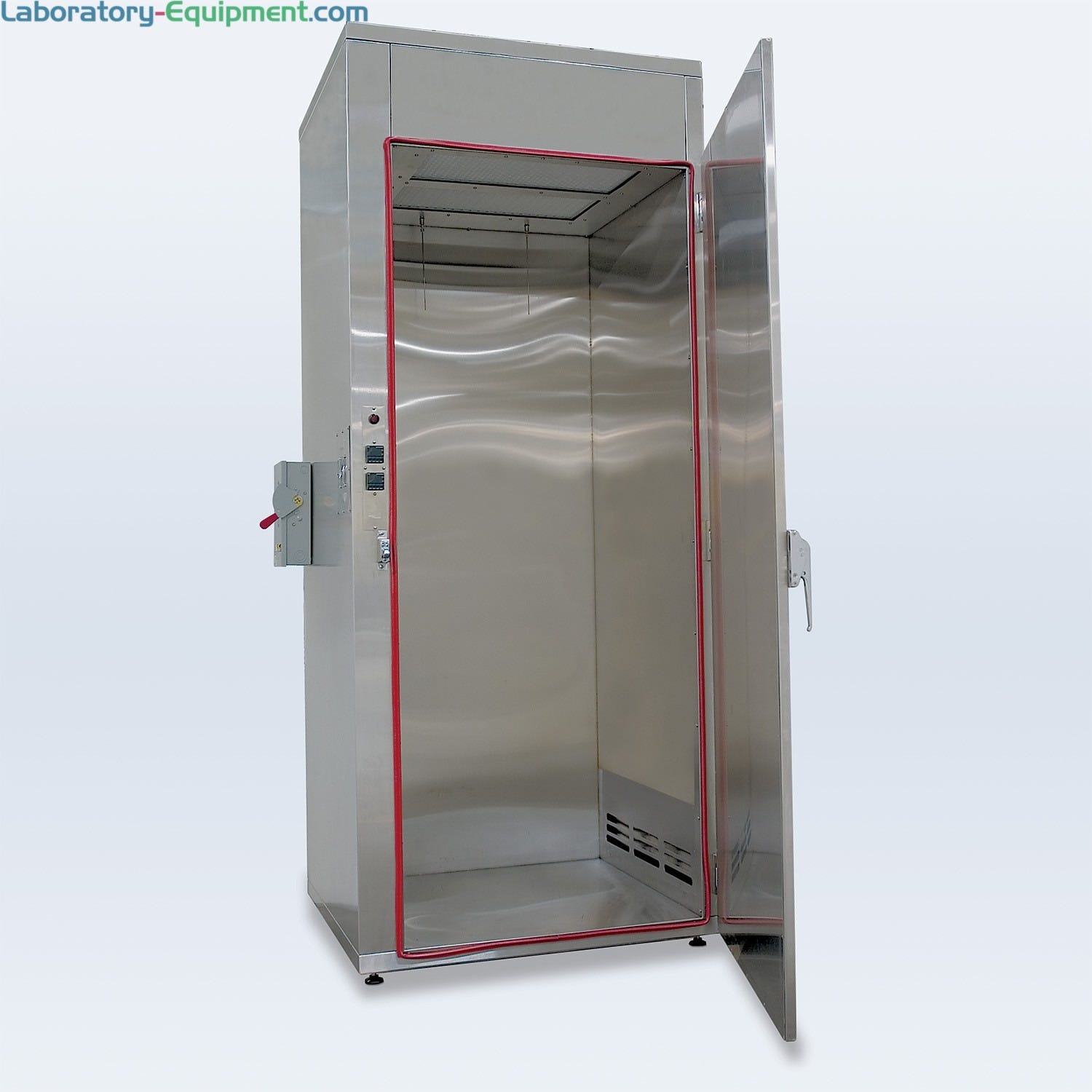

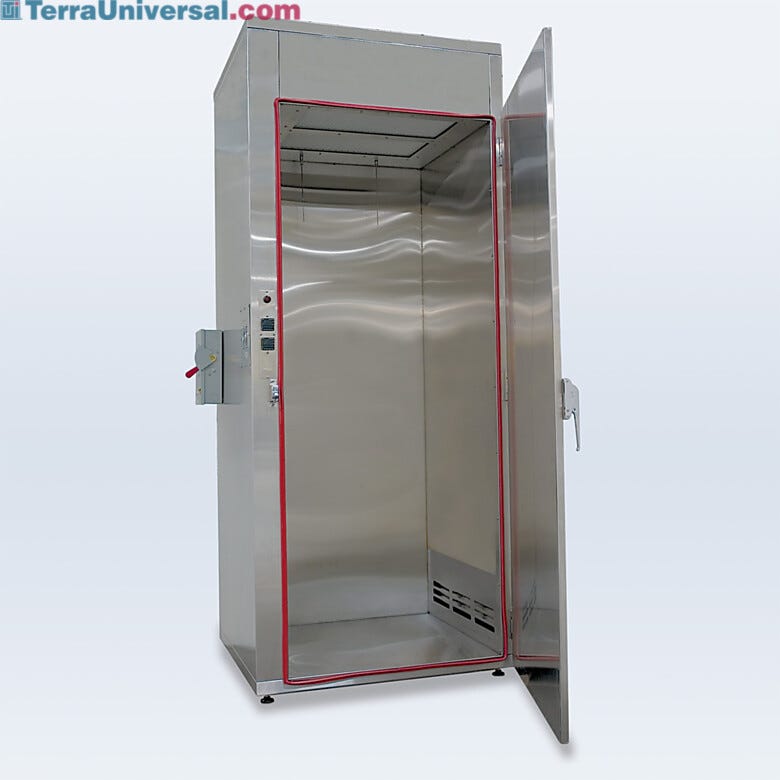

Extra-large cleanroom oven for medical device manufacturing; 67.5 cubic feet, 36”W x 36”D x 90”H interior | 2148-15 displayedExtra-Large Cleanroom Oven for Medical Device ManufacturingExtra-large cleanroom oven for medical device manufacturing features 67.5 cubic foot spacious interior (36”W x 36”D x 90”H).
Sheldon Manufacturing large capacity force air multi purpose oven | 3700-85 displayedForced Air Multi-Purpose OvenShellab force air oven performs economical drying, curing, baking, and sterilizing of high-volume samples.
Shel-Lab Large Capacity Forced-Air Multi-Purpose Ovens perform economical drying, curing, baking and sterilizing of high-volume samples; 13.7 cu. ft. | 3700-85 displayedLarge Capacity Forced-Air-Multi-Purpose OvenModels in 13.7 and 27.5 cu. ft. capacities feature a turbo blower, a heavy-duty motor for temperature uniformity, fast recovery time, safety features and rugged stainless steel chamber and shelves
Performs economical drying, curing, baking, and sterilizing of high-volume samples. | 3700-86 displayedForced Air Oven; 28 Cu. Ft., Digital Temperature Control
Terra’s high-capacity HEPA-filtered oven provides a clean, class 100 environment plus sustained uniform temperature up to 140° ± 4° F (60° ± 2°C). The easy-to-clean stainless steel design is ideal for sterile applications. Ideal for large items and batch processing operations.
Safety Switch Automatically Activates Ventilation
A safety switch attached to the door of the high-capacity cleanroom oven triggers when the door is opened, to activate the electric damper and help exhaust heat and fumes inside the oven. The operation status indicator (OSI) light glows continuously when oven is plugged in and turned on to confirm unit is operational. The OSI blinks when the unit is plugged in but switched off.
Electric Damper for Safe Exhaust of Heat and Fumes
An electric damper is included for connection to an exhaust system for safe removal of heat and fumes. It can be positioned on the top or side of the unit. An activated charcoal filter beneath the damper adsorbs a broad range of organic compounds and solvent fumes leaving the oven.
High-Capacity HEPA-Filtered Oven for Tall Materials
Dual HEPA filters and forced air convection provide ISO 5 (Class 100) micro-filtered air making it suitable for particle-sensitive baking, curing, drying, sterilization, and adhesive-based applications. The interior can be customized to include special racks that require hanging tall items, such as curing adhesives on catheters.
Bottom Air Return Slots for Recirculating HEPA Filtration
High-capacity HEPA-filtered stability chamber provides recirculating vertical laminar air flow for optimal cleanliness, temperature uniformity, and energy efficiency. Air is pushed down through the ceiling HEPA filters, passing through the process chamber, into the bottom air return slots, and back through the heating elements.
