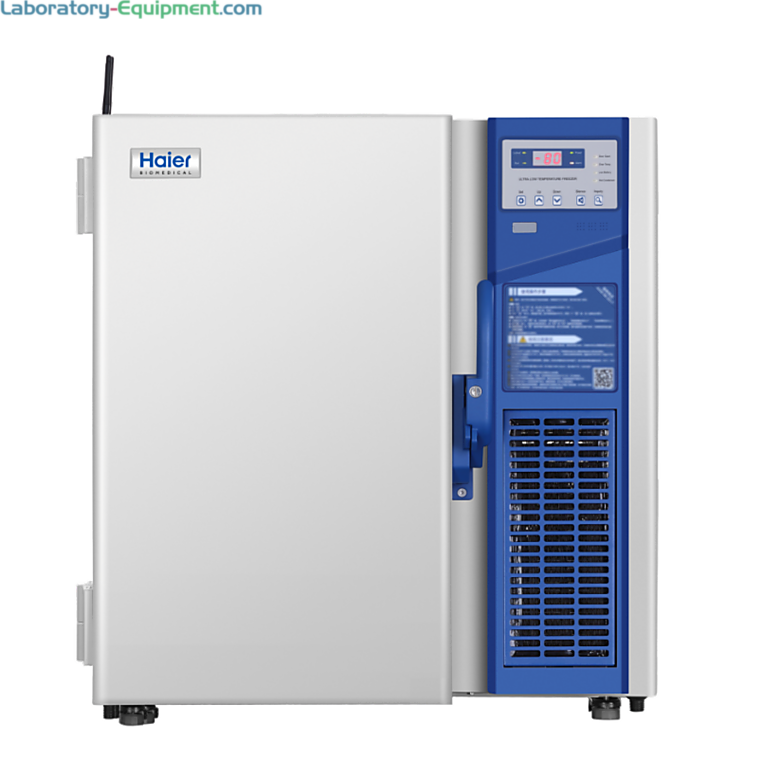

Energy Star Undercounter 86ºC ULT Freezer with microprocessor, LED display, double SS inner door, casters, feet, a shelf, door lock, USB interface and 5V port | 1720-90 displayed
Ultra-Low Freezers (-80°C),Vaccine Cold Storage Equipment

Freezer; -86°C, Ultra-Low, 3.5 cu. ft., Undercounter, Haier Biomedical, 120 V

  • Energy-efficient and stackable 3.5 cu. ft. -86°C ULT freezer with a 70 mm insulation layer
  • 31.88" (810 mm) height fits under work bench
  • Ergonomic door handle is easy to open while sitting or standing; audible and flashing light alarm
  • Optimized for energy efficiency with a power consumption of 5.5kW/24 hours
  • Includes: stainless steel shelf, caster, foot, porthole, USB interface, 5V port and RS 485 Port

• Manufacturer SKU: DW-86L100J

• Electrical Specifications: 120 V, 6.5 A, 680 W, 60 Hz

• Capacity: 3.5 cu. ft.

• Set Point Temperature: -86°C

• Door Style: Solid

• Configuration: Undercounter

• Specialty: Ultra-Low

• Unit of Measure: EA

Read more
cULus Logo CE Mark Logo Energy Star
Manufacturer SKU: DW-86L100J
Manufactured By: Haier Biomedical
Warranty: Three-years for parts and labor; Five-years compressor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1720-90
Terra Part # 1720-90
$6,396
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Terra Part # 1720-90
78570
$6,396
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Save For Later
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Energy-efficient and stackable 3.5 cu. ft. -86°C ULT freezer with a 70 mm insulation layer
  • 31.88" (810 mm) height fits under work bench
  • Ergonomic door handle is easy to open while sitting or standing; audible and flashing light alarm
  • Optimized for energy efficiency with a power consumption of 5.5kW/24 hours
  • •  Includes: stainless steel shelf, caster, foot, porthole, USB interface, 5V port and RS 485 Port
  • Interior dimension (inches): 13" W x 19"D x 25" H
  • Applications: clinical, medical and scientific research; storage of biological samples, red and white blood cells, viruses, bacteria, bone and vaccines in ultra-low tempElectrical Specifications: 120 V, 6.5 A, 680 W, 60 Hzerature
  • Thermal insulation performance: 70 mm thick insulation layer, 25 mm VIP, four layers of silicone seal
  • Optimized single compressor with auto-cascade technology performance: -86°C
  • Stores up to 10 years of historical data for compliance
  • Reduces loss of cold energy with two-door design
  • Auto-cascade hydrocarbon refrigeration uses high-efficiency hydrocarbon compressor
  • Noise level: 46.8 dBA
  • Model #DW-86L100J stores up to 6,000 samples
  • Features: upright design, direct cooling, manual defrost, HC refrigerant, microprocessor controller and LED display, USB port cable, user-settable parameters, real-time temperature display
  • Adjustable precision: 1° C
  • Stores electronic devices used for cryogenic tests
  • Battery backup alarm functions 24 hours in event of power outage
  • Alarm features: remote,, high/low temperature, hot condenser, power failure, high/low voltage, sensor error, low battery, high ambient temperature, door ajar
  • Container load (20'/40'/40'H): 44/88/88 lbs.
  • 5V power supply for test equipment
  • Featured door lock prevents unauthorized access
  • Optional loT module monitors running state of refrigerator
  • Listings: UL, CE
Show more

• Manufacturer SKU: DW-86L100J

• Electrical Specifications: 120 V, 6.5 A, 680 W, 60 Hz

• Capacity: 3.5 cu. ft.

• Set Point Temperature: -86°C

• Door Style: Solid

• Configuration: Undercounter

• Specialty: Ultra-Low

• Unit of Measure: EA

• Electrical Specifications: 120 V, 6.5 A, 680 W, 60 Hz

• Dimensions, Product: 30" W x 26" D x 32" H

• Dimensions, Shipping: 32" W x 28" D x 38.5" H

Show more
Other products you may find relevant
  1. CF30 Cryo-Compact Circulator by Julabo with a -30°C to +150°C temperature range, a 3.5L capacity, RS232 interface, and a 15L/min flow rate for routine applicati | 2540-04 displayed
    Group of 4 products
    CF Series Cryo-Compact Circulators by Julabo From
    As low as $8,517
    Some ship in 12 - 18 days
  2. Picus NxT Electronic Pipettes for use in highly regulated labs with compliance requirements; RFID enabled and certificate of 3-point calibration | 5703-PP-01 displayed
    Group of 14 products
    Picus NxT Electronic Pipettes by Sartorius From
    As low as $1,445
    Some ship in 5 - 7 days
  3. CL-3000 disinfects up to six N95 respirator masks in five minutes enabling reuse of PPE; midrange and longwave models available | 1016-77 displayed
    Group of 3 products
    UVP Crosslinker by Analytik Jena From
    As low as $1,845
    Some ship in 15 - 17 days
Page 1 of 1

  • Video Demonstration for -86ºC ULT Undercounter Freezer by Haier Biomedical
Shows product benefits, design and features of -86ºC ULT Undercounter Freezer by Haier Biomedical Video Demonstration for -86ºC ULT Undercounter Freezer by Haier Biomedical Highlights how the 3.5 cu. ft. model #DW-86L100J maximizes storage, reduces operational noise and stores up to 6,000 biological samples

Features and Benefits

Ergonomic Design

Undercounter model designed with an ergonomic, lockable door handle that is easy to open while sitting or standing

Superior Thermal Insulation

Energy-efficient HC refrigeration system with a multilayered sealing design features a 70 mm insulating layer with 25 mm VIP and four layers of gasket

Stackable

Space-efficient undercounter model with a 31.88" height fits easily under work bench and can also be stacked to double storage space

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Products similar to this one
  1. ENERGY STAR TSX Series -86°C ULT Freezers by Thermo Fisher Scientific in four capacities feature a capacitive touch display and advanced security features
    Group of 5 products
    TSX Series Ultra-Low Upright Freezers by Thermo Fisher Scientific From
    As low as $19,517
    Some ship in 3 - 5 days
  2. Economical and compact freezers for routine lab storage in various capacity sizes with CFC-free refrigerant, adjustable temperature control and manual defrost | 1536-PP-02 displayed
    Group of 4 products
    Value Lab Undercounter Freezers by Thermo Fisher Scientific From
    As low as $928
    Some ship in 5 - 7 days

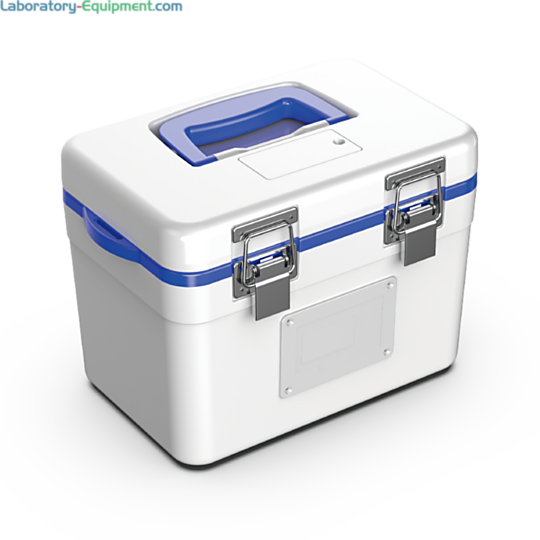

  3. Passive cooling Constant Temperature Transport Cooler HYZ-5B with alarms and a 2ºC to 10ºC transit temperature range fits 8 blood bags | 1720-93 displayed
