The drive and grinding chambers are secured with labyrinth seal
Dust proof housing
Batch mill with disposable grinding chamber
Permissible relative temperature 5 - 40 °C
Speed deviation 2 ± %
Timer, adjustable from 5s to 3 min
Protection class according to DIN EN 60529 IP 30
For small scale batch milling of materials
Ideal for grinding seeds such as corn and wheat
Disposable and stainless steel grinding chambers and spare parts sold separately
Security features: Unit starts only when clear hood is closed; Motor only operates when correct grinding chamber is attached; Machine will not start if grinding chamber is not properly closed; Grinding chamber cannot be opened when unit is in operation;
6-Step Process and Easy Storage of Tube Mill Control Grinding Chambers

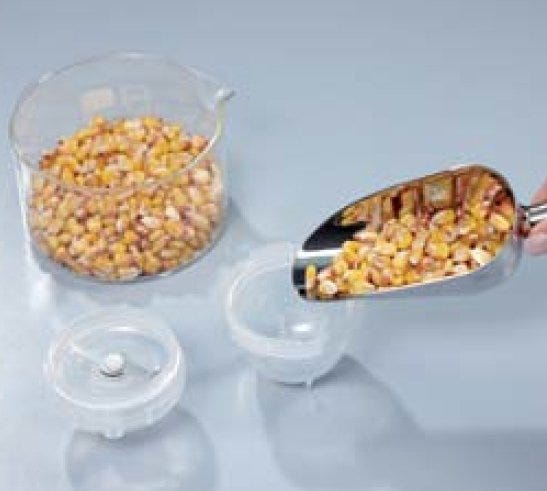

1. Fill grinding chamber

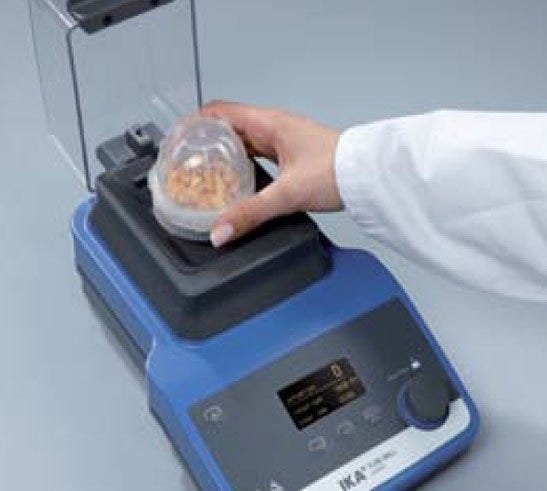

2. Place in Tube Mill and turn clockwise

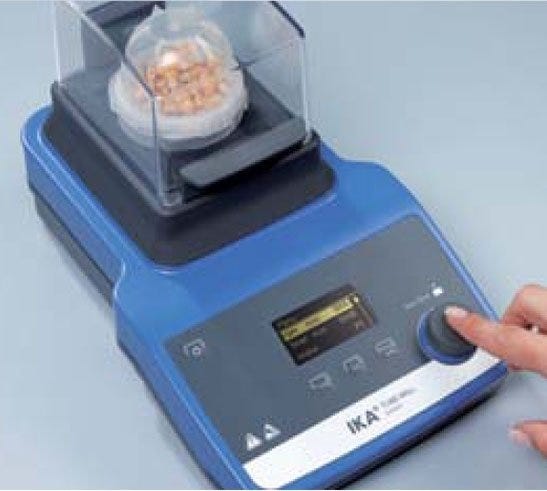

3. Press to start

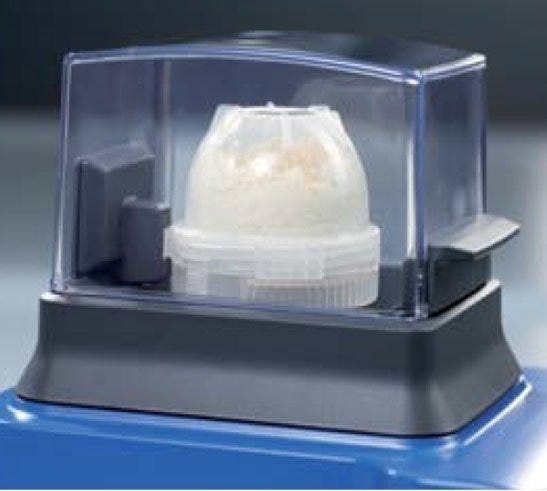

4. Clear cover allows full view of sample

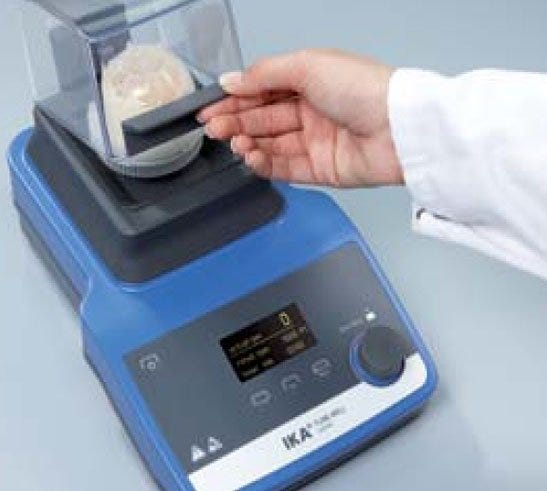

5. Lift top and remove grinding chamber

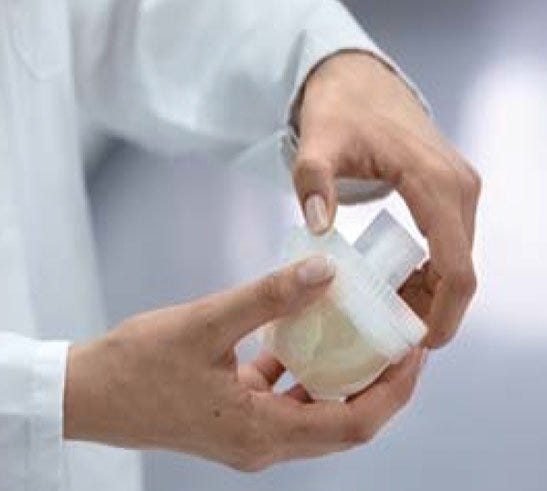

6. Remove sample

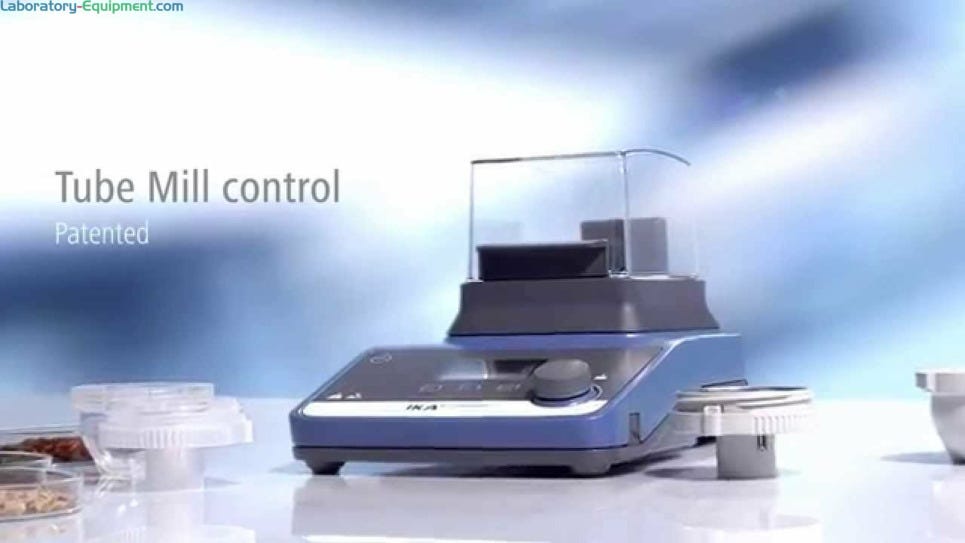

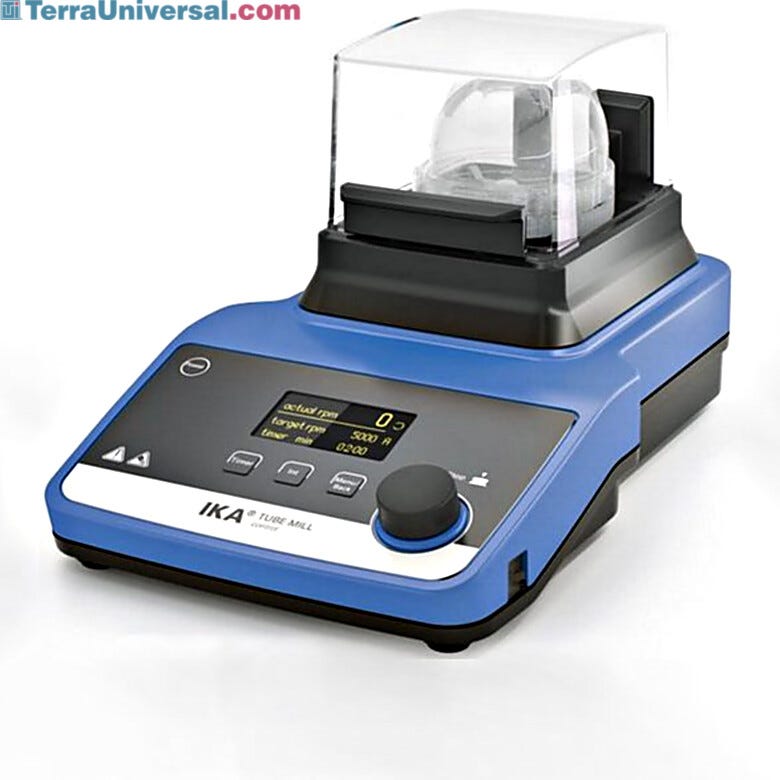

IKA Tube Mill control bath mill is suitable for a wide array of materials with a hardness of up to Mohs 5. Built-in safety features allow the unit to start only when the clear hood is closed and a compatible grinding chamber is inserted. The clear lid conveniently allows operators to observe samples being processed.
Applications and Industries for IKA Tube Mill Control
Renewable Energy wood pellets, woodwoll + wax, straw, solid recovered fuel pellet, tetrapack, charcoal and chipped wood
Medicine and Forensics chicken bones, chicken skin (with dry ice), pig craw (with dry ice)
Building Material Industry marble and gypsum
Tube Mill control Cryo Grinding with Dry Ice
Moist, fatty, fibrous and resilient samples can be embrittled by adding dry ice directly into the grinding chamber. This creates an insulating effect within the chamber with minimal use of dry ice allowing the operator to handle the grinding chamber easily.
Type of application samples embrittled with dry ice
Chocolate, bread, nuts, soil samples, gummy bears, leaves, meat, sausages, some plastics, bones, beef, feedstuffs, tobacco and grass

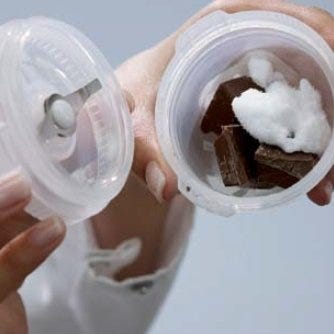

Put dry ice and material inside grinding chamber
Tube Mill Control shown with dry ice inside Disposable Grinding Chamber
Close lid and process
IKA Tube Mill Control Safety Features
Motor only recognizes compatible grinding chambers, open/close lid operation prevents accidental starts and stops and labyrinth seal prevents dust from entering motor

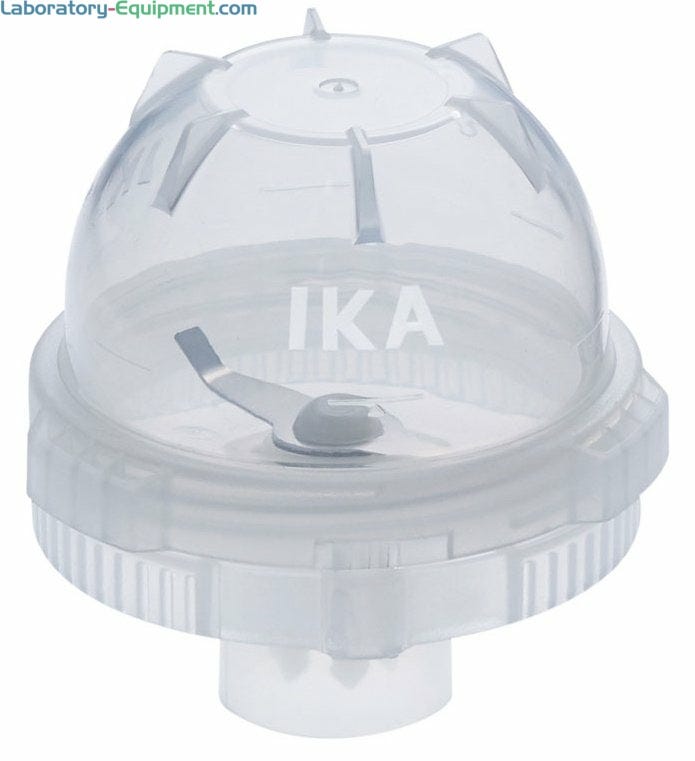

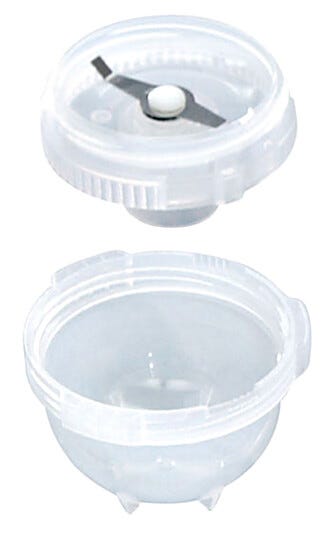

IKA Disposable Grinding Chambers
Disposable polypropylene grinding chambers for IKA Tube Mill Control save in cleaning costs

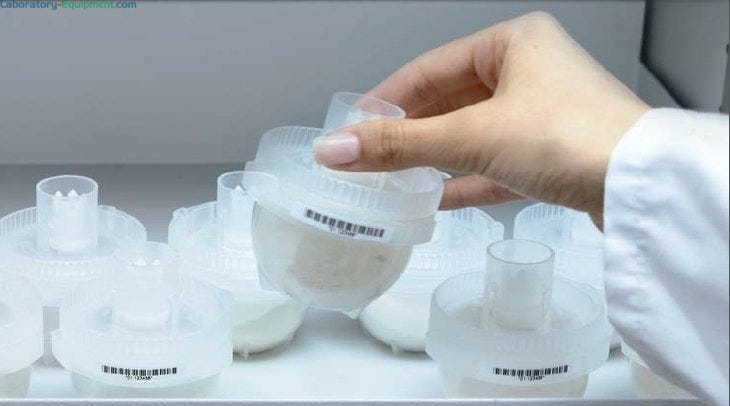

IKA Easy Sample Storage
Samples stored in disposable grinding chambers compatible with IKA Tube Mill Control
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

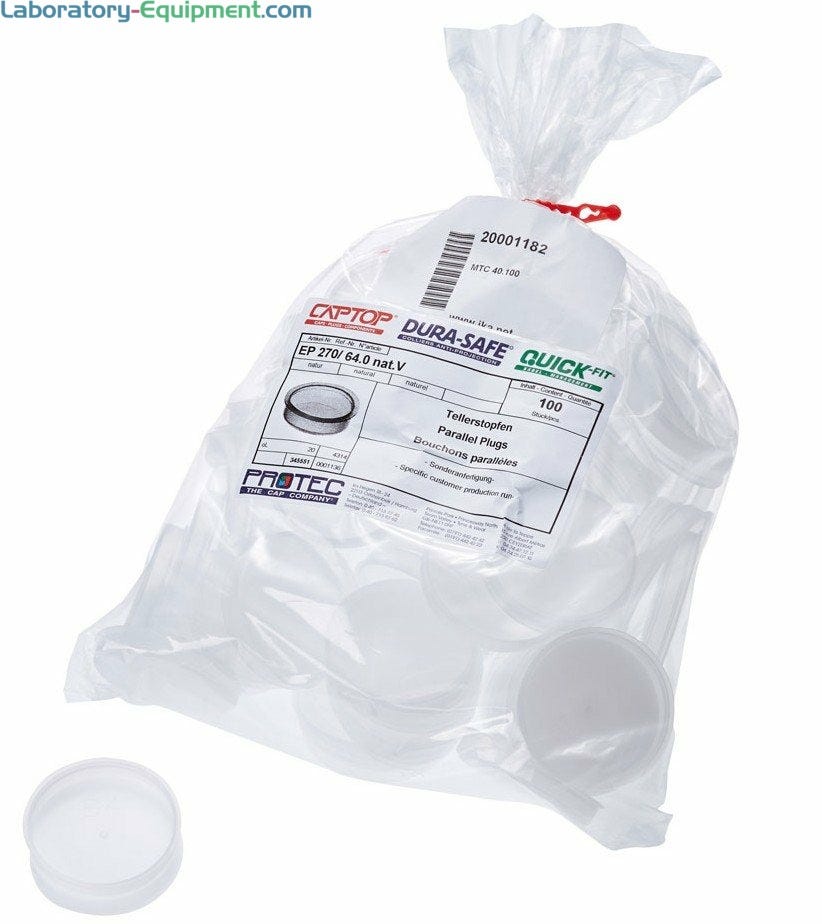

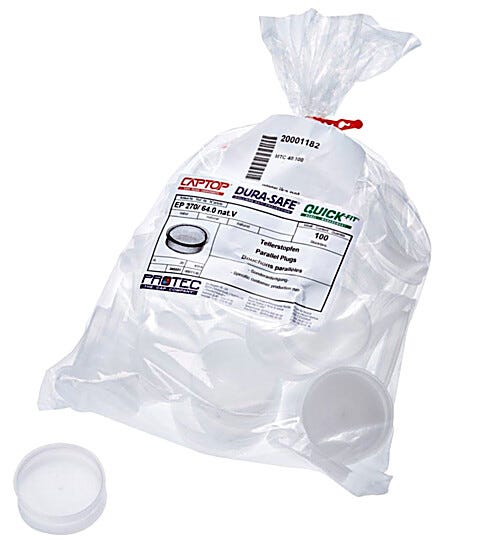

Polypropylene covers enable stacking of disposable grinding chambers compatible with IKA Tube Mill Control; 100 quantity

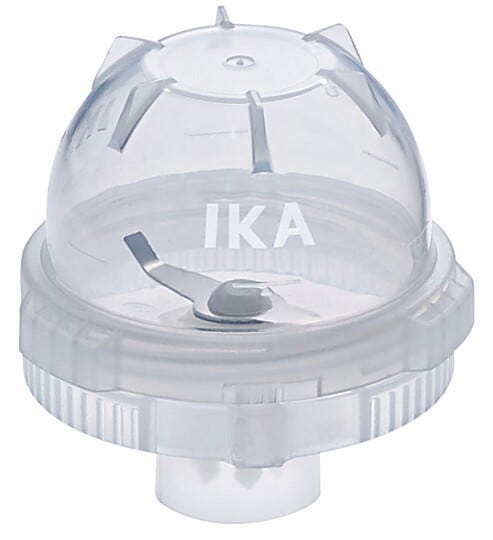

IKA MT 40 Disposable Grinding Chambers
Chemical resistant polypropylene Disposable Grinding Chambers, compatible with IKA Tube Mill Contro

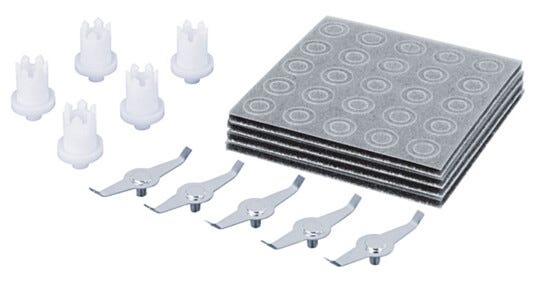

Mills, A-MMT 40.100 Abrasion Set Spare Parts

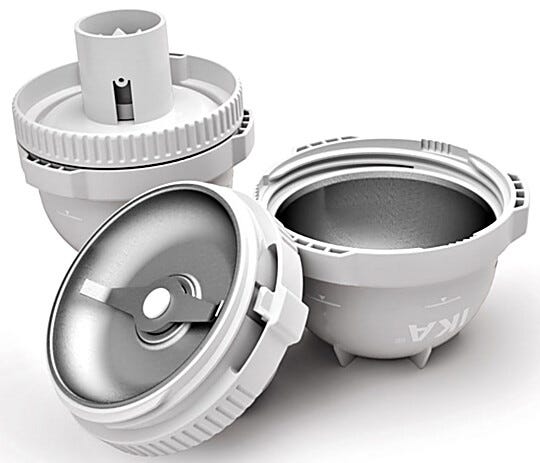

A-MMT 40.100 Abrasion Set Spare Parts (for use with MMT 40.1 Stainless Steel Grinding Chamber) includes 100 chamber sealings, 10 beaters and 10 couplings; compatible with IKA Tube Mill Control
