3030-10
Terra Part # 3030-10
Request Quote
Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3030-10
60439

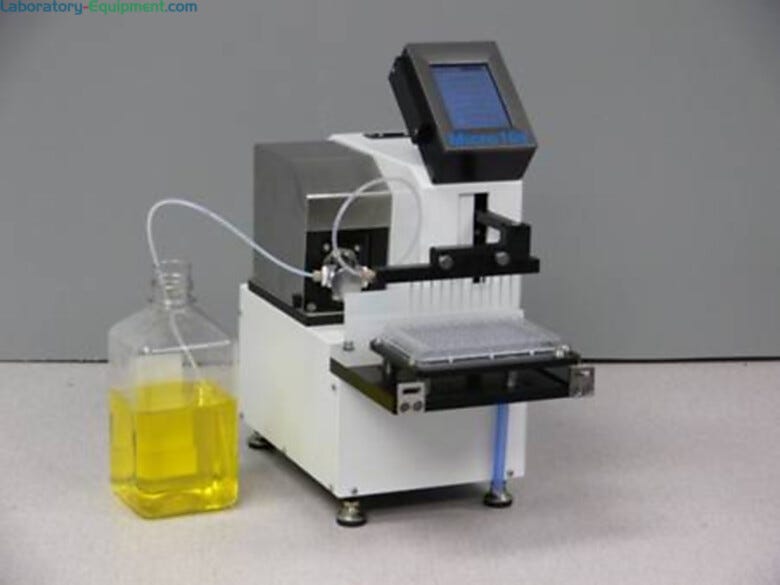

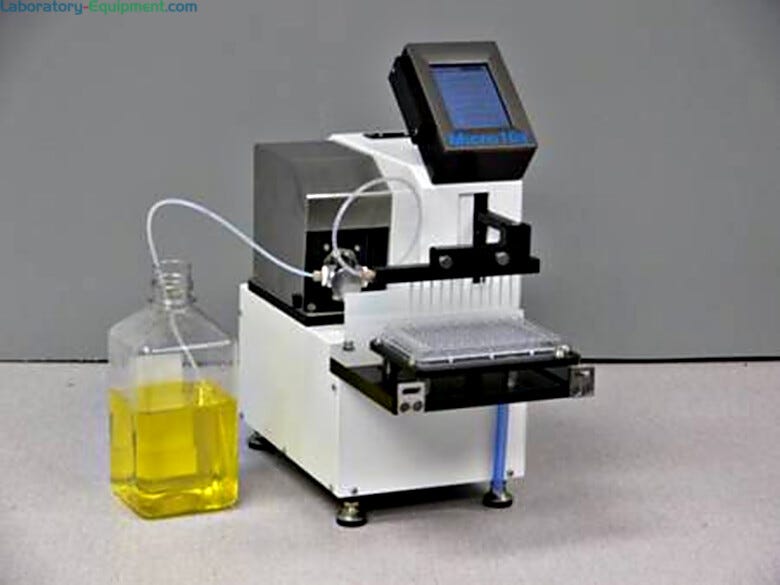

Microplate Dispenser; Micro10x, Hudson Robotics,
Product Details
  • Dispense Volumes: 5µl and up - below 3% CV; 3-5µl - below 5% CV
  • Factory calibration holds for > 50 million cycles
  • Available in: landscape ( 12-nozzle) or portrait (8-nozzle) configurations
  • Liquid path: fully-autoclavable
  • Reversible Pump
  • Pump Options: 0.25" or 0.375" barrel
  • Typical Dispense Times (for an entire plate): 15 seconds - 96-well plate (10µL per well); 24 seconds - 384-well plate (25µL per well)
  • Electrical Requirements: 115 VAC, 0.5A
  • Includes manual/robot load station and LabLinx track mount
  • Add choice of Dispense Manifold
  • Full 232 external control
  • 20 Dispense programs; 10 internally stored Priming programs

• Type: Microplate Dispenser

• Model: Micro10x

• Manufactured by: Hudson Robotics

• Configuration: Multi Channel

• Manufacturer SKU: 500110

• Capacity: [xxx]

• Unit of Measure: EA

• Marks & Listings: CE, CSA

• Weight, Product: 25 lb

• Dimensions, Product: 16" W x 7" D x 10" H

• Weight, Shipping: 45 lb

• Dimensions, Shipping: 22" W x 15" D x 16" H

• Package Type: Vendor

Buy Accessories
  1. Dispense Manifold; 8-Channel, for Micro 10x, Hudson Robotics
    Request Quote
    Increase Down Increase Up
  2. Dispense Manifold; 12-Channel, for Micro 10x, Hudson Robotics
    Request Quote
    Increase Down Increase Up
  3. Valve Option; 4-Fluid, for Micro10x
    Request Quote
    Increase Down Increase Up
  4. Valve Option; 10-Fluid, for Micro10x
    Request Quote
    Increase Down Increase Up
  5. Pump and Housing Assembly; for Micro10x
    Request Quote
    Increase Down Increase Up
  6. Manual Load Fixture; for Micro10x
    Request Quote
    Increase Down Increase Up
  7. Nest Bracket; for Micro10x
    Request Quote
    Increase Down Increase Up
  8. Equipment Testing
    Request Quote
    Increase Down Increase Up
  9. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: Micro10x Applications

More Information

  • Reliable and flexible instrument for analytic research delving into many liquid dispensing processes
  • Tests various compounds simultaneously when connected to the Hudson SOLO robotic pipettor
  • Applications:  ELISA, pharmaceutical, genomic and proteomic assays, PCR reaction mix dispensing
  • LCD Display with touch screen programming
  • Positive mounting bracket on the base unit
  • Graphical Image Row Selection controls the dispensing pattern
  • Microliter volumes dispenses 50% faster compared to 8-tip counterparts
  • Tip Touch capability to touch-off droplets overcomes variances in fluid viscosity and surface tension
  • full RS-232 external control capability
  • Easy-to-clean autoclavable fluid path assures sterility
  • All electronics located away from potential spill areas
  • Conserves bench space with its small, 7"x10" footprint
Dispense Volumes:
  • 5µL and up: below 2% CV
  • 2 – 5µL: below 5% CV
Electrical: 115/220VAC, 0.5A
Calibration: holds factory calibration for >50 million cycles
Sterilization: a fully-autoclavable liquid path
Configuration: available in both landscape (12-nozzle dispensing) and portrait (8-nozzle dispensing) style
Pump Options: offers 2 different pump sizes (0.25" or 0.375" barrel)
Dimensions: 15.8"H x 7.0"W x 10.1"D
Typical Dispense Times for an Entire Plate:
  • 15 seconds – 96-well plate, 100µL per well
  • 24 seconds – 384-well plate, 25µL per well
