Modular and compact Microlab STARlet Automated Liquid Handler with a 30-track deck capacity; optional modules and housing extensions | 1017-18 displayed
Liquid Handlers & Robotics

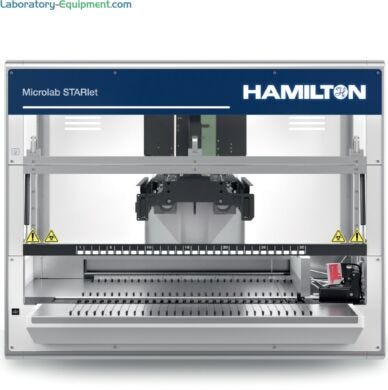

Microlab STARlet Automated Liquid Handling Platform by Hamilton Robotics

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.
  • Modular and flexible Microlab STARlet liquid handling robot for life science and diagnostic labs accommodate tip sizes from 10 μL to 5000 μL
  • Compact model provides smooth interplay between software, mechatronics and intuitive user interface
  • Simplified workflow with VENUS Software and designed for easy integration of modules and devices
  • Components and modules (sold separately): Labware gripper, pipetting channels, iSWAP Robotic Transport Arm, [MPE] Positive Pressure Module, Media Fill Module, housing extensions (see below for full details)
  • Deck Capacity: 30 tracks (T) / 45 SLAS ANSI positions

• Type: Automated Pipettor

• Model: STARlet

• Configuration: Multi Channel

• Deck Capacity: 30

• Unit of Measure: EA

Read more
Manufacturer SKU: Microlab STARLet
Manufactured By: Hamilton
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1017-18
Terra Part # 1017-18
Request Quote

Want it faster ? Read about FasTrak

Terra Part # 1017-18
80069
Request Quote

Want it faster ? Read about FasTrak

Save For Later
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Modular and flexible Microlab STARlet liquid handling robot for life science and diagnostic labs accommodate tip sizes from 10 μL to 5000 μL
  • Compact model provides smooth interplay between software, mechatronics and intuitive user interface
  • Simplified workflow with VENUS Software and designed for easy integration of modules and devices
  • Components and modules (sold separately): Labware gripper, pipetting channels, iSWAP Robotic Transport Arm, [MPE] Positive Pressure Module, Media Fill Module, housing extensions (see below for full details)
  • Deck Capacity: 30 tracks (T) / 45 SLAS ANSI positions
  • Applications: Genomics, cellomics, diagnostics, forensics, proteomics, biobanking, drug discovery, industrial biotech
  • Features:
  • Color-coded status light at the front of instrument enables viewing of information such as progress of run
  • Interior light provides clearer viewing of deck
  • Modal Precision: x-y-z positional accuracy of 0.1 mm
  • Noise Level: < 65 dBA, < 46 dBA in standby mode (according to EN 27779)
  • Safety features and data management: Worklist Handling, Badge Number Tracking, Autoload with Tracking, Customizable Error
  • Recoveries, Labware Reporting, Intelligent Pipetting, Bi-Directional LIMS Integration, Status Light, 2D-Barcode Reading
  • Pipetting Technology:
  • Monitored air displacement detects clots or empty wells with real-time tracking; useful in pipetting volatile solvents
  • CO-RE II technology for improved tip attachment and precision, 15x life span, less wear and tear and lowers total cost of instrument ownership
  • Dual Liquid Level Detection (LLD) detection in two modes: capacitive for conductive liquids and pressure-based for all liquid types (foaming liquids, organic solvents and non-conductive)
  • Anti-Droplet Control (ADC) prevents inadvertent dripping by real-time detection and reaction to pressure changes from volatile organic solvents
  • Total Aspiration and Dispense Monitoring (TADM)
  • VENUS Software:
  • Intuitive user interface provides basic and advanced programming and enables users full control of methods
  • Power Steps enables easy assay set-up
  • Five visual guides for frequently used pipetting tasks: sample transfer, add reagent, serial dilution, replicates and hit picking
  • Color codes indicate type of tip used
  • Shows important parameters at a glance
  • Shows most common reason for errors to help save time and ensures smooth workflow
  • Ambient Conditions:
  • Temperature: +15º C - + 35º C (Operation); 25º C - + 70º C (Storage); - 25º C - + 70º C (Transportation)
  • Relative humidity (non-condensing): 15% - 85% (Operation); 10% - 90% (Storage); 10% - 90% (Transportation)
  • Overvoltage category: II (Operation, Storage and Transportation)
  • Pollution degree: 2 (Operation, Storage and Transportation)
  • Altitude: up to 2000 m/6561 ft. above sea level
  • Processing time:
  • 8 Pipetting Channels: Filling of one 96-well microplate with 100 μl sample (new tip for each sample) 320 seconds:  Aliquot reagent to a 96-well microplate (<90 μl per well) 60 seconds
  • CO-RE 96 Probe Head: Replication of one 96-well microplate: 100 μl, new tips, with cLLD on Aspiration 35 seconds; Reformatting of four 96 well microplates to one 384-well microplate: 50 μl, new tips, with cLLD on aspiration 140 seconds
  • CO-RE 384 Probe Head: Replication of one 384-well microplate: 20 μl, new tips, with cLLD on aspiration 35 seconds; Reformatting of 4 - 384 well microplates to one 1536-well microplate: 10 μl, new tips, with cLLD on aspiration 140 seconds
  • Options (sold separately):
  • Functional Modules:
  • Hamilton Heater Shaker for automated heating and shaking of ANSI/SLAS footprint microplates
  • Hamilton Heater Cooler for precise temperature control for ANSI/SLAS footprint microplates
  • Liquid Dispenser used for dispensing large quantities and/or aspirating liquid waste
  • Cooling Carrier cools samples (predefined temperature) and identifies barcodes via Autoload
  • Pipetting Channels:
  • Individual channels for independent movement and asymmetric spreading
  • Multi-Probe Heads: CO-RE 96- and 384-Multi-Probe Heads (MPH) for quick pipetting of 96 or 384-well plates, or partial plates
  • Additional Options (sold separately):
  • STARwatch service exclusively for STAR series models
  • Additional status light at the bottom of instrument
  • Housing Extensions keeps germs out and adds safety: slim right or left side, wide left side (for use with Multi-Probe Heads)
  • Standard Carriers: tip carrier (holds five tip racks), plate carrier, tube carrier (hold up to 18 mm diameter tubes), reagent carrier, stacking carrier (stacks up to ten plates for increased deck capacity)
  • Modules: Sky Frame (doubles capacity of filter tips and saves deck space), Multiflex MTP for microplates, Multiflex Stacker Module (stacks up to 10 microplates), Multiflex Active Plate Nest (exact positioning and fixing of microplates), Multiflex Tube/Cup Module (holds a variety of tubes)
Show more

• Type: Automated Pipettor

• Model: STARlet

• Configuration: Multi Channel

• Deck Capacity: 30

• Unit of Measure: EA

• Electrical Specifications: 100/115 V 230V, 600 A, 1,000 W, 1000

• Dimensions, Product: 31.3" W x 44.3" D x 35.6" H

Show more
Manuals & Resources
Other products you may find relevant
  1. FTIR 4600/4700 Spectrometers with a 45º Michelson interferometer and Peltier DLATGS detector; ATR Measurement and CFR software models available (call for info)
    Group of 5 products
    FT/IR 4000 and FT/IR 6000 Series Spectrometers by Jasco From
    As low as $19,344
    Some ship in 15 - 19 days
  2. Single monochromator, dual gratings, a PbS detector, 190-2700 nm UV-Vis range and optional 3200nm NIR wavelength kit; CFR software and Remote Module available
    Group of 2 products
    V-700 Series UV-Vis/NIR Spectrophotometers by Jasco From
    As low as $27,428
    Some ship in 15 - 19 days
  3. 1.6L Megafuge ST1 Plus Centrifuge Packages with TX-400 Swinging Bucket Rotor for cell culture or blood tubes include buckets, adapters and biocontainment lids
    Group of 6 products
    Megafuge ST1 and ST1R Plus Centrifuge Packages by Thermo Fisher Scientific From
    As low as $8,919
    Some ship in 10 - 14 days
  4. The qTower 3 Auto provides homogeneous excitation, detection and a two year device warranty | 1016-67 displayed
    qTOWER 3 Real-Time PCR Thermal Cyclers by Analytik Jena
    Request Quote
  5. UV/Vis spectrometer-based SPECTROstar Nano Plate Reader for microplates and cuvettes measures full spectrum absorbance (220-1000 nm) in less than 1 second/well | 8000-86 displayed
    Plate Reader; SPECTROstar Nano, Absorbance, ELISA, 1536 Well, BMG LabTech
    $10,868
    Usually Ships in 10 - 20 days

Liquid Handlers & Robotics

  • Hamilton Microlab STAR - Flexibility, Precision, and Reliability Hamilton Microlab STAR - Flexibility, Precision, and Reliability
Hamilton Microlab STAR - Flexibility, Precision, and Reliability
Product overview video of the Microlab STAR Automated Liquid Handler by Hamilton Robotics Hamilton Microlab STAR - Flexibility, Precision, and Reliability Video showing product features, software solution, and operation of Microlab STAR Automated Liquid Handler by Hamilton Robotics

Features and Benefits

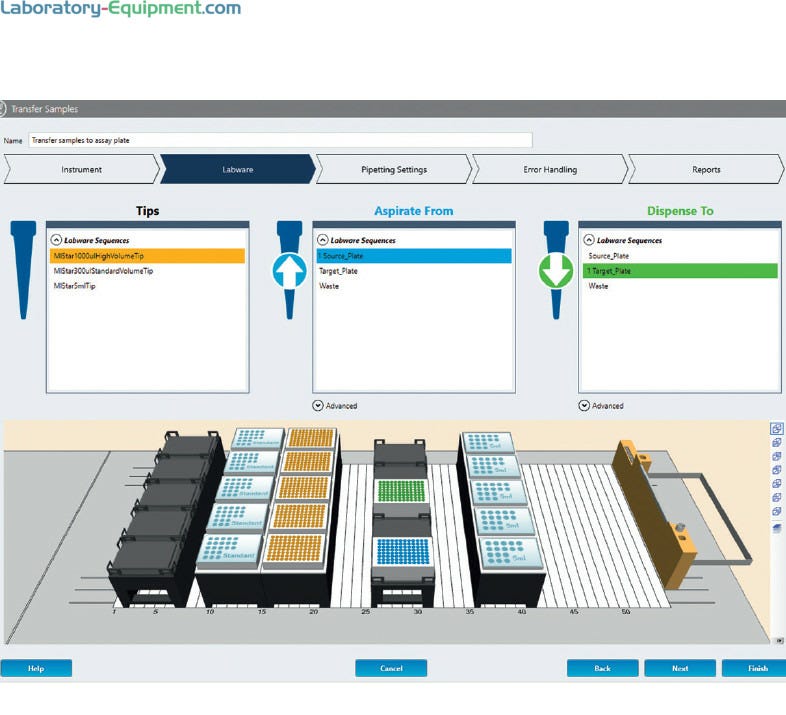

Simplifies Workflow

Included VENUS Five Software with five visual guides for most used pipetting tasks provides flexible assay set up for basic and advanced programming

Optional Modules

Modular design satisfies many applications by easily integrating optional modules: heater shaker, liquid dispenser, heater cooler and a cooling carrier module

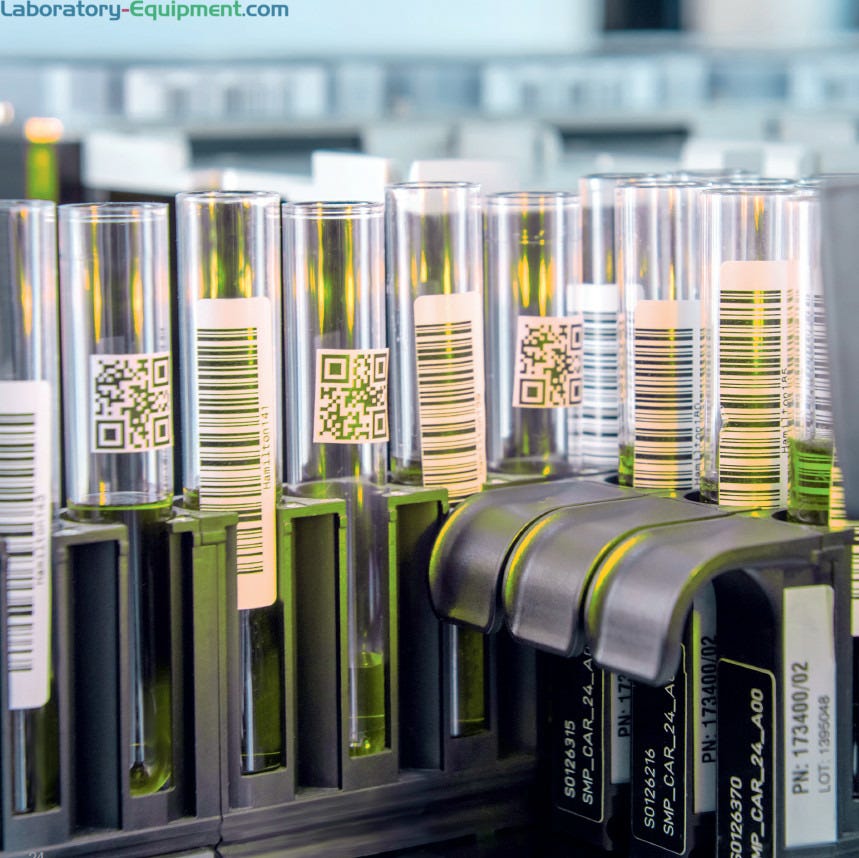

Barcode Sample Tracking

Provides added safety and improves data management with built-in safety feature and 2D barcode sample tracking that automatically identifies and loads tracks

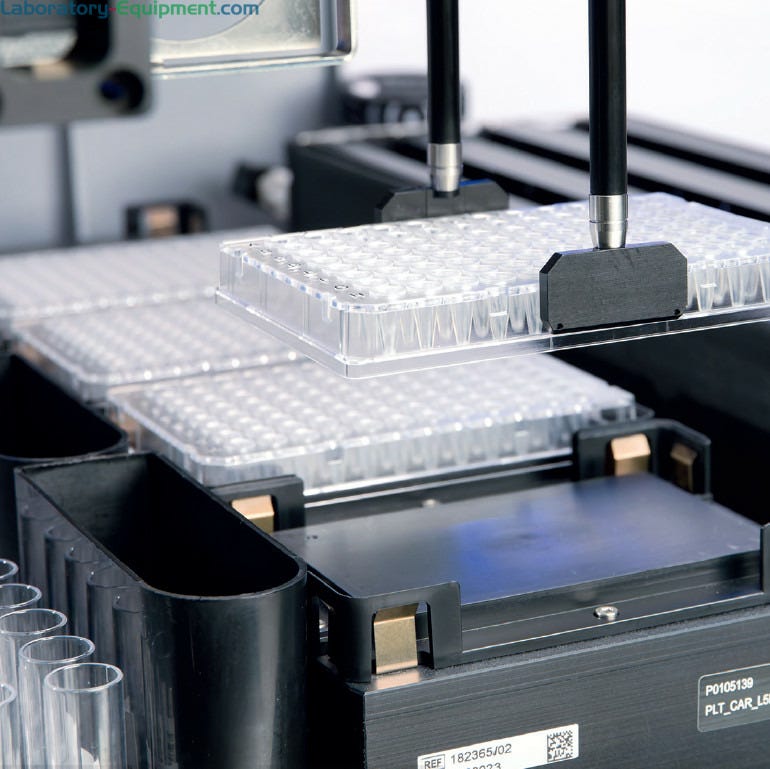

Deck Components

Streamlined design and status light enable users to easily see inside the liquid handling platform to identify possible issues during the progress of run

Housing Extension

Optional housing extensions accommodate different instrument configurations integrated with the Microlab STAR Series

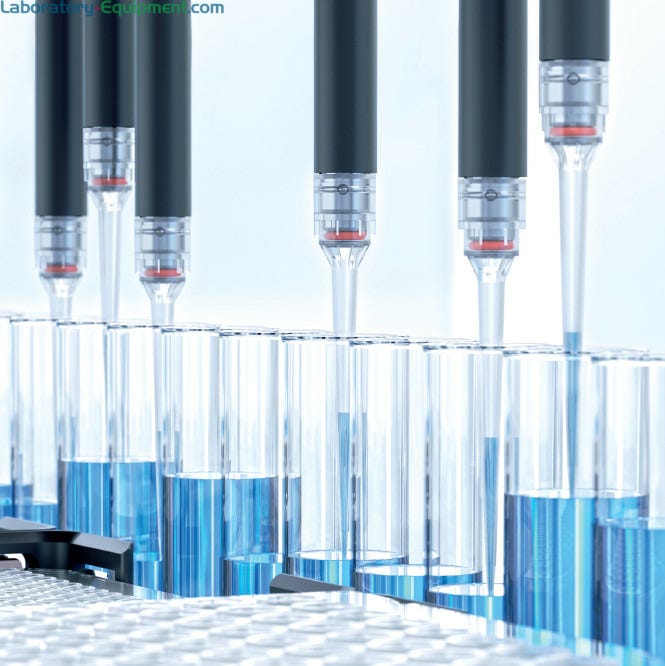

High-Precision Pipetting

Features monitored air displacement, CO-RE II for better tip attachment and precision, dual liquid level detection, anti-droplet control, and total aspiration and dispense monitoring

Wide Range of CO-RE Tips

CO-RE pipetting tips with a compressed O-ring expansion are compatible with all Hamilton Robotics liquid handling platforms
