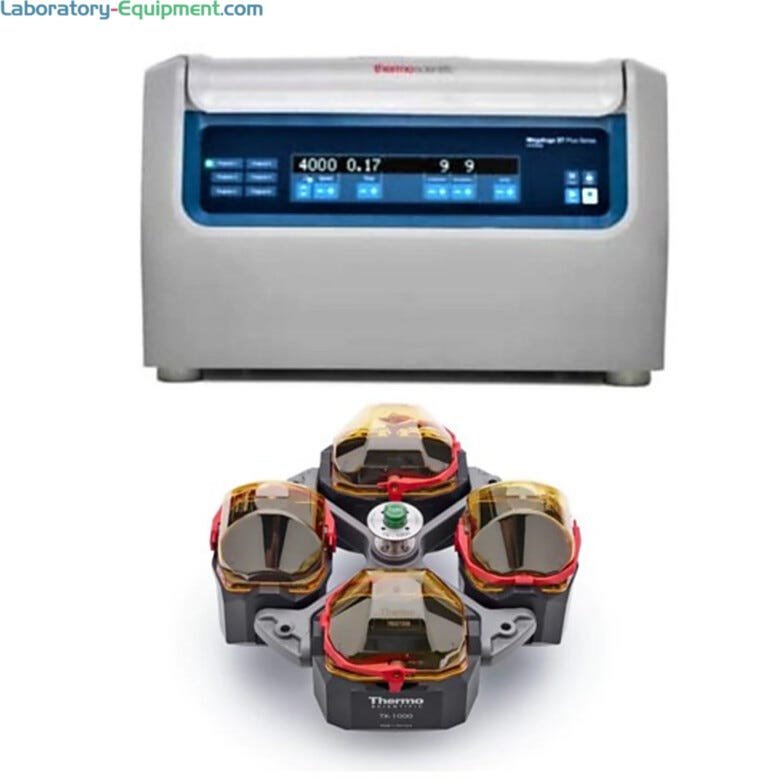

4L Benchtop Megafuge ST4 Plus Ventilated Centrifuge Packages by Thermo Scientific with TX-1000 rotor, lids and adapters for cell culture and blood tubes
Lab Centrifuges,Featured Lab Products
Product Group:
6708-PP-03
6708-PP-03 79696

Megafuge ST4 Plus Series Centrifuge Packages by Thermo Fisher Scientific

  • 4L Megafuge ST4 and ST4F Plus Centrifuge Packages with TX-1000 swinging bucket rotor
  • IVD certified benchtop and floor models include biocontainment lids, buckets and adapters
  • Features AUTO-LOCK III Rotor Exchange for easy rotor change without tools
  • Processes up to 196x5/7 ml blood tubes and 40x50 ml conical tubes
  • Application specific adapters for cell culture, tissue culture and blood tubes
Read more
cULus Logo Ships Free
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty; Five-year rotor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Configuration

Sort Order:
Capacity

Sort Order:
Maximum Speed

Sort Order:
Temperature Control

Sort Order:
Model

Sort Order:
Rotor Type

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part #Price Ships in
120 V Benchtop 4L 4200 rpm Refrigerated Megafuge ST4R Plus TX-1000 75016037 6708-22 79699 $15,933 10-14 Days2
Ships Free Free shipping in contiguous USA
120 V Free-Standing 4L 4200 rpm Refrigerated Megafuge ST4F R Plus TX-1000 75016059 6708-25 79703 $18,791 10-14 Days3
Ships Free Free shipping in contiguous USA
120 V Free-Standing 4L 4200 rpm Refrigerated Megafuge ST4F R Plus TX-1000 75017946 6708-26 79704 $18,878 10-14 Days4
Ships Free Free shipping in contiguous USA
120 V Free-Standing 4L 4200 rpm Ventilated Megafuge ST4F Plus TX-1000 75017960 6708-24 79702 $16,020 10-14 Days5
Ships Free Free shipping in contiguous USA
120 V Free-Standing 4L 4200 rpm Ventilated Megafuge ST4F Plus TX-1000 75017964 6708-23 79701 $16,020 10-14 Days6
Ships Free Free shipping in contiguous USA
120 V Benchtop 4L 4200 rpm Megafuge ST4 Plus TX-1000 75016050 6708-20 79697 $13,076 10-14 Days7
Ships Free Free shipping in contiguous USA
120 V Benchtop 4L 4200 rpm Megafuge ST4 Plus TX-1000 75016038 6708-21 79698 $13,076 10-14 Days8
Ships Free Free shipping in contiguous USA
Voltage
Configuration
Capacity
Maximum Speed
Temperature Control
Model
Rotor Type
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • 4L Megafuge ST4 and ST4F Plus Centrifuge Packages with TX-1000 swinging bucket rotor
  • IVD certified benchtop and floor models include biocontainment lids, buckets and adapters
  • Features AUTO-LOCK III Rotor Exchange for easy rotor change without tools
  • Processes up to 196x5/7 ml blood tubes and 40x50 ml conical tubes
  • Application specific adapters for cell culture, tissue culture and blood tubes
  • TX-1000 rotor specifications:
  • Maximum Speed: 3800 (ventilated); 4200 (refrigerated)
  • Maximum RCF: 4122 x g
  • Capacity: 4 x 1,000 mL or 24 microplate
  • Material: Slide Coat™ finish  (advanced lubricant and corrosion resistant coating)
  • Applications: clinical, chemistry, pathology, clinical and molecular microbiology, clinical immunology, pediatrics
  • Stores up to six saved programs and push-button operation ideal for routine applications
  • Temperature range for refrigerated models: -10°C to +40°C
  • Refrigerated model features: CFC-free refrigeration, <64 dB(A) Rotor F15-8x50c; 14500 RPM
  • Footprint for floor model centrifuges: 22.3 x 23.0
  • Safety features: SMARTSpin Imbalance detection, finger-pinch prevention, crash-proof construction
  • Megafuge ST4 and ST4F Plus Centrifuge features: ergonomic design, microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 6 programs, up to 9 hr. 59 minutes run time, count-down timer, G-force increments in 100 x g, time setting (hour/min and continuous mode), fixed pulse button, bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open access mode
  • Motorized lid latch for one-finger downward motion (closing and locking of lid)
  • Easy-to-clean and access rotor chamber
  • System certified by CAMR™ in Porton Down, UK.
  • 40% energy savings on standard protocols:  blood separation or conical tubes processing
  • SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option
  • ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation
  • Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches
  • Certifications/Compliance: EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15
  • Standards: ISO 14971, ISO 13485, ISO 9001
  • Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet
  • Stainless steel centrifuge bowl
  • Includes printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity
Show more

Show more
Features & Benefits

Features and Benefits

Autolock Rotor Exchange

Convenient push-button rotor exchange in as little as 3-seconds for trouble-free installation and removal without tools; easy-to-clean design minimizes risk of contamination

Convenient Biocontainment

ClickSeal Biocontainment lids minimize contamination and are ergonomically designed for one-handed open/close operation with gloves
