Worldwide Pricing and Secure Global Shipping Available!
5322-22
Terra Part # 5322-22
$11,652
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5322-22
59994
MaxQ 6000 Stackable Incubated Orbital Shaker, 50°F to +140°F Temperature Range, Thermo Fisher Scientific, SHKE6000, 120V
Product Details
  • 120V MaxQ 6000 Incubated Orbital Shaker includes two adjustable stainless steel shelves for increased storage capacity; requires universal or dedicated platforms
  • Large viewing window and internal light for sample visibility, and in-chamber electrical outlet for stirrers or rotators
  • Platform size: 18" x 18" stainless steel; stackable with adapter set (sold separately)
  • Speed Range: 15 to 500 rpm, ±1 rpm
  • Temperature Range: 50°F to 140°F
  • Applications: bacterial suspensions, hybridizations, solubility studies, diagnostic test, extraction procedures, washing procedures, general mixing, protein expression, staining and destaining, and plasmid purification
  • Capacity:
  • 25 250 ml flask capacity with a dedicated platform
  • 16 250 ml flask capacity with a universal platform
  • 2 x 6L Flasks
  • Specifications for SHKE6000:
  • Temperature Resolution: ±0.1°C
  • Orbit: 19 mm
  • Load bearing: 35 lbs.
  • Motor: Solid-state DC brushless
  • Timer Range: Continuous (displays time counts up) or timed operation from 0.1 minute to 999 hours (displays time counts down)
  • Interior material: corrosion-resistant stainless steel
  • Exterior material: durable powder-coated, cold-rolled steel
  • Platform: stainless steel
  • Interface: RS 232 enables remote monitoring of speed, time and temperature
  • Features:
  • Stackable floor model increases flexibility, versatility and saves lab space
  • Versatile model combines orbital shaking with general purpose incubation
  • Electrical outlet inside chamber for convenient connection to shakers, stirrers or rotators
  • Accepts up to 6L flasks
  • Variable speed control
  • Door: left or right hinged for convenient placement; can be configured by user
  • Safety interlock stops shaking motion when the door is open
  • Soft start eliminates sudden starts and stops
  • Precisely monitors and controls chamber temperature over complete range with ±0.1°C accuracy at 37°C with PID temperature controller
  • Overtemperature safety feature (with independent thermostat) controls heat if main temperature controller fails
  • Parameters retained during power failure; unit automatically restarts when power is restored
  • Visual/audible signal alert user to temperature deviation and turns off heat if temperature deviates ±1°C of setpoint or if unit operates ±10% of set speed
  • Three individual LED displays enable simultaneous viewing of speed, operating time and temperature; minimize errors in establishing running conditions
  • Stops platform motion upon detection of excess vibration due to unbalanced load
  • User-adjustable speed calibration with a digital handheld tachometer (for required verification and standardized protocols)
  • Accessories:
  • Adapter set for stacking two platforms #3522-3
  • Stacking Kit #SHK6000-10 for MaxQ 6000 Orbital Shakers
  • Requires universal (without clamps) or dedicated platforms (pre-installed clamps)
  • Universal and dedicated platforms
  • Clamps
  • Tubes, racks (full and half size), beakers and Erlenmeyer flasks

Type: Incubated

Shaking Speed: 15-500 rpm

Temperature Control: Yes

Temperature Range: Ambient +10 to 80°C

Model: MaxQ

Manufactured by: Thermo Fisher

Maximum Weight: 35 Pound

Orbit Diameter: 0.75 Inch

Platform Size: 18" x 18"

Manufacturer SKU: SHKE6000

Unit of Measure: EA

Marks & Listings: UL

Electrical Specifications: 110-240V

Weight, Product: 285 lb

Dimensions, Product: 27" W x 33" D x 40.5" H

Weight, Shipping: 330 lb

Dimensions, Shipping: 30" W x 36" D x 43" H

Package Type: Box

Buy Accessories

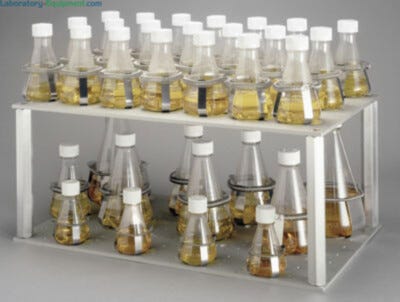

  1. Use different size labware on a single platform  |  3617-95 displayed
    Platform; Dual Stacked Platform, 18" x 18", Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $929
    Increase Down Increase Up
  2. Flask Clamp; 2500 mL, Low-form Culture Flask, Thermo Fisher Scientific
    Flask Clamp; 2500 mL, Low-form Culture Flask, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $172
    Increase Down Increase Up
  3. Flask Clamp; 2800 mL, Fernback Flask, Thermo Fisher Scientific
    Flask Clamp; 2800 mL, Fernback Flask, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $116
    Increase Down Increase Up
  4. Magnetic platform and accessories allow for instant exchange of individual vessles without use of tools.  |  5322-32 displayed
    Universal Clamp; 10 mL Flask, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $36
    Increase Down Increase Up
  5. Universal Clamp; 25 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 25 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $37
    Increase Down Increase Up
  6.  |  3617-67 displayed
    Universal Clamp; 50 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $39
    Increase Down Increase Up
  7. Universal Clamp; 125 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 125 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $36
    Increase Down Increase Up
  8. Universal Clamp; 250 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 250 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $43
    Increase Down Increase Up
  9. Universal Clamp; 300 mL Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 300 mL Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $47
    Increase Down Increase Up
  10. Universal Clamp; 500 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 500 mL Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock soon
    $48
    Increase Down Increase Up
  11. Universal Clamp; 1L Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 1L Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $63
    Increase Down Increase Up
  12. Universal Clamp; 2L, Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 2L, Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $89
    Increase Down Increase Up
  13. Universal Clamp; 4L, Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 4L, Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $111
    Increase Down Increase Up
  14. Universal Clamp; 6L, Erlenmeyer Flask Clamp, Thermo Fisher Scientific
    Universal Clamp; 6L, Erlenmeyer Flask Clamp, Thermo Fisher Scientific Ships Free Free shipping in contiguous USA In stock
    $136
    Increase Down Increase Up
  15. Saves lab space, provides protection and stores samples  |  5322-57 displayed
    Rack, 1.5 ml Microcentrifuge Tubes, Blue, 8 x 12 Array, Ships Free Free shipping in contiguous USA In stock
    $399
    Increase Down Increase Up

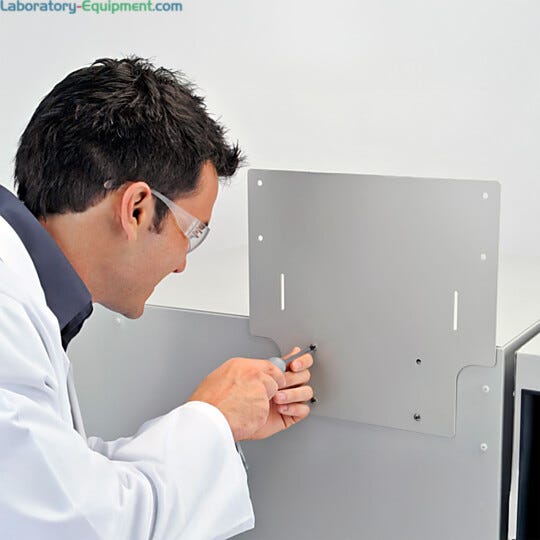

  16. Stacking Kit #SHK6000-10 for MaxQ 6000 Incubated/Refrigerated Orbital Shakers by Thermo Fisher Scientific  |  5322-24 displayed
    Stacking Kit for additional MaxQ 6000 Shaker Ships Free Free shipping in contiguous USA In stock
    $858
    Increase Down Increase Up
  17. Seismic Restraint for use w/ MaxQ 6000
    Seismic Restraint for use w/ MaxQ 6000 Ships Free Free shipping in contiguous USA In stock
    $571
    Increase Down Increase Up
  18. Microplate/Deep Well Plate for MaxQ Orbital Shakers
    Microplate/Deep Well Plate for MaxQ Orbital Shakers Ships Free Free shipping in contiguous USA In stock
    $41
    Increase Down Increase Up
  19.  |  1712-20 displayed
    Adhesive Flask Mat, 9 x 9 in, for MaxQ Shakers Platform, Thermo Fisher Ships Free Free shipping in contiguous USA In stock
    $65
    Increase Down Increase Up
  20. Utility tray  |  1712-09 displayed
    Platform; Utility Tray for MaxQ Orbital Shakers Ships Free Free shipping in contiguous USA In stock
    $628
    Increase Down Increase Up
  21. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Stackable

Space-saving MaxQ 6000 Shakers can be stacked to save lab space and the optional adapter set tiers two 18" x 18" platforms to double the shaking capacity

MaxQ 6000 Stacking Kit

Stacking Kit #SHK6000-10 enables vertical stacking of MaxQ 6000 Shakers for increased flexibility and usability ideal for small high-throughput labs

Accessories

MaxQ 6000 models accommodate a variety of flasks and tubes as well as required universal and dedicated platforms and clamps; adapter set for stacking two platforms also available
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • 30 x 25 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 30 x 50 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 15 x 125 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 10 x 250 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • Utility Tray platform for MaxQ Orbital Shakers

  • 25 x 250 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 9 x 1 L Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 25 x 250 ml Beaker Platform for MaxQ Orbital Shakers

  • Adhesive Flask Mat for MaxQ Shakers Platform
